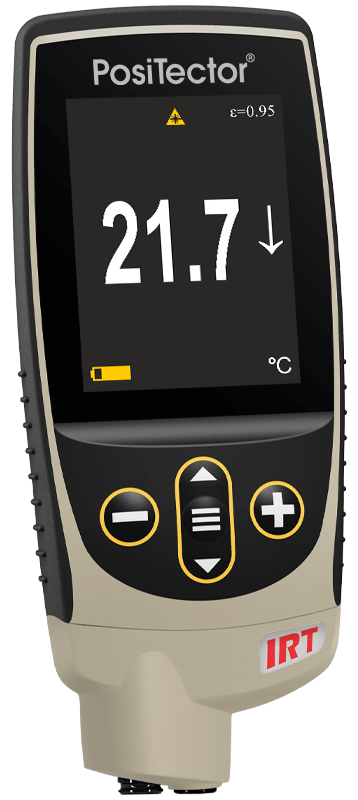

DeFelsko PosiTector IRT Infrared Thermometer

PosiTector IRT Infrared Thermometer

Non-contact surface temperature measurement

  • Button-activated laser pointer for accurate targeting
  • Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
  • Statistics Scan mode - continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • 5.7:1 distance to spot ratio -ideal for measuring large areas
  • Smart Trend indicators identify rising, falling or stable readings

Simple

  • Surface temperature is constantly updated and displayed simultaneously
  • Button-activated laser pointer for simple, accurate targeting
  • NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Non-contact sensor won't get caught or worn
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Fast response precision sensor provides accurate, repeatable readings
  • 5.7:1 distance to spot ratio - ideal for measuring large areas
  • Smart Trend indicators identify rising, falling, or stable readings

Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
  • NEW Auto rotating display with Flip Lock

Powerful

  • Scanning Statistics Scan Mode - continually displays/updates average, standard deviation, min/max surface temperature, and number of readings while measuring one reading per second
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • Pause function allows readings to be manually recorded
  • HiLo alarm audibly and visibly alerts when readings exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30 percent longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Includes PosiSoft suite of software for viewing, analyzing and reporting data
Specifications
  Range Accuracy
At 23 deg C (73.4 deg F) ambient
Resolution
Temp
Range
-70 deg to 380 deg C
+ \ - 1 deg C + 1 percent 0.1 deg C
-94 deg to 716 deg F
+ \ - 1.8 deg F + 1 percent 0.1 deg F
Laser Pointer Class 2 < 1mW
Distance to Spot Ratio (D:S) 5.7:1
Emissivity Adjustable
Response Time < 500 μs (95 percent response)
Spectral Response 2 - 14 μm

irt-laserlight

All gages come complete with IR temperature probe, protective rubber holster, wrist strap, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two year warranty.

SIZE*: 127 x 66 x 25.4 mm (5 x 2.6 x 1 inch)
WEIGHT: 137 g (4.9 oz.) without batteries
Size and weight are for the PosiTector gage body only and do not include the probe.





What is an infrared thermometer?

  • An infrared thermometer measures the thermal radiation emitted by an object without requiring contact.

How is the PosiTector IRT different than the PosiTector DPM IR?

  • Unlike the PosiTector DPM IR, the PosiTector IRT measures surface temperature only. The PosiTector DPM family measures a number of climatic parameters including relative humidity, air temperature and surface temperature allowing it to calculate dew point temperature and the all-important difference between surface temperature and dew point temperature (Ts-Td) - a vital parameter for industrial painters.
  • The PosiTector IRT has a larger distance to spot ratio and a button activated laser pointer for precise and accurate surface temperature measurement.

What is distance to spot (D:S) ratio and why is it important?

  • The distance to spot ratio refers to the relationship between the diameter of the area being measured compared to the instrument’s distance from that area. As the distance (D) from the measured surface increases, the spot size (S) of the area being measured becomes larger.
  • The D:S ratio of the PosiTector IRT is 5.7:1. For example, when the instrument is 85 cm (34 inches) from the surface, the spot size will be 15 cm (6 inches) in diameter. The temperature reported will be an average of the temperatures contained within the spot size. The greater the spot size, the more information will be gathered and averaged, giving you a better estimate of the area’s true temperature. A lower D:S ratio is advantageous when measuring large areas.

What is emissivity?

  • Emissivity refers to a material’s ability to emit infrared energy, compared to an ideal black surface at the same temperature. The PosiTector IRT has built-in emissivity settings for certain materials as well as user-adjustable emissivity options. Select from a list of preset emissivity options, manually adjust the emissivity value or adjust to a known temperature.
  • Most organic and painted surfaces have an emissivity of around 0.95. Shiny or reflective surfaces can be difficult to measure with an infrared thermometer, as they tend to reflect ambient infrared energy instead of emitting their own. To compensate for this, cover such surfaces with flat paint or a piece of electrical tape. Allow the paint or tape to acclimate to the surface’s temperature and take a measurement over the paint or tape.

Are infrared surface temperature thermometers such as the PosiTector DPM IR and the PosiTector IRT suitable for measuring the temperature of blasted steel?

  • Yes, but adjusting the emissivity setting is critical. Depending on surface treatment, metals such as blasted steel can have a broad range of emissivity values. Adjusting to a known temperature (measured by a direct contact surface temperature probe) on a representative sample will assist in obtaining an accurate emissivity value. Some blasted surfaces can reflect nearby sources of infrared energy, impacting results. DeFelsko recommends situational testing be done to determine accuracy.

What is measured with an infrared surface temperature probe and what are some typical applications?

  • An infrared surface temperature probe measures surface temperature from a distance without contacting the surface. An IR surface temperature thermometer is useful for measuring temperatures in areas where conventional sensors will not work including hard to reach areas and moving parts. Also ideal for measuring on objects whose temperature is above the recommended range for direct contact sensors or when contact with a sensor would damage the surface as is the case for freshly sprayed powder.
  • The 5.7:1 distance to spot ratio of the PosiTector IRT will average the temperature over a larger area and is ideal for quickly scanning large steel structures.



PosiTector DPM - Dew Point Meter
IRT1 PosiTector DPM 1 Standard - Integral Dew Point Meter
IRT3 PosiTector DPM 3 Advanced - Integral Dew Point Meter



positector probes

PosiTector Probes

PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage

ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument

PosiTector DPM - Dew Point Meter Accessories
PRINTERBT Bluetooth Printer for use with PosiTector 6000/DPM/SPG Advanced models only
LENSSHIELD-E Protective Lens Shields (5) for PosiTector 6000/DPM/SPG only
USBAC AC Power Kit for PosiTector series USBAC $45





IRT1
POSITECTOR IRT 1 STANDARD - INFRARED THERMOMETER
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: IRT1
DEFIRT1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$520.00

64
IRT3
POSITECTOR IRT 3 ADVANCED - INFRARED THERMOMETER
Mfg. item #: IRT3
DEFIRT3
Call for freight quote on this item or we will confirm freight charges before shipping.1
$970.00

64
PRINTERBT
BLUETOOTH PRINTER - FOR POSITECTOR ADVANCED
Mfg. item #: PRINTERBT
DEFPRINTERBT
Call for freight quote on this item or we will confirm freight charges before shipping.1
$335.00

64
LENSSHIELD-E
PROTECTIVE LENS SHIELDS (5PK) - FOR POSITECTOR
Mfg. item #: LENSSHIELD-E
DEFLENSSHIELD-E
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10.00

64
USBAC
USB/AC ADAPTER POWER KIT - FOR POSITECTOR
Mfg. item #: USBAC
DEFUSBAC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$45.00

64
