DeFelsko PosiTector PC Powder CheckerNo

PosiTector PC Powder Checker

PC CHECKER on moving parts

Advanced technology allows
measurements on moving parts



POWDER CHECKER - Uncured Powder Thickness

PosiTector PC Powder Checker - Non-contact coating thickness gage measures uncured powder and predicts cured thickness.

Simple

  • Hand-held, battery operated
  • No calibration adjustment required for most powders
  • Thickness results appear on both gage body and probe

Durable

  • Solvent, acid, oil, water and dust resistant ideal for powder coating environments
  • Shock-absorbing, protective rubber holster with belt clip
  • Replaceable screen protects the probe
  • Two year warranty on both gage body and probe

Accurate

  • Conforms to ASTM D7378
  • Allows measurement on small tubes, odd shapes and moving parts
  • Easy calibration adjustment options to improve accuracy on unusual powders or substrates

Versatile

  • Wireless probe communicates with Advanced gage body up to 10m away (30 feet). No cable to risk disturbing applied powder
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Uses alkaline or rechargeable batteries (built-in charger)
  • PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and more

positector bodies accept all 600, 200, dpm, utg, spg, and rtr probes

Powerful

  • Hi Contrast reversible color LCD
  • Real time graphing, picture prompting and more
  • Batch annotation add notes and change batch names with onscreen QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and connects with mobile devices for expanded functionality
  • Wireless Access Point - directly connect your smart device (phone/tablet) or WiFi-enabled computer to a PosiTector Advanced body without the need for WiFi network access or a Mobile Hotspot.
  • Data transfer via USB to a PC or via Bluetooth Wireless Technology to a PC or printer
  • Continually displays/updates basic statistics including min/max and average
  • Storage of 100,000 readings in up to 1,000 batches
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft solutions for viewing, analyzing and reporting data:
    • PosiSoft Desktop v 4 - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
    • PosiSoft.net account - a free web-based application offering secure storage of thickness readings
    • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • Gage generates formatted reports with measurement summaries and charts
  • Software updates via web keep your gage current

Complete solutions for measuring powder coatings before and after cure.

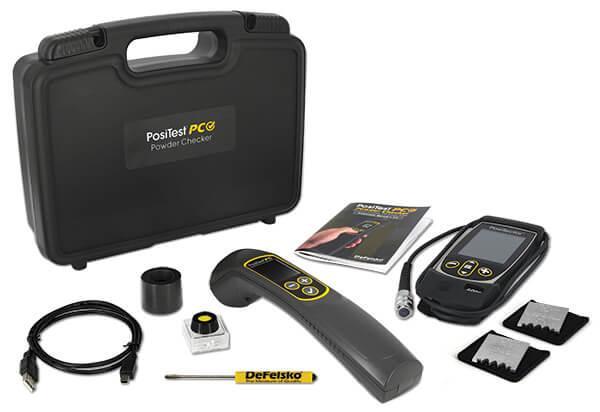

Each Powder Inspection Kit contains:

  • PosiTector Advanced Gage Body
  • PosiTector PC non-contact uncured powder thickness probe
  • PosiTector 6000 coating thickness probe — select from a variety of measurement ranges and probe styles
  • 2 DeFelsko Powder Combs (models 1 & 4) with measuring ranges of 3 to 12 mils and 75 to 300 μm

Custom Inspection Kits

  • Select from 4 pre-configured kits or build your own
  • Build your own Powder Inspection Kit from a selection of probes to suit your needs
  • PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and more.

DeFelsko Powder Comb (included)

  • This simple. easy-to-use gage measures the thickness (height or depth) of applied dry coating powders in the pre-cured, pre-gelled state.
powdr kit
inspection kit chart

powder inspection kitsKits come complete with

  • Advanced gage body
  • uncured powder thickness probe
  • coating thickness probe (user selected)
  • precision plastic shims
  • protective rubber holster with belt clip
  • wrist strap
  • carbineer
  • 3 AAA batteries (gage body)
  • 3 AA batteries (probe)
  • Probe connector cover
  • replacement probe screen
  • probe zeroing fixture
  • 3 instruction manuals
  • instructional video
  • hard shell case
  • protective lens shield
  • Long Form Certificate of Calibration traceable
    to NIST (6000 probe only)
  • USB cable and two (2) year warranty on gage body and probes.

Case Size
30 cm (l) x 25 cm (w) x 10 cm (d)
12 inch (l) x 10 inch (w) x 4 inch (d)

Weight
1.3 kg (2.8 lbs.)





specfications chart

Base Unit

  • Size: 146 x 64 x 31 mm (5.75" x 2.5" x 1.2")
  • Weight: 165 g (5.8 oz.) without batteries

Probe

  • Size: 222 x Ø50 mm (8.75" x Ø2.0")
  • Weight: 272 g (9.6 oz.) without batteries

Gage Comes Complete

  • with base unit and probe, protective rubber holster with belt loop and magnetic mount, probe fixture, 3 AAA batteries (base unit), 3 AA batteries (probe), instructions, instructional video, replacement probe screen, USB cable, carabiner and wrist strap, durable carrying case, two (2) year warranty.
carrying case



   PosiTector PC PosiTector Powder Inspection Kits
  positector pc

positector inspection kits

 Order Code

PC3-E KITPCF3 KITPCFS3 KITPCFN3 KITPCFNS3
 PosiTector body Advanced Advanced
 PosiTector PC probe PRBPC PRBPC
 PosiTector 6000 probe Not Included 6000-F
(ferrous only)
6000-FS (ferrous only, with cable) 6000-FN (ferrous & non-ferrous) 6000-FNS
(ferrous &
non-ferrous
with cable)
 Powder Combs Not Included

Model 1
Model 4

Model 1
Model 4
Model 1
Model 4
Model 1
Model 4
 Protective Rubber Holster Included Included
 Hard Shell Case Included Included



Q. Are there different models of the PosiTector PC to choose from?
A. No. There is 1 model consisting of an Advanced gage body and probe (ordering code: PC3-E). You can purchase the probe separately (ordering code: PRBPC) for use with Advanced gage bodies with serial numbers greater than 700,000 (manufactured after April 2011).

Q. What has changed from the previous versions?
A. The PosiTector PC probe remains unchanged with the same range, resolution and accuracy. The PosiTector PC contains all of the ​features of the Advanced gage body including...

  • Hi Contrast reversible color LCD
  • Storage of 100,000 readings in up to 1,000 batches
  • Batch annotation add notes and change batch names with onscreen QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and connects with mobile devices for expanded functionality
  • PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and more
  • PosiSoft solutions for viewing analyzing and reporting data include PosiSoft USB, PosiSoft.net, PosiSoft 3.0 Desktop software and PosiSoft Mobile

Q. Can I purchase a new PosiTector PC probe for my existing PosiTector Advanced gage body?
A. Yes. PosiTector Advanced gage bodies manufactured after April 2011 with serial numbers greater than 700,000 support the NEW PosiTector PC probe. Simply update your existing PosiTector by following step by step instructions at www.defelsko.com/update. The PosiTector PC probe will NOT work on Standard gage bodies.

Q. Can I use my previous generation PosiTector PC probe on my new model PosiTector gage body?
A. Yes. A quick reset will allow the PC probe to communicate with all new gage bodies. Once reset, however, the PC probe will be unable to communicate with the previous generation gage body unless both are returned for service.

Q. Can I connect other probes?
A. Yes. The PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and more.

Q. What are the optional accessories?
A.  Replacement Probe Screens (Qty. 2) to protect the probe transducer, Bluetooth Printer  battery-operated printer receives measurement data, AC Power Cable provides continuous operation or battery charging works in any country, Rechargeable Batteries a set of eneloop NiMH AAA batteries, Hard Shell Inspection Case durable carry case, Protective Lens Shield (Pkg of 5)  protect the display from overspray

Q. Does the PosiTector PC conform to existing standards and test methods?
A. Yes. The PosiTector PC complies with ASTM D7378, Standard Practice for Measurement of Thickness of Applied Coating Powders to Predict Cured Thickness.

Q. Why measure uncured powder?
A. Coatings must be applied within certain minimum and maximum dry film thickness specifications. But waiting to measure coating thickness after curing can result in product waste and production delays. Accurate measurement at the time of application:

  • Eliminates over usage
  • Improves quality
  • Controls set-up
  • Reduces waste
  • Saves money!

Q. Can I purchase a complete solution for measuring powder coating before and after cure?
A. Yes. NEW PosiTector Powder Inspection Kits are available. Each kit contains a PosiTector Advanced gage body, PosiTector PC uncured powder thickness probe, user-selected PosiTector 6000 coating thickness probe and the 2 most popular DeFelsko Powder Combs.

Q. How do you operate the PosiTector PC?
A. Turn both the probe and gage body on, press the probe button and hold it 18 mm (0.75”) from the part for 2 to 5 seconds. The predicted cured thickness result immediately appears on both the probe and gage body displays.

Q. How does it work?
A. The probe uses ultrasound to non-destructively analyze applied powder in seconds. Information passes between the probe and the gage body via a fast Bluetooth wireless connection.

Q. Is there a Certificate of Calibration?
A. No. Certificates of Calibration show traceability to a National Standard and no dry powder thickness standard exists at this time. The PosiTector PC Powder Checker is an in-process tool. To confirm final thickness meets specification, measure the cured coating with a PosiTector 6000 dry film thickness probe. A Certificate of Calibration is included with every PosiTector 6000 probe.

Q. Can the PosiTector PC store or print data?
A. Yes. The PosiTector PC features PosiSoft® USB Drive for storing readings and to download stored readings to a PC or Mac. Additionally, readings can be synchronized with PosiSoft.net (formerly PosiTector.net) for storing, printing or sharing with authorized users. Also features data transfer via WiFi to a personal computer or via Bluetooth to a personal computer or optional Bluetooth printer.

Q. What is PosiSoft.net?
A. A cloud based web application offering secure centralized management of thickness readings. It allows the user to upload readings, download images, manipulate data, generate reports and graphs, share data with other authorized users, and export data to XML and text files.  See http://www.defelsko.com/PosiSoftNET/ for more details.

Q. Are there alternative ways to measure uncured powder?
A. Yes. Handy, inexpensive powder combs are available. Coating powders diminish in thickness during the curing process, so measuring powder height in the pre-cured, pre-gelled state requires a correlation factor be calculated and applied to every measurement for every powder. Two popular Powder Comb models are included with each PosiTector Powder Inspection Kit.

Q. Can I measure cured powder thickness with the PosiTector post cure?
A. Yes. Simply connect a PosiTector 6000 dry film thickness probe to measure the cured powder coating thickness.

Q. Does the PosiTector PC imprint or dimple the powder?
A. No contact is made during measurement and there are no cables to accidentally brush and disturb the powder.

Q. How far away can the wireless probe be from the gage body to measure remotely?
A. The wireless probe has a range of 10m (30 ft.).

Q. What happens if I move the probe further than 10m (30ft) from the gage body?
A. Communication between both units will temporarily cease if they are moved beyond radio range of each other. The probe will simply stop working but will resume operation when brought back within radio range of the gage body.

Q. How do I know that the gage body has received my readings?
A. The instrument will not operate unless the probe and gage body are communicating with each other. Set-up is simple. Each measurement result is displayed on both the probe and gage body. Both units beep and flash simultaneously. Both will power-down automatically after a period of no activity.

Q. Can I pair the probe with another Bluetooth device?
A. No. The data transmitted between the probe and the gage body is secure . Neither the probe nor gage body can be paired with another Bluetooth device. The probe will only communicate with an Advanced gage body.

Q. Do I have to hold the probe steady during measurement?
A. No. In fact, the instrument performs best when there is slight movement. It was designed to measure moving parts on hooks.

Q. When measuring, the result on the probe and gage body occasionally changes by several digits after I remove my finger from the probe. Is this OK?
A. Yes, this is normal operation. There is a queue of samples that are still being processed after the button is released.

Q. What types of batteries are used?
A. The wireless probe uses 3 AA alkaline batteries. The gage body uses 3 AAA alkaline batteries. Battery icons display a full bar with fresh alkaline batteries installed. As the batteries weaken, the bar will be reduced. When the battery icon is low, the instrument can still be used, but the batteries should be changed at the earliest opportunity.

PC Powder Checker
KITPC PosiTector PC 3 Advanced
PC3-E PosiTector PC Powder Checker
PRBPC PosiTector Checker Probe
KITPCSCRN Probe Screens (package of 2)



positector probes

PosiTector Probes

PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage

probe screen

Replacement Probe Screens

Used to protect the probe transducer (Qty. 2)



ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument



KITPC
POSITECTOR PC 3 ADVANCED POWDER THICKNESS KIT
Mfg. item #: KITPC
DEFKITPC
lease to own for as little as:$80 per month!
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$3,995.00

120
PC3-E
POSITECTOR PC POWDER CHECKER POWDER THICKNESS GAGE
Mfg. item #: PC3-E
DEFPC3-E
lease to own for as little as:$80 per month!
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$3,995.00

120
PRBPC
POWDER CHECKER PROBE FOR POSITECTOR
Mfg. item #: PRBPC
DEFPRBPC
lease to own for as little as:$66 per month!
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$3,315.00

120
KITPCSCRN
PROBE SCREENS (PACKAGE OF 2) FOR POWDER THICKNESS GAGE
Mfg. item #: KITPCSCRN
DEFKITPCSCRN
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$50.00

120
