Denray Booths

Denray mini booth denray booth
Denray 4872MB Mini Booth Denray 85120 Booth



Denray mini booth

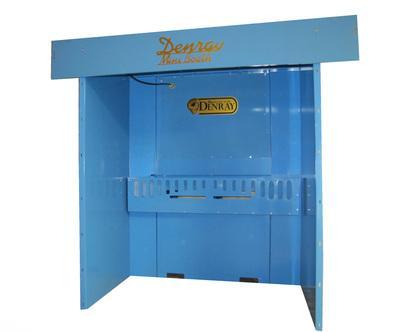

Denrays 4872MB or Mini Booth is designed to provide a user-friendly solution for larger items or parts that need to be moved in on carts.  The Mini Booth comes with remarkable size versatility.  Standard size is 72 inch; one or two 12 inch panels can be ordered to create a 7-foot or 8-foot work area.  The standard depth is 36 with 24 inch sides which can also be expanded by ordering additional depth panels.  Standard filters for the Mini Booth are 80/20 filter media and the Grind models are 100 percent polyester Spunbond filters.  Both filters clean at 99.95 percent efficiency at .5 micron. Cleaning is done by the Jet Pulse Automatic Cleaning System, which uses compressed air from within the air tank. On our Grind model, Mini Booth, we also include a spark baffle containing steel mesh filter which creates a barrier to stop the heavy sparks from traveling to the cartridge filters, extending the life of the filters.  All Mini Booths come standard with a muffler.

Additional Options:
  • Easily Expandable to 7 or 8 feet in width
  • Easily Expandable Depth
  • For best dust capture, work should be done with available side panels
  • Light Bars available
  • HEPA Filter Banks
  • Carbon Filter Banks (odor control)



denray booth

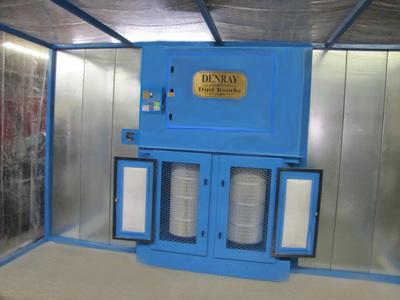

Denrays 85120 model comes equipped with a 10 HP motor, developing a CFM of 10,000, to a maximum width of 14' (widths over 14' require multiple power units). Dust Booths work great for a larger application, conveyor systems, or any item too large for a downdraft table. Denray offers offline filter cleaning that takes 7 minutes and can be done during breaks, lunch or at the end of the workday. Deep filter cleaning is done by closing filtered doors and pushing the Clean button. The filtered doors help prevent dust from blowing back into the work area while filters are being deep cleaned. Denray does not just have booths available for dust applications, but also grinding/metal applications as well. Prided on building custom tables, we also build custom booths.
Additional Options:
  • We specialize in Custom; all work area sizes are different
  • Booths are available deeper than the standard 10'
  • Booths height may be altered
  • Light Bars available
  • Downdraft floors can be built
  • HEPA Filter Banks
  • Carbon Filter Banks (odor control)
  • 10 HP Motor with a VFD which would produce 12,000 CFM
