Denray Grind Down Draft Tables

PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

2635G 2872G 3044 3644CG
2635G 3872G 3044 3644CG
3648G 3648SDG 3660G 3672G
3648G 3648SDG 3660G 3672G
4800G 7200G 9600G
4800G 7200G 9600G



Grind Downdraft Tables

With many options to choose from, we are sure you will find the right tablet o meet your needs!

Denray grind downdraft tables are made for the general grinding of ferrous metals and come equipped with water pans built over the filters to help protect them from hot sparks.  The flame-retardant 100 percent Spunbond polyester cartridge filters clean to .5 micron.   These tables come equipped with Denray's Jet Pulse push-button cleaning, which can be set with an automatic timer.

PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Models Casters Muffler Auto Timer Magnehelic
Gauge
2635G Standard N / A N / A N / A
2872G Optional Optional Standard Standard
3044 Standard N / A Optional Standard
3644CG Standard Optional N / A Optional
3648G Standard Optional Optional Optional
3648SDG Standard Optional Optional Optional
3660G Optional Optional Optional Standard
3672G Optional Standard Standard Standard
4800G Optional Optional Standard Standard
7200G Optional Standard Standard Standard
9600G Optional Standard Standard Standard
85120G N / A Optional Standard Optional

All tables are equipped with water pans

PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Denray grind downdraft table

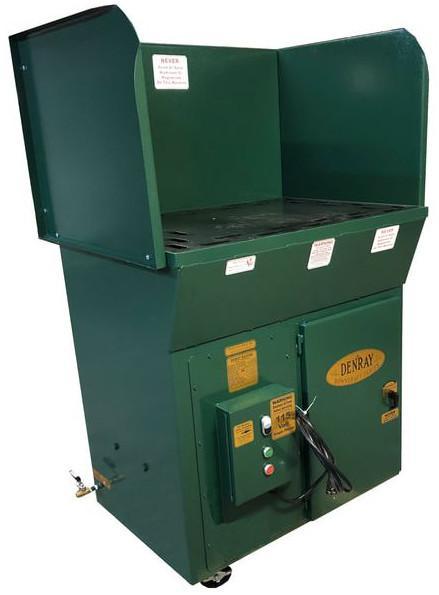

This model is perfect for work on smaller parts. The 2635G is designed to capture dust created during grinding with hand-held grinders. This model comes standard with one Spunbond flame retardant filter, which cleans with a 99.95 percent capture rate at 0.5 micron. The 3/16 inch metal plate tabletop provides a durable grinding surface, and is surrounded on three sides with a 20 inch non-hinged shield for spark protection. A spark filter is placed over the filter to help protect the filter from exposure to hot sparks and extend the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning, which uses the compressed air inside the air tank.

Features:

  • 26 x 35 inch
  • 36 inch HEIGHT
  • 1 HP MOTOR
  • 1975 CFM
  • 70 DECIBELS SOUND LEVEL​

SINGLE-PHASE

  • 115 VOLTAGE (14 AMPS)
  • 220 VOLTAGE (7 AMPS)

THREE-PHASE

  • 230 VOLTAGE (3.6 AMPS)
  • 460 VOLTAGE (1.8 AMPS)
  • 575 VOLTAGE (1.2 AMPS)

Options:

  • Light Bar
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • HDPE plastic tabletop
  • Fiberglass Grate top
  • Rubber Mat for Steel Tabletop
  • Stainless Steel tabletop
  • Hydraulic Height Adjustment​

PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

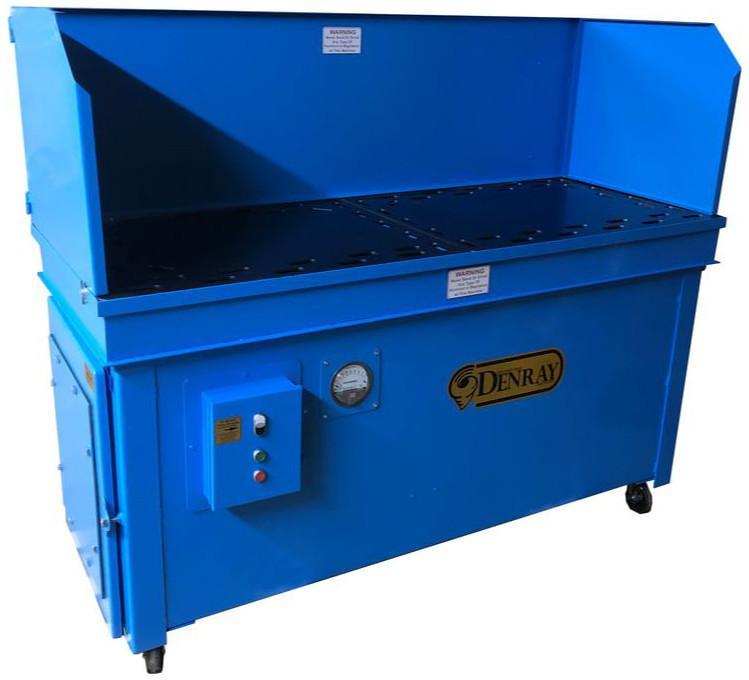

Denray grind downdraft table

This model is designed to accommodate a variety of sanding, metal grinding, welding, and light plasma applications. The 2872G comes standard with one 100 percent polyester flame retardant filter, which cleans with 99.95 percent capture rate at 0.5 micron. The table top surface is composed of durable 1/4 inch metal plate and has a removable spark shield with hinged ends, which provides spark protection for area workstations. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning, which uses the compressed air inside the air tank.

Features:

  • 28 x 72 inch
  • 36 inch HEIGHT
  • 3 HP MOTOR
  • 3600 CFM
  • 76 DECIBELS SOUND LEVEL​

SINGLE-PHASE

  • 220 VOLTAGE (11.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (8.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Casters
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Fiberglass Grate top
  • Rubber Mat for Steel Tabletop
  • Stainless Steel Tabletop
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Smoke Arm
  • Larger Motor/Fan Up-grade​

PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

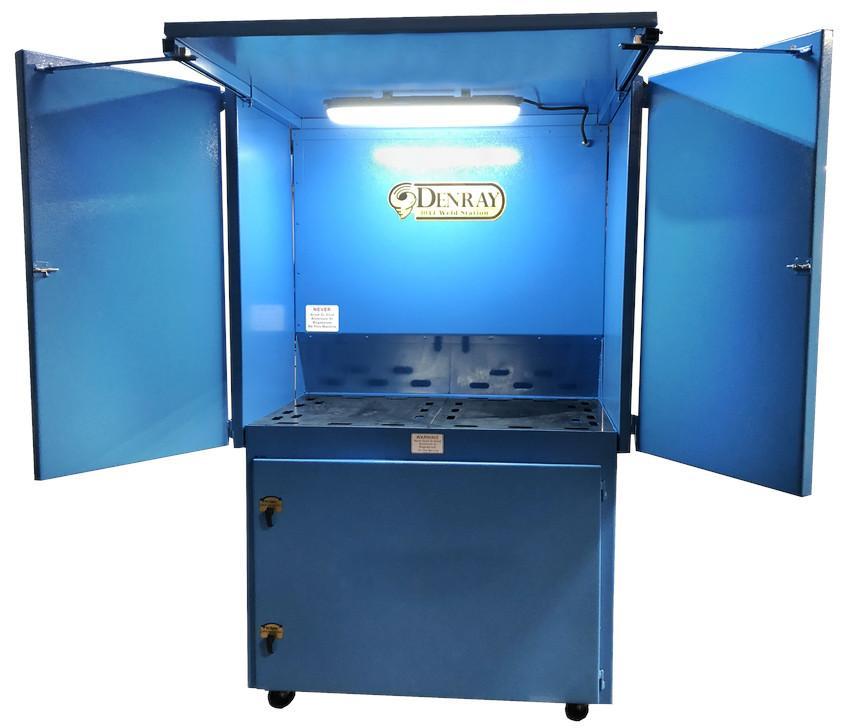

3044 Weld Station

The Model 3044 Weld Station is designed to accommodate a variety of metal grinding, welding, and light plasma applications.  The 3044WS comes standard with two - 13 x 27 inch  100 percent polyester Spun-bond flame retardant filters, which clean with 99.95 percent efficiency at 0.5 micron.  Two trays measuring at 17 x 24 x 1 inch (each) containing spark arresting Quartz 3/16 inch stone is placed over the main filters helping to protect them from exposure to hot sparks and extends the life of the filters. This table is also equipped with Push-button cleaning, and expandable side shields and hood. Each side shield has double folding sides (pictured above).

The table is 30 inch deep and 44 inch wide constructed of 11 and 16 gauge carbon steel, painted with industrial enamel blue. The 3044WS has a two piece table top made of 3/16 inch steel making the top very user friendly and the table great for smoke removal with minimal gas disturbance.

Features

  • 47 x 38 inch (+26 inch with additional fold out sides)
  • 82 inch HEIGHT and 900 lbs WEIGHT (HEPA filters would add 27 inch height and 14 inch depth in the back)
  • 2 HP MOTOR
  • 16.5 inch FAN
  • 2850 CFM
  • CASTERS
  • MAGNEHELIC GAUGE
  • 24 inch LED LIGHTBAR
SINGLE-PHASE
  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)
THREE-PHASE
  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Auto-timer
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Larger Motor/Fan Upgrade​  (3300 CFM w/ upgraded 3 HP motor w/ 18” fan)



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

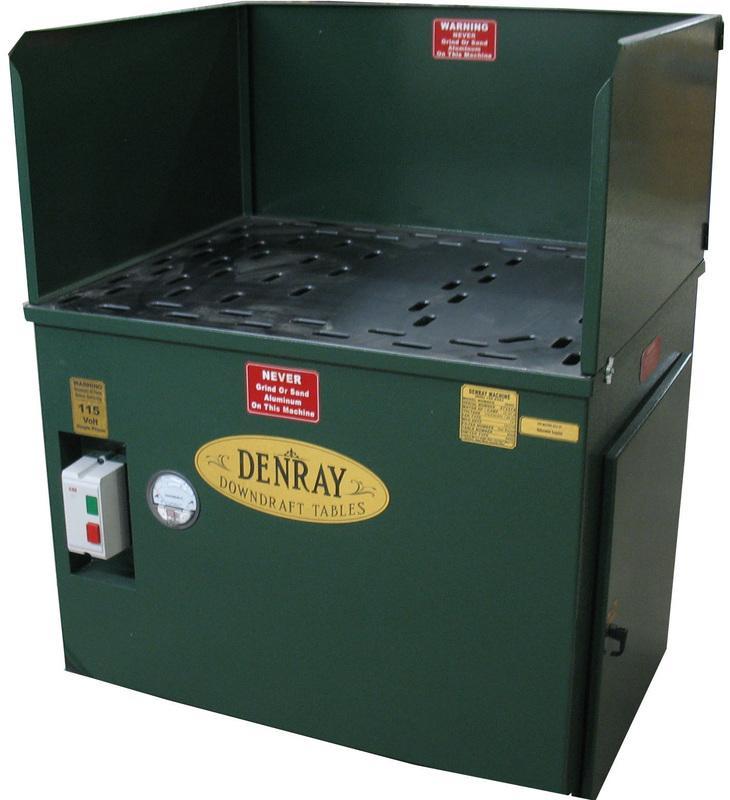

Grind Downdraft Tables


Denray has designed a table for the budget minded company. This unit is designed for TIG welding and most MIG welding applications. With 3 stages of filters, first a 2 inch thick steel mesh spark arresting filter (cleanable), second a 4 inch Merv 8 pre-filter that will stop the majority of particles, and third a 4 inch Merv 13 main filter to capture the fine particles produced by welding smoke. Due to the lower cost of these filters most companies will dispose of these when the Magnehelic gauge shows they are plugged. The filters are easily accessible, reducing operator down time, allowing more time for production. This model also comes standard with casters, 1/4 inch metal plate top and removable 3-sided hinged spark shield.

Features:
  • 36 x 44 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 2700 CFM
  • 78 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)
THREE-PHASE
  • ​230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Magnehelic Gauge
  • Fiberglass Grate top
  • Rubber Mat for Steel Tabletop
  • Stainless Steel Tabletop
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Smoke Arm
  • Larger Motor/Fan Upgrade​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

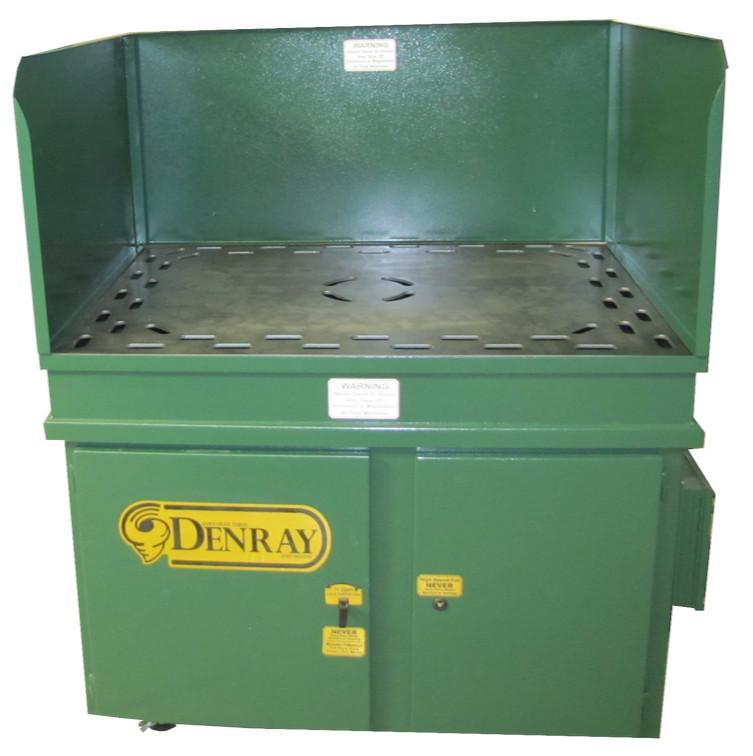

This model is designed to accommodate a variety of sanding, metal grinding, welding and light plasma applications. The 3648G comes standard with one 100 percent polyester flame retardant filter, which cleans with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning which uses the compressed air inside the air tank. Table top surface is composed of durable single piece 1/4 inch metal plate. A removable spark shield with hinged ends provides spark protection for area work stations.

Features

  • 36 x 48 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 78 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)
THREE-PHASE
  • ​230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Auto-timer
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Spark Shield
  • Magnehelic Gauge
  • Smoke Arm
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade​





PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

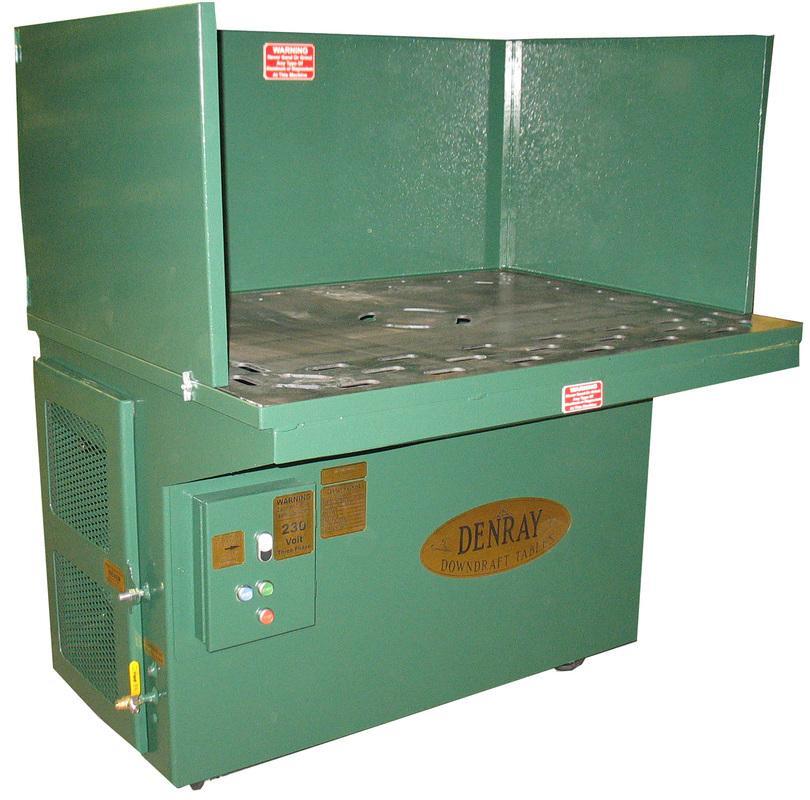

This model is s Sit Down machine, designed to accommodate a variety of sanding, metal grinding, welding and light plasma applications. The 3648SDG comes standard with one 100 percent polyester flame retardant filter, which cleans with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning which uses the compressed air inside the air tank. Table top surface is composed of durable single piece 1/4 inch metal plate. A removable spark shield with hinged ends provides spark protection for area work stations.

Features:

  • 36 x 48 inch
  • 30 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 65 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)​
THREE-PHASE
  • ​​230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Auto-timer
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Spark Shield
  • Magnehelic Gauge
  • Smoke Arm
  • Hydraulic Height Adjustment​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

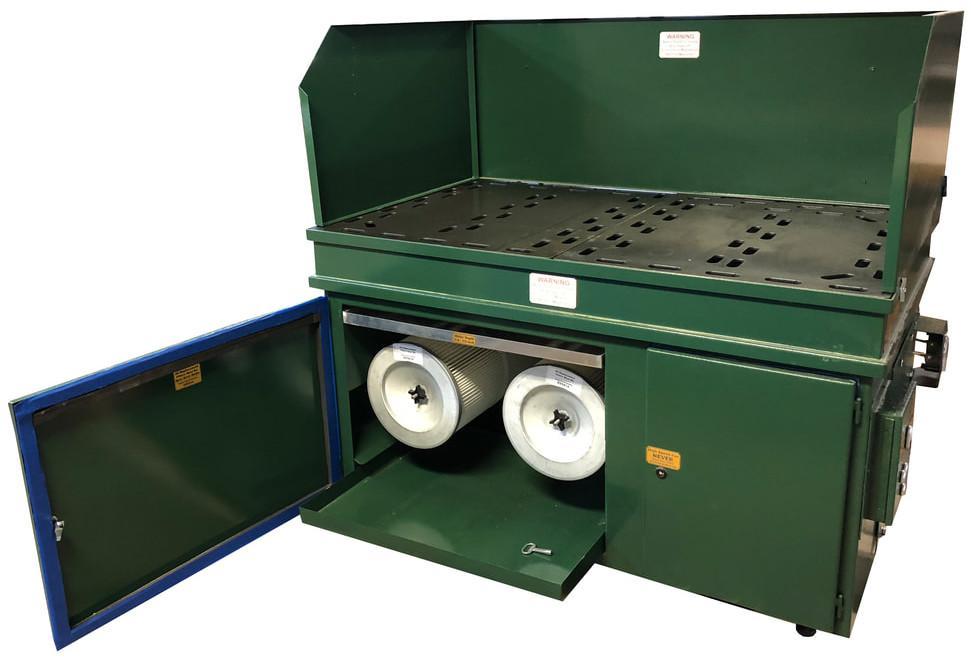

Grind Downdraft Tables



This model is designed to accommodate a variety of sanding, metal grinding, welding and light plasma applications. The 3660G comes standard with one 100 percent polyester flame retardant filter, which cleans with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning which uses the compressed air inside the air tank. Table top surface is composed of durable single piece 1/4 inch metal plate. A removable spark shield with hinged ends provides spark protection for area work stations.

Features:

  • 36 x 60 inch
  • 36 inch HEIGHT
  • 3 HP MOTOR
  • 3600 CFM
  • 77 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 220 VOLTAGE (11.8 AMPS)
THREE-PHASE
  • 230 VOLTAGE (8.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Auto-timer
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Spark Shield
  • Smoke Arm
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

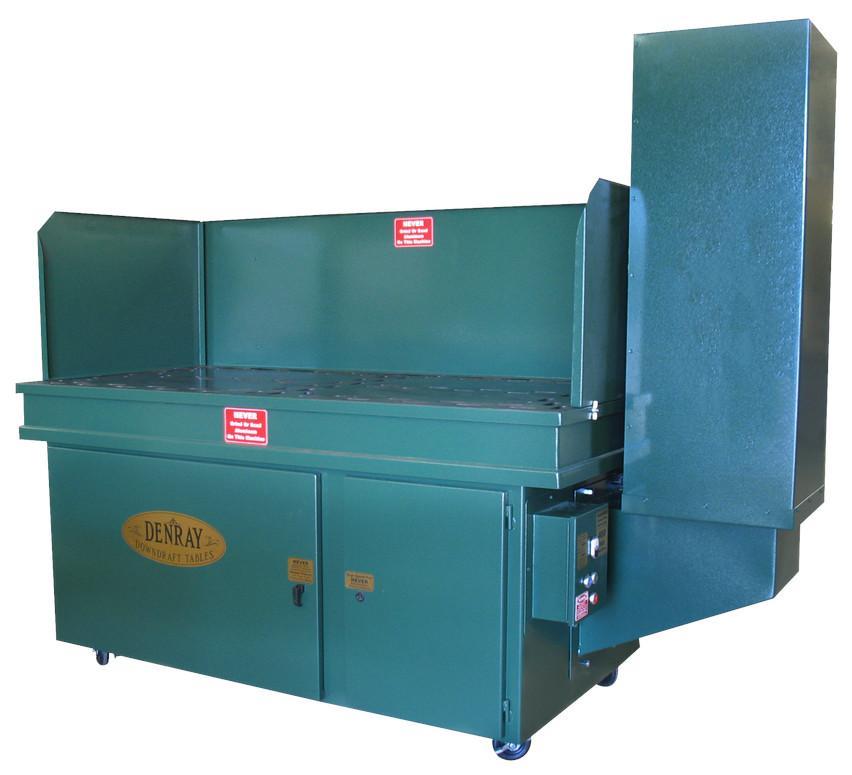

This model is designed to accommodate a variety of sanding, metal grinding, welding and light plasma applications. The 3672G comes standard with a muffler and one 100 percent polyester flame retardant filter, which cleans with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning which uses the compressed air inside the air tank. Table top surface is composed of durable single piece 1/4 inch metal plate. A removable spark shield with hinged ends provides spark protection for area work stations.

Features:

  • 36 x 72 inch
  • 36 inch HEIGHT
  • 3 HP MOTOR
  • 4000 CFM
  • 79 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 220 VOLTAGE (11.8 AMPS)
THREE-PHASE
  • 230 VOLTAGE (8.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Smoke Arm
  • Hydraulic Height Adjustment​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

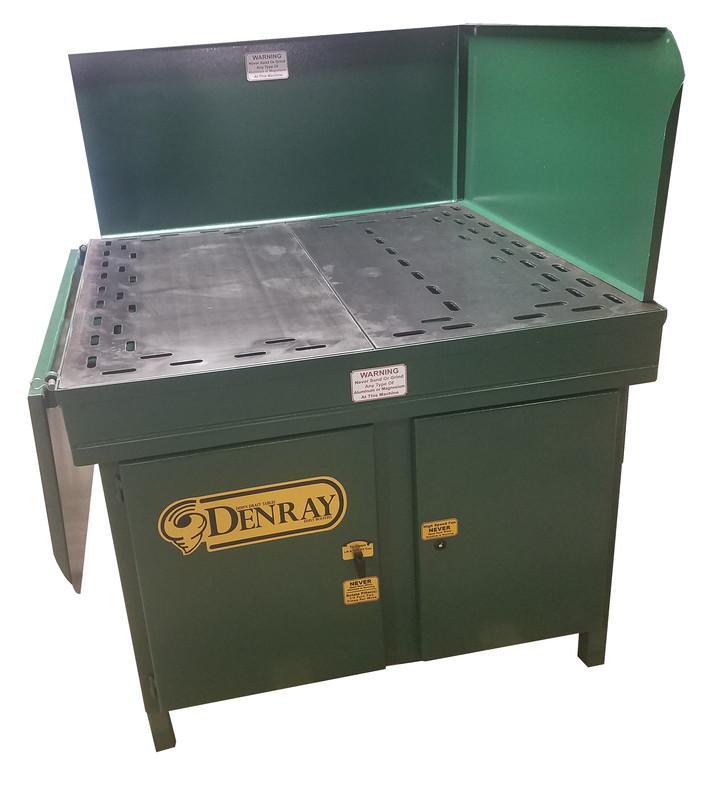

This model is designed to accommodate a variety of sanding, metal grinding, welding and light plasma applications. The 4800G comes standard with one 100 percent polyester flame retardant filter, which cleans with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filter helps protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning which uses the compressed air inside the air tank. Table top surface is composed of durable single piece 1/4 inch metal plate. A removable spark shield with hinged ends provides spark protection for area work stations.

Features:

  • 48 x 48 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 78 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)
THREE-PHASE
  • ​230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Auto-timer
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Magnehelic Gauge
  • Smoke Arm
  • 24 inch Turntable
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Up-grade​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

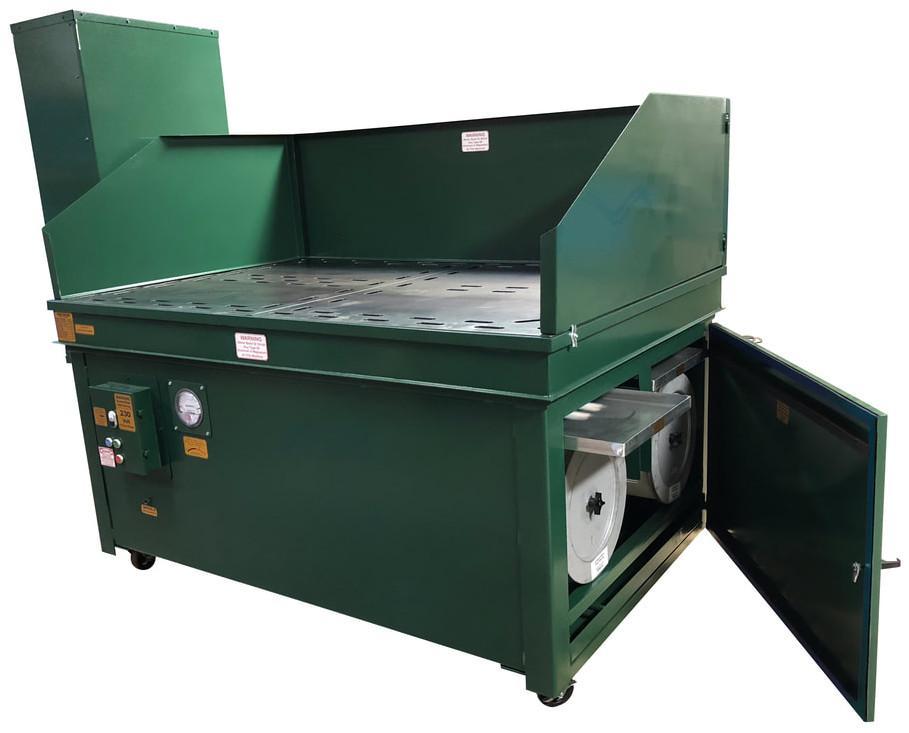

This model is designed to accommodate a variety of sanding, metal grinding, welding, and light plasma applications. The 7200G comes standard with two 100 percent polyester flame retardant filters, which clean with 99.95 percent efficiency at 0.5 micron. A water pan placed over the filters help protect it from exposure to hot sparks and extends the life of the filter. Cleaning is done by the Jet Pulse Automatic Cleaning, which uses compressed air inside the tank. The table top 2 piece surface is composed of durable 1/4 inch metal plates and a removable spark shield with hinged ends.

Features:

  • 72 x 48 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 4300 CFM
  • 80 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 220 VOLTAGE (23 AMPS)
THREE-PHASE
  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Smoke Arm
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade​



PLEASE NOTE THAT AS OF 2019 DENRAYS GRIND MODELS ARE NO LONGER
PAINTED GREEN AND ARE NOW PAINTED OUR STANDARD DENRAY BLUE

Grind Downdraft Tables

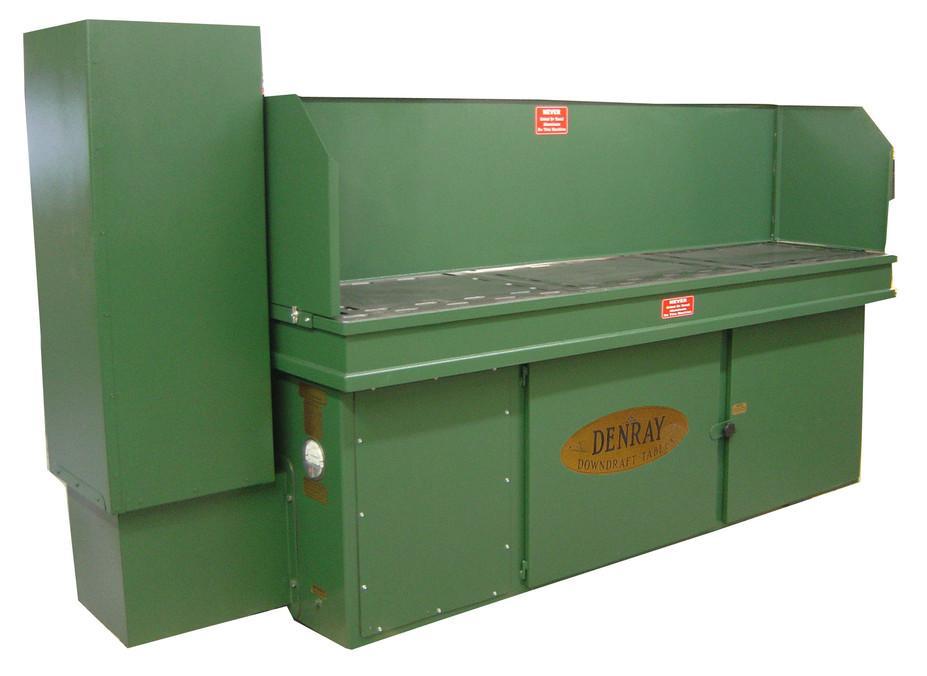

This model is designed to accommodate a variety of sanding, metal grinding, welding, and light plasma applications. The 9600G comes standard with four 100 percent polyester flame retardant filters, which clean with 99.95 percent efficiency at 0.5 micron. A water pan is placed over the filters to help protect it from exposure to hot sparks and extends the life of the filters. Cleaning is done by the Jet Pulse Automatic Cleaning, which uses the compressed air inside the tank. The table top 3 piece surface is composed of durable 1/4 inch metal plates and a removable spark shield with hinged ends. This model comes standard with a muffler.
*Please note that the starter box on this model is on the left side of the machine.

Features

  • 96 x 48 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 4500 CFM
  • 80 DECIBELS SOUND LEVEL​
SINGLE-PHASE
  • 220 VOLTAGE (23 AMPS)
THREE-PHASE
  •  230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motors (3 Phase only)
  • Light Bars
  • Casters
  • Rubber Mat Tabletop
  • Stainless Steel Tabletop
  • Fiberglass Grate top
  • HDPE Plastic Tabletop
  • Carbon Filter Banks (odor only)
  • HEPA Filter banks
  • Magnehelic Gauge
  • Smoke Arm
  • Hydraulic Height Adjustment​
