Denray Woodworking Down Draft Tables

tube filtration

cartridge Filtration

line shaft cartridge cleaner
Tube Filtration Cartridge Filtration Line Shaft Cartridge Cleaner



Models and accessories
Tube Filtration
2800-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
2800-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
2872-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
2872-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
2896-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
2896-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3672-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3672-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3696-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3696-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
4800-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
4800-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
7200-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
7200-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
9600-1 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
9600-3 DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
Cartridge Filtration
2872B-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT (SEE DENCAS100 - FOR CASTER SET)
2872B-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT (SEE DENCAS100 - FOR CASTER SET)
3444B-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3444B-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3444BSUPER-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3444BSUPER-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3672B-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT  SEE DENCAS100 - FOR CASTER SET
3672B-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT  SEE DENCAS100 - FOR CASTER SET
3696SS-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT W/CASTERS STANDARD EQUIPMENT
3696SS-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT W/CASTERS STANDARD EQUIPMENT

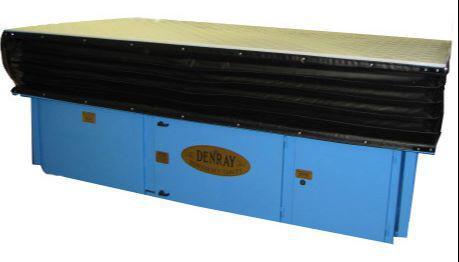

4896LP-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT  SEE DENCAS200 - FOR CASTER SET
4896LP-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT  SEE DENCAS200 - FOR CASTER SET
7200B-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT  SEE DENCAS100 - FOR CASTER SET
7200B-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT  SEE DENCAS100 - FOR CASTER SET

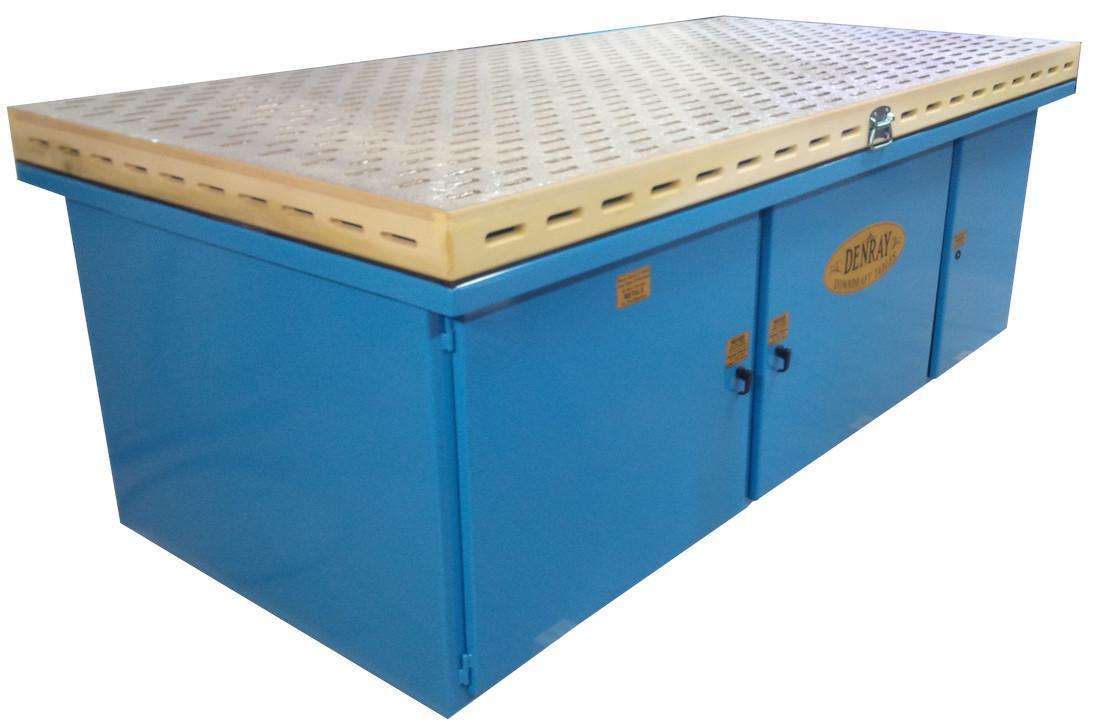

9600B-1 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT  SEE DENCAS200 - FOR CASTER SET
9600B-3 DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT  SEE DENCAS200 - FOR CASTER SET
Accessories
CAS100 CASTER SET FOR DOWNDRAFT TABLE



Tube filters are great for applications involving finishes and fine sanding dust.  Life expectancy of the tube filters is between 1-2 years with average use.  The dust is captured inside the tube and falls from the filters into the dust drawer below, when the machine is turned off.  A soft bristled brush (furnished with all tube filtration models) is used to run inside the filters, offering a deep cleaning procedure for the filters if needed.  The tube filters clean at a 99% capture rate at 1 micron, creating a much superior filtration than any pleated filters.

Model 2800

Model 2800 down draft table

DOWNDRAFT TABLE - TUBE TYPE FILTRATION



This model is great for lighter applications of sanding plastics, woods, and finishing materials. The 2800 model comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top.

Features:

  • 28 x 48 inch
  • 36 inch HEIGHT
  • 1.5 HP MOTOR
  • 2800 CFM
  • 70 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (14 AMPS)
  • 220 VOLTAGE (7 AMPS)

THREE-PHASE

  • 230 VOLTAGE (4.4 AMPS)
  • 460 VOLTAGE (2.2 AMPS)
  • 575 VOLTAGE (1.9 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 2872

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is great for medium sized jobs and can be used for plastics, woods and finishing materials. The 2872 comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top.

Features:

  • 28 x 72 inch
  • 36 inch HEIGHT
  • 2HP MOTOR
  • 3400 CFM
  • 77 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 2896

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is ideal for medium sized jobs, and can be used for plastics, woods, and finishing materials. The 2896 comes with tube filtration system which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and many other airborne dust applications. This model also comes standard with casters and rubber coated top.

Features:

  • 28 x 96 inch
  • 36 inch HEIGHT
  • 2HP MOTOR
  • 3500 CFM
  • 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3660



downdraft table tube filtrationdowndraft table tube filtration


This model is great for medium sized jobs and can be used for sanding plastics, woods, and finishing materials. The 3660 model comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top. Picture shown displays a muffler which is available as an add-on.

Features:

  • 36 x 60 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 77 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3672

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is great for medium sized jobs and can be used for sanding plastics, woods, and finishing materials. The 3672 model comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top.

Features:

  • 36 x 72 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3500 CFM
  • 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3696

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is great for medium sized jobs and can be used for sanding plastics, woods, and finishing materials. The 3696 model comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top.

Features:

  • 36 x 96 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3800 CFM
  • 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 4800

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is great for medium sized jobs and can be used for sanding plastics, woods, and finishing materials. The 4800 model comes with tube filtration which cleans with a 99 perent capture rate at 1 micron, making this model suitable for all wood and several other airborne dust applications. This model also comes standard with casters, and a rubber coated top.

Features:

  • 48 x 48 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 77 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 7200

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is ideal for larger jobs and can accommodate not only the large single piece, but also allows for two or three jobs to be going on at the same time. The 7200 model comes with tube filtration which cleans with a 99 percent capture rate at 1 micron, creating a much superior filtration system than any pleated filters. This model comes standard with casters, rubber coated top, and magnetic starter.

Features:

  • 72 x 48 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3800 CFM
  • 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 9600

DOWNDRAFT TABLE - TUBE TYPE FILTRATION

DOWNDRAFT TABLE - TUBE TYPE FILTRATION


This model is ideal for larger jobs, as well as accommodating to two or three jobs going at the same time on the table. The 9600 can be used for plastics, woods and finishing materials. This model comes standard with casters, rubber coated top, and tube filtration which cleans with a 99 percent capture rate at 1 micron, creating a much superior filtration system than any pleated filters.

Features:

  • 96 x 48 inch
  • 36 inch HEIGHT
  • 3 HP MOTOR
  • ​4300 CFM
  • 81 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 220 VOLTAGE (11.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (8.4 AMPS)
  • 460 VOLTAGE (4.2 AMPS)
  • 575 VOLTAGE (3.5 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade



Denray Machine's cartridge filter systems are one of the best on the market. Our tables come with 80/20 cartridge filters, which clean with a 99.95 percent capture rate at .5 micron. Denray's cartridge filtration tables come with "Jet Pulse" pushbutton cleaning. This line comes in various dimensions to accommodate any size job

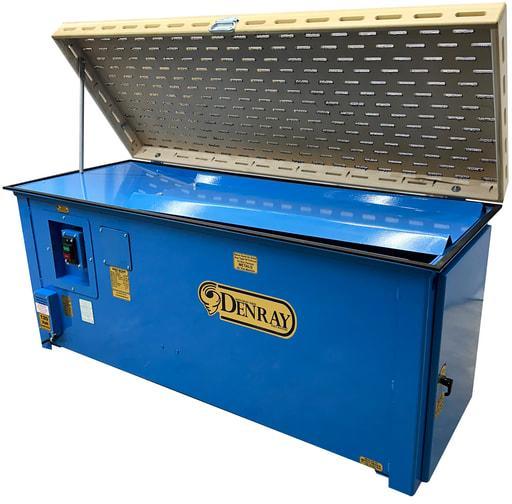

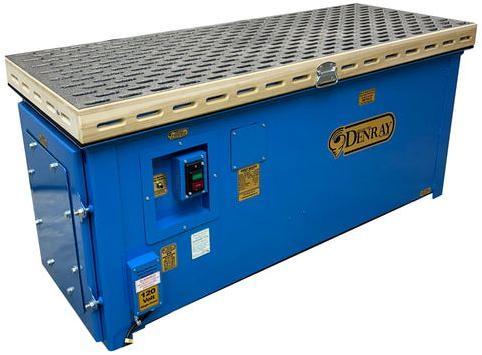

Model 2872B

cartridge filter downdraft tables

cartridge filter downdraft tables



This model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 2872B comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with Denrays Jet Pulse push-button cleaning, rubber coated top, along with motor access on the left end and filter access on the right end.

Features:

  • 28 x 72 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3000 CFM
  • 72 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3444B

cartridge filter downdraft tables

cartridge filter downdraft tables


This model is great for smaller shops, and can be used for plastics, woods and finishing materials. The 3444B comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with casters, rubber coated top, and the Denray Jet Pulse push-button cleaning system. This model also comes with the options of a tilt out front edge and 7 inch working vise as add-ons.

Features:

  • 34 x 44 inch
  • 27, 31.5, 32, 37 inch HEIGHT  Four height options the operator can choose from in facility
  • 1 HP MOTOR
  • 1800 CFM
  • 65 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (14 AMPS)
  • 220 VOLTAGE (7 AMPS)

THREE-PHASE

  • 230 VOLTAGE (3.6 AMPS)
  • 460 VOLTAGE (1.8 AMPS)
  • 575 VOLTAGE (1.2 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Casters
  • Auto Timer
  • Muffler (reduces sound level 10-12 dbs.)
  • 100 percent Spunbound Polyester Filers
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3444B Super



cartridge filter downdraft tablescartridge filter downdraft tables


This model is similar to the 3444B, but contains a larger fan and motor, along with our typical rails and tops found on our larger tables. There are no intake dust ports or vise due to these modifications. The 3444B Super comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with casters, Denrays Jet Pulse push button cleaning, and a rubber coated top. This model does provide the option of a tilt out front edge as an add-on.

Features:

  • 34 x 44 inch
  • 27, 31.5, 32, 37 inch HEIGHT Four height options the operator can choose from in facility
  • 1.5 HP MOTOR
  • 3000 CFM
  • 70 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (14 AMPS)
  • 220 VOLTAGE (7 AMPS)

THREE-PHASE

  • 230 VOLTAGE (4.4 AMPS)
  • 460 VOLTAGE (2.2 AMPS)
  • 575 VOLTAGE (1.9 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3648SD (Sit Down)

cartridge filter downdraft tables

cartridge filter downdraft tables




This model is perfect for small shops, accommodating situations where sitting is preferred. Complete with Denray Jet Pulse push-button cleaning, the 3648SD comes with 80/20 cartridge filter that cleans at 99.95 percent capture rate at .5 micron efficiency. This model comes standard with casters, rubber coated top, and three sided 20 inch safety shield.

Features:

  • 36 x 48 inch
  • 34 inch HEIGHT
  • 1.5 HP MOTOR
  • 2400 CFM
  • 65 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (14 AMPS)
  • 220 VOLTAGE (7 AMPS)

THREE-PHASE

  • 230 VOLTAGE (4.4 AMPS)
  • 460 VOLTAGE (2.2 AMPS)
  • 575 VOLTAGE (1.9 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3660B

cartridge filter downdraft tables

cartridge filter downdraft tables


This model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 3660B comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with rubber coated top, and the Denray Jet Pulse push-button cleaning system.

Features:

  • 36 x 60 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 77 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3672B

cartridge filter downdraft tables

cartridge filter downdraft tables


This model is great for medium sized jobs, and can be used while sanding plastics, woods, and finishing materials. This is a popular model for cabinet shops, with two operators using the same table. The 3672B also comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with Denrays Jet Pulse push-button cleaning, rubber coated top, and a magnetic starter.

Features

  • 36 x 72 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3400 CFM
  • 84 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3672BFT

cartridge filter downdraft tables

cartridge filter downdraft tables


This model is for light dust applications, i.e. sanding approximately 10 hours a week. There are many different box filter options available for this model depending on your application needs. The most common woodworking filters would be Merv 11 pleated box filters which clean at a 65-79 percent efficiency rate at 1-3 micron.

Features:

  • 36 x 72 inch
  • 36 inch HEIGHT
  • 2 HP MOTOR
  • 3500 CFM
  • MERV 11 BOX PLEATED FILTERS
  • BUILT-IN SHELVES
  • CASTERS

SINGLE-PHASE

  • 115 VOLTAGE (17.6 AMPS)
  • 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3696B

cartridge filter downdraft tables

cartridge filter downdraft tables


This model is ideal for medium and large sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denrays push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron, along with a magnetic starter and rubber coated top. *Please note that the starter box on this model is on the left side of the machine.

Features:

  • 36 x 96 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 3400 CFM
  • 82 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 220 VOLTAGE (23 AMPS)

THREE-PHASE

  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (6.7 AMPS)
  • 575 VOLTAGE (5.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 3696SS (Solid Surface)

cartridge filter downdraft tables



This model is great for medium sized jobs, it is designed specifically for solid surfaces, but can also be used for plastics, woods and finishing materials. The 3696SS comes with 100 percent Spunbond Polyester filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with casters, rubber coated top, Jet Pulse push-button cleaning system, and a muffler.

Features:

  • 36 x 96 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 4800 CFM
  • 72 DECIBELS SOUND LEVEL
  • 100 percent SPUNBOND POLYESTER FILTERS

SINGLE-PHASE

  • 220 VOLTAGE (23 AMPS)

THREE-PHASE

  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (6.7 AMPS)
  • 575 VOLTAGE (5.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade

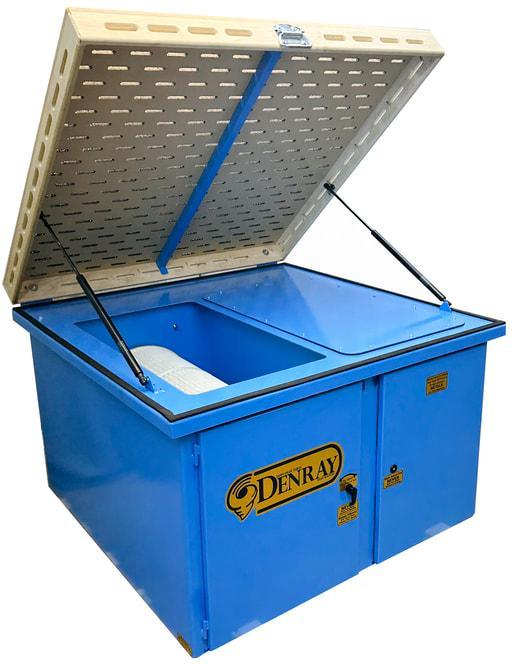

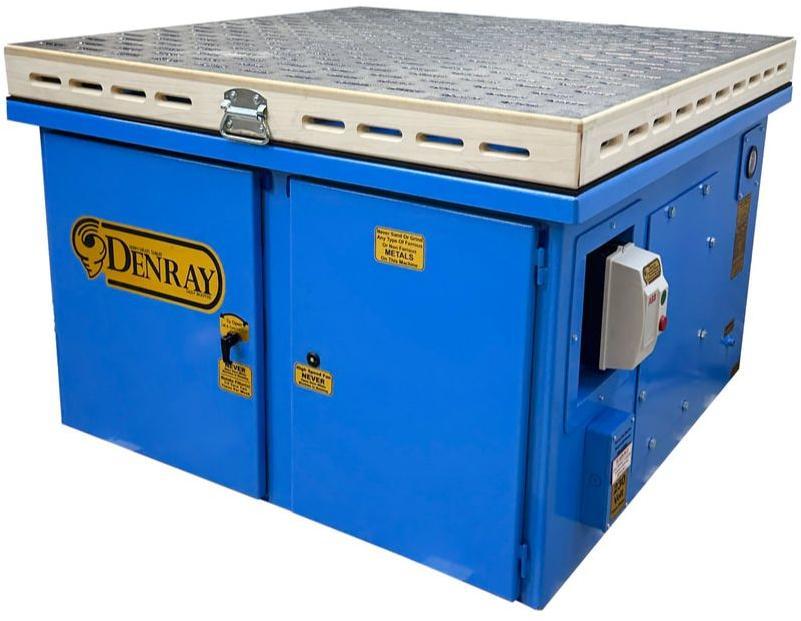

Model 4800B

cartridge filter downdraft tables

cartridge filter downdraft tables

This model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 4800B comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with rubber coated top, and the Denray "Jet Pulse" push-button cleaning system.      48" x 48"     36" HEIGHT     ​2 HP MOTOR     3000 CFM     ​77 DECIBELS SOUND LEVEL

SINGLE-PHASE      115 VOLTAGE (17.6 AMPS)     220 VOLTAGE (8.8 AMPS)  THREE-PHASE      230 VOLTAGE (5.8 AMPS)     460 VOLTAGE (2.9 AMPS)     575 VOLTAGE (2.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 4896LP

cartridge filter downdraft tables



This model is great for medium sized jobs, designed to reach a low height of 28 inch all the way through a 40 inch high height. This table can be used for plastics, woods and finishing materials. The 4896LP comes with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron. This model comes standard with rubber coated top, and the Denray Jet Pulse push-button cleaning system.

Features:

  • 48 x 96 inch
  • 28 - 40 inch ADJUSTABLE HEIGHT
  • 5 HP MOTOR
  • 4800 CFM
  • 82 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 220 VOLTAGE (23 AMPS)

THREE-PHASE

  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (6.7 AMPS)
  • 575 VOLTAGE (5.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 7200B

cartridge filter downdraft tables

cartridge filter downdraft tables

This model is designed for larger jobs and can accommodate not only the large single piece, but also has the size to have two or three jobs going at the same time on this table. The 7200B is one of the larger tables in Denrays push-button cleaning line. This model comes standard with a rubber coated top, magnetic starter and with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron.

Features:

  • 72 x 48 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 3900 CFM
  • 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 220 VOLTAGE (23 AMPS)

THREE-PHASE

  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (6.7 AMPS)
  • 575 VOLTAGE (5.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
Model 9600B

cartridge filter downdraft tables



This model is ideal for larger jobs and is accommodating for two or three jobs going on at the same time on the same table. The 9600B is one of the larger tables in Denrays push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95 percent capture rate at .5 micron, along with a magnetic starter and rubber coated top. *Please note that the starter box on this model is on the left side of the machine.

Features

  • 96 x 48 inch
  • 36 inch HEIGHT
  • 5 HP MOTOR
  • 4800 CFM
  • 82 DECIBELS SOUND LEVEL

SINGLE-PHASE

  • 220 VOLTAGE (23 AMPS)

THREE-PHASE

  • 230 VOLTAGE (13.4 AMPS)
  • 460 VOLTAGE (6.7 AMPS)
  • 575 VOLTAGE (5.3 AMPS)

Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade





denray-line-shaft

Denray provides the option to use a line shaft instead of a standard motor setup, if desired. For the line shaft setup, a 2:1 ratio gearbox is used to increase the speed.  850-900 RPM is needed to turn on the incoming shaft.  This will create fan speed to be between 1725-1800 RPM.  The price of the table will be the same but additional cost can occur, as the customer will need to provide the pulley to Denray.  We design our line shaft tables with the option to host a motor, just in case the need changes or to allow for easy resell.

Cartridge filtered tables will still need compressed air for cleaning.

Compressed air is NOT needed for tube filtered tables.

denray-cartridge-filter-cleaner

When filters need to be deep cleaned there must be high pressured air, pushing from the inside out. While deep cleaning with our Cartridge Cleaner, the Shop-Vac is sucking any airborne dust within the unit so when you open it your filter is Deep Cleaned and your air is not contaminated! This design provides a Vibrating, Pulsating, High Pressure Air Blast. Blasting tough compacted dust, in between the pleats, out so your filters can be rejuvenated, close to new condition. It is engineered to deep clean most all sizes of cartridge filters and only takes about 2-3 minutes per filter, with 100 lbs. psi or higher. The Cartridge Cleaner comes with four 4 inch casters so that you could roll it to the machine, clean the filters and roll away. No messy transferring the filters through your facility. Since it comes with a 12 gallon Shop-Vac, any dust that does fall can be easily cleaned with the extra long hose and attachments. The LED light on top lets you watch through the viewing windows so you can see when the filter is clean.

Filters that are deep cleaned have almost double the life span and they allow your machines performance to be greatly enhanced. This reduces filter replacement costs and wear and tear on your machine’s fan and motor

Standard Features Include:

  • 12 gal. Shop-vac
  • LED Light
  • 4 - 4 inch Casters
  • 2 Sizes of Air Nozzles

Compatible Filter Dimensions:

  • Minimum inside diameter of 3-15/16 inch
  • Maximum inside diameter of 11-13/16 inch
  • Filter length of  7-7/8 inch (minimum);  34 inch (maximum)

Filter cleaner unit dimensions are approximately 5' (l) x 2' (w) x 5' (h)

All you need is a 110 v. outlet to plug the Shop-vac into and an air compressor to fill the cleaner to 100+ psi.

2800-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2800-1
DEN2800-1
lease to own for as little as:$76 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,816.00

38
2800-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2800-3
DEN2800-3
lease to own for as little as:$76 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,816.00

38
2872-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2872-1
DEN2872-1
lease to own for as little as:$99 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,944.00

38
2872-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2872-3
DEN2872-3
lease to own for as little as:$99 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,944.00

38
2896-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2896-1
DEN2896-1
lease to own for as little as:$125 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,240.00

38
2896-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 2896-3
DEN2896-3
lease to own for as little as:$125 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,240.00

38
3672-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3672-1
DEN3672-1
lease to own for as little as:$113 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,630.40

38
3672-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3672-3
DEN3672-3
lease to own for as little as:$113 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,630.40

38
3696-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3696-1
DEN3696-1
lease to own for as little as:$136 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,816.00

38
3696-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3696-3
DEN3696-3
lease to own for as little as:$136 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,816.00

38
4800-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 4800-1
DEN4800-1
lease to own for as little as:$106 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,294.40

38
4800-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 4800-3
DEN4800-3
lease to own for as little as:$106 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,294.40

38
7200-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 7200-1
DEN7200-1
lease to own for as little as:$133 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,672.00

38
7200-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 7200-3
DEN7200-3
lease to own for as little as:$133 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,672.00

38
9600-1
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 9600-1
DEN9600-1
lease to own for as little as:$159 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,968.00

38
9600-3
DOWNDRAFT TABLE - TUBE TYPE FILTRATION - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 9600-3
DEN9600-3
lease to own for as little as:$159 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,968.00

38
2872B-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 2872B-1
DEN2872B-1
lease to own for as little as:$125 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,240.00

38
2872B-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 2872B-3
DEN2872B-3
lease to own for as little as:$125 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,240.00

38
3444B-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3444B-1
DEN3444B-1
lease to own for as little as:$106 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,280.00

38
3444B-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3444B-3
DEN3444B-3
lease to own for as little as:$106 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,280.00

38
3444BSuper-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3444BSuper-1
DEN3444BSUPER-1
lease to own for as little as:$109 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,472.00

38
3444BSuper-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3444BSuper-3
DEN3444BSUPER-3
lease to own for as little as:$109 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,472.00

38
3672B-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 3672B-1
DEN3672B-1
lease to own for as little as:$146 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,296.00

38
3672B-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 3672B-3
DEN3672B-3
lease to own for as little as:$146 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,296.00

38
3696SS-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3696SS-1
DEN3696SS-1
lease to own for as little as:$245 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$12,230.40

38
3696SS-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT **W/CASTERS STANDARD EQUIPMENT
Mfg. item #: 3696SS-3
DEN3696SS-3
lease to own for as little as:$245 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$12,230.40

38
4896LP-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS200 - FOR CASTER SET
Mfg. item #: 4896LP-1
DEN4896LP-1
lease to own for as little as:$275 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,728.00

38
4896LP-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS200 - FOR CASTER SET
Mfg. item #: 4896LP-3
DEN4896LP-3
lease to own for as little as:$275 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,728.00

38
7200B-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 7200B-1
DEN7200B-1
lease to own for as little as:$179 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,928.00

38
7200B-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 3 PHASE UNIT ** SEE DENCAS100 - FOR CASTER SET
Mfg. item #: 7200B-3
DEN7200B-3
lease to own for as little as:$179 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,928.00

38
9600B-1
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS200 - FOR CASTER SET
Mfg. item #: 9600B-1
DEN9600B-1
lease to own for as little as:$216 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,800.00

38
9600B-3
DOWNDRAFT TABLE - PUSHBUTTON CLEANING - 1 PHASE UNIT ** SEE DENCAS200 - FOR CASTER SET
Mfg. item #: 9600B-3
DEN9600B-3
lease to own for as little as:$216 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,800.00

38
CAS100
CASTER SET FOR DOWNDRAFT TABLE
Mfg. item #: CAS100
DENCAS100
FREE shipping when ordered with a machine from this manufacturer.20
$139.95

38
Copyright © 2020 Smith-Hamilton, Inc
0.025 201020 07:25
