BelAire Duplex Air Compressors


TWO STAGE ELECTRIC DUPLEX COMPRESSORS 10 TO 20 HP

GREAT PERFORMANCE AND VALUE

The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors feature two pumps and motors, along with an alternator which ensures optimal performance. BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).

2 Year Warranty

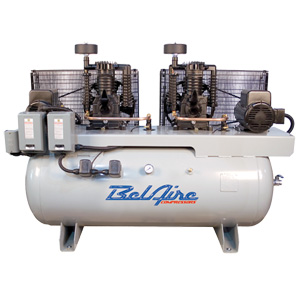

*BelAire Duplex package showing the multiple pumps and motors which ensure back-up operation
FEATURES:
  • Alternator
  • Magnetic Motor Starters
  • Start-Stop Dual Pressure Switch Control
  • 1” Tank Discharge Valve
  • Fully Enclosed Belt Guard
  • ASME Tank and Safety Valves

Click on the desired highlighted part number below and you will be re-directed to the bottom portion of this page with the available pricing.

All Belaire Compressors on this page has Free Freight to any Commercial Address or Freight Terminal within the Lower 48 States.   ***Add $110.00 for Liftgate Service and / or Residential Deliveries

Part Number
HP
Model
Motor Config.
Electrics V/Ph.
cfm displ.
cfm 100 psi
Tank gal.
Ship Wt* lbs.
L x W x H
inches
8090250005 10 3112D 2 x 5 HP 208-230/1 44.9 37.0 120H 778 77 x 27 x 56
8090250018 10 3312D 2 x 5 HP 208-230/3 44.9 37.0 120H 778 77 x 27 x 56
8090250019 10 3312D4 2 x 5 HP 460/3 44.9 37.0 120H 778 77 x 27 x 56
8090250006 15 3112DL 2 x 7.5 HP 208-230/1 65.0 50.5 120H 886 77 x 27 x 56
8090250020 15 3312DL 2 x 7.5 HP 208-230/3 65.0 50.5 120H 886 77 x 27 x 56
8090250044 20 5312D 2 x 10 HP 208-230/3 89.0 74.5 120H 990 77 x 27 x 63
8090250045 20 5312D4 2 x 10 HP 460/3 89.0 74.5 120H 990 77 x 27 x 63
8090250050 20 5320D 2 x 10 HP 208-230/3 89.0 74.5 120H 1229 86 x 32 x 69



CPXHT - HIGH TEMP DRYERS
Part Number
HP
cfm at 100 psi
Inlet / Outlet
Electrics V/Ph.
Dimensions L x W x H
Ship Wt * lbs.
HT20 HT20 20 1/2 115 / 1 13 x 10 x 28 79
HT25 HT25 25 1/2 115 / 1 13 x 10 x 28 80
HT50 HT50 50 3/4 115 / 1 17 x 17 x 37 150
HT75 HT75 75 3/4 115 / 1 17 x 17 x 37 155
HT100 HT100 100 1 230 / 1 17 x 17 x 46 170
HT125 HT125 125 1 230 / 1 17 x 17 x 46 175
cfm rated at 50°F Dew Point
3112D
BELAIRE 3112D - 120 GALLON HORIZONTAL DUPLEX, 175 PSI, 230/1/60, (16.6 CFM X2), T39 PUMP - TWO-STAGE ELECTRIC DUPLEX 10 HP (2 X 5 HP) MODELS
Mfg. item #: 3112D
IMC3112D
lease to own for as little as:$117 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,859.99

80
3312D
BELAIRE 3312D - 120 GALLON HORIZONTAL DUPLEX, 175 PSI, 230/3/60, (16.6 CFM X2), T39 PUMP - TWO-STAGE ELECTRIC DUPLEX 10 HP (2 X 5 HP) MODELS
Mfg. item #: 3312D
IMC3312D
lease to own for as little as:$114 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,689.99

80
3312D4
BELAIRE 3312D4 - 120 GALLON HORIZONTAL DUPLEX, 175 PSI, 460/3/60, (16.6 CFM X2), T39 PUMP - TWO-STAGE ELECTRIC DUPLEX 10 HP (2 X 5 HP) MODELS
Mfg. item #: 3312D4
IMC3312D4
lease to own for as little as:$119 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,939.99

80
3112DL
BELAIRE 3112DL - 120 GALLON HORIZONTAL DUPLEX, 175 PSI, 230/1/60, (22.3 CFM X2), T39 PUMP - TWO-STAGE ELECTRIC DUPLEX 15 HP (2 X 7.5 HP) MODELS
Mfg. item #: 3112DL
IMC3112DL
lease to own for as little as:$125 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,259.99

80
3312DL
BELAIRE 3312DL - 120 GALLON HORIZONTAL DUPLEX, 175 PSI, 230/3/60, (22.3 CFM X2), T39 PUMP - TWO-STAGE ELECTRIC DUPLEX 15 HP (2 X 7.5 HP) MODELS
Mfg. item #: 3312DL
IMC3312DL
lease to own for as little as:$125 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,259.99

80
5312D
DISCONTINUED SEE NEW IRON SEREIS COMPRESSOR LINE
Mfg. item #: 5312D
IMC5312D
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

3698
5312D4
DISCONTINUED SEE NEW IRON SEREIS COMPRESSOR LINE
Mfg. item #: 5312D4
IMC5312D4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

3698
5320D
DISCONTINUED SEE NEW IRON SEREIS COMPRESSOR LINE
Mfg. item #: 5320D
IMC5320D
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

3698
HT20
CFM / PSI = 20 / 200HT SERIES REFRI
Mfg. item #: HT20
IMCHT20
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,300.02

6057
HT25
HIGH TEMP REFRIGERATRD DRYERS - HT25 HP, MAXIMUM CFM 25, 1/2 INLET / OUTLET, 115 / 1 V/PH., 17.5 X 19 X 18 L X W X H, 85
Mfg. item #: HT25
IMCHT25
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,545.00

3698
HT50
HIGH TEMP REFRIGERATRD DRYERS - HT50 HP, MAXIMUM CFM 50, 1/2 INLET / OUTLET, 115 / 1 V/PH., 28 X 20 X 30 L X W X H, 125 ,
Mfg. item #: HT50
IMCHT50
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$2,141.40

3698
HT75
HIGH TEMP REFRIGERATRD DRYERS - HT75 HP, MAXIMUM CFM 75, 1 INLET / OUTLET, 115 / 1 V/PH., 28 X 18 X 40 L X W X H, 183 ,
Mfg. item #: HT75
IMCHT75
lease to own for as little as:$70 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$3,483.90

3698
HT100
HIGH TEMP REFRIGERATRD DRYERS - HT100 HP, MAXIMUM CFM 100, 1 INLET / OUTLET, 115 / 1 V/PH., 28 X 18 X 40 L X W X H, 194 ,
Mfg. item #: HT100
IMCHT100
lease to own for as little as:$74 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$3,686.76

3698
HT125
HIGH TEMP REFRIGERATRD DRYERS - HT125 HP, MAXIMUM CFM 125, 1 INLET / OUTLET, 230 / 1 V/PH., 28 X 18 X 40 L X W X H, 200 ,
Mfg. item #: HT125
IMCHT125
lease to own for as little as:$83 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$4,154.22

3698
