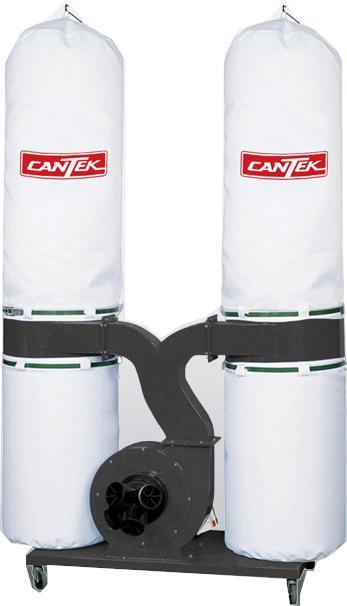

CANTEK PDC203 3HP DUST COLLECTOR
Quality affordable dust collection solution.
The Cantek PDC203 3HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central
system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on
casters to be taken to where it is needed in the shop.
Why Cantek PDC203 3HP Dust Collector?
- 3HP generating 2800 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
- 3HP Motor
- 2800 CFM
- 8â³ main inlet with removable outlet with (3) 4â³ ports
- 5 micron upper filter bags and 30 micron collection bag
|
Specifications
|
|
CFM
|
2800 CFM
|
|
Motor
|
3 HP
|
|
Main inlet diameter
|
8â
|
|
Connector inlet diameter
|
(3) 4â
|
|
Fan diameter
|
14â
|
|
Static pressure
|
14.4â of water
|
|
Top filer bags (2)
|
5 micron (20â dia. x 48â long)
|
|
Bottom collection bags (2)
|
30 micron (20â dia. x 33.5â long)
|
|
Electrics
|
230/1/60 = 17 Full Load Amps
|
|
Net weight
|
154 lbs
|
|
Shipping weight
|
163 lbs
|
|
Shipping dimensions
|
46â x 23â x 23â
|
|
Noise Level
|
85dB
|
CANTEK PDC205 5HP DUST COLLECTOR
Quality affordable dust collection solution.
The Cantek PDC205 5HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central
system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on
casters to be taken to where it is needed in the shop.
Why Cantek PDC205 5HP Dust Collector?
- 5HP generating 3200 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
- 5HP Motor
- 3200 CFM
- 8â³ main inlet with removable outlet with (3) 4â³ ports
- 5 micron upper filter bags and 30 micron collection bag
|
Specifications
|
|
CFM
|
3200 CFM
|
|
Motor
|
5 HP
|
|
Main inlet diameter
|
8â
|
|
Connector inlet diameter
|
(3) 4â
|
|
Fan diameter
|
14â
|
|
Static pressure
|
19â of water
|
|
Top filer bags (2)
|
5 micron (20â dia. x 48â long)
|
|
Bottom collection bags (2)
|
30 micron (20â dia. x 33.5â long)
|
|
Electrics
|
230/1/60 = 15.2 Full Load Amps
575/3/60 = 6.1 amps
|
|
Net weight
|
253 lbs
|
|
Shipping weight
|
363 lbs
|
|
Shipping dimensions
|
46â x 23â x 23â
|
|
Noise Level
|
90dB
|
CANTEK PDC207 7.5HP DUST COLLECTOR
Quality affordable dust collection solution.
The Cantek PDC207 7.5HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central
system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on
casters to be taken to where it is needed in the shop.
Why Cantek PDC207 7.5HP Dust Collector?
- 7.5HP generating 3600 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
- 7.5HP Motor
- 3600 CFM
- 10â³ main inlet with removable outlet with (3) 4â³ ports
- 5 micron upper filter bags and 30 micron collection bag
|
Specifications
|
|
CFM
|
3600 CFM
|
|
Motor
|
7.5 HP
|
|
Main inlet diameter
|
10 inch
|
|
Connector inlet diameter
|
(5) 4 inch
|
|
Fan diameter
|
16 inch
|
|
Static pressure
|
17.78 inch of water
|
|
Top filer bags (2)
|
5 micron (26.8 inch dia. x 63.8 inch long)
|
|
Bottom collection bags (2)
|
30 micron (26.8 inch dia. x 35.4 inch long)
|
|
Electrics
|
230/1/60 = 22 Full Load Amps
575/3/60 = 9 amps
|
|
Net weight
|
304 lbs
|
|
Shipping weight
|
392 lbs
|
|
Shipping dimensions
|
64 inch x 33 inch x 37 inch
|
|
Noise Level
|
90dB
|

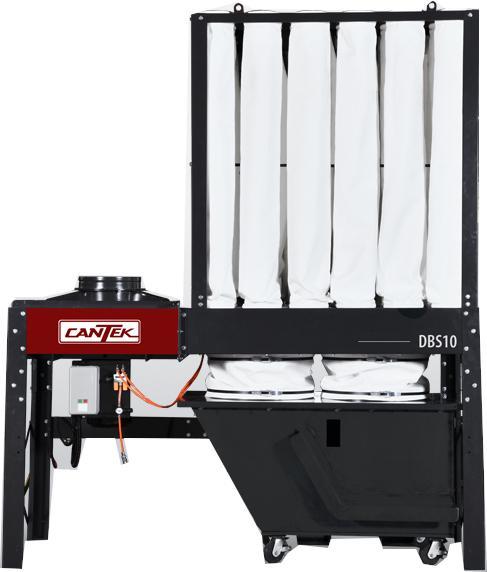

CANTEK DBS10 10 HP DUST COLLECTOR
It is time to clear the air and upgrade your dust system to the next level!
The Cantek DBS10 10 HP dust collector is a high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP (DBS15). Equipped with a low RPM (1750
RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The large 168
gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood waste in to your larger waste bin. A pneumatic lever is used to
lift the sleeves connecting the system to the dump bin which saves time and effort.
Why Cantek DBS10 10 HP Dust Collector?
- 10 HP blower motor generating 5000 CFM at 8 inch WC
- Low RPM blower (1750 RPM) generating only 80 dB
- Convenient self-dumping bin with 168-gallon capacity
- Compact design is ideal for a small to mid sized shop looking for a stand alone or a larger shop looking to add a secondary dust system.
- High efficiency 10HP TEFC motor
- Heavy gauge steel construction for long durability
- Self dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste
- 14 inch main inlet diameter
- Pneumatic raising / lowering of dust sleeves to connect system with dump bin for added convenience
- High efficiency 1-micron filter bags (24 pcs)
- Manual shaker system for cleaning of filter bags
- Magnetic starter included
- Dust collector comes disassembled
|
Specifications
|
|
Blower motor
|
10 HP
|
|
CFM
|
5000 CFM at 8 inch WC
|
|
Filter information
|
1 Micron
|
|
Filter Bags:
|
8 inch dia. x 63 inch long x 24 pcs
|
|
Filtration surface (sq.ft)
|
263 sq. ft
|
|
Inlet diameter
|
14 inch
|
|
Sound rating (Decibel)
|
80 dB
|
|
Disposal capacity
|
168 gallons
|
|
Machine dimensions (LxWxH)
|
102 inch x 42.5 inch x 122 inch
|
|
Shipping dimensions
|
Blower = 46 inch x 40 inch x 37 inch at 616 lbs Frame / Bin / Accessories = 69 inch x 46 inch x 49 inch at 880 lbs
|
|
Electrical information
|
230/3/60 at 28 amps
|

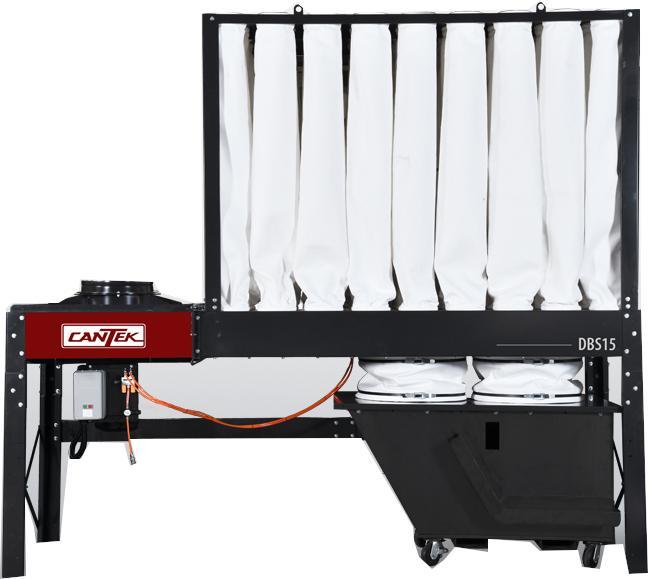

CANTEK BS15 15 HP DUST COLLECTOR
It is time to clear the air and upgrade your dust system to the next level!
The Cantek DBS15 15 HP dust collector is a high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP (DBS15). Equipped with a low
RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The
large 168 gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood waste in to your larger waste bin. A pneumatic lever
is used to lift the sleeves connecting the system to the dump bin which saves time and effort.
Why Cantek DBS15 15 HP Dust Collector?
- 15 HP blower motor generating 5000 CFM at 10.3 inch WC
- Low RPM blower (1750 RPM) generating only 81 dB
- Convenient self-dumping bin with 168-gallon capacity
- Compact design is ideal for a small to mid sized shop looking for a stand alone or a larger shop looking to add a secondary dust system.
- High efficiency 15HP TEFC motor
- Heavy gauge steel construction for long durability
- Self dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste
- 16 inch main inlet diameter
- Pneumatic raising / lowering of dust sleeves to connect system with dump bin for added convenience
- High efficiency 1-micron filter bags (36 pcs)
- Manual shaker system for cleaning of filter bags
- Magnetic starter included
- Dust collector comes disassembled
|
Specifications
|
|
Blower motor
|
15 HP
|
|
CFM
|
5000 CFM at 10.3 inch WC
|
|
Filter information
|
1 Micron
|
|
Filter Bags:
|
8 inch dia. x 63 inch long x 36 pcs
|
|
Filtration surface (sq.ft)
|
394 sq. ft
|
|
Inlet diameter
|
16 inch
|
|
Sound rating (Decibel)
|
81 dB
|
|
Disposal capacity
|
168 gallons
|
|
Machine dimensions (LxWxH)
|
135 inch x 42.5 inch x 122 inch
|
|
Shipping dimensions
|
Blower = 46 inch x 40 inch x 37 inch at 748 lbs Frame / Bin / Accessories = 69 inch x 46 inch x 49 inch at 1056 lbs
|
|
Electrical information
|
230/3/60 at 42 amps
|

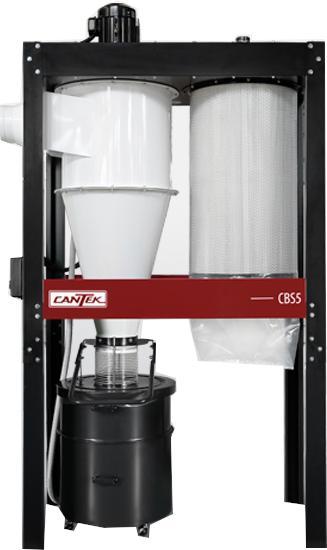

CANTEK CBS5 5HP CYCLONE DUST COLLECTOR
It is time to clear the air and upgrade your dust system to the next level!
The Cantek CBS5 5HP Cyclone Dust Collector excels at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan,
it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous
filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.
Why Cantek CBS5 5HP Cyclone Dust Collector?
- Powerful 5HP blower motor generating 2450 CFM
- The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filer before the air is returned to the shop ensuring optimal air quality
- Remote control on/off for added operator convenience
- Auto cleaning device for HEPA filter cleans every hour for 10 seconds
- Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
- Bin is lined with plastic bag for simple and clean removal of dust
- HEPA filter is equipped with an automatic
- HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles
- Equipped with magnetic switch
- Fast and simple machine assembly
|
Specifications
|
|
Blower motor
|
5 HP
|
|
CFM Capacity
|
2450 CFM
|
|
Fan diameter
|
16 inch
|
|
Dust port dimensions
|
Main Inlet = 10 inch Reducer = 8 inch
|
|
Auto-cleaning motor
|
0.03 HP
|
|
HEPA filer size
|
23.6 inch x 38.4 inch
|
|
Dust drum capacity
|
50 gallons
|
|
Sound rating
|
78~81 dB
|
|
Machine electrics
|
230/3/60 (16 amps)
|
|
Machine dimensions
|
65.4 inch x 31.5 inch x 112 inch
|
|
Machine weight
|
607 lbs
|
|
Shipping dimensions
|
64-1/4 inch x 36 inch x 81-1/2 inch
|
|
Shipping weight
|
786 lbs
|
CANTEK CBS10 10HP CYCLONE DUST COLLECTOR
It is time to clear the air and upgrade your dust system to the next level!
The Cantek CBS10 10HP Cyclone Dust Collector excels at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency
fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This
meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.
Why Cantek CBS10 10HP Cyclone Dust Collector?
- Powerful 10HP blower motor generating 4030 CFM
- The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filer before the air is returned to the shop ensuring optimal air quality
- Remote control on/off for added operator convenience
- Auto cleaning device for HEPA filter cleans every hour for 10 seconds
- Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
- Bin is lined with plastic bag for simple and clean removal of dust
- HEPA filter is equipped with an automatic
- HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles
- Equipped with magnetic switch
- Fast and simple machine assembly
|
Specifications
|
|
Blower motor
|
10 HP
|
|
CFM Capacity
|
4030 CFM
|
|
Fan diameter
|
18.5 inch
|
|
Dust port dimensions
|
12 inch
|
|
Auto-cleaning motor
|
0.03 HP
|
|
HEPA filer size
|
29.5 inch x 59 inch
|
|
Dust drum capacity
|
115 gallons
|
|
Sound rating
|
82~85 dB
|
|
Machine electrics
|
230/3/60 (29 amps)
|
|
Machine dimensions
|
78.4 inch x 37 inch x 127.5 inch
|
|
Machine weight
|
1276 lbs
|
|
Shipping dimensions
|
77 inch x 40-1/2 inch x 102 inch
|
|
Shipping weight
|
1617 lbs
|
