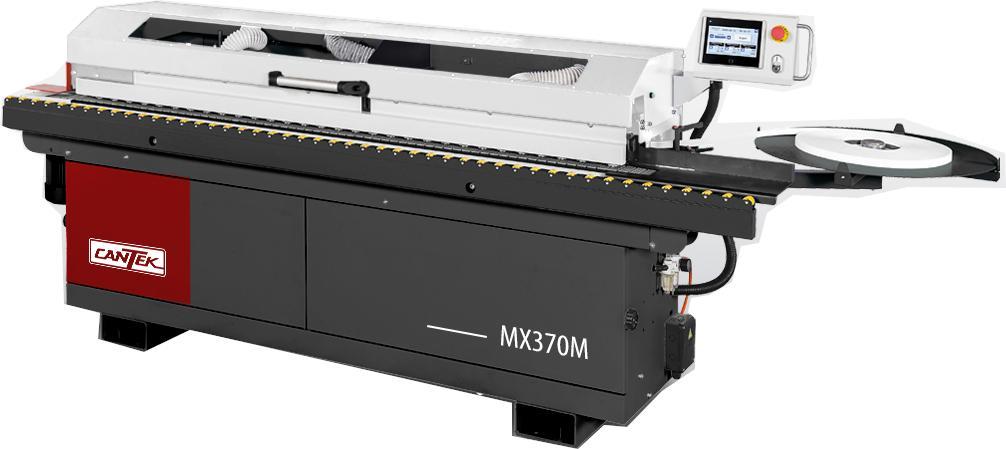

MX370M	MX370M Automatic Edgebander

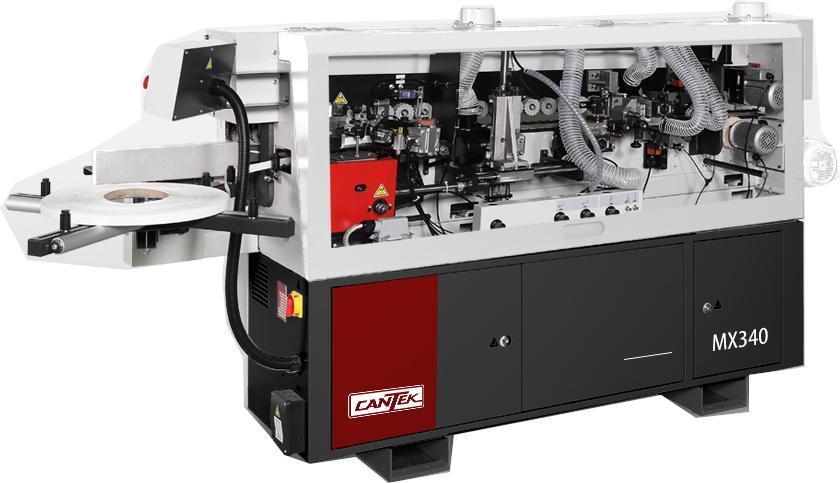

MX340.1	MX340 1ph Automatic Edgebander
MX340.3	MX340 3ph Automatic Edgebander

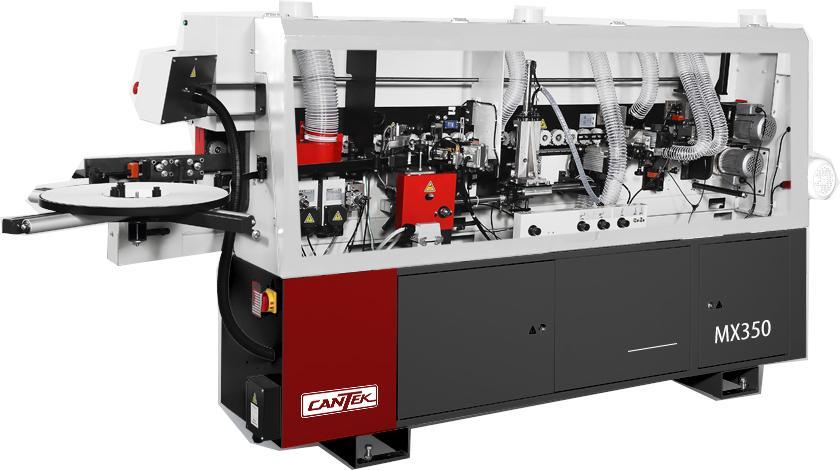

MX350.3	MX350 Automatic Edgebander
MX550AU	Hand Held Edgebander
Options:
BC25	Mobile Dispenser
ST95B	Stationary Worktable Set
ST97	Guide Component Kit

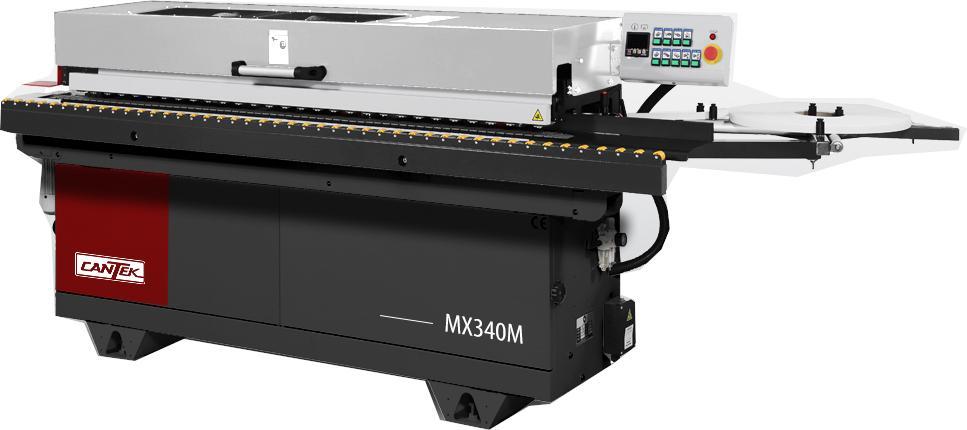

MX340M AUTOMATIC EDGEBANDER

MX340M AUTOMATIC EDGEBANDER

Compact design with best-in-class edgebanding result.

The Cantek MX340M Automatic Edgebander is an entry level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry the MX340M can output high quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX340M Automatic Edgebander?

Compact design makes it the ideal edgebanding solution for small workshops
Precise adjustments for optimum edge quality
Chain feed system ensures consistent feeding of material for consistent results
Available in 230V 1 or 3 phase

END TRIM
8800 RPM dual saw blade (80mm / 3.15 inch ) end trimming unit
TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required
BUFFING
2800 RPM top & bottom buffing units to polish the machined edge

Features:

PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ã 800 mm (31.5 inch ), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm;
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot
Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Specifications
Description	SAE	Metric
Feeding speed	23 FPM	7 m/min.
Panel thickness	0.472-1.77 inch	12-45 mm
Edge thickness	0.0158 inch -0.118 inch	0.4 - 3 mm
Min. panel width	3 1/2 inch	90 mm
Min. panel length	3 1/2 inch	90 mm
Working table height	33.5 inch	850 mm
Dust collection outlet dia.	2 x 4 inch	2 x 100 mm
Total connected power	5 HP	3.8 KW
Air	7.06 CFM / 85 â 100 PSI	200 litres/min / 6 â 7 kg/cm2
Max. machine dimensions (LxWXH)	115 inch x 47 inch x 48 inch	2921 x 1194 x 1220mm
Machine weight	968 lbs.	440 kgs.
Shipping dimensions (LxWxH)	89 inch x 29 inch x 50 inch	2261 x 737 x 1270mm
Shipping weight	1115 lbs.	507 kgs.

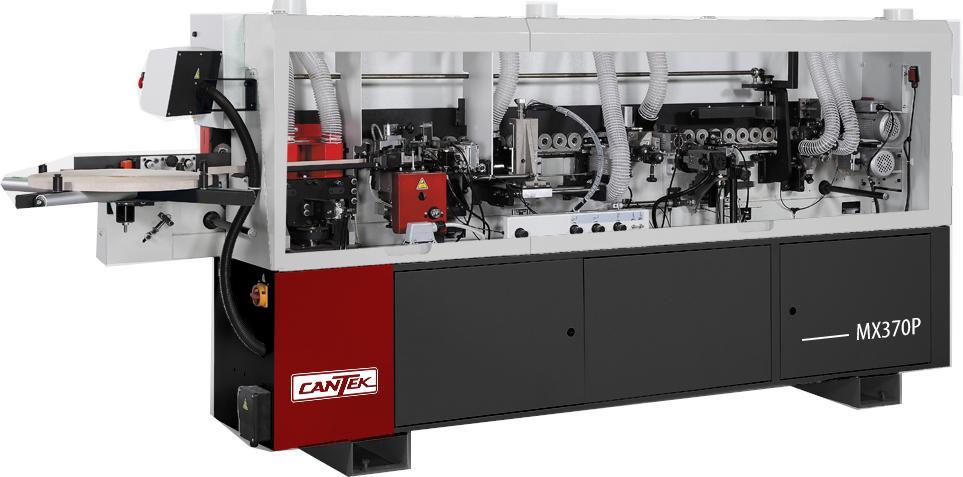

MX370P EDGEBANDER

PREMILLING UNIT

High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.

END TRIM

High frequency 12000 RPM end trimming unit, with Ã100mm (4â) TC-Saw blades.

TOP & BOTTOM TRIM

High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.

CORNER ROUNDING

High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.

RADIUS SCRAPING

Radius scraper with 2mm radius.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.

CANTEK MX370P EDGEBANDER

From cabinet parts to cabinet doors, this edgebander can do it all. The Cantek MX370P Automatic Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX370P Edgebander?

Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
Quick change glue pot allows you to change glue colours in minutes.
Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
The corner rounding function finishes the ends of cabinet doors and more with a radius edge, eliminating any manual rework of the panel.

Features:

Automatic edge feeding with a thickness capacity of 0.4â3 mm; strip material can be hand-fed.
Conveyor chain feed system for reliable results.
Teflon-coated hot-melt glue pot.
Heated infeed fence for pre-heating the panel for optimum glue penetration.
PLC control system with LED display and keypad.
Workpiece is fed by chain.
Edge coil support plate: Ã 800mm (31 Â½â), for PVC/ABS.
Spring-loaded pressure unit with (2) pressure rollers.
Heavy-duty pressure beam with extendable workpiece suppor

Specifications
Description	SAE	Metric
Feeding speed	29 FPM	9 meters/min.
Panel thickness	0.315â~1.77â	8~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90 mm
Min. panel length	6.7â	170 mm
Working table height	38â	960 mm
Dust collection outlet dia.	22â	560 mm
Total connected power	Ã 5â x3	Ã 127 mm x3
Electrical consumption	10.9 HP	6.7 KW
Electrical	230/3/60	26 Full load amps
Machine weight	2024 lbs	910 kgs

MOTOR SPECIFICATIONS
Feeding motor	1.5 kW
Pre-milling motors (2 pcs)	1.5 kW each (12000 RPM)
Glue spindle motor	0.25 kW
Front/rear trimming motor	0.22 kW (12000 RPM)
Upper trimming motor	0.37 kW (12000 RPM)
Lower trimming motor	0.37 kW (12000 RPM)
Corner rounding motor	0.37 kW (12000 RPM)
Upper buffing motor	0.12 kW (3000 RPM)
Lower buffing motor	0.12 kW (3000 RPM)
Pre-heating	0.4 kW
Glue pot	1.315 kW

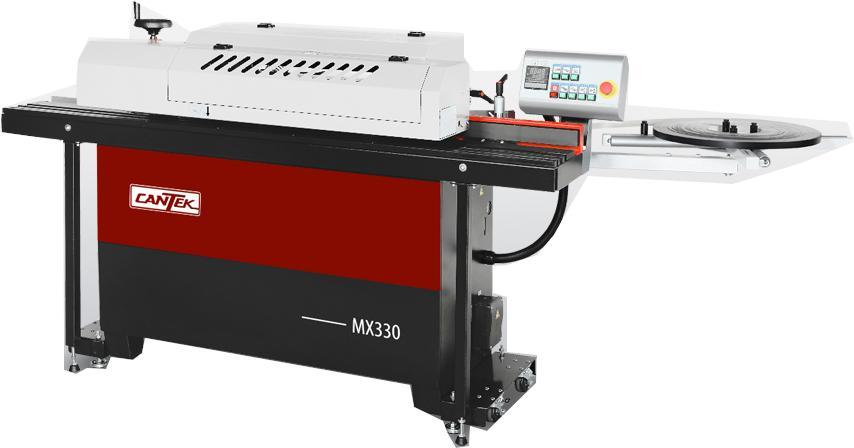

MX330 AUTOMATIC EDGEBANDER

MX330 AUTOMATIC EDGEBANDER

Compact design with best-in-class edgebanding result. The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX330 Automatic Edgebander?

Compact design makes it the ideal edgebanding solution for small workshops.
Precise adjustments for optimum edge quality.
Castor wheel adding mobility to your edgebander.
Available in 230V 1 phase.

Features:

PLC control system with LED display and keypad.
Workpiece is fed by upper conveyor belt & idle table rollers.
Edge coil support plate: Ã 800 mm (31.5â³) for PVC/ABS.
Automatic edge feeding with a thickness capacity of 0.4-3 mm.
Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
2 kg (2.6 lb) Teflon-coated hot-melt glue pot.
Spring-loaded pressure unit with (2) chrome pressure rollers.
Heavy-duty pressure beam with extendable workpiece support.
Heated infeed fence for pre-heating the panel for optimum glue penetration.
Mobility wheels allow you to move your edge bander in and out of position to save you work space.
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness.

Specifications
Description	SAE	Metric
Feeding speed	16.4 FPM	5 m/min.
Panel thickness	0.472~1.77â³	12~45 mm
Edge thickness	0.0158â³~0.0787â³	0.4 ~ 2 mm
Min. panel width	4.73â	120 mm
Min. panel length	9.45â	240 mm
Working table height	33.7â³	856 mm
Dust collection outlet dia.	2 x 4â³ = 800 CFM	2 x 100 mm = 800 CFM
Total connected power	4.5 HP	3.3 KW
Air	6 CFM / 85 â 100 PSI	169 liters/min / 6 â 7 kg/cm2
Max. machine dimensions (LxWXH)	110â³ x 61â³ x 49.4â³	2780 x 1540 x 1255mm
Machine weight	766 lbs.	348 kgs.
Shipping dimensions (LxWxH)	89â³ x 29â³ x 52â³	2261 x 737 x 1321mm
Shipping weight	1021 lbs.	464 kgs.
Electrical requirements	230/1/60 = 30 amps	230/1/60 = 30 amps

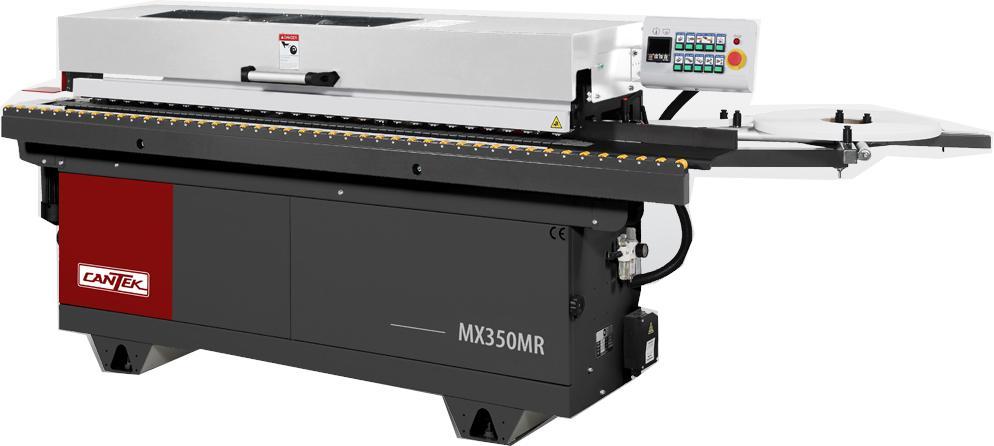

MX350MR AUTOMATIC EDGEBANDER

MX350MR AUTOMATIC EDGEBANDER

Compact edgebander with pre-milling for best-in-class results.

The Cantek MX350MR Automatic Edgebander is an entry-level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350MR can output high-quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. A special feature of this machine is the dual purpose end trim system which can either flush trim or radius trim the end of the panel. Additionally, the machine is equipped with flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX350MR Automatic Edgebander?

Compact design makes it the ideal edgebanding solution for small workshops.
Pre-milling the panel ensures optimum edge quality prior to edgebanding.
Dual purpose end trim and radius trimming system activated from the control panel.
Precise adjustments for optimum edge quality.
Chain feed system ensures consistent feeding of material for consistent results.
Available in 230V 1 or 3 phase.

Features:

PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ã 800 mm (31.5â³), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm.
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot
Spring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy-duty pressure beam with extendable workpiece support
Heated infeed fence for preheating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Specifications
Description	SAE	Metric
Feeding speed	23 FPM	7 m/min.
Panel thickness	0.472~1.77â³	12~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90mm
Min. panel length	7.48â³	190mm
Working table height	33.7â³	856mm
Extraction connection	3 x 4â = 1,200 CFM	3 x 100mm = 1,200 CFM
Air consumption	8.83 CFM	250 liters/min
Premilling spindle speed	9000 RPM
Top & bottom trimmer RPM	10500 RPM
Max. machine dimensions (LxWXH)	126â x 47 Â¼â x 47 Â¼â	3200 x 1200 x 1200mm
Machine weight	1162 lbs	528 kgs
Shipping dimensions (LxWxH)	111â x 28.4â x 52â	2820 x 720 x 1320mm
Shipping weight	1452 lbs	660 kgs
Electrical requirements	230/1/60 = 35 amps 230/3/60 = 19 amps

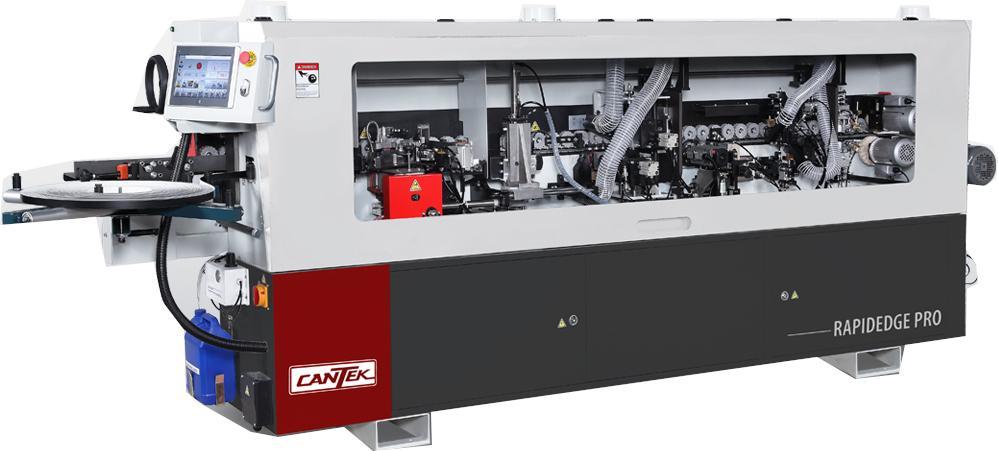

RAPIDEDGE PRO AUTOMATIC EDGEBANDER

RAPIDEDGE PRO AUTOMATIC EDGEBANDER

From cabinet parts to cabinet doors, this edgebander can do it all. Are you tired of spending valuable production time adjusting your edgebander to run various edge banding material? Do you want a professional-grade edge banding machine that can work quickly and efficiently? Look no further than the new Cantek RapidEdge Pro Automatic Edgebander! Our top-of-the-line solution is designed to make edge banding a breeze. With its advanced technology and user-friendly interface, the RapidEdge Pro can apply edge banding to your projects in record time, without sacrificing quality or accuracy. Rapidly change over from various edge thicknesses and finishes right from the control panel. Its compact size and easy-to-maneuver design make the RapidEdge Pro the ideal edgebanding solution for use in any workshop or manufacturing setting.

Why Cantek RAPIDEDGE PRO Automatic Edgebander?

Rapid application: The RapidEdge Pro can apply different thickness of edge band from 0.5mm to 3mm to your projects with rapid changeover speed allowing for optimal production output.
Precision accuracy: With its advanced trimming system, the RapidEdge Pro ensures that your edge banding is perfectly aligned and trimmed every time.
Easy operation: The RapidEdge Proâs intuitive interface makes it easy for anyone to operate, regardless of skill level or experience.
Durable construction: Our machine is built to last, with sturdy components that can withstand the rigors of daily use.

Features:

Three position pneumatic RAPID changeover from 0.5mm, to 1mm, to 2mm edge right from the control panel! Changing between edges has never been easier.
Once set up for wood edge, thin tape, and radius edge you simply need to select the appropriate icon on the control panel for immediate recall. No more manual setting for those edges!
Multi-radius scrapers allow operator to apply a 1mm or 2mm radius on the top & bottom of the panel.
Additional quick change corner rounding motor for fast changeover from 1mm to 2mm radius on the ends.
Automatic edge feeding with a thickness capacity of 0.4â3 mm; strip material can be hand-fed.
Conveyor chain feed system for reliable results.
Teflon-coated quick change hot-melt glue pot.
Heated infeed fence for pre-heating the panel for optimum glue penetration.
29 FPM feed rate (9 m/min)
Workpiece is fed by chain.
Edge coil support plate: Ã 800mm (31 Â½â) for PVC/ABS.
Spring-loaded pressure unit with (2) pressure rollers.
Heavy-duty pressure beam with extendable workpiece support.

Touch Screen Interface

State of the art touch screen interface allows the operator to control all machine functions.
Capable of setting machine parameters for improved operation.
On screen error diagnostics.
Temperature setting.

Single Access Door
Equipped with a single access door to allow easy access to the working units for machine adjustments and minimize the noise during operation.

Touch Screen Interface
HMI control system reduces manual settings to a minimum and enables a quick, easy and intuitive selection and control of the aggregate as well as the complete monitoring of a wide range of machine functions from the screen. Itâs graphic interface is easy to use. It has on board error diagnostics which allow for quick identification of any fault leading to a quick resolution.

Heavy-duty chain feed
The steady workpiece feeding system comprises a driven chain with rubber-covered chain pads and dual row of top idle pressure rollers. This system ensures the workpiece is held firmly and travels smoothly during the machining process to ensure the optimum edge quality.

Pre-Milling Unit
(2) counter-rotating diamond cutterheads for removing up to 3mm of the panel edge to produce an optimum edge for applying the edge tape. This is designed to clean up edges that are poorly machined

Quick Change Glue Pot
The 2.6 lb (1.2 kg) Teflon-coated glue pot is designed for EVA hot-melt glue. The glue is applied by a roller, and the glue amount is adjustable. The glue pot is a Quick-Change type and can be removed and replaced in less than 1 minute. Excellent for fast glue color change or maintenance. The machine comes with (1) glue pot, and additional pots are available (see options).

Guillotine shear
The guillotine shear can rough trim coiled material up to 3 mm in thickness.

Pressure rollers
The pressure roller unit consists of one large roller, followed by a smaller one. The purpose of the unit is to improve the glue bond between the edge and the material. Due to the âQuickâ setup system, the unit is mechanically spring-loaded and can be adjusted exactly to the required edge thickness. The adjustable spring system allows for a perfect bond between the panel and edge every time.

End Trimming Unit
The end trim system is a single motor with (2) saw blades. The unit is mounted on high-precision linear guide rails, ensuring perfect cutting results for years to come. The high-frequency 12000 RPM motor meets any challenge regardless of edge type and thickness.

RAPID Setting Top & Bottom Trimming Units
Equipped with (2) high-frequency motors for top & bottom trimming of the panel. The RAPID adjustment system uses a pneumatic 3-position adjustment to quickly change from 0.5mm, to 1mm, to 2mm edgebanding. This is done directly from the control panel without the need to open the cover and make manual adjustments.

Corner Rounding Unit
Completes the finishing of the ends of the workpiece when applying edges that require a radius end. Two high-frequency motors are provided for R1: 1mm and R2: 2mm radius edge. A quick-change feature allows the operator to rapidly change between each motor according to the edge being processed. The motor and cutter can be adjusted in and out when necessary using a precision mechanical readout for a fast and accurate setting. Once the motor is position correctly however it can be returned immediately to that setting.

Multi-Radius Profile Scraping
The radius scraping unit fine-tunes the edge radius while removing knife marks during the milling process on radius edging. The dual radius system allows the operator to apply a 1mm or 2mm radius and is selected automatically from the control panel without need for manual adjustment.

Flat / Glue Scraping
Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.

Buffing Units
The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.

Release Agent Spray Unit
Applying release agent to the top and bottom surface of the panel prior to applying the glue and edge allows for simple removal of any excess glue. The unit is located before the pre-milling station so any overspray which gets on the edge will be milled off to ensure proper bonding.

Cleaning Agent Spray Unit
The cleaning agent system sprays the top and bottom of the machined edge on the processed workpieces. It is installed before the buffing unit and is designed to polish the edge and loosen any excess glue residue on the surface of the panel.

Specifications
Description	SAE	Metric
Feeding speed	29 FPM	9 meters/min.
Panel thickness	0.315â³ ~1.77â³	8~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90 mm
Min. panel length	6.7â³	170 mm
Working table height	38â³	960 mm
Extension support width	22â³	560 mm
Dust collection outlet dia.	Ã 5â³ x3	Ã 127 mm x3
Air consumption	12.36 CFM	350 liters/min
Electrical consumption	11.4 HP	7 KW
Electrical requirement	230/3/60	26 Full load amps
Machine weight	2024 lbs	910 kgs
Shipping weight	2618 lbs	1190 kgs
Shipping dimensions	156â x 29â x 69â	3960 x 730 x 1748mm

MOTOR SPECIFICATIONS
Feeding motor	1.5 kW
Pre-milling motors (2 pcs)	1.5 kW each (12000 RPM)
Glue spindle motor	0.25 kW
Front/rear trimming motor	0.22 kW (12000 RPM)
Upper trimming motor	0.37 kW (12000 RPM)
Lower trimming motor	0.37 kW (12000 RPM)
Corner rounding motor	0.37 kW (12000 RPM)
Upper buffing motor	0.12 kW (3000 RPM)
Lower buffing motor	0.12 kW (3000 RPM)
Pre-heating	0.4 kW
Glue pot	1.315 kW

MX350M AUTOMATIC EDGEBANDER

MX350M AUTOMATIC EDGEBANDER

Compact edgebander with pre-milling for best-in-class results.

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX350M Automatic Edgebander?

Compact design makes it the ideal edgebanding solution for small workshops
Pre-milling the panel ensures optimum edge quality prior to edgebanding
Precise adjustments for optimum edge quality
Chain feed system ensures consistent feeding of material for consistent results
Available in 230V 1 or 3 phase

Features:

PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ã 800 mm (31.5â³), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm;
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot
Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

PRE-MILLING
Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.

END TRIM
8800 RPM dual saw blade (80mm / 3.15â³) end trimming unit

TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required

BUFFING
2800 RPM top & bottom buffing units to polish the machined edge

Specifications
Description	SAE	Metric
Feeding speed	23 FPM	7 m/min.
Panel thickness	0.472~1.77â³	12~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90mm
Min. panel length	3.54â³	90mm
Working table height	33.7â³	856mm
Extraction connection	3 x 4â	3 x 100mm
Air consumption	8.83 CFM	250 liters/min
Premilling spindle speed	9000 RPM
Top & bottom trimmer RPM	10500 RPM
Max. machine dimensions (LxWXH)	126â x 47 Â¼â x 47 Â¼â	3200 x 1200 x 1200mm
Machine weight	1162 lbs	528 kgs
Shipping dimensions (LxWxH)	111â x 28.4â x 52â	2820 x 720 x 1320mm
Shipping weight	1452 lbs	660 kgs
Electrical requirements	230/1/60 = 35 amps 230/3/60 = 19 amps

MX370M EDGEBANDER

TOUCH SCREEN INTERFACE

Glue temperature settings
Units can be selected and disengaged individually
Heated fence is standard
Keeps track of workpiece length, number or work pieces and hours.

PREMILLING UNIT

(2) diamond milling heads which are counter rotating mill the edge of the panel prior to applying the edgebanding for precise squareness and optimum edge results. Maximum removal of 3mm.

END TRIM / CORNER ROUNDING UNIT

Dual purpose unit for performing end trimming and corner rounding functions in one.
Can flush trim or radius trim depending on the work piece being machined.

FLUSH TRIMMING UNIT

The standard copy roller disc for flush trimming unit is accurate, does not damage the work piece, and produces an optimum finish.
Adjust cutter position with mechanical digital readout for straight or radius profile

RADIUS SCRAPING

Radius scraper with 1.5mm radius.

BUFFING

The buffing unit leaves a super finish on ABS and PVC edging, and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.

MX370M EDGEBANDER

Pre-milling & corner rounding in a small footprint.

The Cantek MX370M Edgebander is designed to be a compact & durable entry level edgebander with pre-milling & corner rounding functions offered at an affordable price. This machine is equipped with pre-milling, combination end trimming & corner rounding unit, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm

Why Cantek MX370M Edgebander?

Compact design with dual function end trim and corner rounding unit
Versatile edgebander capable of applying 0.4mm to 3mm edge tape
Counter rotating diamond pre-milling heads ensure a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint
The corner rounding function finishes the ends of cabinet doors and more with a radius edge, eliminating any manual rework of the panel

Features:

Automatic edge feeding with a thickness capacity of 0.4â3 mm;
Conveyor chain feed system for reliable results with a feed speed of 23 FPM
Heavy-duty pressure beam with extendable workpiece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Spring-loaded pressure unit with (2) pressure rollers
Teflon-coated hot-melt glue pot
User friendly 7â touch screen to control all edgebander functions
Edge coil support plate for PVC/ABS coiled edgebanding
Radius scraping and buffing units ensure a clean and vibrant edge

Specifications
Description	SAE	Metric
Feeding speed	23 FPM	7 m/min.
Panel thickness	0.472~1.77â³	12~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90mm
Min. panel length	6.7â³	170mm
Working table height	6.7â³	170mm
With panel height 12-30mm	8.67â³	220mm
Working table height	33.7â³	856mm
Extensible support width	22â³	560mm
Extraction connection	4â x 3	100mm x 3
Air consumption	8.83 CFM	250 liters/min
Pre-milling spindle speed	12000 RPM
Top & bottom trimmer RPM	10500 RPM
End trim/corner rounding RPM	12000 RPM
Buffing RPM	2800 RPM
Max. machine dimensions (LxWXH)	130â x 47 Â¼â x 47 Â¼â	3300x1200x1200mm
Machine weight	1067 lbs	485 kgs
Shipping dimensions (LxWxH)	109â x 28 Â½â x 54â	2920x720x1320mm
Shipping weight	1507 lbs	685 kgs
Electrical requirements	230/3/60 = 19 amps

MX340 AUTOMATIC EDGEBANDER

MX340 AUTOMATIC EDGEBANDER

High quality edge banding results for cabinet parts and case goods. The Cantek MX340 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. Itâs compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who does not require pre-milling.

Why Cantek MX340 Automatic Edgebander?

Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
Quick change glue pot allows you to change glue colours in minutes.
High frequency end trim & flush trim motors produce fine edge finishing results
Multi-function trimmers allows for flush or radius trimming on edge banding
Radius scraping removes any knife marks on radius edges
Buffing unit polishes the edge
Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish

Features:

Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
Automatic edge feeding with a thickness capacity of 0.4â3 mm; strip material can be hand-fed
Conveyor chain feed system for reliable results
Heated infeed fence for pre-heating the panel for optimum glue penetration
PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ã 800mm (31 1/2â), for PVC/ABS
Spring-loaded pressure unit with (2) pressure rollers
Heavy-duty pressure beam with extendable workpiece support

END TRIM
High frequency 12000 RPM end trimming unit, with Ã100mm (4â) TC-Saw blades
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
RADIUS SCRAPING
Radius scraper with 2mm radius
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge

Specifications
Description	SAE	Metric
Feeding speed	29 FPM	9 meters/min.
Panel thickness	0.315â~1.77â	8~45 mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90 mm
Min. panel length	6.7â	170 mm
Working table height	33.5â	850 mm
Dust collection outlet dia.	Ã 5â x 2	Ã 127 mm x 2
Total connected power	7.4 HP	5.5 kW
Max. machine dimensions (LxWXH)	116â x 44â x 55â	2950 x 1120 x 1390mm
Machine weight	1144 lbs	520 kgs
Shipping dimensions (LxWxH)	89â x 28 1/2â x 65 3/4â	2260 x 720 x 1670mm
Shipping weight	1294 lbs	588 kgs
Electrical requirements	230/3/60: 30 amps 230/1/60: 37 amps

Motor Power
Feeding motor	1 HP	0.75 (kW)
Glue spindle motor	1/4 HP	0.18 (kW)
Front/rear trimming motor	0.3 HP	0.22 (kW)
Upper trimming motor	1/2 HP	0.37 (kW)
Lower trimming motor	1/2 HP	0.37 (kW)
Upper buffing motor	0.16 HP	0.12 (kW)
Lower buffing motor	0.16 HP	0.12 (kW)
Pre-heating	1/2 HP	0.4 (kW)
Glue pot	1 3/4 HP	1.315 (kW)

MX350 AUTOMATIC EDGEBANDER

PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels
(2) counter-rotating diamond cutterheads for optimum results and longevity
END TRIM
High frequency 12000 RPM end trimming unit, with Ã100mm (4â) TC-Saw blades
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
RADIUS SCRAPING
Radius scraper with 2mm radius
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge

MX350 AUTOMATIC EDGEBANDER

High quality edge banding results for cabinet parts and case goods.

The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. Itâs compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.

Why Cantek MX350 Automatic Edgebander?

Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
Quick change glue pot allows you to change glue colours in minutes.
Couter rotating diamond premilling cutters produce optimum panel edge for superior edgebanding results
High frequency end trim & flush trim motors produce fine edge finishing results
Multi-function trimmers allows for flush or radius trimming on edge banding
Radius scraping removes any knife marks on radius edges
Buffing unit polishes the edge
Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish

Features:

Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
Automatic edge feeding with a thickness capacity of 0.4â3 mm; strip material can be hand-fed
Conveyor chain feed system for reliable results
Heated infeed fence for pre-heating the panel for optimum glue penetration
PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ã 800mm (31 Â½â), for PVC/ABS
Spring-loaded pressure unit with (2) pressure rollers
Heavy-duty pressure beam with extendable workpiece support

Specifications
Description	SAE	Metric
Feeding speed	29 FPM .	9 meters/min
Panel thickness	0.315â~1.77â	8~45 mm
Max. pre-milling thickness	1.77â	45mm
Edge thickness	0.0158â~0.118â	0.4 ~ 3 mm
Min. panel width	3.54â³	90 mm
Min. panel length	6.7â	170 mm
Working table height	33.5â	850 mm
Dust collection outlet dia.	Ã 5â x 3	Ã 127 mm x 3
Total connected power	10 HP	7.5 kW
Max. machine dimensions (LxWXH)	147â x 52â x 54â	3700 x 1310 x 1380mm
Machine weight	1452 lbs	660 kgs
Shipping dimensions (LxWxH)	91â x 29â x 54â	2290 x 720 x 1370mm
Shipping weight	1558 lbs	708 kgs
Electrical requirements	230/3/60: 40 amps

MX550AU PORTABLE EDGEBANDER PACKAGE

MX550AU PORTABLE EDGEBANDER PACKAGE
Take your edgebander to the job site and edgeband straight or curve parts. The Cantek MX550AU Portable Edgebander Package is a versatile portable edgebanding solution for the hobbyist or industrial user. It is capable of edgebanding radius or straight workpieces and can be operated as a handheld unit (standard) or a stationary system with the optional table accessory. The edgebander is equipped with a glue pot which uses granulated hot melt glue with an operating temperature range from 120oC to 200oC (250oF to 390oF). The full kit includes the portable edgebander, power trimmer, workpiece clamp set, and dual end cutter. The package also comes with packaging for each item and a dolly to make is extra easy to take with you to the site.

Why Cantek MX550AU Portable Edgebander Package?

Can apply edgebanding material from 0.4~3mm thick
Straightforward operation with ergonomic handles and material support plate
Simple maintenance
Edgebands straight as well as curved surfaces
Light weight & portable unit which can be taken to the jobsite
Automatic glue application with adjustable glue amount control
Works on 75-90 deg surfaces
Glue pot with quick heating time of approximately 8 minutes
Variable feed speed from 6.5~20 FPM (2-6 m/min)

Package includes:

(1) PD80 Power Trimmer
(1) TK65 Dual End Cutter
(1) VH03 Suction Clamp Kit
(1) Glue
(1) Trolley / Dolly

Specifications
Tape thickness	0.4 ~ 3mm (0.0016~0.118â)
Width of tape	10 ~ 65mm (0.4~2.55â)
Feeding speed	2 ~ 6 m/min (6.5~20 FPM)
Output power	1.15 HP (855 W) 115/1/60
Glue pot temperature	120 deg C~200 deg C (250 deg F~390 deg F)
Glue pot capacity	400 ml (13.5 oz)
Unit weight	8.7 kgs (19 lbs)

Ergonomic Controls:

Rubber Grips and Metal Support Plate Two rubber grips allow for precise control of the edgebander while a metal support plate is designed to rest on the workpiece to allow for accurate and simple operation.
Adjustable Glue Pot Handle The glue pot handle has two positions in case of work piece interference.
Tape Insert Guide A measured guide in increments of 1mm determines the width of the edgebanding or edging tape and secures it in place for a regulated feed.
Consistent Glue Application A knob allows for on-the-fly regulation of glue amount for a mess-free, consistent result.
Digital Temperature Monitor A digital temperature monitor provides accurate control over glue application. Temperature ranges are 120 deg C â 200 deg C Â±1 deg C (250 deg F â 390 deg F Â±34 deg F)

Simple Operation:

Straightline and Contour Edgebanding
Our portable edgebanders are perfect for all varieties and shapes of workpieces. For contoured or curved surfaces, the minimum interior radius is 25mm (1â).
Hotmelt Glue for Edgebanding Bond
The glue is applied directly onto the edgebanding or edging tape. Maintain steady pressure on the workpiece against the feeding roller to apply the edgebanding or edging tape at desired temperature.
Glue-Free Edgebanding
Save money on your edgebanding as the MX550 uses standard tape and does not require pre-glue edgebanding.
Material Compatibility
The MX550 can work with PVC, melamine, laminate, wood and metal edgebanding and edge tape of 0.3mm â 3mm thickness and 10mm â 65mm width.
Angle Adjustment
Our edgebanders can operate on tilted surfaces of 75 deg -90 deg , making beveled surfaces as simple as straight ones.
Quick to Start
The MX550 edgebander requires approximately 8 minutes to obtain operating temperature with a full pot of glue. Heat up time is reduced with less glue in the pot.
Built to Last
Quality construction and rigorous testing ensure the MX550 will perform time after time.
Portable and Stationary Use
Designed for transportation and space-efficiency, our MX550 comes with a durable and lightweight case. For handheld operation, workpieces can be secured with our VH03N Vacuum Clamp Set. For stationary operation, the MX550 can also be secured to our optional ST95B Stationary Worktable depending on your needs.

Options:

BC25 â Mobile Dispenser Prevent possible damage to handing long edgebanding. Easy clip-on design and can hold up edgebanding from 10-62mm, thickness from 0.4 to 3mm
ST95B â Stationary Worktable Set Edgebanders and edgeband trimmers installed onto the stationary worktable ensure accurate application on small, thin, or curved workpieces not suitable for use with the vacuum clamp. The set includes: (1) Stationary worktable, (1) Tape dispenser, (1) Trimmer adaptor, (1) Vacuum handles.
ST97 â Guide Component Kit Assists with keeping workpiece on level plane while straight edgebanding or trimming. Floating adjustment device to enhance more precise straightline trimming. Suitable for width from 10-65mm edging.


MX340M AUTOMATIC EDGEBANDER TOP SELLER	MX370P EDGEBANDER TOP SELLER	MX330 AUTOMATIC EDGEBANDER NEW!	MX350MR AUTOMATIC EDGEBANDER NEW!	RAPIDEDGE PRO AUTOMATIC EDGEBANDER NEW!

MX350M AUTOMATIC EDGEBANDER	MX370M EDGEBANDER	MX340 AUTOMATIC EDGEBANDER	MX350 AUTOMATIC EDGEBANDER	MX550AU PORTABLE EDGEBANDER PACKAGE
