Cantek Edge Sanders

PW120E Oscillating Edge Sander OES509D Heavy Duty Oscillating Edge Sander OES512D Heavy Duty Oscillating Edge Sander OES516D Heavy Duty Oscillating Edge Sander VS3012 Vertical Oscillating Edge Sander
PW120E Oscillating Edge Sander OES509D Heavy Duty Oscillating Edge Sander OES512D Heavy Duty Oscillating Edge Sander OES516D Heavy Duty Oscillating Edge Sander VS3012 Vertical Oscillating Edge Sander



Models
PW120E Oscillating Edge Sande
OES509D Heavy Duty Oscillating Edge Sander
OES512D Heavy Duty Oscillating Edge Sander
OES516D Heavy Duty Oscillating Edge Sander
VS3012 Vertical Oscillating Edge Sander

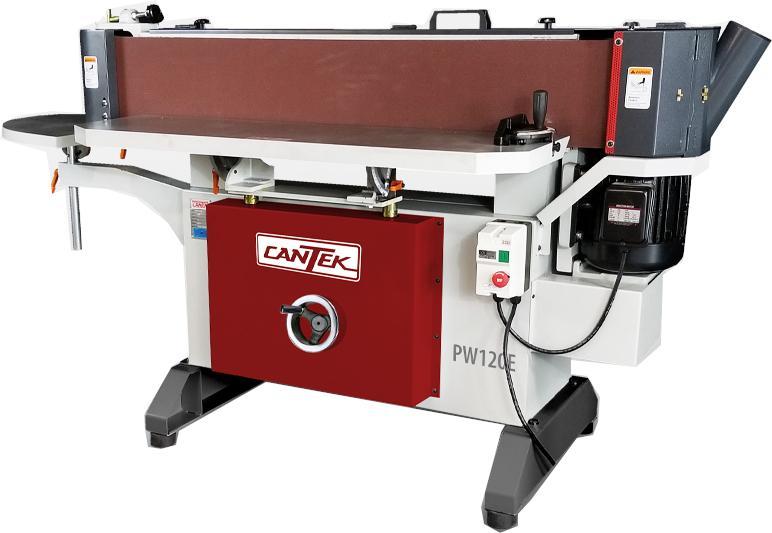

Cantek PW120E Oscillating Edge Sander

Cantek PW120E Oscillating Edge Sander

Versatile edge sander for doors, drawer boxes and more.

The Cantek PW120E Oscillating Edge Sander is designed for the most demanding sanding applications. With its powerful 3HP motor it can perform under industrial requirements. The oscillating belt ensures optimum sanding quality and extended belt life. Its versatility lies in the number of functions which can be done on this single machine.  The industrial cast aluminum table can be easily tilted with positive stops of 45 deg and -5 deg so you can easily sand straight or miter edges.  Additionally, the front table is spring loaded making it effortless for the operator to set the table height in order to utilize the full sanding belt.  The 9 inch high sanding belt makes it ideal for sanding thicker furniture parts or drawer boxes.  The additional tiltable cast aluminum end table with removable guard allows for inside contour sanding.

Why Cantek PW120E Oscillating Edge Sander?

  • Oscillating sanding belt produces optimum sanding results with extended belt life as it runs cooler during sanding operations while using more of the belt
  • Powerful 3HP motor for even the most demanding sanding requirements
  • Cast aluminum front and rear tables are adjustable and tiltable for straight or bevel sanding
  • Contoured end table with 4 inch pulley allows for sanding the inside radius of a workpiece
  • 48 inch x 9-1/2 inch cast iron platen is covered with graphite cloth providing a wide and stable sanding area which is perfect for doors, furniture parts, and even longer parts

Features:

  • Spring loaded front table allows for effortless adjustment of the table to the desired position on the belt
  • 8 inch travel of the front table allows for maximum use of the sanding belt for prolonged life
  • Oscillating system is driven from main motor by gear mechanism
  • Quick and easy belt changes and belt tracking adjustment
  • Two 4 inch dust chutes for dust collector connection
  • Magnetic switch to CSA/UL standard
Specifications
Motor power       3 HP
Belt size       9 inch x 138.5 inch      230 x 3520mm
Platen size       9.5 inch x 48 inch      241 x 1219mm
Front table size (LxW)       47.6 inch x 11.8 inch      1210 x 300mm
Table tilt       -5 deg to +45 deg
Table height from floor       32.7 inch      830mm
Dust ports       (2) 4 inch      (2) 100mm)
Machine dimensions (LxWxH)       82.7 inch x 24.4 inch x 40.2 inch      2100 x 620 x 1020mm
Shipping dimensions (LxWxH)       86.6 inch x 28.4 inch x 45.3 inch      2200 x 720 x 1150mm
Machine weight       650 lbs      295 kgs
Shipping weight       726 lbs      330 kgs
Machine electrics       230/3/60 = 9.6 amps
575/3/60 = 3.9 amps

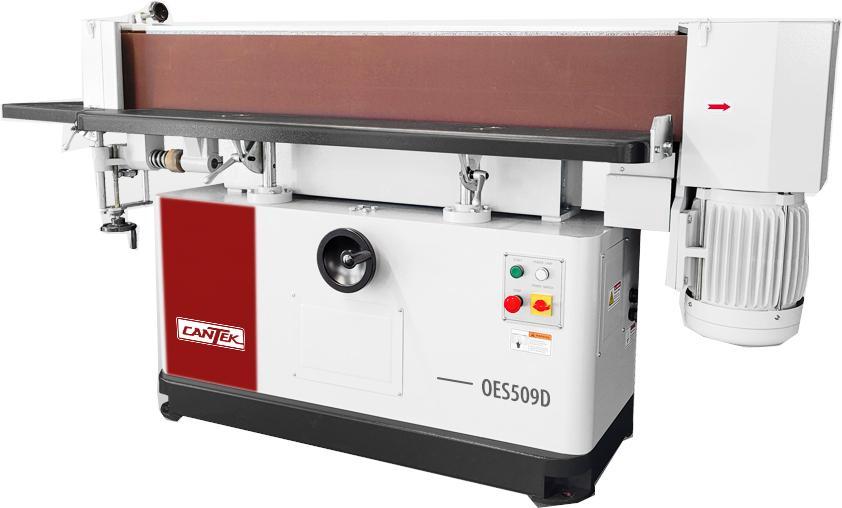

Cantek OES509D Heavy Duty Oscillating Edge Sander

Cantek OES509D Heavy Duty Oscillating Edge Sander

Industrial oscillating edge sander for the most demanding of jobs.

The Cantek OES509D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use.  Equipped with a 9 inch high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more.  The OES509D is also equipped with dual front and rear tables which are adjustable up and down and can be tilted to 45 degrees, allowing for a wide range of applications and for full utilization of the sanding belt.  The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 7.5 HP sanding motor.  The adjustable and tiltable end table allows for sanding of curved components on the idle pulley.  The belt oscillated up and down which helps in keeping it cool while also producing an optimum sanded finish.

Why Cantek OES509D Heavy Duty Oscillating Edge Sander ?

  • Heavy-duty design with powerful 7.5HP driving motor offers high efficiency in production environments
  • Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
  • Oscillating sanding belt for optimum sanding results
  • Quick belt change with adjustable belt tension
  • Side table can be used for sanding the curve style work pieces.

Features:

  • Built of heavy welded plate steel for rugged base construction and vibration free sanding
  • Belt oscillation by gear reducer
  • 9 x 165 inch sanding belt
  • Front and rear sanding platens are covered with anti-friction graphite cloth
Specifications
Sanding motor       7.5 HP
Oscillating stroke       0.472 inch      12mm
Sanding belt size       9 inch x 165 inch
Sanding belt speed      970 MPM
Worktable dimension: front       10.43 inch x 60 inch      265x1515mm
Worktable dimension: rear       10.43 inch x 60 inch      265x1515mm
Worktable dimension: side       13.8 inch x 17.7 inch      350x450mm
Front table tilt       45 deg
Side table tilt       45 deg
Dust port       (2) 4 inch      (2) 100mm
Machine measurement       90.55 inch x 30.7 inch x 48 inch      2300x780x1220mm
Packing measurement       94.5 inch x 34.6 inch x 56 inch      2400x880x1420mm
Machine weight       1100 lbs.      500 kgs
Shipping weight       1375 lbs.      625 kgs
Electrical requirement       230/3/60 = 22 amps 575/3/60 = 9 amps



Cantek OES512D Heavy Duty Oscillating Edge Sander

Cantek OES512D Heavy Duty Oscillating Edge Sander

Industrial oscillating edge sander for the most demanding of jobs.

The Cantek OES512D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use.  Equipped with a 12รขย€ย high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more. The OES512D is also equipped with dual front and rear tables which are adjustable up and down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 10 HP sanding motor.  The adjustable and tiltable end table allows for sanding of curved components on the idle pulley.  The belt oscillates up and down which helps in keeping it cool while also producing an optimum sanded finish.

Why Cantek OES512D Heavy Duty Oscillating Edge Sander ?

  • Heavy-duty design with powerful 10HP driving motor offers high efficiency in production environments
  • Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
  • Oscillating sanding belt for optimum sanding results
  • Quick belt change with adjustable belt tension
  • Side table can be used for sanding the curve style work pieces.

Features:

  • Built of heavy welded plate steel for rugged base construction and vibration free sanding
  • Belt oscillation by gear reducer
  • 12 x 165 inch sanding belt
  • Front and rear sanding platens are covered with anti-friction graphite cloth
Specifications
Sanding motor       10 HP
Oscillating stroke       0.472 inch      12mm
Sanding belt size       12 inch x 165 inch
Sanding belt speed       970 MPM
Worktable dimension: front       10.43 inch x 60 inch      265x1515mm
Worktable dimension: rear       10.43 inch x 60 inch      265x1515mm
Worktable dimension: side       13.8 inch x 17.7 inch      350x450mm
Front table tilt       45 deg
Side table tilt 45 deg
Dust port       (2) 4 inch      (2) 100mm
Machine measurement       90.55 inch x 30.7 inch x 51 inch      2300x780x1295mm
Packing measurement       94.5 inch x 34.6 inch x 59 inch      2400x880x1500mm
Machine weight       1155 lbs.      525 kgs
Shipping weight       1430 lbs.      650 kgs
Electrical requirements       230/3/60 = 28 amps 575/3/60 = 11 amps

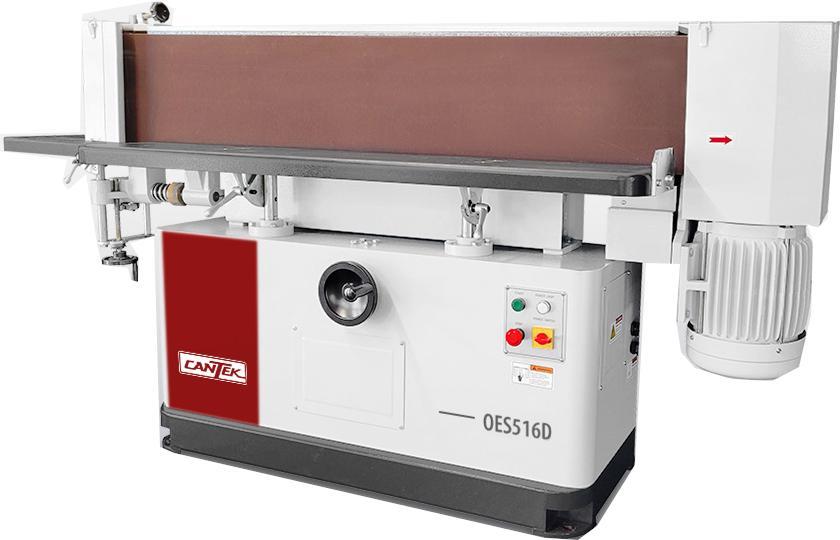

Cantek OES516D Heavy Duty Oscillating Edge Sander

Cantek OES516D Heavy Duty Oscillating Edge Sander

Industrial oscillating edge sander for the most demanding of jobs.

The Cantek OES516D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use.  Equipped with a 16 inch high oscillating sanding belt, it is perfect for sanding drawer boxes, doors, furniture components and more. The OES516D is also equipped with dual front and rear tables, which are adjustable up and down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow two operators to be working on the machine simultaneously, made possible by the powerful 10 HP sanding motor.  The adjustable and tiltable end table allows for sanding of curved components on the idle pulley.  The belt oscillates up and down, which helps keep it cool while also producing an optimum sanded finish.

Why Cantek OES516D Heavy Duty Oscillating Edge Sander ?

  • Heavy-duty design with a powerful 10HP driving motor offers high efficiency in production environments.
  • Front, back, and side tables are adjustable in height by a handwheel and can be tilted for bevel sanding operations.
  • Oscillating sanding belt for optimum sanding results.
  • Quick belt change with adjustable belt tension.
  • Side table can be used for sanding the curve-style workpieces.

Features:

  • Built of heavy welded plate steel for rugged base construction and vibration-free sanding.
  • Front and rear sanding platens are covered with anti-friction graphite cloth.
  • Belt oscillation by gear reducer.
  • 16 inch x 165 inch sanding belt.
Specifications
Sanding motor       10 HP
Oscillating stroke       0.472 inch      12mm
Sanding belt size       16 inch x 165 inch
Sanding belt speed      970 MPM
Worktable dimension: front       10.43 inch x 60 inch      265x1515mm
Worktable dimension: rear       10.43 inch x 60 inch      265x1515mm
Worktable dimension: side       13.8 inch x 17.7 inch      350x450mm
Front table tilt       45 deg
Side table tilt       45 deg
Dust port       (2) 4 inch      (2) 100mm
Machine measurement       90.55 inch x 30.7 inch x 52-34 inch      2360x780x1340mm
Packing measurement       94.5 inch x 34.6 inch x 62.6 inch      2460x880x1590mm
Machine weight       1265 lbs.      575 kgs
Shipping weight       1551 lbs.      705 kgs
Electrical requirements       230/3/60 = 28 amps

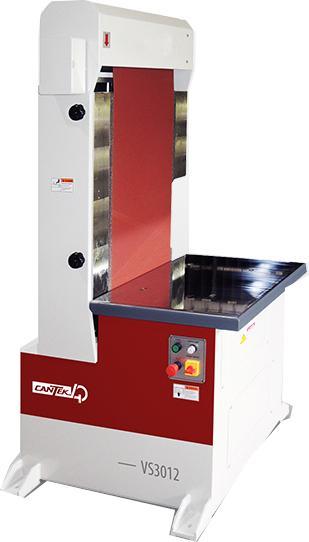

Cantek VS3012 Vertical Oscillating Edge Sander

Cantek VS3012 Vertical Oscillating Edge Sander

Ideal edge sander for drawer boxes, furniture components, and more.

Say goodbye to tedious hand sanding! The Cantek VS3012 Vertical Oscillating Edge Sander is expertly designed to streamline finishing on drawer boxes and similar workpieces. Featuring a large 12 inch x 105 inch sanding belt powered by a robust 7.5 HP 3-phase motor, it delivers consistent, high-performance results with ease. The generous 13 inch x 30 inch platen combined with a 3/8 inch oscillation stroke ensures smooth, even sanding for a professional finish every time. Boost your efficiency and take your woodworking projects to the next level.

Why VS3012 Vertical Oscillating Edge Sander?

  • Large 12 inch wide x 30 inch high sanding area with graphite cloth backing for reduced friction and extended belt life
  • Powerful 7.5 HP sanding motor
  • Separate belt oscillation motor with 3/8 inch stroke and 60 cycles per minute
  • Pneumatic belt tensioning for fast belt changes

Features:

  • Compact design
  • The table surface is precision-machined for flatness
  • Convenient belt tension and centring of the belt
  • The control box is conveniently located for quick use.
  • 12 x 105 belt is considerably less expensive than traditional edge sanding belts.
Specifications
Sanding motor       7.5 HP
Oscillation motor       15 W
Oscillating stroke       3/8 inch
Sanding belt size       12 inch x 105 inch
Sanding belt speed       3182 FPM
Worktable       20 inch x 24 inch
Worktable height from floor       30 inch
Graphite cloth size       13 inch x 32.9 inch
Dust port size       5 inch
Machine dimensions       38.6 inch x 26 inch x 76 inch
Machine weight       836 lbs
Shipping dimensions       43 inch x 30 inch x 82 inch
Shipping weight       1078 inch
Machine electrics       230/3/60 = 23 amps 575/3/60 = 10 amps



PW120E
PW120E WOODWORKING 9X130 OSCILLATING EDGE SANDER, WEIGHT = 660 LBS
Mfg. item #: PW120E
CANPW120E
lease to own for as little as:$149 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$7,455.00

53
OES509D
OES509D WOODWORKING 9X165 OSCILLATING EDGE SANDER, WEIGHT = 1375 LBS
Mfg. item #: OES509D
CANOES509D
lease to own for as little as:$191 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$9,545.00

53
OES512D
OES512D WOODWORKING 12X166 OSCILLATING EDGE SANDER, WEIGHT = 1430 LBS
Mfg. item #: OES512D
CANOES512D
lease to own for as little as:$220 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$11,000.00

53
OES516D
OES516D WOODWORKING 16X165 OSCILLATING EDGE SANDER, WEIGHT = 1490 LBS
Mfg. item #: OES516D
CANOES516D
lease to own for as little as:$247 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$12,364.00

53
Call for price. CANVS3012
