Technical Sales 1–800–458–3687

Jet Electric Trolleys

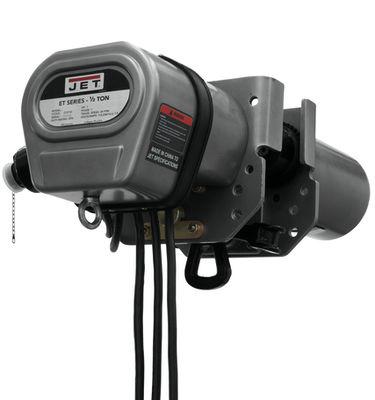

1/2ET-1C, 1/2 TON, 1PH, 115/230V, PREWIRED 230V

Note: When Purchasing a JET Electric Trolley for a JET Electric Hoist
you need to also purchase a new 4 or 6 button Control.
JET Electric hoists DO NOT include a 2 button Control

272705 Brochure

Features:

  • Designed to give you single-control convenience
  • Avaliable in both 115v/230v 1 phase and 230c/460v 3 phase
  • Solenoid-operated traveling brake
  • Adjustable to fit various size I-beams and wide flange beams
  • Must be fitted with a JET 4 button 24V push button control
  • Durable powder coat finish
  • Electric trolley not supplied with 4 push button control
  • Power cable supplied by end user, Not for use in explosive environment
Specifications
Stock Number 272705 272710 272720 272730 272750
Model Number 1/2ET-1C 1ET-1C 2ET-1C 3ET-1C 5ET-1C
Capacity (lbs) 1100 2200 4400 6600 11000
Beam Flange W (in) 3-5 3-5 4-6 4-6 5-7
Travel Speed (rpm) 39-1/3 39-1/3 39-1/3 39-1/3 39-1/3
Hook Mount Head Room 6-7/8 6-7/8 8 9 11-3/16
Motor 1/2hp, 1ph, 115/230v 1/2hp, 1ph, 115/230v 1/2hp, 1ph, 115/230v 1hp, 1ph, 115/230v 1hp, 1ph, 115/230v
Duty Cycle Rating 25 percent 25 percent 25 percent 25 percent 25 percent
Min Curve (in) 43-5/16 43-5/16 59 59 78-3/4
Weight (lbs) 93 93 122 161 218
262605 Brochure

Features:

  • Designed to give you single-control convenience
  • Avaliable in both 115v/230v 1 phase and 230c/460v 3 phase
  • Solenoid-operated traveling brake
  • Adjustable to fit various size I-beams and wide flange beams
  • Must be fitted with a JET 4 button 24V push button control
  • Durable powder coat finish
  • Electric trolley not supplied with 4 push button control
  • Power cable supplied by end user, Not for use in explosive environment
Specifications
Stock Number 262605 262610 262620 262630 262250
Model Number 1/2ET-3C 1ET-3C 2ET-3C 3ET-3C 5ET-3C
Capacity (lbs) 1100 2200 4400 6600 10000
Beam Flange W (in) 3-5 3-5 4-6 4-6 5-7
Travel Speed (rpm) 39-1/3 39-1/3 39-1/3 39-1/3 39-1/3
Hook Mount Head Room 6-7/8 6-7/8 8 9 10
Motor 1/2hp, 3ph, 230/460v 1/2hp, 3ph, 230/460v 1/2hp, 3ph, 230/460v 1hp, 3ph, 230/460v 3PH, 230/460V
Duty Cycle Rating 25 percent 25 percent 25 percent 25 percent 25 percent
Min Curve (in) 43-5/16 43-5/16 59 59
Weight (lbs) 88 88 116.6 156.2 185
Push Button Controlls
Stock Number Model Number Description Hoist Type
152411 PBC-410C 4 Button control pendant for 10 foot lift hoist and trolley SS
152416 PBC-415C 4 Button control pendant for 15 foot lift hoist and trolley SS
152421 PBC-420C 4 Button control pendant for 20 foot lift hoist and trolley SS
152431 PBC-430C 4 Button control pendant for 30 foot lift hoist and trolley SS



272705
1/2ET-1C, 1/2 TON, 1PH, 115/230V, P
Mfg. item #: 272705
WMH272705
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
272710
1ET-1C, 1 TON, 1PH, 115/230V, PREWI
Mfg. item #: 272710
WMH272710
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
272720
2ET-1C, 2 TON, 1PH, 115/230V, PREWI
Mfg. item #: 272720
WMH272720
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
272730
3ET-1C, 3 TON, 1PH, 115/230V, PREWI
Mfg. item #: 272730
WMH272730
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
272750
++ 5ET-1C, 5 TON, 1PH, 115/230V, P
Mfg. item #: 272750
WMH272750
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
262605
++ 1/2ET-3C, 1/2 TON, 3PH, 230/460
Mfg. item #: 262605
WMH262605
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
262610
1ET-3C, 1 TON, 3PH, 230/460V, PREWI
Mfg. item #: 262610
WMH262610
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
262620
2ET-3C, 2 TON, 3PH, 230/460V, PREWI
Mfg. item #: 262620
WMH262620
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
262630
3ET-3C, 3 TON, 3PH, 230/460V, PREWI
Mfg. item #: 262630
WMH262630
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
262250
++ 5ET-3C, 5 TON, 3PH, 230/460V, P
Mfg. item #: 262250
WMH262250
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

336
152411
PBC-410CN, SS 4 BUTTON CONTROL PENDANT 10 LIFT HOIST & TROLLEY, MADE IN CHINA, WGT = 3.96 LBS, SHIPS UPS/FEDEX PACKAGE
Mfg. item #: 152411
WMH152411
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$130.00

14
152416
PBC-415CN, SS 4 BUTTON CONTROL PENDANT 15 LIFT HOIST & TROLLEY, MADE IN CHINA, WGT = 4.4 LBS, SHIPS UPS/FEDEX PACKAGE
Mfg. item #: 152416
WMH152416
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$134.00

14
152421
PBC-420CN, SS 4 BUTTON CONTROL PENDANT 20 LIFT HOIST & TROLLEY, MADE IN CHINA, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 4.4 LBS
Mfg. item #: 152421
WMH152421
$75 for Delta orders between $650 and $949. Lower rates may apply to larger orders. No extra charge for residential deliveries. $30 liftgate fee, if required.1014
$148.00

14
152431
PBC-430CN, SS 4 BUTTON CONTROL PENDANT 30 LIFT HOIST & TROLLEY, MADE IN CHINA, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 5.95 LBS
Mfg. item #: 152431
WMH152431
$75 for Delta orders between $650 and $949. Lower rates may apply to larger orders. No extra charge for residential deliveries. $30 liftgate fee, if required.1014
$174.00

14
