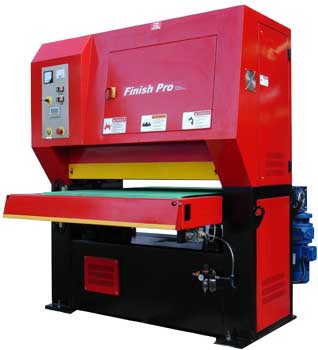

Finish Pro FP-5285 Deburring Machine

CAUTION:  If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used

OPTIONAL:  WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan.  Particles sink to the base of the tank where they can easily be removed by raking into a provided container.  Normal tap water is used, there are not filter bags to be changed.   Water level is automatically controlled when unit is connected to a water supply.  All units are equipped with explosion relief door and sound silencer


  • Abrasive belt size: 52 x 85 inch
  • Motorized Table Lift
  • Variable Speed Conveyor with inverter drive
  • Conveyor Forward and Reverse
  • Belt Safety Overtravel Switches
  • Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
  • 4-Jackscrew Table Support
  • Double Infeed and Outfeed Pinch Rolls with protective guards
  • Conveyor Belt Tracking System
  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
  • Table Height Digital Readout
  • Load Meter indicates percentage of full motor loads
  • Belt change door electrically interlocked for safety purpose
  • Air tensioning of belt for accurate tensioning & compensation of belt stretch
  • Quick release sanding head support for fast belt change
  • Dust collection hood with 6 inch outlet is located adjacent to abrasive head in sanding area
  • Emergency stops from almost any point
  • Noise level bellows 82 dba
  • Operation manual, control tags, danger signs, and warning labels in English on machine 208/230V, 3-Phase
Model FP-5285
Max. Part Width 52"
Abrasive Belt Size 52" x  85"
Contact Roller Size 8" Dia
Passline Height 34" - 37"
Max. Thickness Capacity 6-1/8"
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20"
Dust Collector Capacity 2,800 CFM
Main Motor 30 HP, 230V / 460V, 3-Ph
Conveyor Motor 3 HP, 230V / 460V,3-Ph
Table Lifting Motor 3 HP, 230V / 460V, 3-Ph
Net Weight, approx. 6,650 LBS
Machine Dimensions, LxWxH 89" x 98" x 93"



  • Prices are for 208-230 Volts
  • Total amps 120 @ 230/3/60
  • Compressed Air Required: 2 CFM @ 90 PSI

Optional Accessories:

  • Wet Dust Collector # WDC-FP52
  • Heavy Duty Ducting Package # HDDP-5285
