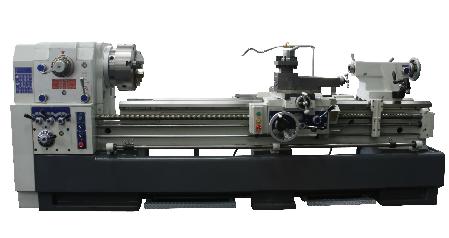

GMC GML 2680T-26200T High Precision Gap

Standard Features:

  • ISO 9001 certified
  • Made in Taiwan
  • Large spindle bore 4-1/8 inch
  • Heavy Duty spindle D1-11
  • Heavy Duty main motor 15HP
  • 12spindle speeds from 13to 1,200rpm
  • 44kinds of inch threads, and 39kinds of metric threads
  • Threading and feeding rate change without changing gears
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • Hand oil pump on apron for all guide ways lubricatuion
  • Power source: 220V/208V, 3 phase ( 440V/460V is optional )

Standard Equipment

  • 12 inch 3-jaw chuck
  • 16 inch 4-jaw chuck
  • 14 inch Face plate
  • 1-8 inch steady rest
  • Follow rest
  • Removeable gap
  • 4-way tools post
  • Foot brake
  • Halogen light
  • Full coolant system
  • Thread chasing dial
  • Carriage stop system
  • Tool boxwith tools
  • Operation manual
  • Parts manual
SPECIFICATIONS
Model No. GML-26200T      GML-26120T GML-26160T
Max. swing over bed 26 inch 26 inch 26 inch
Max. length of work piece 200 inch 120 inch 160 inch
Max. swing over cross slide 17 1/2 inch 17 1/2 inch 17 1/2 inch
Max. Swing in gap 35-7/16 inch 35-7/16 inch 35-7/16 inch
Width of Bed 15-3/4 inch
Spindle bore 4-1/8 inch, D1-11
Taper of spindle center M.T.# 5
Spindle speeds 13-1,200rpm / 12 steps
Longitudinal feeds 0.0014-0.039 IPR, 36 kinds
Cross feeds 0.0007-0.02 IPR, 36 kinds
Inch threads 72 - 2  TPI, 44 kinds
Metric threads 0.2 - 14 mm , 39 kinds
Max. travel of top slide 7-1/2 inch
Max. travel of cross slide 14 inch
Diameter of tailstock quill 2-15/16 inch
Max. travel of tailstock quill 7 inch
Taper of quill center M.T. #5
Main motor 15 HP, 220V or 440V, 3 phase, prewired on 220V
Coolant pump motor 15HP, 220V or 440V, 3 phase, prewired on 220V
Machine weight, approx. 9850 lbs 7650 lbs 8650 lbs
Overall dimensions, inch 167 x 43 x 61 115 x 43 x 61 127 x 43 x 61

One year industrial warranty for parts

Optional Equipment:

  • Taper turning attachment
  • 8 inch to 16 inch steady rest
  • 15 inch 3-jaw chuck
  • DRO
  • Full length rear splash guard
GML-2680
PRECISION GAP BED LATHES 26X80, 4-1/8 BORE, 12 SPD, 15 HP, FREE SINO DRO & TAPER, 220/440V, 3PHASE
Mfg. item #: GML-2680
GMCGML-2680
lease to own for as little as:$581 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$29,049.97

83
GML-26120
PRECISION GAP BED LATHES 26X120, 4-1/8 BORE, 12 SPD, 15 HP, FREE SINO DRO & TAPER , 220/440V,3PHASE
Mfg. item #: GML-26120
GMCGML-26120
lease to own for as little as:$617 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$30,874.14

83
GML-26160
PRECISION GAP BED LATHES 26X160, 4-1/8 BORE, 12 SPD, 15 HP, FREE SINO DRO & TAPER , 220/440V,3PHASE
Mfg. item #: GML-26160
GMCGML-26160
lease to own for as little as:$832 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$41,590.70

83
Call for price. GMCGML-26200
