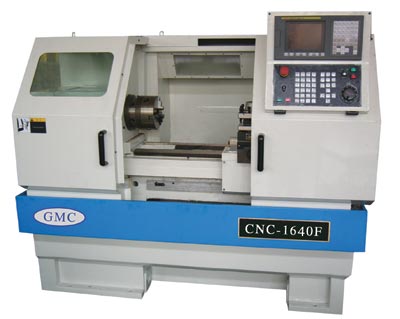

GMC CNC-1640F/1660F Lathe

Standard Features

• ISO 9001 certified
• Ease-of-use FANUC oi-mate control
• CNC programmable spindle speeds from 45 to 2,500 rpm
• Large spindle bore 2-1/16", D1-6
• Full enclosure safety front and rear guards
• One-piece solid cast iron machine base
• Heavy Duty guideway width 11 13/16"
• Electrical automatic 4-way turret toolpost
• MPG Metal handwheel for X & Z
• Fully ballscrews enclosure
• RS 232 interface
• High speed machining
• Popular Ease-of-use Conversational programming, Conversational leads you to
• go through programming your part, just fill in the blanks and check the graphic.
• Select from all canned cycles, such as, profiling, material removing, roughing
• and finishing, inside & outside threading, line, arc, drilling and floating tapping,
• cut-off, grooving, radius, chamfering
• G code and M code programming
• CSS-constant surface speeds
• CAD/CAM connector
• Tools library
• Tool length & radius compensation
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system for ballscrews and guideways
• Automatic lubrication system in headstock and feed box
• One year warranty for parts

Standard Equipment

• 10" manual 3-jaw chuck with set reversible jaws
• Electric automatic turret 4-position toolpost
• MPG for both X & Z axis movement
• Coolant system
• Automatic lubrication system
• Work light
• Slide safety front doors
• Full enclosure safety front and rear guards
• Tool box and leveling pads

One year warranty for parts

Optional Equipment

• 8" wedge-type hydraulic 3-jaw chuck (non thru hole) w/ hydr. station
