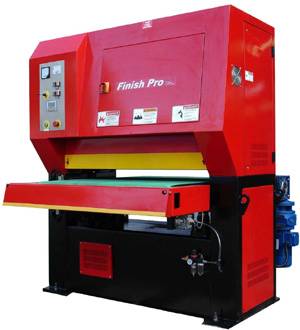

FINISH PRO FP-2560 Line Graining/ Debur

WET DUST COLLECTORS use a water filled tank through which all grinding dust is
pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are no filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.

Features

  • Motorized Table Lift
  • Variable Speed Conveyor
  • Conveyor Forward and Reverse
  • Belt Safety Overtravel Switches
  • Electronic Eye Belt Tracking
  • 4-Jackscrew Table Support
  • Double Infeed and Outfeed Pinch Rolls
  • Conveyor Belt Tracking System
  • Safety System with Disc Brake
  • Table Height Digital Readout
  • Load Meter
  • 208/230/460 Volt, 3-Phase
  • One Year Industrial Parts Warranty
Specifications
Model FP-2560
Max. Part Width 24 in
Abrasive Belt Size 25 in x 60 in
Contact Roller Size 8 inch Dia.
Passline Height 34 in - 37 in
Max. Thickness Capacity 3-1/8 in
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20 in
Dust Collector Capacity 1,100 CFM
Main Motor 10 HP, 230V / 460V, 3-Ph
Conveyor Motor 1 HP, 230V / 460V, 3-Ph
Table Lifting Motor 1 HP, 230V / 460V, 3-Ph
Net Weight, approx. 2,950 LBS
Machine Dimensions, LxWxH 55 x 63 x 69 in



One Year Industrial Parts Warranty

Optional Equipment

  • Model DC3 (3 hp) Wet Dust Collector
  • Heavy Duty Ducting Package
FP-2560
Mfg. item #: FP-2560
GMCFP-2560
lease to own for as little as:$239 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$11,950.00

144
WDC-FP25
Mfg. item #: WDC-FP25
GMCWDC-FP25
lease to own for as little as:$124 per month!
Add to Equipment listed above for Free Freight or flat shipping rate of $10.00 within the Lower 48 States30
$6,200.00

144
GMCHDDP-2560
Call for freight quote on this item or we will confirm freight charges before shipping.1
$750.00

3354
TO-6
Mfg. item #: TO-6
GMCTO-6
FREE shipping when ordered with a machine from this manufacturer.20
$975.00

2278
