Hand Slitting Shears



Metal Shear - Multi-Purpose Manual Gear Actuated - MPS-8G

Manual Sheet Metal Shear - Multi-Purpose MPS-12

MPS-8G MPS-12G

Click Picture to Enlarge

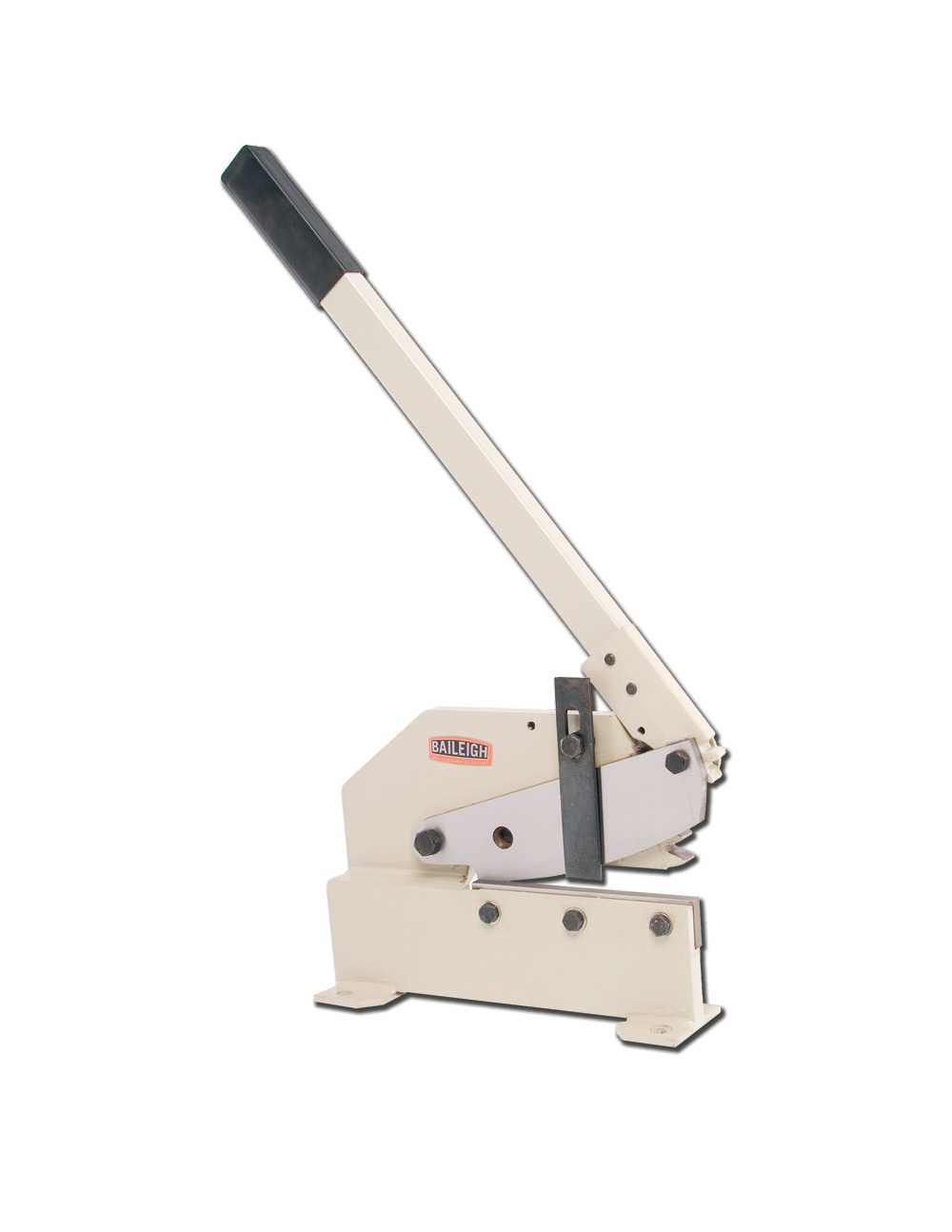

Cutting sheet metal of thin steel plate should be easy.  The MPS-8G from Baileigh Industrial is a bench mounted multi-purpose manual sheet metal shear that will make your life easier.  The MPS-8G is perfect for those small fabrication shops that do not have a lot of room or space for larger more permanently mounted machinery.  The MPS-8G manual shear uses a gear system that is connected to the pull down handle for more efficiency allowing .236 inch mild steel to be cut with ease.

A handy material hold down is also included.  The 8 inch blade length also allows for the cutting of a full 7 inch piece of sheet metal.  The blades are polished for longevity and are fully adjustable for blade gap.

The MPS-8G manual shear from Baileigh Industrial would be a great addition to any shop.  For more information contact a Southern Tool representative.

Specifications
Model MPS-8G
Shear Capacity Flat Bar 2.75 x .236 inch
Shear Capacity Round .5 inch
Blade Length 8 inch
Power Manual
Shipping Weight 42 lbs.
Shipping Dimensions 20 x 6.5 x 18 inch
specifications subject to change without notice

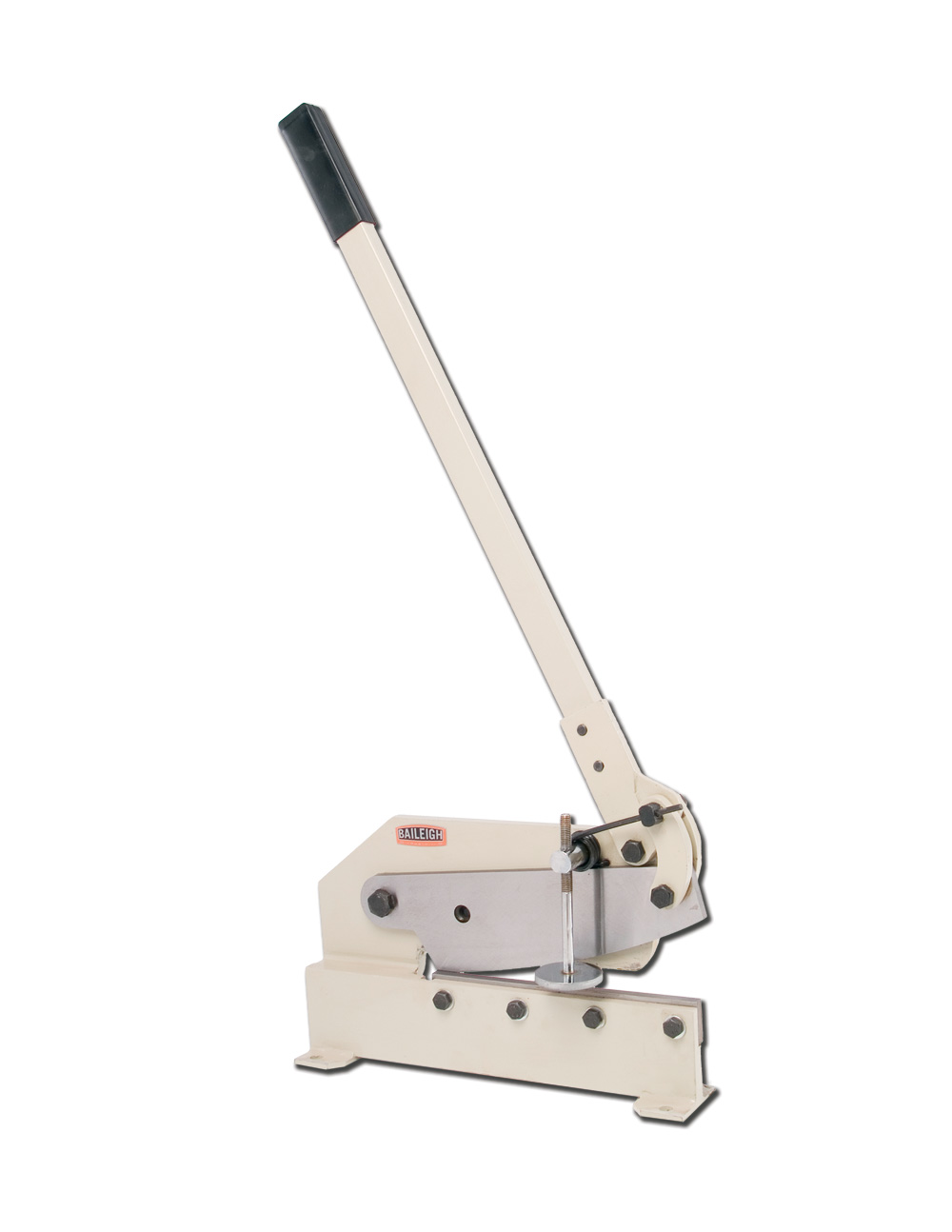

When cutting small pieces of sheet metal most shops do not go to the big heavy permanently mounted equipment.  They have a series of small machines that can do smaller tasks faster.  The MPS-12 from Baileigh Industrial fits that description perfectly.  It is a bench mounted multi-purpose manual sheet metal shear that has a 12 inch blade with a throatless design that lets the metal pass though without getting stuck.  It is also perfect for those small fabrication shops that do not have a lot of room or space.

For more force out of this manually operated machine the MPS-12 manual shear uses a leverage system that is connected to the pull down handle for more efficiency allowing .236 inch mild steel to be cut with ease.  A convenient material stop is also included for repeatability of cuts.

Specifications
Model MPS-12
Shear Capacity Flat Bar 2.75 x .236 inch
Shear Capacity Round .5 inch
Shear Capacity Sheet Steel .236 inch
Blade Length 12 inch
Power Manual
Shipping Weight 62 lbs.
Shipping Dimensions 29 x 6.5 x 17.5 inch
specifications subject to change without notice.



MPS-8G
MULTI-PURPOSE MANUAL GEAR ACTUATED METAL SHEAR, 8 BLADE LENGTH, .236 MILD STEEL SHEET CAPACITY
Mfg. item #: MPS-8G
BAIMPS-8G
Call for freight quote on this item or we will confirm freight charges before shipping.1
$195.00

78
MPS-12
Mfg. item #: MPS-12
BAIMPS-12
Call for freight quote on this item or we will confirm freight charges before shipping.1
$249.00

78
