Hilman Toe Jacks

pro toe jacks Toe Jacks deluxe toe jacks
Pro Toe Jacks Toe Jacks Deluxe Toe Jacks



Pro Toe Jacks

Hydraulic Toe Jack Pro 5 and 10 Ton

The NEW Hilman Hydraulic Toe Jack Pro is lighter weight and has a faster lift! It allows you to get under and lift equipment with just over 1 inch of ground clearance and since there are lifting points on both the toe and the top of the jack these are the perfect complement to Hilman Rollers. Our Toe Jacks all comply with ASME B30.1 standards

Features

  • Flat face for blocking
  • 27 percent faster lift
  • Lightweight
  • Made in the USA
  • Handle - easy to pull on and off
  • Hydraulic pump
  • Low Clearance
  • 5 and 10 ton models can operate both horizontally and vertically

Images are for representation only. Actual product may differ.

Specifications
Model HTJ-508 HTJ-1009
Load Capacity (tons) 5 10
Jack Height Retracted (in) 14.5 16.5
Jack Height Extended (in) 22.5 25.625
Toe Height (in) 1.040 1.125
Total Stroke (in) 8 9.125
Pumps (#) 45 97
Stroke/Pump (in) .178 .094
Weight (lbs) 42 64.8

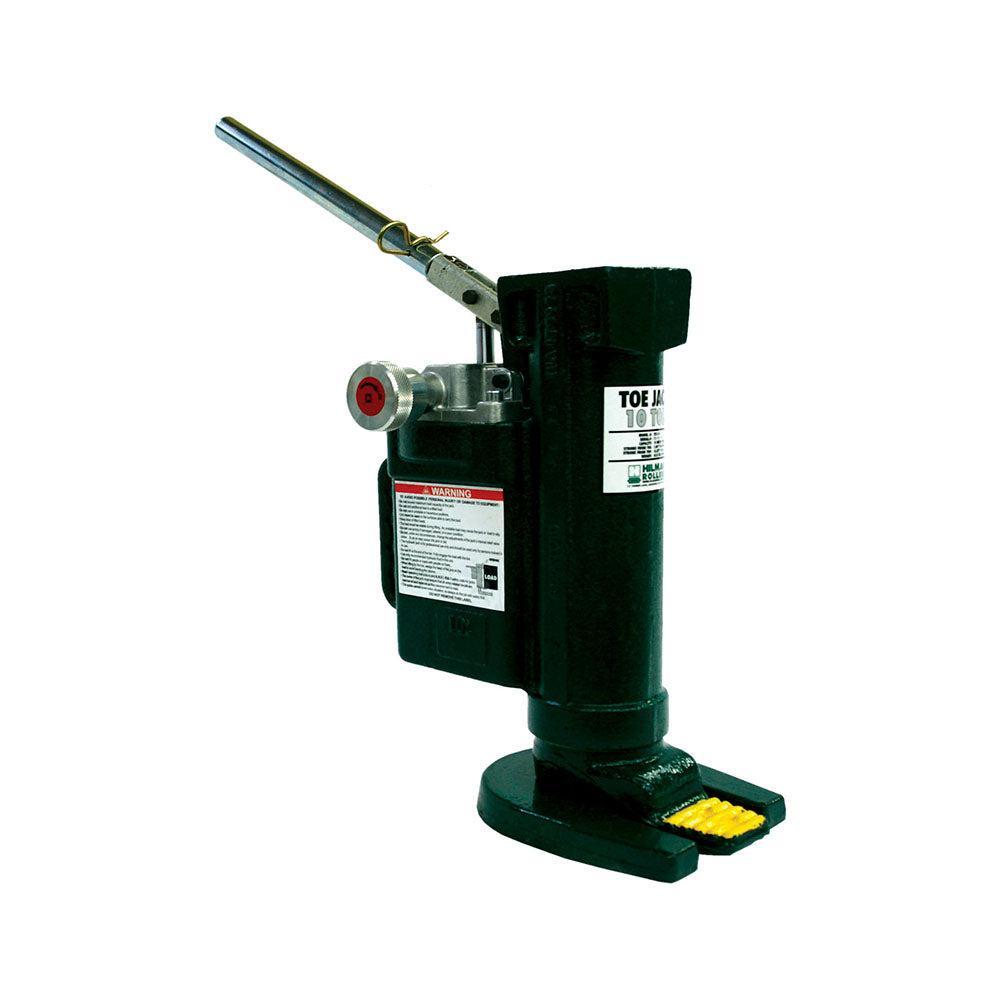

5 and 10 ton Hydraulic Toe Jacks

5 and 10 Ton Hydraulic Toe Jacks

The Hilman Hydraulic Toe Jacks allow you to get under and lift equipment with just over 1 inch of ground clearance (1.06 inch to be exact) and since there are lifting points on both the toe and the top of the jack these are the perfect complement to Hilman Rollers. Our Toe Jacks all comply with ASME B30.1 standards.

Features

  • Removable Carrying Handle for easy transport
  • Pressure Valve prevents overloading
  • Hydraulic pump
  • Low Clearance - only needs 1.06 inch
  • Independent Swivel Base, Toe, and pump to fit the jack in confined spaces
  • 5 and 10 ton models can operate both horizontally and vertically

Images are for representation only. Actual product may differ.

Specifications
Models HTJ-5 HTJ-10
Load Capacity (tons) 5 10
Stroke (in) 8 9
Toe Height (in) 1.06 1.06
Jack Height Retracted (in) 14.5 16.25
Jack Height Extended (in) 23 25.75
Usable Toe Depth (in) 2.19 2.19
Length of pumping handle (in) 17.75 17.75
Toe Height Extended (in) 9.37 10.37
# of strokes to extend piston 8 13
Weight (lbs) 44 61

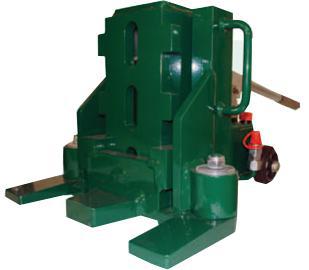

hilman htj-10d deluxe toe jack

Deluxe 10 Ton Hydraulic Toe Jack

Hilman Deluxe Hydraulic Toe Jacks feature a high quality lifting toe that can be adjusted to several different heights, to accommodate different lift points.

Features:

  • Pump Handle for manual stroke
  • Carry Handle for easy transport
  • External Hose Coupler allows users to attach an external hand or electric hydraulic pump
  • Swivel Foot ensures safe and stable lifting
  • Hydraulic Pump with flexible handle for easy and safe positioning
  • Release valve for smooth lowering of heavy objects
  • Adjustable Claw to accommodate different lift points
  • External Pump Connection

Images are for representation only. Actual product may differ

hilman htj-25d deluxe toe jack

Deluxe 25 Ton Hydraulic Toe Jack

Hilman Deluxe Hydraulic Toe Jacks feature a high quality lifting toe that can be adjusted to several different heights, to accommodate different lift points.

Features:

  • Pump Handle for manual stroke
  • Carry Handle for easy transport
  • External Hose Coupler allows users to attach an external hand or electric hydraulic pump
  • Swivel Foot ensures safe and stable lifting
  • Hydraulic Pump with flexible handle for easy and safe positioning
  • Release valve for smooth lowering of heavy objects
  • Adjustable Claw to accommodate different lift points
  • External Pump Connection

Images are for representation only. Actual product may differ

Specifications
  HTJ-10D HTJ-25D
Load Capacity (tons) 10 25
Stroke (in) 5.5 5.5
Toe Height Adjustability (in) 3 x 3.19 3 x 3.94
Length (in) 10.67 15.28
Width (in) 10.9 15.24
Toe Height (in) 0.79 1.18
Jack Height Retracted (in) 9.9 13
Weight (lbs) 62 159



There are no listed accessories.

HTJ-508
5-TON CAPACITY SELF CONTAINED HYDRAULIC TOE-JACK ** SHIPPING WEIGHT = 46 LBS
Mfg. item #: HTJ-508
HILHTJ-508
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,506.95

166
HTJ-1009
10-TON CAPACITY SELF CONTAINED HYDRAULIC TOE-JACK ** SHIPPING WEIGHT = 68.50 LBS
Mfg. item #: HTJ-1009
HILHTJ-1009
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,866.31

166
HTJ-5
HILMAN MODEL: HTJ-5 - 5-TON CAPACITY SELF CONTAINED HYDRAULIC TOE-JACK** WEIGHT = 44 LBS./20 KGS.
Mfg. item #: HTJ-5
HILHTJ-5
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,217.62

166
HTJ-10
HILMAN MODEL: HTJ-10 - 10-TON CAPACITY SELF CONTAINED HYDRAULIC TOE-JACK** WEIGHT = 61 LBS./28 KGS.
Mfg. item #: HTJ-10
HILHTJ-10
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,491.22

166
HTJ-10D
HILMAN MODEL: HTJ-10D - 10-TON CAPACITY DELUXE HYDRAULIC TOE-JACK** WEIGHT = 62 LBS./28 KGS.
Mfg. item #: HTJ-10D
HILHTJ-10D
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,346.80

166
HTJ-25D
HILMAN MODEL: HTJ-25D - 25-TON CAPACITY DELUXE HYDRAULIC TOE-JACK** WEIGHT = 159 LBS./72KGS.
Mfg. item #: HTJ-25D
HILHTJ-25D
lease to own for as little as:$84 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,188.72

166
