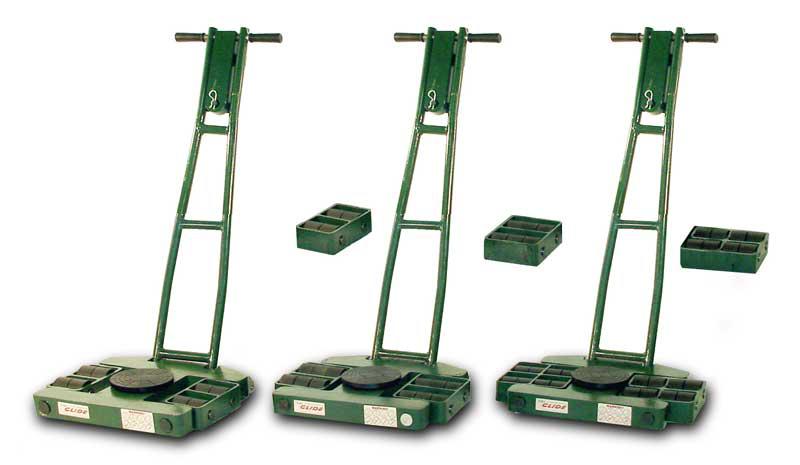

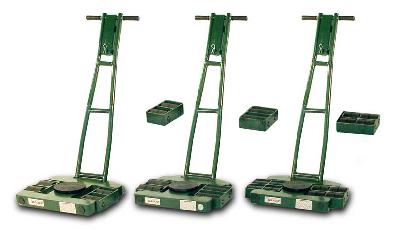

Hilman Tri-Glide Systems
These low profile, 3 Point Load Moving Systems are perfect for moving over finished floors. They are currently available in load moving
capacities of 6, 12, 18, 24 and 40 tons. For the 6, 12 and 18 ton models, choose from Nylon, Polyurethane, or Steel rolls to suit your moving requirements. The 24 and 40 ton models are only
available with polyurethane wheels.
Hilman Rollers Tri Glide three point moving system is designed for moving heavy loads over specially coated floors. It is comprised of a front steering unit and
two rear adjustable units. Additional modules can be added to further stabilize large, bulky loads. Hilman Rollers Tri Glide was developed in response to a growing demand for floor protection
when moving heavy loads over smooth, painted, finished, or sealed floors. Currently available in 6, 12, 18, 24 and 40-ton capacities, the Tri Glide is another safe, efficient, reliable product from
the makers of Hilman Rollers.
All Tri Glide Systems contain the following components:
-
One steerable front unit and two adjustable-width rear units
-
Front unit has Swivel Padded Top, Padded Hand Grips, and Tow Eye
-
Two rear units are adjustable in width for larger loads
These low profile, 3-Point Load Moving Systems are perfect for moving over finished floors. They are currently available in load moving
capacities of 6, 12,18, 24 and 40 tons. For the 6, 12 & 18 ton models, choose from Nylon, Polyurethane, or Steel rolls to suit your moving requirements. The 24 & 40 ton models are
only available with polyurethane wheels.
All Tri-Glide Systems contain the following components:
-
One steerable front unit and two adjustable-width rear units
-
Front unit has Swivel Padded Top, Padded Hand Grips, and Tow Eye
-
Two rear units are adjustable in width for larger loads
Click on any picture for larger view
Tri-Glide was developed in response to a growing demand for floor protection when moving heavy loads over smooth, painted, finished, or sealed floors. Currently available in 6, 12, 18, 24 and
40-ton capacities, the Tri-Glide is another safe, efficient, reliable product from the makers of Hilman Rollers.
All Tri-Glide Systems contain the following components:
- One steerable front unit and two adjustable-width rear units
- Front unit has Swivel Padded Top, Padded Hand Grips, and Tow Eye
- Two rear units are adjustable in width for larger loads
|
Hilman Tri-Glide System
|
|
KTG-10N
|
KTG-10N Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Nylon Wheels - 10-tons Cap ** Ship Wgt = 155 lbs./70 kgs.
|
|
KTG-10P
|
KTG-10P Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 10-tons Cap ** Ship Wgt = 161 lbs./73 kgs.
|
|
KTG-10S
|
KTG-10S Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Steel Wheels - 10-tons Cap ** Ship Wgt = 193 lbs./87 kgs.
|
|
KTG-15N
|
KTG-15N Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Nylon Wheels - 15-tons Cap ** Ship Wgt = 168 lbs./76 kgs.
|
|
KTG-15P
|
KTG-15P Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 15-tons Cap ** Ship Wgt = 181 lbs./82 kgs.
|
|
KTG-15S
|
KTG-15S Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Steel Wheels - 15-tons Cap ** Ship Wgt = 236 lbs./107 kgs.
|
|
KTG-20N
|
KTG-20N Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Nylon Wheels - 20-tons Cap ** Ship Wgt = 184 lbs./83 kgs.
|
|
KTG-20P
|
KTG-20P Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 20-tons Cap ** Ship Wgt = 198 lbs./90 kgs.
|
|
KTG-20S
|
KTG-20S Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Steel Wheels - 20-tons Cap ** Ship Wgt = 260 lbs./118 kgs.
|
|

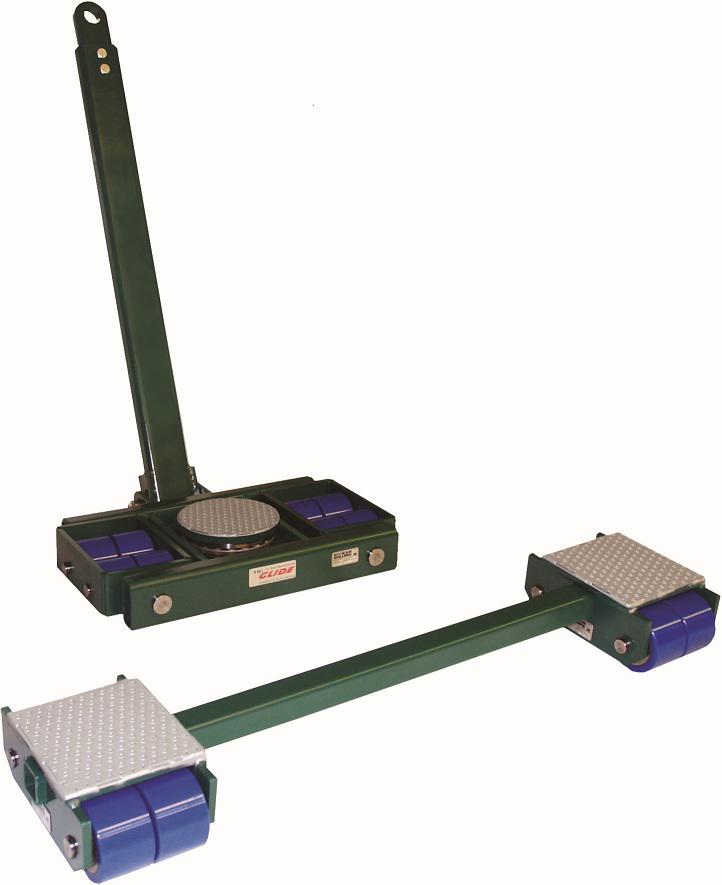

KTG-24P
|
KTG-24P Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 24-tons Cap ** Ship Wgt = 384 lbs./174 kgs.
|
|

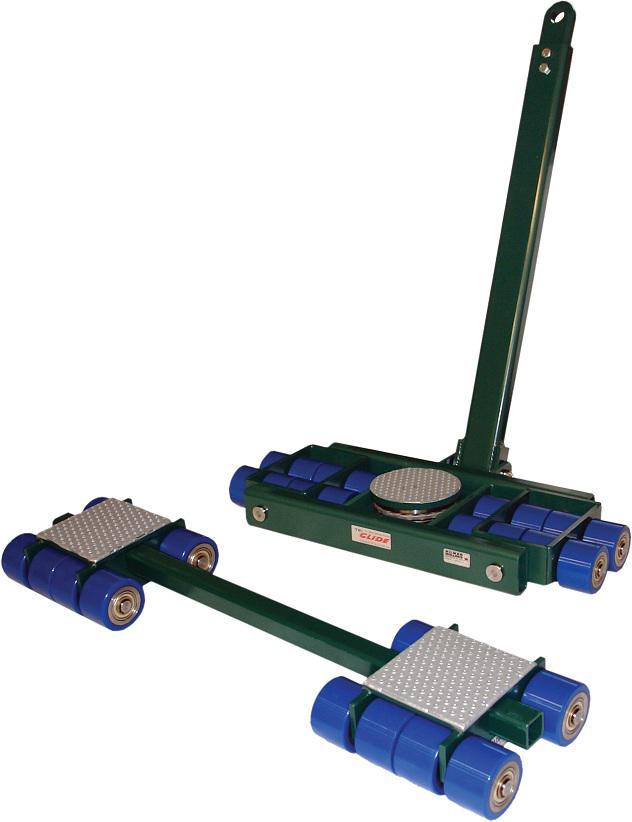

KTG-40P
|
KTG-40P Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 40-tons Cap ** Ship Wgt = 467 lbs./212 kgs.
|
|
KTG-60PA
|
KTG-60PA Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 60-tons Cap ** Ship Wgt = 981 lbs./446 kgs.
|
|
KTG-80PA
|
KTG-80PA Tri-Glide Complete Packages - Includes one front swivel unit and pair of rear units - Polyurethane Wheels - 80-tons Cap ** Ship Wgt = 1095 lbs./497 kgs.
|
