Cantek Horizontal Resaw

Cantek HB800 32 inch Band Resaw with Feeder Cantek HR11P Horizontal Band Resaw Cantek HR12E Horizontal Band Resaw
Cantek HB800 32 inch
Band Resaw with Feeder 		Cantek HR11P Horizontal Band Resaw Cantek HR12E Horizontal Band Resaw
Cantek HR300PBX tilting bed horizontal band resaw Cantek HR400PB Horizontal Band Resaw Cantek HR66 Twin Band Horizontal Band Resaw
Cantek HR300PBX tilting bed
horizontal band resaw 		Cantek HR400PB Horizontal Band Resaw Cantek HR66 Twin Band Horizontal Band Resaw



Models
HB800 32 inch Band Resaw w/ 1HP Feeder
HR11P Horizontal Resaw
HR12E Horizontal Resaw
HR300PBX Horizontal Resaw w/ Tilt
HR400PB Horizontal Resaw (2 inch wide blade)
HR66P Dual Head Horizontal Resaw w/ 1 inch wide blade
HR66PB Dual Head Horizontal Resaw w/ 2 inch wide blade

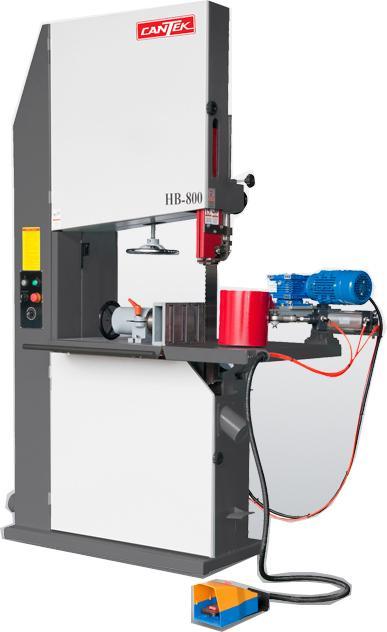

Cantek HB800 32″ Band Resaw with Feeder



Cantek HB800 32 inch Band Resaw with Feeder

Consistent, safe, and powerful power feeder with the right speed for your job.

The Cantek HB800 32 inch Band Resaw with Feeder is built to last.  A 4 inch wide blade is driven by a powerful 20HP motor for precision straight resawing.  Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece.  The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.

Why Cantek HB800 32 inch Band Resaw with Feeder?

  • Cast iron upper and lower saw wheels are precision machined and dynamically balanced
  • Powerful 20HP saw motor
  • 4 inch wide resaw blade for precise straight resaw cutting
  • Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting
  • 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
  • Feeder is pneumatically actuated by a foot pedal for operator convenience
  • Adjustable roller infeed fence to facilitate with feeding of the workpiece
  • Upper and lower Bakelite guides ensure blade stability for optimum cutting results

Features:

  • Heavy fabricated steel machine frame
  • Large cast iron worktable is precision ground and can tilt to a maximum of 45 deg
  • Convenient spring blade tension adjustment by means of a handwheel and gauge
  • Foot brake for braking wheels and blade
  • Rack & pinion blade guide adjustment
  • Band wheel is crowned for proper blade tracking and added stability of the blade
  • Blade lubrication system and reservoir for lubricant keeps blades cool
  • Auto Start-Delta control for main motor with emergency stop switch
  • Feed pressure is adjustable
  • Feed roller opening and closing is controlled by a foot switch for operator convenience
  • Knurled steel feed roller for maximum grip
Specifications
Saw wheel diameter       32 inch
Motor       20HP
Table size       45-1/4 x 31-1/2 inch
Table tilting       0 - 45 deg
Throat capacity       30-5/8 inch
Height capacity       15-3/8 inch
Blade width       4 inch
Width of wheel       3.543 inch
Blade speed       5024 FPM
Blade length       216 inch to 217-1/8 inch
Dust hood diameter       4 inch x 2
Machine weight only       1470 lbs.
Electrics (complete with feeder)       230/3/60 = 54 Amps 460/3/60 = 27 Amps

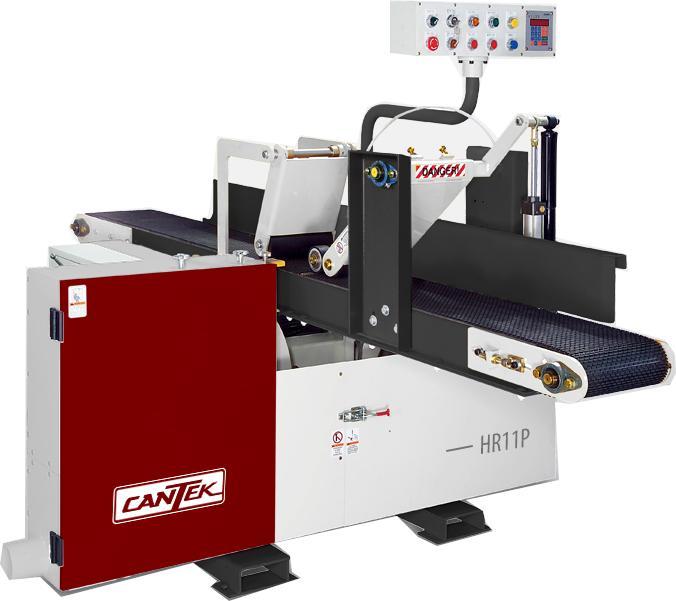

Cantek HR11P Horizontal Band Resaw



CANTEK HR11P HORIZONTAL BAND RESAW

Recover valuable lumber from slabs, and produce lap siding and more.

The powerful yet economically priced Cantek HR11P Horizontal Band Resaw can produce a cut up to 11.8 inch wide and 4.92 inch thick.  Capable of handling material from 11.8 inch wide to 9.8 inch thick. The powerful 20HP motor makes easy work of even hard to cut wood material.  The thin kerf 1 inch wide blade achieves optimum cut quality while maximizing material yield. Equipped with motorized thickness adjustment with digital control for convenient blade height adjustment. The HR11P is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.

Why Cantek HR11P Horizontal Band Resaw?

  • Powerful 20HP saw motor capable of cutting through virtually any wood species with ease
  • Solid steel 28 inch diameter saw wheels capable of running a 1 inch wide, thin kerf blade for maximum cut accuracy and material yield
  • Pneumatic top pressure rolls for optimum part hold down
  • Digital thickness control for fast and convenient height adjustment
  • Powerful 3HP hydraulic unit for controlling the feed conveyor
  • Simple operation and low price point allowing for the maximum return on your investment
  • Adjustable sandwich style guide system ensures the blades run true and cut straight
  • Blade lubrication system ensure the blade runs cool for an optimum blade life
  • Hydraulic blade tensioning for superior cutting results

Features:

  • Motorized thickness adjustment
  • Digital thickness control ensures accuracy and repeatability of material thickness
  • Air actuated top pressure roller holds material firmly on conveyor belt
  • Heavy duty steel band wheels are precision machined and dynamically balanced
  • Variable feed speed with a maximum feed speed of 53 FPM
Specifications
Maximum input board size (WxH)            11.8 inch x 9.8 inch  300 x 250mm
Distance from blade to conveyor table             0.15 inch – 4.9 inch 4~125mm
Minimum working length             15.7 inch 400mm
Conveyor belt size             11.2 inch x 215.3 inch 285 x 5470mm
Diameter of saw wheel             28 inch diameter x 1 inch wide 711 inch dia. X 25.4mm wide
Max. infeed speed             53 FPM 16 m/min
Saw blade size (standard)             168 inch x 1 inch x 0.035 inch 4265 x 27 x 0.9mm
Tolerance             +/- 0.0039 inch +/- 0.1mm
Main Motor       20 HP
Hydraulic System Motor (Feed)       3 HP
Gear Box Motor (Blade Rise/Fall)       1/4 HP
Dust Hood             4 inch x 4 pcs. 100mm x 4
Machine weight           2438 lbs (1108 kgs)  1108 kgs
Shipping dimensions: Frame            85-1/2 inch x 43-1/2 inch x 44 inch (1983 lbs)  2170x1100x1120mm (901 kgs)
Shipping dimensions: Conveyor           113 inch x 24-1/2 inch x 30 inch (456 lbs)  2870x620x750mm (207 kgs)
Electrical requirements       230/3/60 = 56 amps – 460/3/60 = 29 amps



Cantek HR12E horizontal resaw



CANTEK HR12E HORIZONTAL BAND RESAW

Recover valuable lumber from slabs, and produce lap siding, crating, dunnage and more.

The powerful yet economically priced Cantek HR12E horizontal resaw can produce a cut up to 11.8 inch wide and 4.92 inch thick.  Capable of handling material from 11.8 inch wide to 9.8 inch thick. The powerful 20HP motor makes easy work of even hard to cut wood material.  The thin kerf 1 inch wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly.  It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.

Why Cantek HR12E Horizontal Band Resaw?

  • Powerful 20HP saw motor capable of cutting through virtually any wood species with ease
  • Solid steel 28 inch diameter saw wheels capable of running a 1 inch wide, thin kerf blade for maximum cut accuracy and material yield
  • Variable feed speed by inverter to ensure optimum cut accuracy and blade life
  • Simple operation and low price point allowing for the maximum return on your investment
  • Adjustable sandwich style guide system ensures the blades run true and cut straight
  • Blade lubrication system ensure the blade runs cool for an optimum blade life

Features:

  • Single head horizontal configuration with
  • Variable feed speed by inverter from 16 – 82 FPM
  • Heavy duty solid steel saw wheels are precision ground and dynamically balanced
  • Powerful 20HP saw wheel motor
  • Manual saw wheel elevation
  • Both saw blade housing elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment
  • Adjustable sandwich style guide system
  • Manual saw blade tension adjustment by handle
  • Auto blade lubrication system
  • (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
  • Standard electrics are 230/3/60 to UL/CSA Standards (Other voltages available on request)
Specifications
Maximum input board size (WxH)            11.8 inch x 9.8 inch  300 x 250mm
Distance from blade to conveyor table             0.15 inch – 4.9 inch 4~125mm
Conveyor belt size             11.2 inch x 215.3 inch 285 x 5470mm
Diameter of saw wheel             28 inch diameter x 1 inch wide 711 inch dia. X 25.4mm wide
Variable feed speed 16 – 82 FPM 5 – 25 m/min
Saw blade size (standard)             168 inch x 1 inch x 0.035 inch 4265 x 27 x 0.9mm
Tolerance             +/- 0.0039 inch +/- 0.1mm
Main Motor       20 HP
Feed Motor 2 HP
Electrical requirements 230/3/60 = 56 amps – 460/3/60 = 29 amps
Dust Hood             4 inch x 4 pcs. 100mm x 4
Machine with Conveyor weight 2464 lbs 1120 kgs
Machine weight           2438 lbs (1108 kgs)  1108 kgs
Machine shipping dimensions 86 inch x 45 inch x 45 inch 2180 x 1140 x 1140mm
Machine shipping weight 1980 lbs 900 kgs
Conveyor shipping dimensions 113 inch x 22 inch x 28 inch 2870 x 560 x 700mm
Conveyor shipping weight  550 lbs 250 kgs

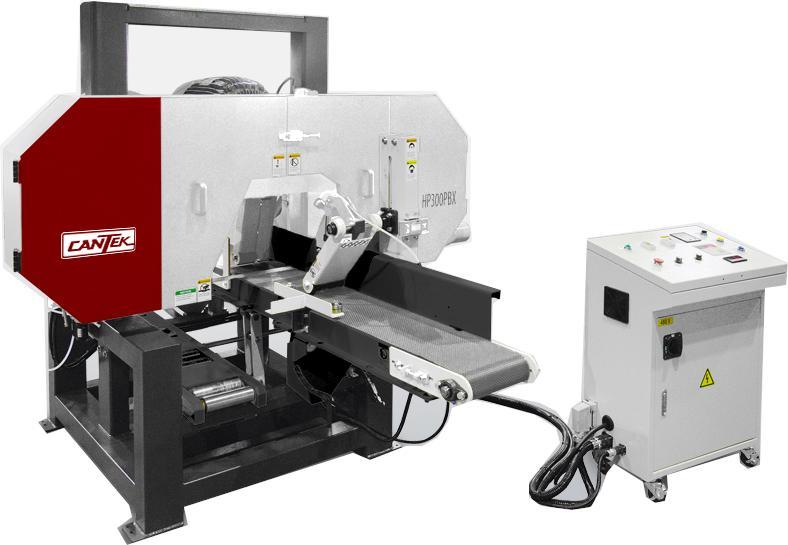

CANTEK HR300PBX TILTING BED HORIZONTAL BAND RESAW



CANTEK  HR300PBX TILTING BED HORIZONTAL BAND RESAW

High production horizontal resaw with tiling bed for bevel siding and more.

The Cantek HR300PBX tilting bed horizontal band resaw is industrially built for demanding resawing applications.   The bed can be tilting from 0-45 deg making it ideal for bevel siding, moulding blanks, or millwork components.  Capable of feeding up to 12 inch x 12 inch timber and cutting up to 10 inch thick.  The powerful 30HP saw motor has a variable feed control allowing you to match the cutting speed to your blade and application requirements.  The HR300PBX runs a 2 inch wide blade which runs on solid steel band wheels which are precision machined and balanced for a smooth cutting action.  The precision sandwich style blade guides ensure the blade runs true for optimum cutting results. The thickness is conveniently adjusted using a precision motorized digital thickness control.

Why Cantek HR300PBX Tilting Bed Horizontal Band Resaw?

  • Manually tilting feed belt for straight of bevel cutting from 0 – 45 deg
  • Powerful 30HP saw wheel motor with variable speed inverter for precise blade speed setting according to your needs
  • Heavy-duty tubular steel frame
  • Motorized thickness (blade height) adjustment with digital position readout
  • Hydraulic blade tensioning for optimum cutting results
  • Precision sandwich style saw guide system with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
  • Air mist blade cooling system
  • Mobile control panel with digital thickness control, ammeter, feed speed display can be positioned where the operator desires

Features:

  • Solid steel saw wheels – precision machined and balanced
  • Pneumatic pressurized top hold down rollers on feed conveyor
  • Heavy-duty infeed guide-fence on conveyor right including holdover system
  • Idle roller return conveyor to return parts required additional machining
  • Reinforced urethane conveyor belt for positive feeding and long life including
  • Variable feed speed by VFD (frequency inverter)
  • Y Delta – low amperage starter on the saw motor
  • Electrical components to UL/CSA standards – 460/3/60 electrics
  • Smooth infeed system (limit switch and timer 1 to 3 seconds) with timed pressure roller
Specifications
Max. workpiece size 12 inch x 12 inch 305mm x 305mm
Distance from blade to conveyor 0.157 inch – 9.8 inch   4 – 250mm
Conveyor belt size 11.2 inch x 215 inch 285mm x 5470mm
Machine wheel dimensions 28 inch Dia. x 2 inch Wide 711 x 50mm
Main motor (Resaw wheels) 30 HP
Conveyor motor 3 HP
Blade elevation motor 1/4 HP
Variable feed speeds 0~148 FPM 0~45 m/min
Dust hood diameter 4 inch x 2 100mm x 2
Saw blade size (Normal) 188 inch x 2 inch
Feed belts – bed angle 0 ~ 45 deg
Voltage – Stock machine 460/3/60 = 45 Amps
Machine weight  3960 lbs 1800 kgs
Shipping weight  4400 lbs 2000 kgs
Shipping dimensions 113 inch x 90 inch x 85 inch 2850 x 2270 x 2160mm



CANTEK HR400PB HORIZONTAL BAND RESAW



CANTEK HR400PB HORIZONTAL BAND RESAW

Powerful features for production resawing.

The Cantek HR400PB Horizontal Band Resaw is a heavy-duty resaw with a robust machine design capable of resawing large timbers with precise results.  With its powerful 30HP variable speed saw motor and variable speed hydraulic feed system the HR400PB can be optimized for any job.  Equipped with a large cutting capacity up to 15-3/4 inch wide and up to 9.8 inch thick.  The saw assembly is raised and lowered electronically using a digital input controller for precise thickness setting.  All controls are conveniently located next to the infeed conveyor for operator convenience.

Why Cantek HR400PB Horizontal Band Resaw?

  • Large capacity up to 15-3/4 inch wide and 9.8 inch thick
  • Powerful 30HP saw motor with variable speed by frequency inverter for optimum resawing results
  • Hydraulic drive for feed conveyor and return conveyor with infinitely variable speed adjustment
  • Precision machined and dynamically balanced solid steel band wheels
  • 2 inch wide saw blades allow for superior cutting feed rates
  • Motorized thickness adjustment with digital controller for precise setting of the blade height
  • Industrial welded tubular steel frame allows you to handle any job, big or small

Features:

  • Air over oil blade tensioning unit ensures optimum blade tension resulting in a precise cut
  • Digital thickness control in both Inch and Metric for precise adjustment of the band height
  • New Low Friction sandwich type saw guide system with adjustable left guide to minimize the distance between the guides for higher cutting precision
  • Mist Bandsaw blade lubrication and cooling system allows for increased feed seeds, higher accuracy, and longer blade life
  • Centralized control panel for operator convenienceSolid steel bandwheels are precision machined and dynamically balanced
  • Saw assembly is raised and lowered by anti-backlash re-circulating ballscrews
  • Heavy duty hydraulic feed system with variable speed control
  • Hydraulically driven return conveyor for returning material to the operator requiring additional resawing
  • Pneumatic top pressure roller automatically adjusts to the workpiece thickness
  • An amp meter is located on the control panel for load monitoring
  • Hinged blade covers allow for full access to the band wheels for convenient blade changing
  • Y Delta – Low amperage starter on the saw motor
Specifications
Max. working capacity (W x H)             15 3/4 inch x 9.8 inch 400 x 250mm
Distance from blade to conveyor             0.157 inch ~ 9.8 inch 4~250mm
Saw wheel diameter            28 inch   711mm
Saw wheel width             2 inch 50mm
Feed speed: variable             13~90 FPM 4~25 m/min
Saw wheel motor        30 HP
Dust hood outlet             4 inch x 2 100mm x 2
Saw blade size             180 inch x 2 inch 4570 x 54mm
Conveyor belt size             15.16 inch x 215.4 inch 385 x 5470mm
Elevation motor       1/4 HP Electrics      460/3/60 = 55 AMPS (575V & 230V optional)
Machine dimensions (LxWxH)             110 inch x 85 inch x 74 inch 2780x2150x1880mm
Shipping dimensions (LxWxH)             113 inch x 89 inch x 81 inch 2870x2260x2050mm
Machine weight            3960 Lbs.  1800 kgs
Shipping weight      .       4400 Lbs 2000 kgs

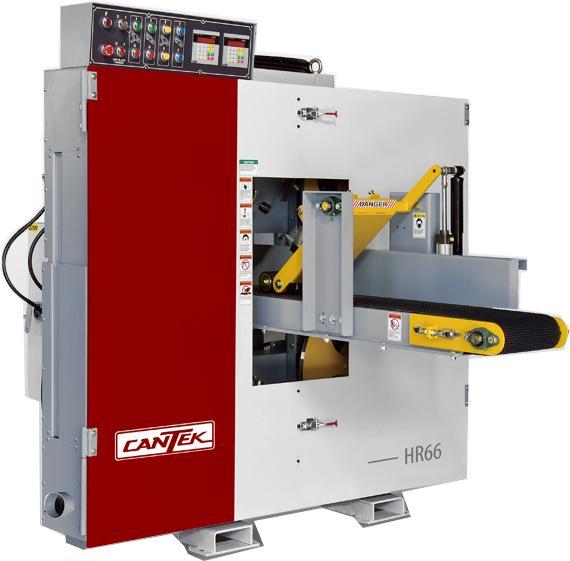

CANTEK HR66 TWIN BAND HORIZONTAL BAND RESAW



CANTEK  HR66 TWIN BAND HORIZONTAL BAND RESAW

High-performance resawing solution.

The Cantek HR66 Twin Band Horizontal Band Resaw features setworks for saw positioning, and is designed for precision, efficiency, and ease of use. It features automatic setworks for blade positioning, controlled by a motorized saw wheel elevation system and dual digital controls for accurate adjustments. Built with solid steel resaw wheels and a heavy-duty precision bearing system, it ensures long-lasting durability and smooth operation

Why Cantek HR66 Twin Band Horizontal Band Resaw?

  • Auto setworks for resaw blades positioning with saw wheel elevation motor driven
  • With (2) digital controls for setting the blade position
  • Solid steel resaw saw wheels with heavy precision bearing system
  • Air / Oil hydraulic blade tension
  • Conveyor is driven by 2HP hydraulic motor with variable feed speed.
  • Hold down rollers with pneumatic tension
  • With Miss Coolant System
  • Low friction blade guides
  • Comes with (2) 2 inch Lenox Woodmaster C Blades
  • Flow control valve to reduce feed speed
  • Low Friction Blade Guide Set (2 Sets)
Speficaitions
Max. working capacity       11.8 inch (Wide) x 9.8 inch (Thick) (300 x 250mm)
Minimum length of workpiece       22.5 inch (570mm)
Distance from upper blade to conveyor table       0.79 inch – 6.7 inch (20 – 170mm)
Distance from lower blade to conveyor table       0.47 – 4.9 inch (12 – 125mm)
Conveyor belt size       11.2 inch x 215.35 inch (285 W x 5470mm L)
Diameter of saw wheel       Ø 28 inch x 2 inch (Thick)
Max. feed speed       66 FPM (20 M/min)
Saw blade size       168 inch (L) x 2 inch (W)
Saw motors       20 HP x 2 pcs.
Saw height adjustment motor       1/4 HP x 2 pcs.
Hydraulic feed motor       3 HP
Dust Hood       Ø 4 inch x 3 pcs
Frame       85 1/2 inch x 44 inch x 83 1/2 inch (2860 lbs)
Conveyor       113 inch x 24 1/2 inch x 30 inch (456 lbs)
Electrics       230/3/60 or 460/3/60 to UL/CSA Standards (Other voltages available on request)



HB800
HB800 WOODWORKING 32 BAND RESAW W/ 1HP FEEDER, WEIGHT = 2233 LBS
Mfg. item #: HB800
CANHB800
lease to own for as little as:$352 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$17,579.00

53
HR11P
HR11P WOODWORKING HORIZONTAL RESAW, WEIGHT = 2500 LBS
Mfg. item #: HR11P
CANHR11P
lease to own for as little as:$390 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$19,511.00

53
HR12E
HR12E WOODWORKING HORIZONTAL RESAW, WEIGHT = 2600 LBS
Mfg. item #: HR12E
CANHR12E
lease to own for as little as:$292 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$14,585.00

53
HR300PBX
HR300PBX WOODWORKING HORIZONTAL RESAW W/ TILT, WEIGHT = 4400 LBS
Mfg. item #: HR300PBX
CANHR300PBX
lease to own for as little as:$630 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$31,517.00

53
HR400PB
HR400PB WOODWORKING HORIZONTAL RESAW (2 WIDE BLADE), WEIGHT = 3850 LBS
Mfg. item #: HR400PB
CANHR400PB
lease to own for as little as:$600 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$29,989.00

53
HR66P
HR66P WOODWORKING DUAL HEAD HORIZONTAL RESAW W/ 1 WIDE BLADE, WEIGHT = 3660 LBS
Mfg. item #: HR66P
CANHR66P
lease to own for as little as:$688 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$34,382.00

53
HR66PB
HR66PB WOODWORKING DUAL HEAD HORIZONTAL RESAW W/ 2 WIDE BLADE, WEIGHT = 3660 LBS
Mfg. item #: HR66PB
CANHR66PB
lease to own for as little as:$724 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$36,196.00

53
Copyright © 2026 Smith-Hamilton, Inc
0.008 260128 12:00
