Huthbender Model HB-10 Knee Control Bend

HB10 Comes complete with the 028 Die package shown below

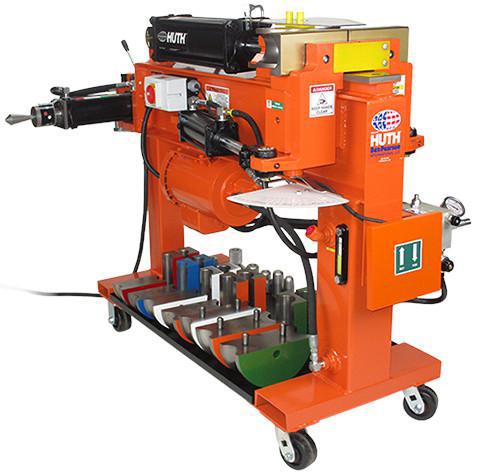

Image of : Pipe Bender - Entry Level - Knee Control Model HB-10

s-h alt
HB Tooling Package

s-h alt
Swager Box

s-h alt
Optional Square Tooling



pdf logo  Huth Bender Operations Manual

pdf logo  Huth Segment Set Silhouette Charts

pdf logo  Huth O-Ring Silhouette Charts

pdf logo  Huth Bender Hydraulic Parts Breakdown

HuthBender Pipe Bender - Entry Level - Knee Control Model HB-10

For one low price you get everything you need to bend up to 3 inch pipes, including tooling and instruction video.

Huths HB-10 Complete Bender Package includes Huths newest Manual Knee Control Bender and comprehensive tooling package - everything you need to create O.E.- fit and custom-bent pipes.

The HB-10 is Huths entry level bender, designed to introduce you to Huth quality while showing you the incredible profit potential that awaits you.

The HB-10 features knee control activation, manual depth-of-bend control and 58,000 lbs. of bending power - more than enough for 3 inch tubing.

As with all Huth Benders, the HB-10 features a built-in swager/expander for complete end-finishing capability - 1 to 3 inch tubing on the swager end and 1 inch to 5 1/2 inch tubing on the expander end.

Plus, you receive bending dies, end-finishing tooling and a Huth DVD - everything you need to start bending pipes for thousands of applications.

The HB-10 Bender package comes as shown. However, the HB-10 accepts all of Huths standard tooling and accessories such as the Ready-Rak, Rod Bracket Bender and Oil Filter Crusher.

*HB-10 package comes as listed only. Additional tooling available at extra charge.

End-Finishing

Built-In Swager/Expander

The built-in heavy duty swager/expander gives you complete end-finishing capabilities - 1 to 3 inch tubing on the swager end and 1 to 5 1/2 inch tubing on the expander end.

With Huths Accu-Sizer automatic bulls-eye expanding system, youll be able to dial in precise expansions every time.

Knee Control

Slim Knee Control Activation allows you to get closer to your work for quick, precise bending.

An Easy-to-Read Bend Indicator shows how far into a bend you are.

Features
  • Comes with comprehensive tooling package and instructional DVD
  • Easy-To-Use Knee Pad Control
  • Manual Depth-of-Bend Indicator
  • Complete Manual Control
  • 58,000 lbs of bending power - More than enough for 3 inch tubing
  • Agricultural Cylinders
  • Flat Tool Tray
  • Bending Die Retainer
  • Heavy-Duty Swager/Expander
  • Rugged I-Beam Construction
  • Exclusive Safety-Guard Package
  • Front Swivel Casters w/o Brakes
  • 220V, 60 Hz Operation. Single-Phase requires 30 amp service. Three-Phase requires 20 amp service.

End Forming Wizardry With The Swage Box:

Most Huth and Ben Pearson benders have a long unique looking contraption on one end known as the swage box... It is also featured on our popular 1673 expander/reducer/swaging machine as well. Swage (pronounced swedge) is an uncommon word, and it most commonly refers to forming different shapes with metal tube. The swage box is an extremely handy device for many tube end forming techniques… some think of it as almost magical in that it allows the operator to fabricate a myriad of end-forms.

huth-swage-box

In the swage box, you can do Solid-Tool Expansion with a swage die. The advantage of solid tool expansion is controlled uniformity around the perimeter of the expansion (a segmented expander has microscopic indentations between the expander fingers).

Tube Diameter Reduction is possible in a swage box. This allows fabrication slip fits where one tube is slid inside the other in a way that appears practically seamless from the outside.

Creating Flanges And Flares can be done in the swage box with flange and flare tooling. Want a flange that goes 90 degrees out from the tube end? Simple. Use a 45 degree flare tool to create the 1st 45 degrees, then spin the tool around and push it the remaining 45 degrees until it sticks out perpendicularly from the tube end.

Doming And Both Male And Female Ball Joint Ends are possible in the swage box. Ball joint connections can be used to help hold two tubes together in a way that allows some movement at the joint.

One of the keys to forming in the swage box is holding the tube firmly with the collets and collet holder. The forces required to form the new metal shapes are great… 25,000 lbs of force exerted across just a few inches of diameter. We have created a cool time-saving accessory… the dead stop system… to help people locking in the length when making repeated parts.

On the other end of the swage box is the expanding cylinder. Using segmented tooling and Huth’s unique AccuSizer system, you can quickly and efficiently create slip fits, flares, ball joint connections, AND MORE! Custom Solutions Available Upon Request.

Let us know how we can help you create end-forming magic with your own swage box!



HB10 Comes complete with the 028 Die package shown below

die package

028 DIE PACKAGE
Rad Die
5530 5 inch Rad Die 3 inch
5412 5 inch Rad Die 2-1/2 inch
5414 5 inch Rad Die 2-1/4 inch
5200 5 inch Rad Die 2 inch
4414 4 inch Rad Die 2-1/4 inch
4200 4 inch Rad Die 2 inch
3134 3 inch Rad Die 1-3/4 inch
3112 3 inch Rad Die 1-1/2 inch
Full Back Shoes
1350 Full Back Shoes 3 inch (2)
4412 Full Back Shoes 2-1/2 inch (2)
4211 Full Back Shoes 2-1/4 inch (2)
1200 Full Back Shoes 2 inch (2)
1134 Full Back Shoes 1-3/4 inch (2)
1112 Full Back Shoes 1-1/2 inch (2)
Half Shoe
4410 Half Shoe 2-1/2 inch
4416 Half Shoe 2-1/4 inch
1045 Half Shoe 2 inch
1040 Half Shoe 1-3/4 inch
1038 Half Shoe 1-1/2 inch
Collet
1750 Collet 2-1/2 inch
1725 Collet 2-1/4 inch
1720 Collet 2 inch
1734 Collet 1-3/4 inch
1712 Collet 1-1/2 inch
Flare Tool
853 Flare Tool
Domer Die
557 Domer Die 1-3/4 inch - 2-1/2 inch
558 Domer Die 2-5/8 inch - 2-3/4 inch
Female Ball Die
555 Female Ball Die 1-3/4 inch - 2 inch
556 Female Ball Die 2-1/4 inch -2-1/2 inch
Male Ball Die
550 Male Ball Die 1-3/4 inch : Swage 2 inch
552 Male Ball Die 2 inch : Swage 2-1/4 inch
553 Male Ball Die 2-1/4 inch : Swage 2-1/2 inch
554 Male Ball Die 2-1/2 inch : Swage2-3/4 inch
Swage Die
112 Swage Die 1-1/2 inch
134 Swage Die 1-3/4 inch
Arbor
572 Arbor, 1-1/2 inch
573 Arbor, 1-3/4 inch -4 inch
Segment
472 Segment 1-3/8 inch - 1-3/4 inch
474 Segment 1-3/4 inch - 2-1/8 inch
475 Segment 2-1/8 inch - 2-1/2 inch
476 Segment 2-1/2 inch - 3 inch
Accessories
97050 Die Spring
870 O-Ring Kit
815 Die Holder (853)
855 Die Pins (Qty 30)
97305 Huth Instructional DVD



074 Die package
Arbor and Segments
074 Die Package Tooling -
Use with 1674 Expander Only
No. Type Size
574 * Arbor  2-7/8 to 6 in
572 Arbor  1-3/8 to 1-3/4 in (Solid Piece)
573 Arbor  1-3/4 to 4 in (Solid Piece)
481 Segment  2-7/8 to 3-1/2 in
472 Segment  1-1/2 to 1-3/4 in (Solid Surface)
474 Segment  1-3/4 to 2-1/8 in
475 Segment  2-1/8 to 2-1/2 in
476 Segment  2-1/2 to 3 in
482 Segment  3-3/8 to 4 in
483 Segment  3-7/8 to 4-1/2 in
484 Segment  4-3/8 to 5 in
485 Segment  4-7/8 to 5-1/2 in
486 Segment 5-3/8 to 6 in
* All Sizes are ID


1992 tooling package
1992 3 in Tooling Package
For use on benders with 700 Series or 1700 Series Collets with a clamp style collet holder.
(Standard on all Huth Bender models from
September 1981 to present.)
No. Description
5530 Radius Die - 3 in
1350 Back Shoe (2) - 3 in
1351 Three-Quarter Shoe- 3 in
1352 Half Shoe -3 in
855 Die Pins (6)
892 Collet Holder - 3 in
1730 Collet
853 Flaring/Flanging Tool 1-1/2 to 3-1/2 in
783 Reducer (3  to 2-1/2 in)
130 Swage Die - 3 in
476 * Segment Set (2-1/2 ID to 3 in ID)
*Requires Arbor 508 and Arbor Tip 499 (or) Arbor 573



1993 3inch Tolling Package
For use on benders with 200 series collets with either a cam action or spin close style holder.
(Standard on all Huth Bender models from 1955 to September 1981)
No. Description
5530 Radius Die - 3 in
1350 Back Shoe (2) - 3 in
1351 Three-Quarter Shoe - 3 in
1352 Half Shoe - 3 in
855 Die Pins (6)
508 Arbor 1-1/2 to 4 in
499 Arbor Tip 1-3/4 to 4 in
476 Segment Set (2 1/2 ID to 3 in ID)


toolling package
1995 2-3/4 inch Tooling Package
For use on benders with 700 Series or 1700 Series Collets with a clamp style collet holder.
(Standard on all Huth Bender models from September 1981 to present.)
No. Description
5534 5 in Radius Die - 2-3/4 in
1234 Back Shoe (2) - 2-3/4 in
1235 Three-Quarter Shoe - 2-3/4 in
1236 Half Shoe - 2-3/4 in
855 Die Pins (6)
1729 * Collet - 2-3/4 in
790 Reducer 3 to 2-3/4 in
129 Swage Die - 2-3/4 in
* Requires 892 Collet Holder

1988 3 inch End Finishing Package
Designed for benders which utilize 700 or 1700 series collets to perform 3 inch swaging.
No. Description
892 Collet Holder - 3 in
1730 Collet - 3 in
130 Swage Die - 3 in
783 Reducer (3 to 2-1/2 in)
853 Flaring / Flanging Tool (1-1/2 to 3-1/2 in)
1997 2-3/4 inch Short Tooling Package
1997 2-3/4 inch Short Tooling Package
No. Description
5534 5" Radius Die - 2-3/4"
1234 Back Shoe (2) - 2-3/4"
855 Die Pins (4)
Choice of one of the following:
1235 Three-Quarter Shoe with Pin
1236 Half Shoe with Pin
476 * Segment Set (2-1/2" ID to 3" ID)
* Requires Arbor 508 and Arbor Tip 499 (or) Arbor 573

1989 1-7/8 inch Optional Package
No. Description
4178 4" Radius Die - 1-7/8 in
178 Swage Die - 1-7/8 in
1178 Back Shoe (2 pcs) - 1-7/8 in
1043 Half Shoe - 1-7/8 in
1778 Collet Set - 1-7/8 in
855 Die Pins (5 pcs)







Model & Accessories
HB10 KNEE CONTROL BENDER (With 028 Die Package included)
028 DIE PACKAGE TOOLING  - HB
1992 3 INCH TOOLING PACKAGE
1993 3 INCH TOOLING PACKAGE
1995 2-3/4 INCH TOOLING PACKAGE
1997 2-3/4 INCH TOOLING PACKAGE
1988 3 INCH END FINISHING PACKAGE
1989 1-7/8 OPTIONAL PACKAGE
