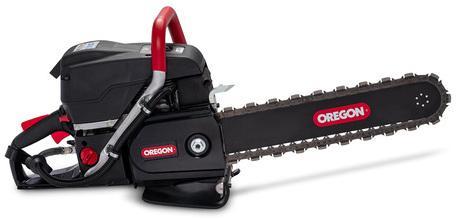

New! 695XL Petrol-Powered Concrete and Utility Pipe Chain Saw
Deepest, Most Versatile Petrol Powered Saw
The new 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and
piston and cylinder. Based on the best-selling 695 saw platform, the 695XL is the highest horsepower Oregon gas power cutter for frequent-use by general construction, utility contractors, and
concrete professionals. Available with 12 in. (30 cm), 16 in. (40cm) guidebars and the entire line of FORCE4®, and PowerGrit® Series diamond chains. The 695XL-GC is available for 12 in.
(30cm), 14 in. (35 cm) and 16 in. (40cm) FORCE3® diamond chains.
695XL Gas Saw. Powerhead only. Fits FORCE4 guidebars and diamond chains, which are available separately.
695XL-12 F4 Gas Saw Package with 12 inch/30 cm FORCE4 guidebar and FORCE4 chain. Also compatible with our PowerGrit and PowerGrit XL pipe cutting diamond chains.
695XL-16 F4 Gas Saw Package with 16 inch/40 cm FORCE4 guidebar and FORCE4 chain. Also compatible with our PowerGrit and PowerGrit XL pipe cutting diamond chains.
695XL-16 PG Gas Saw Package with 16 inch/40 cm FORCE4 guidebar and PowerGrit chain. Also compatible with the full line of FORCE4 concrete diamond chains.
The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower Oregon gas power cutter for frequent-use by general construction, utility contractors, and concrete professionals.
Features:
- Use on concrete, stone, masonry, brick, block, ductile iron, cast iron, PVC, HDPE and more
- Most versatile gas power cutter
- Piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- Easy-to-tune carburetor
- Will also operate PowerGrit and PowerGritXL diamond chain
-
WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
|
695F4 Gas Power Cutters and Consumables (.444 PITCH)
|
|
575826
|
Oregon 695XL F4 Powerhead
|
|
576151
|
Oregon 695XL-12 F4 Gas Power Cutter Pkg, with 12 in/30 cm FORCE4 Guidebar and FORCE4 Chain
|
|
575872
|
Oregon 695XL-16 F4 Gas Power Cutter Pkg with 16 in/40 cm FORCE4 Guidebar and FORCE4 Chain
|
|
Engine Type
|
2-Stroke, Air Cooled
|
|
Displacement
|
94cc (5.7 cu-in)
|
|
Horsepower
|
4.8kW (6.4 hp) @ 9000 rpm
|
|
Torque
|
5.7 Nm (50.4 in-lbs) @ 7200 rpm
|
|
Engine Speed
|
9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
|
|
Chain Speed at Maximum Power
|
28 m/s (5500 ft /min)
|
|
Weight
|
9.5 kg (21 lbs) powerhead only
|
|
Dimensions
|
46cm (18") L x 36cm (14") H x 30cm (12") W
|
|
Starter
|
Recoil, dust and water resistant
|
|
Ignition
|
Special water resistant electronic ignition
|
|
Fuel ratio
|
2% (50:1) petrol-to-oil
|
|
Fuel Capacity
|
1 liter (0.26 gallon)
|
|
Water Supply Requirement
|
Minimum: 1.5 bar (20 psi)
|
|
Water Flow Requirement
|
Minimum: 4 lpm (1 gpm)
|
|
Guaranteed Sound Power Level, Lwa (1)
|
115 dB(A); (Kwa=1.0 dB(A))
|
|
Equivalent Sound Pressure at the Operator's Ear Lwa
|
104.6 dB(A) (K=1.0 dB(A))
|
|
Vibration, ahv eq Concrete Cutting (2)
|
3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle
|
|
Vibration, ahv eq Pipe Cutting (2)
|
5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle
|
(1) Measured in accordance with ANSI S12.51-2012/ISO3741:2010/(2) Measured in accordance with ISO5349-1:2001, ISO22867:2011 and ISO19432:2012
FEATURES and BENEFITS
-
Use on concrete, stone and masonry
-
Square corners
-
Narrow deep cutting up to 16 in. (40 cm)
-
Small openings
-
94 cc gas powered engine
-
Safe, no gyroscopic rotation
What Are You Looking At ?
-
Advanced rear-ported intake keeps airflow slurry free
-
Retained single nut bar clamp provides simplified bar clamping and no parts to lose
-
Extended drive sprocket adapter offers easier chain assembly
-
Oversized tensioner screw for easier chain tensioning
-

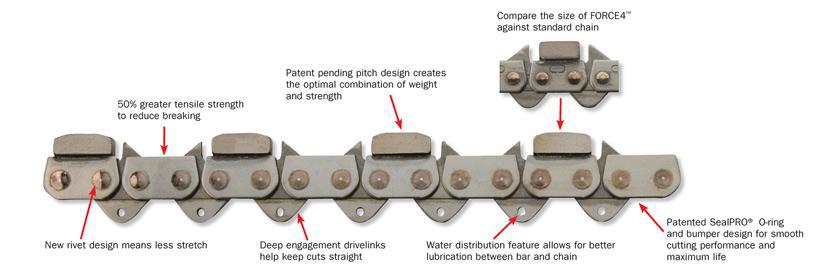

Choose from the entire line of MAX diamond chains as well as the revolutionary FORCE4 for all of your concrete, stone, and masonry cutting
needs.
-
Available in 16 in (40 cm) guidebars for deep penetration
-
Patented WallWalker for straighter cuts and lessened operator effort
-
Polyester air filter designed specifically for wet cutting
Download the 695F4 Datasheet
(PDF)
|
Chains
|
|
531743
|
Oregon FORCE4-25 chain 12 in/30 cm
|
|
525342
|
Oregon FORCE4-29 chain 16 in/40 cm
|
|
531745
|
Oregon FORCE4-25 Premium L chain 12 in/30 cm
|
|
525343
|
Oregon FORCE4-29 Premium L chain 16 in/40 cm
|
|
531739
|
Oregon FORCE4-25 Premium S chain 12 in/30 cm
|
|
531735
|
Oregon FORCE4-29 Premium S chain 16 in/40 cm
|
|
531747
|
Oregon FORCE4-25 Abrasive chain 12 in/30 cm
|
|
525344
|
Oregon FORCE4-29 Abrasive chain 16 in/40 cm
|
|
531741
|
FORCE4-34 PREM S CHAIN, 20IN/50CM, 68DL
|
|
531749
|
FORCE4-34, DIAMOND CHAIN 20IN/50CM
|
|
531751
|
FORCE4-34 PREM L CHAIN, 20IN/50CM, 68DL
|
|
531753
|
FORCE4-34 ABRASIVE CHAIN, 20IN/50CM 68DL
|
|
571505
|
FORCE4-34, PREM S .375 20IN/50CM 68DL
|
|
525345
|
FORCE4-40 CHAIN, 25IN/63CM, 80DL
|
|
525346
|
FORCE4-40 PREM L CHAIN, 25IN/63CM, 80DL
|
|
525347
|
FORCE4-40 ABRASIVE CHAIN, 25IN/63CM 80DL
|
|
531737
|
FORCE4-40 PREM S CHAIN, 25IN/63CM 80DL
|
|
531739
|
FORCE4-25 PREMIUM S, CHAIN 10IN
|
|
599881
|
Oregon FORCE4-50 Cross-LINK chain 12 in/30 cm
|
|
599882
|
Oregon FORCE4-58 Cross-LINK chain 16 in/40 cm
|
|
605443
|
Oregon FORCE4-25 Sandwich Segment chain 12 in/30 cm
|
|
605414
|
Oregon FORCE4-29 Sandwich Segment chain 16 in/40 cm
|
|
598280
|
Oregon FORCE4-25 Texas Edition chain 12 in/30 cm
|
|
598281
|
Oregon FORCE4-29 Texas Edition chain 16 in/40 cm
|
|
571504
|
Oregon FORCE4-25 Premium S wide kerf (.375) chain 12 in/30 cm
|
|
570943
|
Oregon FORCE4-29 Premium S wide kerf (.375) chain 16 in/40 cm
|
|
605399
|
FORCE4-40, SANDWICH CHAIN 25IN/63CM
|
|
605400
|
FORCE4-34, SANDWICH CHAIN 20IN/50CM
|
|
605414
|
FORCE4-29, SANDWICH 15/16 IN (38/40CM)
|
|
605443
|
FORCE4-25, SANDWICH CHAIN 10IN/25CM
|
|
598280
|
FORCE4-25, CHAIN 10 IN, TEXAS EDITION
|
|
598281
|
FORCE4-29, 15/16 IN, TEXAS EDITION
|
|
598282
|
FORCE4-34, CHAIN 20 IN, TEXAS EDITION
|
|
598283
|
FORCE4-40, CHAIN, 25 IN, TEXAS EDITION
|
|
599881
|
FORCE4-50, CROSS-LINK, 10/12IN (25/30CM)
|
|
599882
|
FORCE4-58, CROSS-LINK, 15/16IN (38/40CM)
|
|
599883
|
FORCE4-68, CROSS-LINK CHAIN 20IN/50CM
|
|
599884
|
FORCE4-80, CROSS-LINK, CHAIN 25IN/63CM
|
|

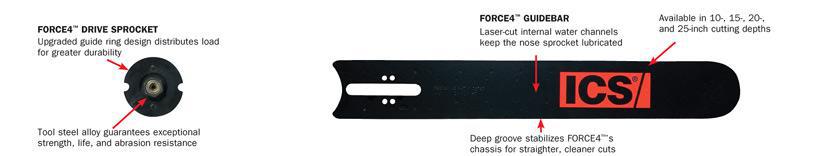

Guidebar
|
|
553208
|
Oregon 695F4 Guidebar 12 in/30 cm
|
|
524490
|
Oregon 695F4 Guidebar 16 in/40 cm
|
|
529767
|
GUIDEBAR, FORCE4 (34SEG/20IN/50CM)
|
|
529829
|
GUIDEBAR, F4 (25SEG/50DL/10IN/25CM)
|
|
Powergrit
|
|
Guidebar
|
|
579158
|
GUIDEBAR, 680PG POWERGRIT (10IN/25CM)
|
|
Pipe Clamp
|
|
537640
|
PIPE CLAMP, POWERGRIT SYSTEM
|
|
Chains
|
|
537764
|
CHAIN, POWERGRIT, 15/16IN,38/40CM/58DL
|
|
537765
|
CHAIN, POWERGRIT, 20IN/50CM/68DL
|
|
545017
|
CHAIN, POWERGRIT, 25IN/63CM/80DL
|
|
547641
|
CHAIN, POWERGRIT 10/12 IN, 25/30CM, 50DL
|
|
580424
|
CHAIN, POWERGRIT, 10IN/25CM/48DL (680)
|
|
607664
|
CHAIN, POWERGRIT XL 15/16IN,38/40CM/58DL
|
|
608215
|
CHAIN, POWERGRIT XL, 25IN/63CM/80DL
|
|
608216
|
CHAIN, POWERGRIT XL, 20IN/50CM/68DL
|
|
608233
|
CHAIN, POWERGRIT XL,10/12IN 25/30CM 50DL
|
|
608234
|
CHAIN, POWERGRIT XL, 10IN/25CM/48DL(680)
|
"L" Series Diamond Chain = Longer Life Chain
"S" Series Diamond Chain = Speed Cut - Much More Aggressive Cutting Chain
Click here to download datasheet
When water isnt readily available, this corrosion resistant poly tank provides the solution. Able to hold up to 25 gallons, this tank offers the required pressure and flow that ICS saws require.
The diaphragm High-Flo pump provides 1.8 gpm at 60 psi and comes with molded alligator clips for 12v battery hookup. Comes with a whip fitted with a standard hose end, ready for any regular hose
you desire.
Features:
-
Portable
-
Easy to transport
-
Fits a regular hose
-
Battery operated
Specifications:
-
Capacity: 25 gal
-
Pump Output: 1.8 GPM / 60 PSI
-
Power Supply: 12 volt, gator clip hookup
-
Tank Construction: Corrosion Resistant Poly
