576154
|
Oregon 680ES-12 GC Gas Power Cutter Pkg, with 12 in/30 cm Guidebar and FORCE3 Chain
|
|
576153
|

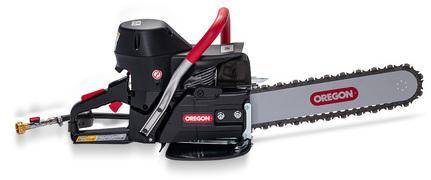

Oregon 680ES-14 GC Gas Power Cutter Pkg, with 14 in/35 cm Guidebar and FORCE3 Chain
|
New! 680ES Petrol-Powered Concrete Chain Saw
Deep Cutting, Petrol Powered Saw
Datasheet
Operator Manual
Built to meet the operation and flexibility demands of the general construction user, the 680ES stands alone in terms of reliability and value. Easy to start with a
new multifunction lever to control choke, run, and stop functions. The distinctive black powerhead houses specially designed carburetion and ignition systems that work together to ensure easy
starting, cooler operation and dependable performance at just about any elevation. Available with 12-inch (30 cm) and 14-inch (35 cm) guidebars and the entire line of MAX series diamond
chain.
-
Polyester air filter designed specifically for wet cutting
-
Operates Euromax Bar and chain consumables up to 14 inch (35cm)
-
Multifunction lever controls choke, throttle advance, run and stop modes
-
Extended drive sprocket adapter offers easy chain assembly
-
Deep cutting solution for obstructed or small openings
-
Cut squares as small as 4 inch x 4 inch (10 cm x 10 cm)
-
Easy-to-start in all weather
|
Specifications
|
|
Engine Type
|
2-stroke, Air Cooled
|
|
Displacement
|
76.5 cc (4.7 cu-in)
|
|
Horsepower
|
3.7 kW (5 hp) at 9,500 rpm
|
|
Torque
|
4.1 Nm (36.3 in-lbs) at 6,500 rpm
|
|
Engine Speed
|
11500 +/- 500 rpm (max) / 2,800 - 3,200 rpm (Idle)
|
|
Chain Speed at Maximum Power
|
34.5 m/s (6800 ft /min)
|
|
Weight
|
9.5 kg (21 lbs) powerhead only
|
|
Dimensions
|
46 cm (18 in) length / 29 cm (11.5 in) height / 25 cm (10 in) width
|
|
Starter
|
Dust and water resistant
|
|
Ignition
|
Special water resistant electronic ignition
|
|
Fuel ratio
|
4 percent (25:1) gasoline-to-oil
|
|
Fuel Capacity
|
0.88 liter (0.23 gallon)
|
|
Water Supply Requirement
|
Minimum: 1.5 bar (20 psi)
|
|
Water Flow Requirement
|
Minimum: 4 lpm (1 gpm)
|
|
Guaranteed Sound Power Level, Lwa (1)
|
117 dB(A) (Kwa=3.0 dB(A))
|
|
Equivalent Sound Pressure at the Operator's Ear Lwa
|
101.0 dB(A) (K = 2.0 dB(A))
|
|
Vibration, ahv eq Concrete Cutting (2)
|
7.2 m/s2 (K=1.0 m/s2) Front Handle / 8.5 m/s2 (K=1.0 m/s2) Rear Handle
|
The Technology
ICS Concrete Chain Saws let you make deeper, cleaner and more accurate cuts, in less time. Deeper cuts and square corners means getting the job done with fewer steps. No more trying to match up
cuts from both sides. No more impact tools that risk damage to the surrounding concrete or masonry. No more over-cutting corners. Eliminating over-cuts reduces patchwork. Cut deep. Cut fast. Cut
all the way through from one side.
Principal Technology Advantages
-
Deep cuts
-
Square corners
-
Tight spaces
-
Single-side access
-
Small holes
-
Lightweight & portable
-
Time savings
-
No rotational kickback (grinding vs. chipping)
|
Accessories
|
|
Chains
|
|
584290
|
Oregon FORCE3 chain 12 in/30 cm, 58 Drive Links
|
|
584292
|
Oregon FORCE3 chain 14 in/35 cm, 64 Drive Links
|
|
584297
|
Oregon FORCE3 Brick chain 12 in/30 cm, 58 Drive Links
|
|
584299
|
Oregon FORCE3 Brick chain 14 in/35 cm, 64 Drive Links
|
|
584298
|
Oregon FORCE3 Premium chain 12 in/30 cm, 58 Drive Links
|
|
584302
|
Oregon FORCE3 Premium chain 14 in/35 cm, 64 Drive Links
|
|
Guidebar
|
|
71395
|
Oregon 680GC Guidebar 12 in/30 cm
|
|
632194
|
680GC GUIDEBAR 12 IN/30 CM
|
|
513122
|
Oregon 680GC Guidebar 14 in/35 cm
|
|
635697
|
680GC GUIDEBAR 14 IN/35 CM
|
|
660GC Consumables
|
|
584288
|
Oregon FORCE3 chain 10 in/25 cm 50 Drive Links
|
|
517689
|
Oregon 660GC Guidebar 10 in/25 cm
|
|
635698
|
660GC Guidebar 10 in/25 cm
|
|
Powergrit
|
|
Guidebar
|
|
579158
|
GUIDEBAR, 680PG POWERGRIT (10IN/25CM)
|
|
635708
|
680 POWERGRIT GUIDEBAR 10 IN/25 CM
|
|
Pipe Clamp
|
|
537640
|
PIPE CLAMP, POWERGRIT SYSTEM
|
|
Chains
|
|
537764
|
CHAIN, POWERGRIT, 15/16IN,38/40CM/58DL
|
|
537765
|
CHAIN, POWERGRIT, 20IN/50CM/68DL
|
|
545017
|
CHAIN, POWERGRIT, 25IN/63CM/80DL
|
|
547641
|
CHAIN, POWERGRIT 10/12 IN, 25/30CM, 50DL
|
|
580424
|
CHAIN, POWERGRIT, 10IN/25CM/48DL (680)
|
|
607664
|
CHAIN, POWERGRIT XL 15/16IN,38/40CM/58DL
|
|
608215
|
CHAIN, POWERGRIT XL, 25IN/63CM/80DL
|
|
608216
|
CHAIN, POWERGRIT XL, 20IN/50CM/68DL
|
|
608233
|
CHAIN, POWERGRIT XL,10/12IN 25/30CM 50DL
|
|
608234
|
CHAIN, POWERGRIT XL, 10IN/25CM/48DL(680)
|
Click here to download datasheet
When water isnt readily available, this corrosion resistant poly tank provides the solution. Able to hold up to 25 gallons, this tank offers the required pressure and flow that ICS saws require.
The diaphragm High-Flo pump provides 1.8 gpm at 60 psi and comes with molded alligator clips for 12v battery hookup. Comes with a whip fitted with a standard hose end, ready for any regular hose
you desire.
Features:
-
Portable
-
Easy to transport
-
Fits a regular hose
-
Battery operated
Specifications:
-
Capacity: 25 gal
-
Pump Output: 1.8 GPM / 60 PSI
-
Power Supply: 12 volt, gator clip hookup
-
Tank Construction: Corrosion Resistant Poly
