The New ICS 680ES Concrete Saw

Models and Accessories
576155 Oregon 680ES Powerhead
576154 Oregon 680ES-12 GC Gas Power Cutter Pkg, with 12 in/30 cm Guidebar and FORCE3 Chain
576153 Oregon 680ES-14 GC Gas Power Cutter Pkg, with 14 in/35 cm Guidebar and FORCE3 Chain
Chains
584290 Oregon FORCE3 chain 12 in/30 cm, 58 Drive Links
584292 Oregon FORCE3 chain 14 in/35 cm, 64 Drive Links
584297 Oregon FORCE3 Brick chain 12 in/30 cm, 58 Drive Links
584299 Oregon FORCE3 Brick chain 14 in/35 cm, 64 Drive Links
584298 Oregon FORCE3 Premium chain 12 in/30 cm, 58 Drive Links
584302 Oregon FORCE3 Premium chain 14 in/35 cm, 64 Drive Links
Guidebar
71395 Oregon 680GC Guidebar 12 in/30 cm
513122 Oregon 680GC Guidebar 14 in/35 cm
660GC Consumables
584288 Oregon FORCE3 chain 10 in/25 cm 50 Drive Links
517689 Oregon 660GC Guidebar 10 in/25 cm
Powergrit
Guidebar
579158 GUIDEBAR, 680PG POWERGRIT (10IN/25CM)
Pipe Clamp
537640 PIPE CLAMP, POWERGRIT SYSTEM
Chains
537764 CHAIN, POWERGRIT, 15/16IN,38/40CM/58DL
537765 CHAIN, POWERGRIT, 20IN/50CM/68DL
545017 CHAIN, POWERGRIT, 25IN/63CM/80DL
547641 CHAIN, POWERGRIT 10/12 IN, 25/30CM, 50DL
580424 CHAIN, POWERGRIT, 10IN/25CM/48DL (680)
607664 CHAIN, POWERGRIT XL 15/16IN,38/40CM/58DL
608215 CHAIN, POWERGRIT XL, 25IN/63CM/80DL
608216 CHAIN, POWERGRIT XL, 20IN/50CM/68DL
608233 CHAIN, POWERGRIT XL,10/12IN 25/30CM 50DL
608234 CHAIN, POWERGRIT XL, 10IN/25CM/48DL(680)





680ES Petrol-Powered Concrete Chain Saw New! 680ES Petrol-Powered Concrete Chain Saw
Deep Cutting, Petrol Powered Saw

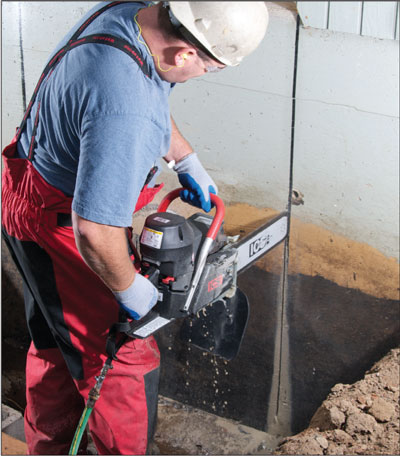

Built to meet the operation and flexibility demands of the general construction user, the 680ES stands alone in terms of reliability and value. Easy to start with a new multifunction lever to control choke, run, and stop functions. The distinctive black powerhead houses specially designed carburetion and ignition systems that work together to ensure easy starting, cooler operation and dependable performance at just about any elevation. Available with 12-inch (30 cm) and 14-inch (35 cm) guidebars and the entire line of MAX series diamond chain.

  • Polyester air filter designed specifically for wet cutting
  • Operates Euromax Bar and chain consumables up to 14 inch (35cm)
  • Multifunction lever controls choke, throttle advance, run and stop modes
  • Extended drive sprocket adapter offers easy chain assembly
  • Deep cutting solution for obstructed or small openings
  • Cut squares as small as 4 inch x 4 inch (10 cm x 10 cm)
  • Easy-to-start in all weather
Specifications
Engine Type 2-stroke, Air Cooled
Displacement 76.5 cc (4.7 cu-in)
Horsepower 3.7 kW (5 hp) at 9,500 rpm
Torque 4.1 Nm (36.3 in-lbs) at 6,500 rpm
Engine Speed 11500 +/- 500 rpm (max) / 2,800 - 3,200 rpm (Idle)
Chain Speed at Maximum Power 34.5 m/s (6800 ft /min)
Weight 9.5 kg (21 lbs) powerhead only
Dimensions 46 cm (18 in) length / 29 cm (11.5 in) height / 25 cm (10 in) width
Starter Dust and water resistant
Ignition Special water resistant electronic ignition
Fuel ratio 4 percent (25:1) gasoline-to-oil
Fuel Capacity 0.88 liter (0.23 gallon)
Water Supply Requirement Minimum: 1.5 bar (20 psi)
Water Flow Requirement Minimum: 4 lpm (1 gpm)
Guaranteed Sound Power Level, Lwa (1) 117 dB(A) (Kwa=3.0 dB(A))
Equivalent Sound Pressure at the Operator's Ear Lwa 101.0 dB(A) (K = 2.0 dB(A))
Vibration, ahv eq Concrete Cutting (2) 7.2 m/s2 (K=1.0 m/s2) Front Handle / 8.5 m/s2 (K=1.0 m/s2) Rear Handle



The Technology
ICS Concrete Chain Saws let you make deeper, cleaner and more accurate cuts, in less time. Deeper cuts and square corners means getting the job done with fewer steps. No more trying to match up cuts from both sides. No more impact tools that risk damage to the surrounding concrete or masonry. No more over-cutting corners. Eliminating over-cuts reduces patchwork. Cut deep. Cut fast. Cut all the way through from one side.

Principal Technology Advantages

  • Deep cuts
  • Square corners
  • Tight spaces
  • Single-side access
  • Small holes
  • Lightweight & portable
  • Time savings
  • No rotational kickback (grinding vs. chipping)

ICS - Portable Water Supply, 551494 s-h alt573285

Portable Water Tank - PDX

Datasheet (pdf)

ICS - Portable Water Supply, 551494

Portable Water Tank

Click here to download datasheet

When water isnt readily available, this corrosion resistant poly tank provides the solution. Able to hold up to 25 gallons, this tank offers the required pressure and flow that ICS saws require. The diaphragm High-Flo pump provides 1.8 gpm at 60 psi and comes with molded alligator clips for 12v battery hookup. Comes with a whip fitted with a standard hose end, ready for any regular hose you desire.

Features:

  • Portable
  • Easy to transport
  • Fits a regular hose
  • Battery operated
Specifications:

  • Capacity: 25 gal
  • Pump Output: 1.8 GPM / 60 PSI
  • Power Supply: 12 volt, gator clip hookup
  • Tank Construction: Corrosion Resistant Poly



576155
ICS 680ES POWERHEAD
CALL 800-458-3687 FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS SAW
Mfg. item #: 576155
ICS576155
Ships FREE via UPS to lower 48 states.5
$1,616.00

15
576154
SALE - ICS 680ES-12 GC GAS POWER CUTTER PKG, WITH 12 IN/30 CM GUIDEBAR & FORCE3 CHAINBUY THIS SAW & GET FREE ICS FORCE 3 CHAIN - LIMITED TIME OFFER
CALL 800-458-3687 FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS SAW
Mfg. item #: 576154
ICS576154
Ships FREE via UPS to lower 48 states.5
$2,360.00

15   2
576153
SALE - ICS 680ES-14 GC GAS POWER CUTTER PKG, WITH 14 IN/35 CM GUIDEBAR & FORCE3 CHAINBUY THIS SAW & GET FREE ICS FORCE 3 CHAIN - LIMITED TIME OFFER
CALL 800-458-3687 FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS SAW
Mfg. item #: 576153
ICS576153
Ships FREE via UPS to lower 48 states.5
$2,463.00

15   4
584290
ICS FORCE3 CHAIN 10 IN GAS / 12 IN HYD / 30 CM, 58 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584290
ICS584290
Ships FREE via UPS to lower 48 states.5
$539.00

15   1
584292
ICS FORCE3 CHAIN 14 IN/35 CM, 64 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584292
ICS584292
Ships FREE via UPS to lower 48 states.5
$597.00

15   7
584297
ICS FORCE3 BRICK CHAIN 12 IN/30 CM, 58 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584297
ICS584297
Ships FREE via UPS to lower 48 states.5
$653.00

15   1
584299
ICS FORCE3 BRICK CHAIN 14 IN/35 CM, 64 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584299
ICS584299
Ships FREE via UPS to lower 48 states.5
$715.00

15   1
584298
ICS FORCE3 PREMIUM CHAIN 12 IN/30 CM, 58 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584298
ICS584298
Ships FREE via UPS to lower 48 states.5
$703.00

15
584302
ICS FORCE3 PREMIUM CHAIN 14 IN/35 CM, 64 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584302
ICS584302
Ships FREE via UPS to lower 48 states.5
$777.00

15   1
71395
ICS 680GC GUIDEBAR 12 IN/30 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 71395
ICS71395
Ships FREE via UPS to lower 48 states.5
$205.00

15
513122
ICS 680GC GUIDEBAR 14 IN/35 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 513122
ICS513122
Ships FREE via UPS to lower 48 states.5
$250.00

15   4
584288
ICS FORCE3 CHAIN 10 IN/25 CM 50 DRIVE LINKS
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 584288
ICS584288
Ships FREE via UPS to lower 48 states.5
$460.00

15
517689
ICS 660GC GUIDEBAR 10 IN/25 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 517689
ICS517689
Ships FREE via UPS to lower 48 states.5
$154.00

15
579158
ICS 680 POWERGRIT GUIDEBAR 10 IN/25 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 579158
ICS579158
Ships FREE via UPS to lower 48 states.5
$200.00

15   1
537640
ICS POWERGRIT PIPE CLAMP SYSTEM (890)
Mfg. item #: 537640
ICS537640
Ships FREE via UPS to lower 48 states.5
$752.00

15
537764
ICS POWERGRIT CHAIN 15IN HYD OR 16IN GAS 40CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 537764
ICS537764
Ships FREE via UPS to lower 48 states.5
$619.00

15
537765
ICS POWERGRIT CHAIN 20 IN/50 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 537765
ICS537765
Ships FREE via UPS to lower 48 states.5
$687.00

15   1
545017
ICS POWERGRIT CHAIN 25 IN/63 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 545017
ICS545017
Ships FREE via UPS to lower 48 states.5
$772.00

15   1
547641
ICS POWERGRIT CHAIN 10 IN GAS / 12 IN HYD / 30 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 547641
ICS547641
Ships FREE via UPS to lower 48 states.5
$556.00

15
580424
ICS 680 POWERGRIT CHAIN 10 IN GAS / 12 IN HYD / 30 CM(48 DRIVE LINKS)
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 580424
ICS580424
Ships FREE via UPS to lower 48 states.5
$533.00

15   1
607664
ICS POWERGRIT XL CHAIN 16 IN/40 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 607664
ICS607664
Ships FREE via UPS to lower 48 states.5
$662.00

15
608215
ICS POWERGRIT XL CHAIN 25 IN/63 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 608215
ICS608215
Ships FREE via UPS to lower 48 states.5
$912.00

15
608216
ICS POWERGRITĘ XLCHAIN 20 IN/50 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 608216
ICS608216
Ships FREE via UPS to lower 48 states.5
$773.00

15   1
608233
ICS POWERGRIT XL CHAIN 10 IN GAS / 12 IN HYD / 30 CM
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 608233
ICS608233
Ships FREE via UPS to lower 48 states.5
$574.00

15
608234
ICS 680 POWERGRIT XL CHAIN 10IN/25CM (48 DRIVE LINKS)
ADD TO CART FOR OUR BROTHER-IN-LAW SPECIAL ON THIS ICS ACCESSORY CHAIN AND/OR BAR
Mfg. item #: 608234
ICS608234
Ships FREE via UPS to lower 48 states.5
$545.00

15
573285
WATER SUPPLY SYSTEM, 25GAL 12V 1.
Mfg. item #: 573285
ICS573285
Ships FREE via UPS to lower 48 states.5
$387.38

778
