IMER Vertical Shaft Mixers

mix all 60 Mix 120 Plus mix 360 mix 750
Mini All 60 Mix 120 Plus Mix 360 Mix 750



VERTICAL SHAFT MORTAR MIXERS
1193988 Mix-All 60 (Formerly Mini-Mix) 14 Gallon/50lb bag capacity 3/4hp 110v Electric Bucket Mixer/ Poly Drum (Updated paddle design, and mixing bucket - new material)
1193968-K Mix-All 60 5 Pack of Buckets for Mix All 60
1193965 Mix-All 60 Fine Mortar Mixing Paddle for Mix All 60
1194302 Mix 120 Plus (Mortarman) 4CF 2hp 110v Portable Specialty Mixer - Includes new iDust Grate
1194304 Mix 120 Plus (Mortarman) 4CF 2hp 110v Portable Specialty Mixer - Includes Standard Grate
1107493 Mix 120 Plus (Mortarman) Standard Grate for the Mix 120 Plus
1107618 Mix 120 Plus (Mortarman) Rubber Paddle Kit for the Mix 120 Plus
1194585 Mix 360 (Mortarman) - w/o motor 12CF Towable - without motor
1194578 Mix 360 (Mortarman) Gas 12CF Towable w/ 11hp Honda Gas motor
1194574 Mix 360 (Mortarman) Electric 220v, 1p 12CF Towable w/ 5hp 220v, 1 Phase
1194575 Mix 360 (Mortarman) Electric 220v, 3p 12CF Towable w/ 5hp 220v, 3 Phase
1194576 Mix 360 (Mortarman) Electric 440v, 3p 12CF Towable w/ 5hp 440, 3 Phase
1107494 Mix 360 Mix 360 - new iDust Grate
1194640 Mix 750 (Mortarman) - w/o motor 22CF Towable - without motor
1194644 Mix 750 (Mortarman) Electric - 220v, 1p 22CF Towable w/ 5hp 220v 1 Phase
1194645 Mix 750 (Mortarman) Electric - 220v, 3p 22CF Towable w/ 7.5hp 220v 3 Phase
1194646 Mix 750 (Mortarman) Electric - 440v, 3p 22CF Towable w/ 7.5hp 440v 3 Phase
1194648 Mix 750 (Mortarman) Gas 22CF Towable w/ 13hp Honda Gas motor w/ Electric Start
1107495 Mix 750 Mix 750 - new iDust Grate



Mix all 60

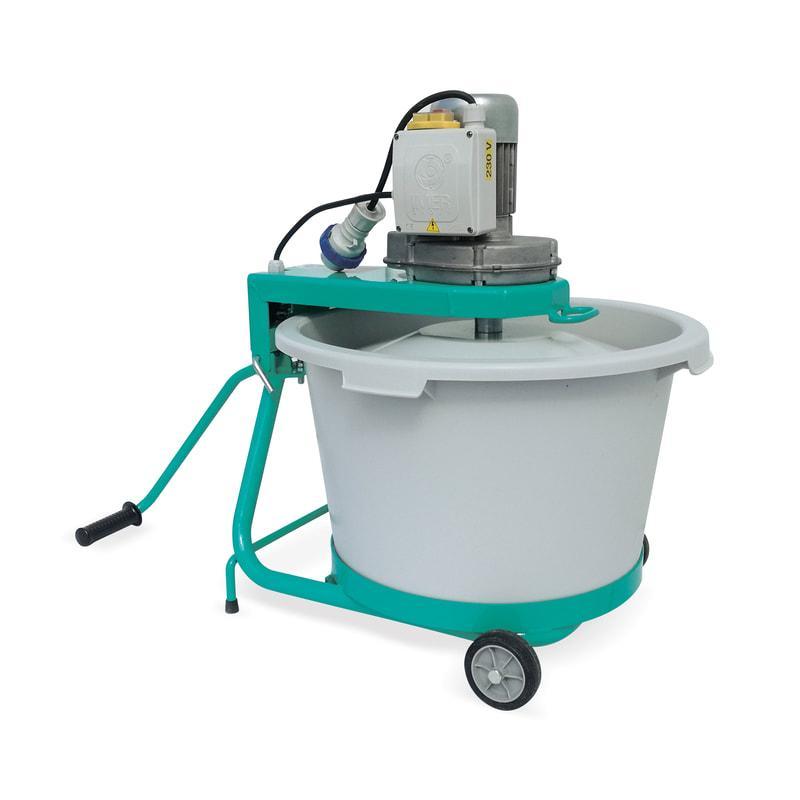

Mix All 60

The Lightweight, Quiet, Portable Yet Powerful Mix-All 60 Saves Time and Reduces Labor Costs

The Mix-All 60 is a one-person repair-work-made-easy solution. If you need to mix mortar in the attic to tuckpoint a chimney, your lightweight and easily-portable answer is the Mix-All 60. The 110V motor gearbox drivetrain is both powerful, and quiet. For fast production, line up 2 or 3 mixers, and have one mixing at all times.  The unique paddles allow it to quickly and thoroughly mix mortar, stucco, thin set, dry pack mortar, epoxy, plaster, and more.

Standard Equipment

  • 3/4 HP, 110V motor
  • Hi torque gearbox drive
  • 4 inch Wheelbarrow pneumatic wheels
  • 14 gallon drum capacity
  • 12 gallon batch output
  • Newly engineered paddle good for mixing mortar, stucco and grout

Optional Equipment

  • Fine Mortar Mixing Paddle
  • 5 Pack of Buckets
Specifications Mini Mix 60

Drum capacity 14 gal.
Batch output 12 gal. / 50 lb. bag
Drum diameter 24 inch
Motor rating 3/4 h.p. 110v, 10 amp.
Paddle speed 55 rpm.
Current draw 10 amps
Noise 70 dB(A)
Machine weight (boxed) 64 (70) lbs.
Length (boxed) 25 (24) inch
Height (boxed) 31 (18) inch
Width (boxed) 23 (23) inch



mix 120 plus
MIX 120 PLUS
Vertical Shaft Mixer with Powerful Mixing Action
The Mix 120 Plus can make a wheelbarrow of mortar, stucco, grout, or dry pack cement every 3 minutes. Vertical shaft mixers deliver so much mixing torque that the Mix 120 Plus can out produce a two-bag towable mixer when making dry pack cement. Team the continuous mixer with an IMER spray and grout pump for semi-automatic production.

Model # 1194302   |  110V/60Hz, 2 HP, Single-Phase, includes iDUST® Grate
Model # 1194304   |   110V/60Hz, 2 HP, Single-Phase, includes Open Grate
Formerly named the Mortarman 120

Standard Equipment
  • 2 HP, 110V motor
  • Hi-torque gearbox drive with reverse
  • Wheelborrow pneumatic wheels
  • Loading wheels
  • 4.25 cu ft drum capacity
  • 3 cu ft batch output
  • Vertical paddles good for mixing mortar, stucco and grout
  • New iDust Grate (dust abatement grate)

Optional Equipment
  • Rubber paddles

Technical Data MIX 120 PLUS
Drum capacity 4.25 cu. ft.
Batch output 3 cu. ft.
Drum diameter 30 inch
Maximum Aggregate Size 3/8 inch
Paddle Speed 38 rpm
Motor 2 h.p. 110/115 V
Current draw 15 amps
Noise 70 dB(A)
Machine Weight (crated) 286 lbs. (310 lbs.)
Length (palletized) 33 (35) inch
Height (palletized) 50 (38) inch
Width (palletized) 30 (31) inch



mix 360

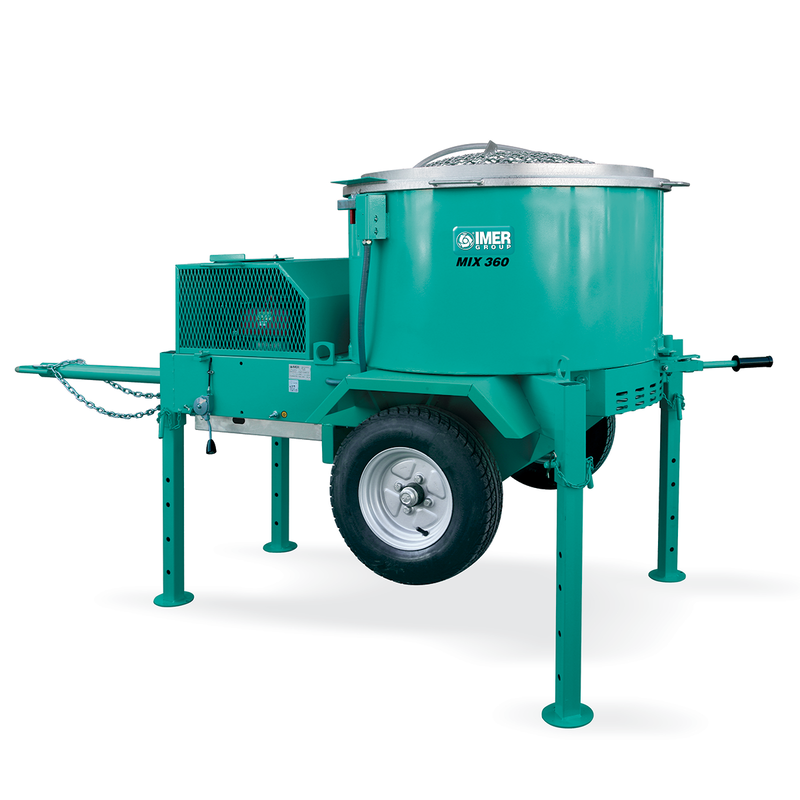

MIX 360

The Mix 360 Offers Unparalleled Production and Jobsite / Plant Safety
Vertical shaft mixers use the principles of concrete batch plant design, which allows for the paddles to rotate through the mix rather than lift and drop it as conventional mortar mixers do. The Mix 360 vertical shaft towable mixers easily mix very low slump materials like dry pack mortar and refractory cement.

Model # 1194585  |   Model without Motor
Model # 1194574  |   220V/60Hz, 5 HP, Single-Phase
Model # 1194575  |   220V/60Hz, 5 HP, 3 Phase
Model # 1194576  |   440V/60Hz, 5 HP, 3 Phase
Model # 1194578   |   11 HP Honda GX
Formerly named the Mortarman 360.

Standard Equipment

  • Tow package - bar, hitch
  • 18" pneumatic highway tires and torsion bar suspension
  • 12 cu ft drum capacity
  • 9 cu ft batch outputForklift pockets

Optional Equipment

  • New iDust Grate
Technical Data MIX 360
Drum capacity 12 cu. ft.
Batch output 9 cu. ft.
Drum diameter 38 inch
Maximum Aggregate Size 3/8 inch
Discharge outlet height max / min 30 / 18 inch
Pneumatic wheels 18 inch
Weight electric / gas 787 / 794 lbs.
Electric motor rating 5 h.p. 220v 1 or 3 ph
Gas engine 11 h.p. Honda
Length (palletized) 59 (80) inch
Height (palletized) 58 (56) inch
Width (palletized) 44 (50) inch



mix 750

Mix 750
Produce 16 cubic feet of Mud Every Three to Four Minutes with the Mix 750
The Mix 750 is the perfect partner for busy precast mixing operations. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate. The Mix 750 is Mini-Batch Plant production for the cost of a mortar mixer. These mixers develop vast amounts of mixing power, far more than any horizontal shaft mortar mixer. The ability to mix refractory mud or stiff, dry materials is unparalleled in the industry.

Model # 1194640  |   Model without Motor
Model # 1194574  |   220V/60Hz, 5 HP, Single-Phase
Model # 1194645   |   220V/60Hz, 7.5 HP, 3 Phase
Model # 1194646   |   440V/60Hz, 7.5 HP, 3 Phase
Model # 1194648   |   13 HP Honda GX
Formerly named the Mortarman 750.

Standard Equipment
  • Honda gasoline, single or 3 phase electric motor options
  • Tow package - bar, hitch
  • 22 inch pneumatic highway tires and torsion bar suspension
  • 22 cu ft drum capacity
  • 16 cu ft batch output
  • Forklift pockets

Optional Equipment
  • New iDust Grate

Technical Data MIX 750
Drum capacity 22 cu. ft.
Batch output 16 cu. ft.
Drum diameter 52 inch
Maximum Aggregate Size 3/8 inch
Discharge outlet height 30 inch
Pneumatic wheels 22 inch
Weight 1,700 lbs.
Electric motor rating 5 hp 220v 1 or 3 ph / 7.5 hp 220v 1 or 3 ph
Gas engine 13 h.p. Honda
Length (palletized) 90 (86) inch
Height (palletized) 62 (86) inch
Width (palletized) 63 (64) inch
