Models and Accessories
505100 AT-100, 3/8 BUTTERFLY IMPACT WRENCH (75 FT-LBS), R6 SERIES
505101 JAT-101, 3/8 IMPACT WRENCH (400 FT-LBS), R8 SERIES
505106 JAT-106, 3/8 COMPACT IMPACT WRENCH (500 FT-LBS), R8 SERIES
505120 JAT-120, 3/8 IMPACT WRENCH (400 FT-LBS), R12 SERIES
505102 JAT-102, 1/2 IMPACT WRENCH (250 FT-LBS), R6 SERIES
505103 JAT-103, 1/2 IMPACT WRENCH (680 FT-LBS), R6 SERIES
505104 JAT-104, 1/2 IMPACT WRENCH (900 FT-LBS), R8 SERIES
505107 JAT-107, 1/2 COMPACT IMPACT WRENCH (500 FT-LBS), R8 SERIES
505121 JAT-121, 1/2 IMPACT WRENCH (750 FT-LBS), R12 SERIES
505122 JAT-122, 1/2 IMPACT WRENCH, 2 EXTENSION (750 FT-LBS), R12 SERIES
505124 JAT-124, 1/2 RIGHT ANGLE IMPACT WRENCH (180 FT-LBS), R12 SERIES

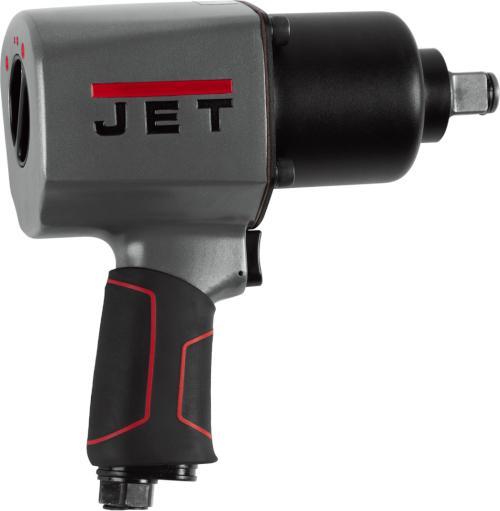

505105 JAT-105, 3/4 IMPACT WRENCH (1500 FT-LBS), R8 SERIES
505123 JAT-123, 3/4 IMPACT WRENCH (1300 FT-LBS), R12 SERIES
505200 JAT-200, 3/4 IMPACT WRENCH (1600 FT-LBS), R12 SERIES
505201 JAT-201, 1 IMPACT WRENCH (2000 FT-LBS), R12 SERIES
505202 JAT-202, 1 IMPACT WRENCH, 6 EXTENSION (2000 FT-LBS), R12 SERIES
505206 JAT-206, 1 IMPACT WRENCH, 6 EXTENSION (2000 FT-LBS), R6 SERIES

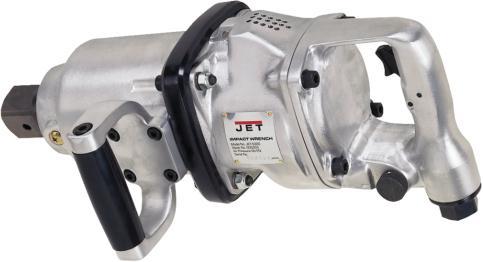

505955 JET-5000, 1-1/2 IMPACT WRENCH (3400 FT-LBS), R12 SERIES



++ JAT-100, 3/8 BUTTERFLY IMPACT WRENCH (75 FT-LBS), R6 SERIES JAT-100, 3/8 inch Butterfly Impact Wrench
has a Lifetime +WT warranty
  • Single Hammer impact mechanism for smooth power and torque
  • Compact design for cramped spaces
  • Variable-speed throttle lets you adjust speed smoothly
  • Lightweight aluminum construction reduces weight
  • 360 degree swivel brass air inlet
  • Built-in multi-position regulator
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505100
Classification R 6
Square Drive (In.) 3/8
Working Torque (Ft.) (Lbs.) 5-50
Max Torque (Ft.) (Lbs.) 75
Free Speed (RPM) 12,000
Blows Per Minute (BPM) 700
Impact Mechanism / Clutch Type Single Hammer
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 110
Sound Power (db) (A) 114
Vibration Value (m/s) 13.4
Overall Length (In.) 5-7/8
Weight (Lbs.)
Height 2.0300
Length 6.9900
Weight 2.2400
Width 3.7800
++ JAT-101, 3/8 IMPACT WRENCH (400 FT-LBS), R8 SERIES JAT-101, 3/8 inch Impact Wrench
has a Lifetime warranty
  • Twin Hammer impact mechanism delivers balanced power
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Lightweight aluminum construction reduces weight
  • Easily adjustable, 3-position forward power setting
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505101
Classification R 8
Square Drive (In.) 3/8
Working Torque (Ft.) (Lbs.) 25-300
Max Torque (Ft.) (Lbs.) 400
Free Speed (RPM) 11,000
Blows Per Minute (BPM) 1,750
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 7/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 87
Sound Power (db) (A) 98
Vibration Value (m/s) 12.0
Overall Length (In.) 6-1/4
Weight (Lbs.) 3.65
Height 2.4600
Length 8.3700
Weight 3.9000
Width 6.3000
++ JAT-106, 3/8 COMPACT IMPACT WRENCH (500 FT-LBS), R8 SERIES JAT-106, 3/8 inch Compact Impact Wrench
has a Lifetime warranty
  • Twin Hammer impact mechanism delivers balanced power
  • Compact design of 4-5/7 inch long for hard to reach or tight work spaces
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Lightweight aluminum construction reduces weight
  • 3 Position forward and reverse power settings
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505106
Classification R8
Square Drive (In.) 3/8
Working Torque (Ft.) (Lbs.) 25-350
Max Torque (Ft.) (Lbs.) 500
Free Speed (RPM) 10,000
Blows Per Minute (BPM) 1,500
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 98
Sound Power (db) (A) 87
Vibration Value (m/s) 4.9
Overall Length (In.) 4-2/7
Weight (Lbs.) 3.4
Height 6.7000
Length 4.7000
Weight 8.8000
Width 2.3000
++ JAT-106, 3/8 COMPACT IMPACT WRENCH (500 FT-LBS), R8 SERIES JAT-120, 3/8 inch Impact Wrench
has a Lifetime warranty
  • 600 Ft. Lbs. Maximum break away torque
  • Composite housing improves balance and reduces weight
  • Patented Twin Hammer impact mechanism improves durability while delivering balanced power
  • Patented, one-hand forward/reverse switch design
  • Four position speed selection and full reverse power
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505120
Classification R 12
Square Drive (In.) 3/8
Working Torque (Ft.) (Lbs.) 25-230
Max Torque at 5 Seconds (Ft.) (Lbs.) 400
Maximum Break Away Torque (Ft.) (Lbs.) 600
Free Speed (RPM) 13,500
Blows Per Minute (BPM) 1,400
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 9/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 5.9
Sound Pressure (db) (A) 92.5
Sound Power (db) (A) 104
Vibration Value (m/s) 10.4
Overall Length (In.)
Weight (Lbs.) 2.7
Height 7.7700
Length 7.1500
Weight 2.6900
Width 2.9000

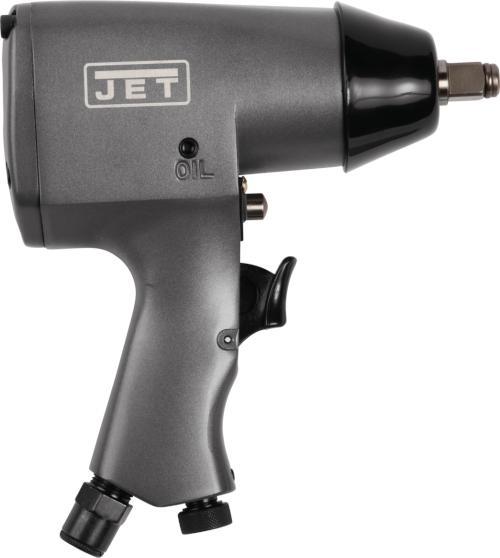

++ JAT-102, 1/2 IMPACT WRENCH (250 FT-LBS), R6 SERIES JAT-102, 1/2 inch Impact Wrench
has a Lifetime warranty

  • Pinless hammer impact mechanism conveys power directly to the anvil with fewer parts for reduced vibration and maintenance
  • Lightweight aluminum construction reduces weight
  • One-hand forward/reverse button for easy adjustments
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505102
Classification R 6
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 50-200
Max Torque (Ft.) (Lbs.) 250
Free Speed (RPM) 7,000
Blows Per Minute (BPM) 600
Impact Mechanism / Clutch Type Pin-Less
Bolt Capacity (In.) 1/2
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 110
Sound Power (db) (A) 114
Vibration Value (m/s²) 13.4
Overall Length (In.) 7-1/4
Weight (Lbs.) 4.9
Height 2.7800
Length 7.9300
Weight 5.4200
Width 7.8700

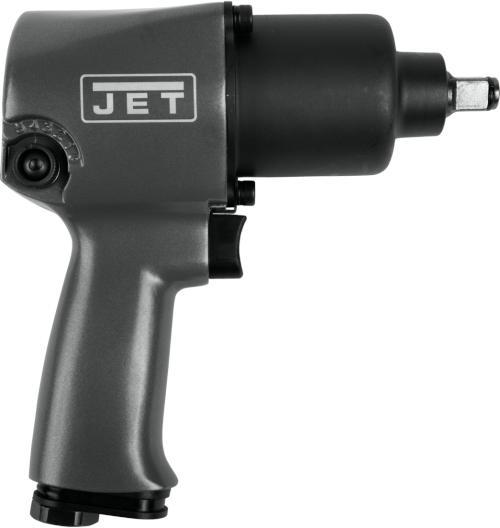

++ JAT-103, 1/2 IMPACT WRENCH (680 FT-LBS), R6 SERIES JAT-103, 1/2 inch Impact Wrench
has a Lifetime warranty

  • Twin Hammer impact mechanism delivers balanced power
  • Lightweight aluminum construction reduces weight
  • Adjustable power regulator for variable forward power
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505103
Classification R 6
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 25-400
Max Torque (Ft.) (Lbs.) 680
Free Speed (RPM) 8,000
Blows Per Minute (BPM) 1,200
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 9/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 4.2
Sound Pressure (db) (A) 91
Sound Power (db) (A) 104
Vibration Value (m/s²) 3.9
Overall Length (In.) 7-1/4
Weight (Lbs.) 5.91
Height 2.7800
Length 7.9300
Weight 6.3800
Width 7.8700

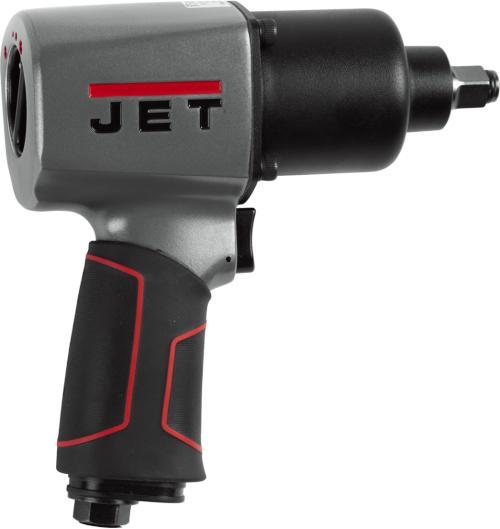

JAT-104, 1/2 inch Impact Wrench
has a Lifetime warranty

  • Twin Hammer impact mechanism delivers balanced power
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Lightweight aluminum construction reduces weight
  • Easily adjustable, 3-position forward power setting
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505104
Classification R 8
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 50-700
Max Torque (Ft.) (Lbs.) 900
Free Speed (RPM) 9,000
Blows Per Minute (BPM) 1,300
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 9/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 87
Sound Power (db) (A) 98
Vibration Value (m/s²) 12
Overall Length (In.) 7-3/8
Weight (Lbs.)
Height 2.9500
Length 7.9500
Weight 6.5200
Width 8.5600

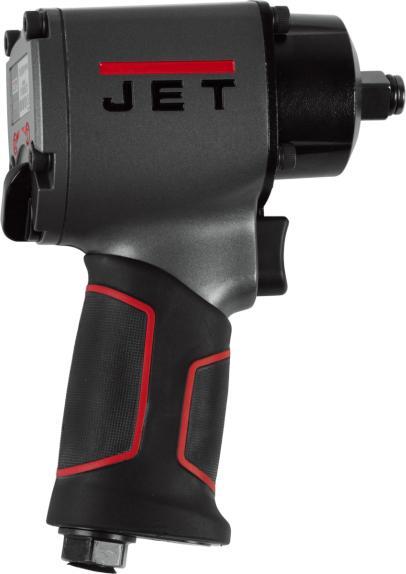

++ JAT-107, 1/2 COMPACT IMPACT WRENCH (500 FT-LBS), R8 SERIES JAT-107, 1/2 inch Compact Impact Wrench
has a Lifetime warranty

  • 960 Ft. Lbs. Maximum break away torque
  • Twin Hammer impact mechanism delivers balanced power
  • Compact design of 4-5/7 inch long for hard to reach or tight work spaces
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Lightweight aluminum construction reduces weight
  • 3 Position forward and reverse power settings
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505107
Classification R8
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 25-350
Max Torque (Ft.) (Lbs.) 500
Maximum Break Away Torque (Ft.) (Lbs.) 960
Free Speed (RPM) 10,000
Blows Per Minute (BPM) 1,500
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 1/2
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 98
Sound Power (db) (A) 87
Vibration Value (m/s²) 4.9
Overall Length (In.) 4-2/7
Weight (Lbs.) 3.4
Height 6.7000
Length 4.7000
Weight 3.4000
Width 2.3000
++ JAT-121, 1/2 IMPACT WRENCH (750 FT-LBS), R12 SERIES JAT-121, 1/2 inch Impact Wrench
has a Lifetime warranty

  • 1,200 Ft. Lbs Maximum break away torque
  • Composite housing improves balance and reduces weight
  • Patented Twin Hammer impact mechanism improves durability while delivering balanced power
  • Patented, one-hand forward/reverse switch design
  • Four position speed selection and full reverse power
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
 Specifications
Model 505121
Classification R 12
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 50-550
Max Torque at 5 Seconds (Ft.) (Lbs.) 750
Maximum Break Away Torque (Ft.) (Lbs.) 1,200
Free Speed (RPM) 8,500
Blows Per Minute (BPM) 1,200
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 3/4
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 6.7
Sound Pressure (db) (A) 95.8
Sound Power (db) (A) 107
Vibration Value (m/s²) 10.6
Overall Length (In.) 7.2
Weight (Lbs.) 4.1
Height 7.7700
Length 7.1500
Weight 4.1000
Width 2.9000
++ JAT-122, 1/2 IMPACT WRENCH, 2 EXTENSION (750 FT-LBS), R12 SERIES JAT-122, 1/2 inch Impact Wrench with 2 inch Extension
has a Lifetime warranty

  • 1,200 Ft. Lbs Maximum break away torque
  • 2 inch Extended Anvil for hard to reach places
  • Composite housing improves balance and reduces weight
  • Patented Twin Hammer impact mechanism improves durability while delivering balanced power
  • Patented, one-hand forward/reverse switch design
  • Four position speed selection and full reverse power
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505122
Classification R 12
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 50-550
Max Torque at 5 Seconds (Ft.) (Lbs.) 750
Maximum Break Away Torque (Ft.) (Lbs.) 1,200
Free Speed (RPM) 8,500
Blows Per Minute (BPM) 1,200
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 3/4
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 6.7
Sound Pressure (db) (A) 95.8
Sound Power (db) (A) 107
Vibration Value (m/s²) 9.43
Overall Length (In.) 8.8
Weight (Lbs.) 4.4
Height 7.7700
Length 7.1500
Weight 4.3700
Width 2.9000
++ JAT-124, 1/2 RIGHT ANGLE IMPACT WRENCH (180 FT-LBS), R12 SERIES JAT-124, 1/2 inch Right Angle Impact Wrench
has a Lifetime warranty

  • Excellent for using in tight spaces
  • High torque capacity in a compact design
  • Single Hammer mechanism for high instant torque output
  • Precisely machined bevel gear for smooth operation and longer life
  • Airtight motor housing with precision machining for strong, powerful output
  • 2-speed forward speed control with full reverse power
  • Composite handle is ergonomically designed for operator comfort
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Models 505124
Classification R 12
Square Drive (In.) 1/2
Working Torque (Ft.) (Lbs.) 45-140
Max Torque @ 5 Seconds (Ft.) (Lbs.) 180
Maximum Break Away Torque (Ft.) (Lbs.) 215
Free Speed (RPM) 7,000
Blows Per Minute (BPM) 1,400
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 9/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 97
Sound Power (db) (A) 108
Vibration Value (m/s²) 43.5
Overall Length (In.) 13.4
Weight (Lbs.) 3.9
Height 2.6300
Length 13.1700
Weight 4.1900
Width 2.4000



JAT-105, 3/4 IMPACT WRENCH (1500 FT-LBS), R8 SERIES JAT-105, 3/4 inch Impact Wrench
has a Lifetime warranty

  • Twin Hammer impact mechanism delivers balanced power
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Lightweight aluminum construction reduces weight
  • Easily adjustable, 3-position forward power setting
  • Performace at 90 PSI. Air Inlet NPT 3/8 inch. Min Hose Size 1/2 inch
Specifications
Model 505105
Classification R 8
Square Drive (In.) 3/4
Working Torque (Ft.) (Lbs.) 200-1,300
Max Torque (Ft.) (Lbs.) 1,500
Free Speed (RPM) 5,500
Blows Per Minute (BPM) 1,000
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.)
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 3/8
Air Hose (ID/In.) 1/2
Air Pressure (PSI) 90
Air Consumption (CFM) 9.5
Sound Pressure (db) (A) 79
Sound Power (db) (A) 90
Vibration Value (m/s²) 12.9
Overall Length (In.) 8-3/4
Weight (Lbs.) 10.4
Height 3.9400
Length 9.8400
Weight 10.8200
Width 9.0400
JAT-123, 3/4 IMPACT WRENCH (1300 FT-LBS), R12 SERIES JAT-123, 3/4 inch Impact Wrench
has a Lifetime warranty

  • 2,000 Ft. Lbs Maximum break away torque
  • Composite housing improves balance and reduces weight
  • Patented Twin Hammer impact mechanism improves durability while delivering balanced power
  • Patented, one-hand forward/reverse switch design
  • Four position speed selection and full reverse power
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Performace at 90 PSI. Air Inlet NPT 3/8 inch. Min Hose Size 1/2 inch
Specifications
Model 505123
Classification R 12
Square Drive (In.) 3/4
Working Torque (Ft.) (Lbs.) 300-1,000
Max Torque at 5 Seconds (Ft.) (Lbs.) 1,300
Maximum Break Away Torque (Ft.) (Lbs.) 2,000
Free Speed (RPM) 6,000
Blows Per Minute (BPM) 900
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 1-1/16
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 3/8
Air Hose (ID/In.) 1/2
Air Pressure (PSI) 90
Air Consumption (CFM) 7.3
Sound Pressure (db) (A) 97.8
Sound Power (db) (A) 109
Vibration Value (m/s²) 7.36
Overall Length (In.) 8.7
Weight (Lbs.) 8.9
Height 8.7800
Length 8.7500
Weight 8.9900
Width 3.5100
JAT-200, 3/4 IMPACT WRENCH (1600 FT-LBS), R12 SERIES JAT-200, 3/4 inch Impact Wrench
has a Lifetime warranty

  • 2,200 Ft. Lbs. Maximum break away torque
  • Composite housing improves balance and reduces weight
  • Twin Hammer impact mechanism delivers balanced power
  • D-Handle grip with inside trigger
  • Auxiliary side handle for increased control
  • Performace at 90 PSI. Air Inlet NPT 1/2 inch. Min Hose Size 3/4 inch
Specifications
Model 505200
Classification R 12
Square Drive (In.) 3/4
Working Torque (Ft.) (Lbs.) 150-1,200
Max Torque at 5 Seconds (Ft.) (Lbs.) 1,600
Maximum Break Away Torque (Ft.) (Lbs.) 2,200
Free Speed (RPM) 5,500
Blows Per Minute (BPM) 1,100
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 1-1/16
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 1/2
Air Hose (ID/In.) 3/4
Air Pressure (PSI) 90
Air Consumption (CFM) 8.5
Sound Pressure (db) (A) 105
Sound Power (db) (A) 116
Vibration Value (m/s²) 15.4
Overall Length (In.) 12.5
Weight (Lbs.) 12.5
Height 7.1500
Length 12.5400
Weight 15.5100
Width 6.1800



JAT-201, 1 IMPACT WRENCH (2000 FT-LBS), R12 SERIES JAT-201, 1 inch Impact Wrench
has a Lifetime warranty

  • 2,530 Ft. Lbs Maximum break away torque
  • Composite housing improves balance and reduces weight
  • Twin Hammer impact mechanism delivers balanced power
  • D-Handle grip with inside trigger
  • Auxiliary side handle for increased control
  • Performace at 90 PSI. Air Inlet NPT 1/2 inch. Min Hose Size 3/4 inch
Specifications
Model 505201
Classification R 12
Square Drive (In.)
Working Torque (Ft.) (Lbs.) 150-1,200
Max Torque at 5 Seconds (Ft.) (Lbs.) 2,000
Maximum Break Away Torque (Ft.) (Lbs.) 2,530
Free Speed (RPM) 5,000
Blows Per Minute (BPM) 900
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 1-7/16
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 1/2
Air Hose (ID/In.) 3/4
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 104
Sound Power (db) (A) 115
Vibration Value (m/s²) 17.2
Overall Length (In.) 13.7
Weight (Lbs.) 19.3
Height 7.1900
Length 13.6300
Weight 19.2400
Width 6.6300
JAT-202, 1" Impact Wrench with 6" Extension

JAT-202, 1 inch Impact Wrench with 6 inch Extension has a Lifetime +WT warranty

  • 2,530 Ft. Lbs Maximum break away torque
  • 6 inch Extended Anvil for deep reach applications
  • Composite housing improves balance and reduces weight
  • Twin Hammer impact mechanism delivers balanced power
  • D-Handle grip with inside trigger
  • Auxiliary side handle for increased control
  • Performace at 90 PSI. Air Inlet NPT 1/2 inch. Min Hose Size 3/4 inch
Specifications
Model 505202
Classification R 12
Square Drive (In.)
Working Torque (Ft.) (Lbs.) 150-1,200
Max Torque at 5 Seconds (Ft.) (Lbs.) 2,000
Maximum Break Away Torque (Ft.) (Lbs.) 2,530
Free Speed (RPM) 5,000
Blows Per Minute (BPM) 900
Impact Mechanism / Clutch Type Twin Hammer
Bolt Capacity (In.) 1-7/16
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 1/2
Air Hose (ID/In.) 3/4
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 104
Sound Power (db) (A) 115
Vibration Value (m/s) 14.5
Overall Length (In.) 19.2
Weight (Lbs.) 22.1
Height 7.19
Length 19.38
Weight 22.08
Width 6.63
JAT-206, 1 IMPACT WRENCH, 6 EXTENSION (2000 FT-LBS), R6 SERIES JAT-206, 1 inch Impact Wrench with 6 inch Extension
has a Lifetime warranty

  • 6 inch Extended Anvil for deep reach applications
  • Pinless Clutch impact mechanism conveys power directly to the anvil with fewer parts for reduced vibration and maintenance
  • Built in Regulator With Forward / Reverse 3-Position power settings
  • Lightweight aluminum construction reduces weight
  • D-Handle grip with inside trigger
  • Auxiliary side handle for increased control
  • Performace at 90 PSI. Air Inlet NPT 1/2 inch. Min Hose Size 3/4 inch
Specifications
Model 505206
Classification R 6
Square Drive (In.)
Working Torque (Ft.) (Lbs.) 400-1,650
Max Torque (Ft.) (Lbs.) 2,200
Free Speed (RPM) 5,000
Blows Per Minute (BPM) 700
Impact Mechanism / Clutch Type Pin-less Clutch
Bolt Capacity (In.)
Anvil Retainer Type Ring/Hole
Air Inlet (NPT/In.) 1/2
Air Hose (ID/In.) 3/4
Air Pressure (PSI) 90
Air Consumption (CFM) 11
Sound Pressure (db) (A) 109
Sound Power (db) (A) 100
Vibration Value (m/s²)
Overall Length (In.) 19-1/2
Weight (Lbs.) 26.2
Weight 28.1000



impact wrench

JET Impact Wrenches are available in impact resistant Aluminum or lightweight carbon composite housings. JET square drive impacts range from the Mini 1/4 inch to the industrial 1-1/2 inches. Jet’s full line offering ensures there is an impact wrench to fill your needs

Features:

  • Proprietary impact mechanism is designed for smooth operation and provides stable torque power for heavy-duty applications
  • Heavy-duty, all-steel industrial construction
  • Variable speed trigger and built in regulator for precise control
  • Easy-to-reach forward / reverse switch
  • Muffled handle exhaust directs air away from user
  • D-handle design with inside trigger
  • Cushioned auxiliary handle mounts on left side
Specifications
Part Number 505955
Square Drive 1-1/2 inch
Bolt Capacity 2 inch
Anvil Retainer Type Hole
Max Torque 3,400 pound-force foot
Free Speed 3,000 RPM
Air Pressure 90 psi
Air Consumption 44 cfm
Air Inlet (NPT) 1/2 inch
Air Hose Inner Diameter 3/4 inch
Overall Length 16 inch
Vibration Value 8 3/10 m/s2
Model Number JET-5000
Brand Jet
Height 6.5 inch
Width 9.4 inch
Length 22.5 inch
Net Weight 37 pound



  WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



There are no listed accessories.

505100
** JAT-100, 3/8 BUTTERFLY IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505100
WMH505100
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$81.99

12
505101
^^ JAT-101, 3/8 IMPACT WRENCH -- WHILE SUPPLIES LAST
SHIPS DIRECTLY FROM SOUTHERN TOOL STORE, UNLESS ADDED TO A ITEM WITH FREE SHIPPING
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505101
WMH505101
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$187.10

301
505106
** JAT-106, 3/8 COMPACT IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505106
WMH505106
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$128.99

12
505120
^^ JAT-120, 3/8 IMPACT WRENCH -- WHILE SUPPLIES LAST
SHIPS DIRECTLY FROM SOUTHERN TOOL STORE, UNLESS ADDED TO A ITEM WITH FREE SHIPPING
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505120
WMH505120
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$160.36

301
505102
** JAT-102, 1/2 IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505102
WMH505102
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$102.99

12
505103
** JAT-103, 1/2 IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505103
WMH505103
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$135.99

12
505104
** JAT-104, 1/2 IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505104
WMH505104
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$166.99

12
505107
** JAT-107, 1/2 COMPACT IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505107
WMH505107
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$128.99

12
505121
^^ JAT-121, 1/2 IMPACT WRENCH - TAWAIN - WGT = 4 LBS / SHIPS UPS
Mfg. item #: 505121
WMH505121
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$264.99

470
505122
^^ JAT-122, 1/2 IMPACT WRENCH, 2 EXTENSION -- WHILE SUPPLIES LAST
SHIPS DIRECTLY FROM SOUTHERN TOOL STORE, UNLESS ADDED TO A ITEM WITH FREE SHIPPING
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505122
WMH505122
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$150.64

301
505124
^^ JAT-124, 1/2 RIGHT ANGLE IMPACT WRENCH -- WHILE SUPPLIES LAST
SHIPS DIRECTLY FROM SOUTHERN TOOL STORE, UNLESS ADDED TO A ITEM WITH FREE SHIPPING
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505124
WMH505124
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$223.54

301
505105
** JAT-105, 3/4 IMPACT WRENCH ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 505105
WMH505105
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$396.99

12
505123
^^JAT-123, 3/4 IMPACT WRENCH -- WHILE SUPPLIES LAST
SHIPS FROM STORE, EXPIDATED SHIPPING AVAILABE
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505123
WMH505123
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$379.81

301
505200
^^JAT-200, 3/4 IMPACT WRENCH -- WHILE SUPPLIES LAST
SHIPS FROM STORE, EXPIDATED SHIPPING AVAILABE
CALL TODAY ABOUT OUR BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505200
WMH505200
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$390.91

301
505201
## JAT-201, 1 IMPACT WRENCH (2000 FT-LBS), R12 SERIES
EXPEDITED SHIPPING AT NO ADDITIONAL COST WHEN ORDERED WITH A JET, POWERMATIC OR WILTON MACHINE
Mfg. item #: 505201
WMH505201
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$924.99

686
505202
^^ JAT-202, 1 IMPACT WRENCH, 6 EXTENSION - TAWAIN - WGT = 22 LBS / SHIPS UPS
Mfg. item #: 505202
WMH505202
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$886.60

470
505206
OVER STOCK - JCT-3641, 2 CHIPPING HAMMER H
OVERSTOCK SALE - LIMITED QUANTITY AVAILABLE DONT HESITATE IT MIGHT NOT BE AVAILABLE LATER - REGULAR SELLING PRICE IS: $333.99
Mfg. item #: 505206
WMH505206
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$219.99

530
505955
++ JET-5000, 1-1/2 IMPACT WRENCH , WGT = 37 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 505955
WMH505955
lease to own for as little as:$56 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,304.99

12
Copyright © 2021 Smith-Hamilton, Inc
0.017 210222 12:06
