Jet Air Tools Ratchets

JAT-300, 1/4 STUBBY RATCHET (15 FT-LBS), R6 SERIES JAT-310, 1/4 STUBBY RATCHET (20 FT-LBS), R8 SERIES JAT-320, 1/4 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES JAT-301, 3/8 RATCHET (50 FT-LBS), R6 SERIES JAT-312, 3/8 RATCHET (80 FT-LBS), R8 SERIES
JAT-300, 1/4 STUBBY RATCHET (15 FT-LBS), R6 SERIES JAT-310, 1/4 STUBBY RATCHET (20 FT-LBS), R8 SERIES JAT-320, 1/4 MINI IMPACT RATCHET (50 FT-LBS),
R12 SERIES
JAT-301, 3/8 RATCHET (50 FT-LBS), R6 SERIES JAT-312, 3/8 RATCHET (80 FT-LBS), R8 SERIES
JAT-321, 3/8 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES JAT-322, 3/8 IMPACT RATCHET (100 FT-LBS), R12 SERIES JAT-302, 1/2 RATCHET (50 FT-LBS), R6 SERIES JAT-313, 1/2 RATCHET (80 FT-LBS), R8 SERIES JAT-323, 1/2 IMPACT RATCHET (100 FT-LBS), R12 SERIES
JAT-321, 3/8 MINI IMPACT RATCHET (50 FT-LBS),
R12 SERIES
JAT-322, 3/8 IMPACT RATCHET
(100 FT-LBS),
R12 SERIES
JAT-302, 1/2 RATCHET
(50 FT-LBS),
R6 SERIES
JAT-313, 1/2 RATCHET
(80 FT-LBS),
R8 SERIES
JAT-323, 1/2 IMPACT RATCHET
(100 FT-LBS),
R12 SERIES



Models and Accessories
505300 JAT-300, 1/4 STUBBY RATCHET (15 FT-LBS), R6 SERIES
505310 JAT-310, 1/4 STUBBY RATCHET (20 FT-LBS), R8 SERIES
505320 JAT-320, 1/4 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES
505301 JAT-301, 3/8 RATCHET (50 FT-LBS), R6 SERIES
505312 JAT-312, 3/8 RATCHET (80 FT-LBS), R8 SERIES
505321 JAT-321, 3/8 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES
505322 JAT-322, 3/8 IMPACT RATCHET (100 FT-LBS), R12 SERIES
505302 JAT-302, 1/2 RATCHET (50 FT-LBS), R6 SERIES
505313 JAT-313, 1/2 RATCHET (80 FT-LBS), R8 SERIES
505323 JAT-323, 1/2 IMPACT RATCHET (100 FT-LBS), R12 SERIES
JAH-3850 JAH-3850, 3/8 AIR HOSE, 50, 1/4 NPT FITTINGS
JAS-38 JAS-38, AIR SWIVEL, 3/8 NPT FITTINGS
JFRL-38 JFRL-38, 3/8 NPT AIR FILTER/REGULATOR/LUBRICATOR
JSG-1063 JSG-1063, AIR BLOW GUN
JSG-2008 JSG-2008, 5-PIECE QUICK COUPLER SET, 1/4 NPT FITTINGS



++ JAT-300, 1/4 STUBBY RATCHET (15 FT-LBS), R6 SERIES JAT-300, 1/4 inch Stubby Ratchet
has a Lifetime warranty

  • Stubby ratchet is ideal for working in tight areas
  • Steel ball retainers for rapid socket changing
  • Variable-speed throttle for better speed control
  • Hardened steel gears for long tool life
  • Ball bearing construction throughout
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505300
Classification R 6
Square Drive (In.) 1/4
Free Speed (RPM) 300
Working Torque (Ft.) (Lbs.) 5 - 15
Bolt Capacity (In.) 1/4
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 2.5
Sound Pressure (db) (A) 91
Sound Power (db) (A) 101
Vibration Value (m/s) 4.5
Overall Length (In.) 6-9/16
Weight (Lbs.) 1.1
Height 1.5400
Length 7.6000
Weight 1.2700
Width 2.0500
++ JAT-310, 1/4 STUBBY RATCHET (20 FT-LBS), R8 SERIES JAT-310, 1/4 inch Mini Ratchet
has a Lifetime warranty

  • Patented, sealed head prevents dirt from entering the ratchet mechanism extending tool life
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360° Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505310
Classification R 8
Square Drive (In.) 1/4
Free Speed (RPM) 250
Working Torque (Ft.) (Lbs.) 5 - 15
Bolt Capacity (In.) 5/16
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 2.8
Sound Pressure (db) (A) 92
Sound Power (db) (A) 103
Vibration Value (m/s) 1.76
Overall Length (In.) 8.1
Weight (Lbs.) 1.46
Height 1.1800
Length 8.1900
Weight 1.5000
Width 1.5600
++ JAT-320, 1/4 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES JAT-320, 1/4 inch Reactionless Stubby Impact Ratchet
has a Lifetime warranty

  • Revolutionary impact ratchet technology results in less recoil and more torque with less twisting force
  • Patented, sealed head prevents dirt from entering ratchet mechanism extending tool life
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505320
Classification R 12
Square Drive (In.) 1/4
Free Speed (RPM) 700
Working Torque (Ft.) (Lbs.) 10 - 35
Bolt Capacity (In.) 5/16
Anvil Retainer Type Ring
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 3.1
Sound Pressure (db) (A) 91
Sound Power (db) (A) 102
Vibration Value (m/s) 8.61
Overall Length (In.) 6.5
Weight (Lbs.) 1.32
Height 1.3000
Length 6.4100
Weight 1.3400
Width 1.5200



++ JAT-301, 3/8 RATCHET (50 FT-LBS), R6 SERIES JAT-301, 3/8 inch Ratchet
has a Lifetime +WT warranty

  • Steel ball retainers for rapid socket changing
  • Variable-speed throttle for better speed control
  • Hardened steel gears for long tool life
  • Ball bearing construction throughout
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505301
Classification R 6
Square Drive (In.) 3/8
Free Speed (RPM) 200
Working Torque (Ft.) (Lbs.) 10 - 50
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 94
Sound Power (db) (A) 108
Vibration Value (m/s²) 4.5
Overall Length (In.) 10-1/2
Weight (Lbs.) 2.6
Height 1.8500
Length 11.1800
Weight 2.7900
Width 2.3000
++ JAT-312, 3/8 RATCHET (80 FT-LBS), R8 SERIES JAT-312, 3/8 inch Ratchet
has a Lifetime warranty

  • Patented, sealed head prevents dirt from entering the ratchet mechanism extending tool life
  • Full size ratchets feature a dual pawl ratchet head design for maximum torque output
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505312
Classification R 8
Square Drive (In.) 3/8
Free Speed (RPM) 280
Working Torque (Ft.) (Lbs.) 15 - 55
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 99
Sound Power (db) (A) 110
Vibration Value (m/s²) 4.64
Overall Length (In.) 10.2
Weight (Lbs.) 2.73
Height 1.9600
Length 10.2700
Weight 2.7500
Width 1.8700
++ JAT-321, 3/8 MINI IMPACT RATCHET (50 FT-LBS), R12 SERIES JAT-321, 3/8 inch Reactionless Stubby Impact Ratchet
has a Lifetime warranty

  • Revolutionary impact ratchet technology results in less recoil and more torque with less twisting force
  • Patented, sealed head prevents dirt from entering ratchet mechanism extending tool life
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505321
Classification R 12
Square Drive (In.) 3/8
Free Speed (RPM) 700
Working Torque (Ft.) (Lbs.) 10 - 35
Bolt Capacity (In.) 5/16
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 3.1
Sound Pressure (db) (A) 90
Sound Power (db) (A) 101
Vibration Value (m/s²) 13.71
Overall Length (In.) 6.5
Weight (Lbs.) 1.32
Height 1.3000
Length 6.4100
Weight 1.3400
Width 1.5200
++ JAT-322, 3/8 IMPACT RATCHET (100 FT-LBS), R12 SERIES JAT-322, 3/8 inch Reactionless Impact Ratchet
has a Lifetime warranty

  • Revolutionary impact ratchet technology results in less recoil and more torque with less twisting force
  • Full size impact ratchets feature a dual pawl ratchet head design for maximum torque output
  • Patented, sealed head prevents dirt from entering ratchet mechanism extending tool life
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505322
Classification R 12
Square Drive (In.) 3/8
Free Speed (RPM) 600
Blows Per Minute (BPM) 3,000
Working Torque (Ft.) (Lbs.) 25 - 70
Bolt Capacity (In.) 1/2
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 96
Sound Power (db) (A) 107
Vibration Value (m/s²) 10.45
Overall Length (In.) 11.5
Weight (Lbs.) 3.97
Height 2.1700
Length 11.4800
Weight 3.9900
Width 1.8800

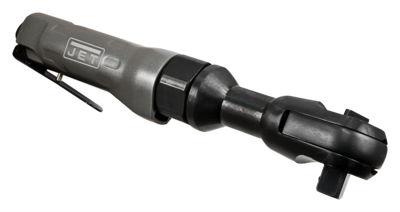

++ JAT-302, 1/2 RATCHET (50 FT-LBS), R6 SERIES JAT-302, 1/2 inch Ratchet
has a Lifetime warranty

  • Steel ball retainers for rapid socket changing
  • Variable-speed throttle for better speed control
  • Hardened steel gears for long tool life
  • Ball bearing construction throughout
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505302
Classification R 6
Square Drive (In.) 1/2
Free Speed (RPM) 200
Working Torque (Ft.) (Lbs.) 10 - 50
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 94
Sound Power (db) (A) 108
Vibration Value (m/s²) 4.5
Overall Length (In.) 10-1/2
Weight (Lbs.) 2.6
Height 1.8500
Length 11.1800
Weight 2.8400
Width 2.3000
++ JAT-313, 1/2 RATCHET (80 FT-LBS), R8 SERIES JAT-313, 1/2 inch Ratchet
has a Lifetime warranty

  • Patented, sealed head prevents dirt from entering the ratchet mechanism extending tool life
  • Full size ratchets feature a dual pawl ratchet head design for maximum torque output
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505313
Classification R 8
Square Drive (In.) 1/2
Free Speed (RPM) 280
Working Torque (Ft.) (Lbs.) 15 - 55
Bolt Capacity (In.) 3/8
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 99
Sound Power (db) (A) 110
Vibration Value (m/s²) 9.1
Overall Length (In.) 10.2
Weight (Lbs.) 2.73
Height 2.0400
Length 10.2700
Weight 2.7500
Width 1.8700
++ JAT-323, 1/2 IMPACT RATCHET (100 FT-LBS), R12 SERIES JAT-323, 1/2 inch Reactionless Impact Ratchet
has a Lifetime warranty

  • Revolutionary impact ratchet technology results in less recoil and more torque with less twisting force
  • Full size impact ratchets feature a dual pawl ratchet head design for maximum torque output
  • Patented, sealed head prevents dirt from entering ratchet mechanism extending tool life
  • Ergonomically designed grip absorbs vibration and reduces hand fatigue
  • Variable-speed throttle and built-in regulator for precise speed control
  • 360 degree Rotating air inlet keeps the air hose tangle free for added safety
  • Steel ball retainers for rapid socket changing
  • Performace at 90 PSI. Air Inlet NPT 1/4 inch. Min Hose Size 3/8 inch
Specifications
Model 505323
Classification R 12
Square Drive (In.) 1/2
Free Speed (RPM) 600
Blows Per Minute (BPM) 3,000
Working Torque (Ft.) (Lbs.) 25 - 70
Bolt Capacity (In.) 1/2
Anvil Retainer Type Ball
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM)
Sound Pressure (db) (A) 95
Sound Power (db) (A) 106
Vibration Value (m/s²) 18.28
Overall Length (In.) 11.5
Weight (Lbs.) 3.99
Height 2.2500
Length 11.4800
Weight 3.9900
Width 1.8800



1 year warranty logo

RED ASSURANCE 1-YEAR WARRANTY

JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



Accessories
JAH-3850 3/8 inch 50ft Air Hose, 1/4 inch NPT Fittings
JAS-38 Air Swivel, 3/8 inch NPT Fittings
JFRL-38 Air Filter/Regulator/Lubricator, 3/8 inch NPT Fittings
JSG-1063 Air Blow Gun
JSG-2008 5-Piece Quick Coupler Set, 1/4 inch NPT Fittings



505300
Mfg. item #: 505300
WMH505300
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$80.52

528
505310
Mfg. item #: 505310
WMH505310
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$110.99

528
505320
Mfg. item #: 505320
WMH505320
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$158.99

528
505301
Mfg. item #: 505301
WMH505301
"Ships by UPS, see freight calculator at checkout."2
$115.47

10
505312
$150.64

528
505321
Mfg. item #: 505321
WMH505321
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$158.99

528
505322
$168.86

528
505302
Mfg. item #: 505302
WMH505302
"Ships by UPS, see freight calculator at checkout."2
$115.47

10
505313
Mfg. item #: 505313
WMH505313
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$155.99

528
505323
$168.86

528
JAH-3850
Mfg. item #: JAH-3850
WMHJAH-3850
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$50.14

528   2
JAS-38
Mfg. item #: JAS-38
WMHJAS-38
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$17.99

528   2
JFRL-38
Mfg. item #: JFRL-38
WMHJFRL-38
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$118.99

528
JSG-1063
Mfg. item #: JSG-1063
WMHJSG-1063
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$9.99

528
JSG-2008
Mfg. item #: JSG-2008
WMHJSG-2008
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$15.99

913
Copyright © 2021 Smith-Hamilton, Inc
0.013 211112 11:32
