JET EHB-1018VM, 10 x 18 Semi-Auto Variable Speed




 EHB-1018VM, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw  EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise
 EHB-1018VM, 10 x 18
Semi-Auto Variable Speed Dual Mitering Saw

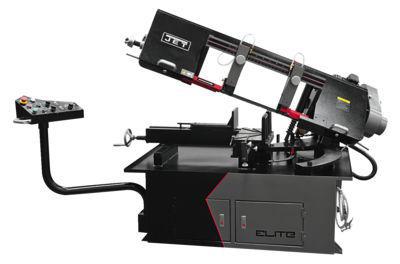

 EHB-1018VMH, 10 x 18
Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise



EHB-1018VM, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw has a 3 Year Elite warranty

  • Dual mitering allows for compound angle cutting of 60 deg right and 45 deg left
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
  • Large handwheel with blade tensioning gauge acurately measures blade pressure
  • For added safety, the EHB-1018VM Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
  • Quick positioning vise for clamping of materials
  • The ELITE swing away panel reloates saw controls to a single location, offering finger-tip operation of most major saw functions.
  • Semi-automatic bow raises after cut to predetermined height
  • Automatic blade breakage sensor detects acciental breakage and interrupts the power
  • Heavy-duty construction reduces vibration and deflection
  • Blade is fully guarded for operators safety
  • Built-in, self-propelled chip brush prevents chip build up in blade guides.
  • Automatic blade shut off switch stops the sawing process
  • Hydraulic downfeed control is easily adjusted enabling feed feed rates to evolve with the variaous types of materials
  • Variable speed drivetrain allows operator to fine tune the blade speed fast and easily
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
  • Integrated pressurized wash hose for easy machine cleaning
  • Standard Equipment
  • Coolant System
  • Adjustable material stop
  • 1 inch 4/6 VT Bi-Metal blade
Specifications
Cutting Capacity (W x D) (In.) 10 x 18
Round at 90 Degrees (In.) 10
Round at 60 Degrees (In.)
Round at 45 Degrees (In.) 10
Rectangle at 90 Degrees (In.) 10 x 17
Rectangle at 60 Degrees (In.) 10 x 7
Rectangle at 45 Degrees (In.) 10 x 12
Square at 90 Degrees (In.) 10 x 10
Square at 60 Degrees (In.) 7 x 7
Square at 45 Degrees (In.) 10 x 10
Vise Swivels (Deg.) 45
Head Movement (Deg.) 60
Blade Size (In.) 1 x .035 x 144
Blade Length (In.) 144
Blade Wheel Diameter (In.) 14
Blade Speeds (SFPM) 53 - 257
Bed Height (In.) 27
Motor (HP) 2 HP, 230/460V, 3Ph
Ampearge Draw @ 230V 3Ph
Amperage Draw @ 460V 3Ph 3.5
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 85 x 40 x 44
Weight (Lbs.) 1100
Drive Variable Speed
Height 50.0000
Length 89.5000
Weight 1210.0000
Width 40.5000



EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise has a 3 Year Elite warranty

  • Dual mitering allows for compound angle cutting of 60 deg right and 45 deg left
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
  • Large handwheel with blade tensioning gauge acurately measures blade pressure
  • For added safety, the EHB-1018VMH Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
  • Hydraulic quick positioning vise for clamping of materials
  • The ELITE swing away panel reloates saw controls to a single location, offering finger-tip operation of most major saw functions.
  • Semi-automatic bow raises after cut to predetermined height
  • Automatic blade breakage sensor detects acciental breakage and interrupts the power
  • Heavy-duty construction reduces vibration and deflection
  • Blade is fully guarded for operators safety
  • Built-in, self-propelled chip brush prevents chip build up in blade guides.
  • Automatic blade shut off switch stops the sawing process
  • Hydraulic downfeed control is easily adjusted enabling feed feed rates to evolve with the variaous types of materials
  • Variable speed drivetrain allows operator to fine tune the blade speed fast and easily
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
  • Integrated pressurized wash hose for easy machine cleaning
  • Standard Equipment
  • Coolant System
  • Adjustable material stop
  • 1 inch 4/6 VT Bi-Metal blade
Specifications
Cutting Capacity (W x D) (In.) 10 x 18
Round at 90 Degrees (In.) 10
Round at 60 Degrees (In.)
Round at 45 Degrees (In.) 10
Rectangle at 90 Degrees (In.) 10 x 17
Rectangle at 60 Degrees (In.) 10 x 7
Rectangle at 45 Degrees (In.) 10 x 12
Square at 90 Degrees (In.) 10 x 10
Square at 60 Degrees (In.) 7 x 7
Square at 45 Degrees (In.) 10 x 10
Vise Swivels (Deg.) 45
Head Movement (Deg.) 60
Blade Size (In.) 1 x .035 x 144
Blade Length (In.) 144
Blade Wheel Diameter (In.) 14
Blade Speeds (SFPM) 53 - 257
Bed Height (In.) 27
Motor (HP) 2 HP, 230/460V, 3Ph
Ampearge Draw @ 230V 3Ph
Amperage Draw @ 460V 3Ph 3.5
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 85 x 40 x 44
Weight (Lbs.) 1144
Drive Variable Speed
Height 0.0000
Length 0.0000
Weight 1210.0000
Width 0.0000



  3 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



Models and Accessories
891070 891070, EHB-1018VM, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw, Elite, VS, Dual Mitering, Semi-Automatic
891080 891080, EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise, Elite, VS, Dual Mitering, Hydraulic Vice, Semi-Automatic
891097 Bi-Metal Bandsaw Blade 1 inch x 0.035 x 144 inch (4/6T) For EHB-1018VM/H



More Informationshow more
891070
ELITE 10X18 SEMIAUTO VARIABLE SPEED DUAL MITERING SAW
Mfg. item #: 891070
WMH891070
lease to own for as little as:$204 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
NEW ITEM
$10,199.00

20
More Informationshow more
891080
<< ELITE 10X18 SEMIAUTO VARIABLE SPEED DUAL MITERING SAW WITH HYDRAULIC VISE
Mfg. item #: 891080
WMH891080
lease to own for as little as:$233 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$11,699.00

20
More Informationshow more
891097
## BI-METAL BANDSAW BLADE 1 X 0.035 X 144 (4/6T) FOR EHB-1018VM/H
EXPEDITED SHIPPING AT NO ADDITIONAL COST WHEN ORDERED WITH A JET, POWERMATIC OR WILTON MACHINE
Mfg. item #: 891097
WMH891097
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
NEW ITEM
$139.36

20
