JET EGH-1880, Elite 18x80 Large Spindle Bore Clut

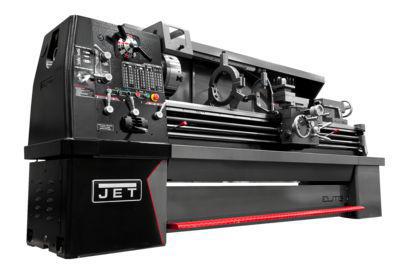

        EGH-1880, Elite 18x80 Large Spindle Bore Clutch Lathe

EGH-1880, Elite 18x80 Large Spindle Bore Clutch Lathe has a 3 Year Elite warranty

  • 3-1/8 inch Spindle Bore
  • Matrix Disc Clutch permits the changing of gears without stopping the motor, reducing wear
  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
  • Anti-Float design eliminates backlash in the cross slide
  • Steady rests feature ball bearing guides for smooth material movements
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Wider bedways absorb vibration
  • Turcite-B coating between bed and carriage provides friction free motion in all linear directions
  • One-Shot lubrication in the carriage reduces maintenance
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
  • Hardened and ground bedways provide accurate longitudinal movements
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Certified Meehanite├é┬« castings retain their tolerances and remain rigid through many years of machining
  • For added safety, the EGH-1880 Lathe follows strict guidelines and electrical requirements to be certified by CSA Group
  • Standard Equipment
  • 12 inch 3-Jaw chuck
  • Backplate for 12 inch Chuck
  • Steady Rest-Ball Bearing
  • Follow Rest- Brass Tipped
  • 4-Way Tool Post
  • Chuck Guard
  • Micro-Carriage Stop
  • Threading Dial
  • Leveling Pads
  • Tool Box With Tools
Specifications
Size 18 x 80
Swing Over Bed (In.) 18
Swing Over Cross Slide (In.) 11
Swing Through Gap (In.) 28
Length of Gap (In.) 9-5/6
Distance Between Centers (In.) 80
Spindle Bore (In.) 3-1/8
Spindle Mount D1-8
Spindle Taper with Sleeve MT7
Number of Spindle Speeds 16
Range of Spindle Speeds (RPM) 20 - 1,600
Range of Longitudinal Feeds (IPR) 0.0015 - 0.04
Range of Cross Feeds (IPR) 0.00075 - 0.02
Number of Inch Threads 38
Range of Inch Threads (TPI) 2 - 72
Number of Metric Threads 40
Range of Metric Threads 0.4 - 14
Diametrial Pitch Threads Number 21
Diametrial Pitch Threads Range 8 - 44
Modular Pitch Threads Number 18
Modular Pitch Threads Range 0.3 - 3.5
Max Tool Size (In.) 1 x 1
Compound Slide Travel (In.) 5-2/5
Cross Slide Travel (In.) 10-2/3
Tailstock Spindle Travel (In.) 6-1/2
Taper in Tailstock Spindle MT5
Follow Rest Capacity (In.) 3/8 - 7-3/4
Steady Rest Capacity (In.) 1/2 - 3-1/2
Width of Bed (In.) 13-4/7
Motor (HP) 10 HP, 230/460V, 3Ph
Ampearge Draw @ 230V 3Ph 36
Amperage Draw @ 460V 3Ph 18
Prewired (V.) 230
Coolant Pump Motor 1/8 HP
Weight (Lbs.) 5,842
Overall Dimensions (L x W x H) (In.) 139 x 44 x 68
Drive Geared Head Clutch
Style (Type) ELITE Geared Head Clutch
Height 0.0000
Length 0.0000
Weight 6835.0000
Width 0.0000
