JET Manual and Pneumatic Foot Shears

756202 FS-1652J, 52" x 16 Gauge Foot Shear jet pneumatic foot shear
FS-1652J, 52 inch x 16 Gauge Foot Shear PS-1652T, 52 X 16 GAUGE PNEUMATIC SHEAR

jet 2 year warranty logo

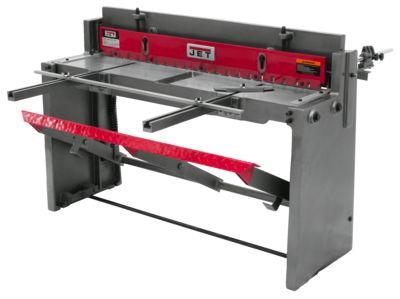

FS-1652J, 52 inch x 16 Gauge Foot Shear
has a 2 Year warranty

  • Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
  • Adjustable clamping bar keeps material secured during operation
  • Precise bed and beam alignment assures working accuracy
  • Upper blade is a four-way; bottom blade is two-way
  • Rear depth gauges with micro adjustment for precise measurements
  • 16 gauge maximum capacity for mild-steel
  • 14 gauge maximum capacity for aluminum and copper alloys
  • 20 gauge maximum capacity for stainless steel
Detailed Specifications
Part Number 756202
Style (Type) Foot Shear
Sheet Capacity (Mild Steel) (In.) 52
Max. Soft. Alloy Capacity (Gauge) 14
Mild Steel Capacity (Gauge) 16
Shearing Length Capacity (In.) 52
Back Gauge Capacity (In.) 25-1/2
Front Gauge Capacity (In.) 28
Cutting Blade Length (In.) 52
Overall Dimensions (L x W x H) (In.) 62-1/4 x 72 x 41-1/2
Weight (Lbs.) 1,220



When precision cuts and true edges are vital to production results, do not compromise the efficiency of your shop. JET Shears are effective on a number of materials including steel, aluminum, brass, copper, lead, plastic and zinc. Two-way upper blade configuration provides double the cutting life.

  • Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade framwork
  • Low cutting angle to cut narrow strips without twisting
  • Precise bed and beam alignment assures working accuracy
  • Adjustable working bed for correct setup according to the blade clearance
  • 16 gauge maximum cutting capacity for mild-steel
  • 12-14 gauge maximum cutting capacity for aluminum and copper alloys
  • 40 Strokes per Minute - Full Length
  • 8.8 Air Consumption - CFM
Detailed Specifications
Part Number 756203
Style (Type) Pneumatic
Max. Soft. Alloy Capacity (Gauge) 12 - 14
Mild Steel Capacity (Gauge) 16
Shearing Length Capacity (In.) 52
Back Gauge Capacity (In.) 28-1/2
Front Gauge Capacity (In.) 28
Strokes Per Minute (Full Length) 40
Air Consumption (CFM) 25.3
Overall Dimensions (L x W x H) (In.) 60 x 24 x 43
Weight (Lbs.) 1,048
Height 43.0000
Length 60.0000
Weight 1376.0000
Width 24.0000



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



There are no listed accessories.




JT9-756202
FS-1652J, 52 X 16 GAUGE FOOT SHEAR, TRUCK FREIGHT - DOCK REQUIRED, MADE IN CHINA, WGT = 1220 LBS

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM ** FREE FREIGHT: NO HANDLING FEES
Mfg. item #: JT9-756202
WMH756202
lease to own for as little as:$71 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$3,599.00

3
JT9-756203
PS-1652T, 52 X 16 GAUGE PNEUMATIC SHEAR, SHIPS LTL TRUCK FREIGHT, MADE IN CHINA, WGT = 1376 LBS

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM ** FREE FREIGHT: NO HANDLING FEES
Mfg. item #: JT9-756203
WMH756203
lease to own for as little as:$140 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$7,189.00

3
