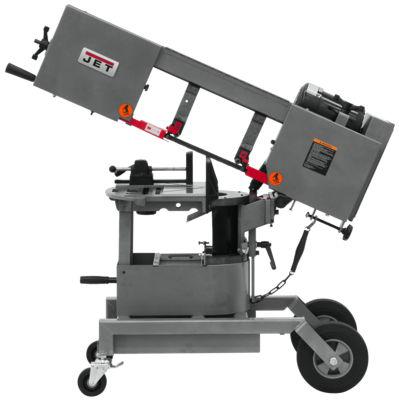

HVBS-8-DMW DUAL MITER PORTABLE 1HP 115V
has a 2 Year warranty
-
Built in, self propelled blade brush prevents chip build up in blade guides
-
Head pressure controlled by a hydraulic cylinder
-
Automatic blade breakage sensor detects accidental breakage and interrupts the powe
-
Power switch with safety key prevents accidental start up
-
CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
-
Blade is fully guarded for Operator safety
-
Automatic shut off switch stops the sawing process
-
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
-
Head dual miters both left and right for quick angle cuts
-
Protractor for fast and accurate angle cutting
-
Converts from horizontal to vertical position with ease
-
Large 16 x 10 inch Vertical cutting table
-
Wheels standard for ease of movement on any shop floor
STANDARD EQUIPEMENT
-
Blade guarding
-
Built-in protractor
-
Adjustable vise
-
Large 16 x 10 inch Vertical cutting table
-
Removeable chip tray
-
Roller stand
|
Specifications
|
|
STOCK NUMBER
|
424460
|
|
Model Number
|
HVBS-8-DMW
|
|
Tubing Round at 90 Degrees (In.)
|
8
|
|
Tubing Round at 45 Degrees (In.)
|
6
|
|
Tubing Square at 90 Degrees (In.)
|
7
|
|
Pipe Square at 45 Degrees (In.)
|
5-1/2
|
|
Pipe Rectangle at 90 Degrees (In.)
|
7 x 8
|
|
Pipe Rectangle at 45 Degrees (In.)
|
7 x 5-1/2
|
|
Solid Round at 90 Degrees (In.)
|
8
|
|
Solid Round at 45 Degrees (In.)
|
6
|
|
Solid Square at 90 Degrees (In.)
|
7
|
|
Solid Square at 45 Degrees (In.)
|
5-1/2
|
|
Solid Rectangle at 90 Degrees (In.)
|
7 x 8
|
|
Solid Rectangle at 45 Degrees (In.)
|
7 x 5-1/2
|
|
Vertical Cutting Capacity (In.)
|
12 x 8
|
|
Head Movement (Deg.
|
+/- 45
|
|
Maximum Vise Opening (In.)
|
8.25
|
|
Blade Speeds (SFPM)
|
64, 132, 247
|
|
Blade Wheel Diameter (In.)
|
8-13/16
|
|
Blade Size (In.)
|
1 x 0.035 x 102.9
|
|
Table Height (In.)
|
27-5/16
|
|
Coolant Pump Motor
|
N/A
|
|
Electrics
|
3/4HP, 115V, 1 Ph
|
|
Overall Dimensions (L x W x H) (In.)
|
24 x 54.7 x 43.8
|
|
Net Weight (Lbs.)
|
363
|
|
Gross Weight (Lbs.)
|
500
|

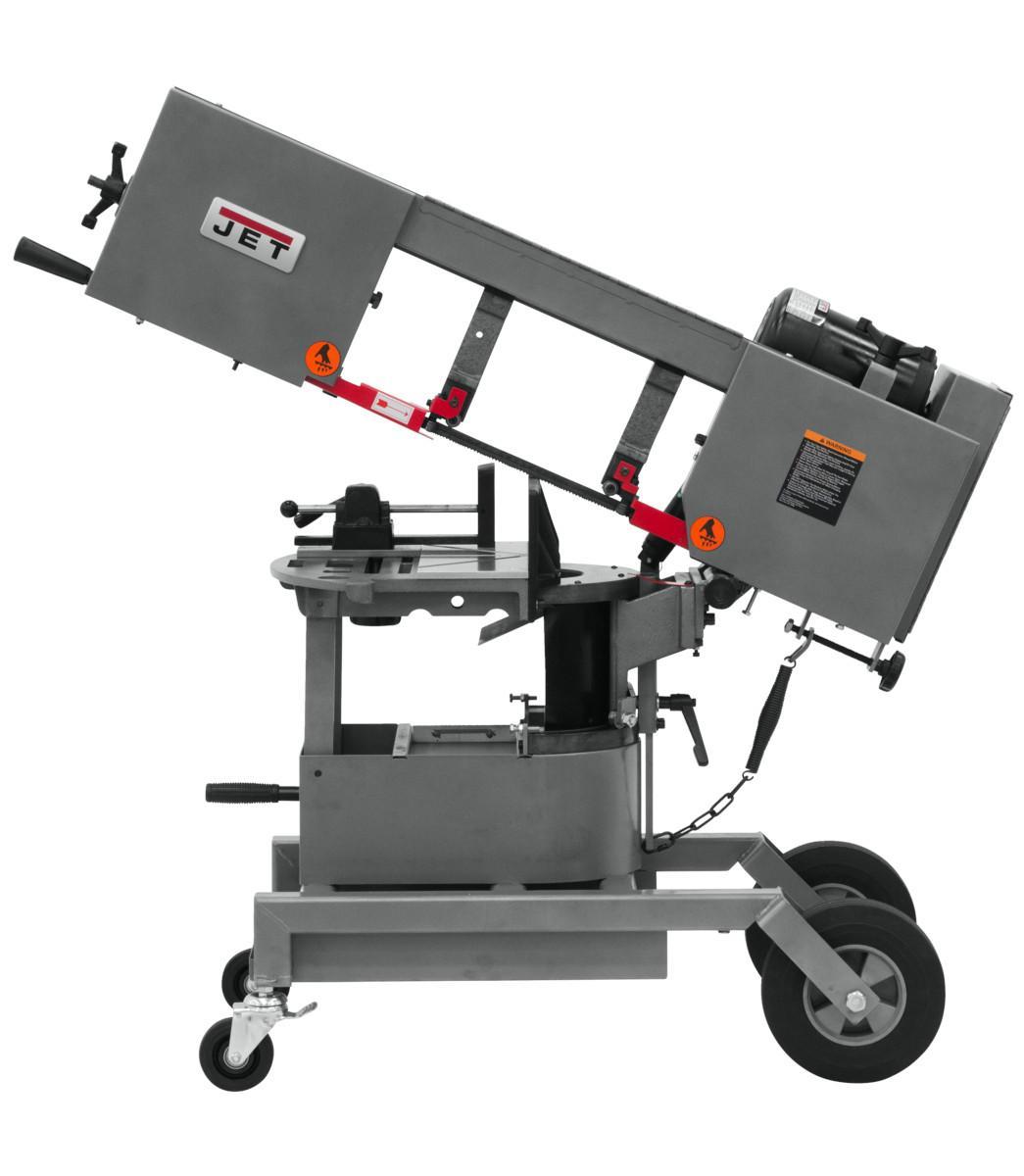

HVBS-10 DMW DUAL MITER PORTABLE 1HP 115V
has a 2 Year warranty
-
Built in, self propelled blade brush prevents chip build up in blade guides
-
Head pressure controlled by a hydraulic cylinder
-
Automatic blade breakage sensor detects accidental breakage and interrupts the powe
-
Power switch with safety key prevents accidental start up
-
CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
-
Blade is fully guarded for Operator safety
-
Automatic shut off switch stops the sawing process
-
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
-
Head dual miters both left and right for quick angle cuts
-
Protractor for fast and accurate angle cutting
-
Converts from horizontal to vertical position with ease
-
Large 16 x 10 inch Vertical cutting table
-
Wheels standard for ease of movement on any shop floor
STANDARD EQUIPEMENT
-
Blade guarding
-
Built-in protractor
-
Adjustable vise
-
Large 16 x 10 inch Vertical cutting table
-
Removeable chip tray
-
Roller stand
|
Specifications
|
|
STOCK NUMBER
|
424463
|
|
Model Number
|
HVBS-10-DMW
|
|
Tubing Round at 90 Degrees (In.)
|
10
|
|
Tubing Round at 45 Degrees (In.)
|
6-1/2
|
|
Tubing Square at 90 Degrees (In.)
|
8
|
|
Pipe Square at 45 Degrees (In.)
|
5-1/2
|
|
Pipe Rectangle at 90 Degrees (In.)
|
8 x 9
|
|
Pipe Rectangle at 45 Degrees (In.)
|
8 x 5-1/2
|
|
Solid Round at 90 Degrees (In.)
|
10
|
|
Solid Round at 45 Degrees (In.)
|
6-1/2
|
|
Solid Square at 90 Degrees (In.)
|
8
|
|
Solid Square at 45 Degrees (In.)
|
5-1/2
|
|
Solid Rectangle at 90 Degrees (In.)
|
8 x 9
|
|
Solid Rectangle at 45 Degrees (In.)
|
8 x 5-1/2
|
|
Vertical Cutting Capacity (In.)
|
13 x 10
|
|
Head Movement (Deg.
|
+/- 45
|
|
Maximum Vise Opening (In.)
|
10
|
|
Blade Speeds (SFPM)
|
64, 132, 247
|
|
Blade Wheel Diameter (In.)
|
11 23/32
|
|
Blade Size (In.)
|
1 x 0.035 x 120
|
|
Table Height (In.)
|
30-13/32
|
|
Coolant Pump Motor
|
N/A
|
|
Electrics
|
1HP, 115V, 1 Ph
|
|
Overall Dimensions (L x W x H) (In.)
|
72 x 34.5 x 46
|
|
Net Weight (Lbs.)
|
528
|
|
Gross Weight (Lbs.)
|
558
|

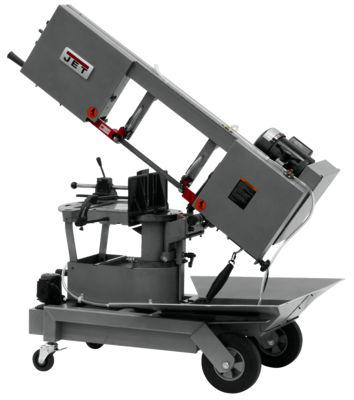

HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V
has a 2 Year warranty
-
Built in, self propelled blade brush prevents chip build up in blade guides
-
Head pressure controlled by a hydraulic cylinder
-
Automatic blade breakage sensor detects accidental breakage and interrupts the powe
-
Power switch with safety key prevents accidental start up
-
CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
-
Blade is fully guarded for Operator safety
-
Automatic shut off switch stops the sawing process
-
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
-
Head dual miters both left and right for quick angle cuts
-
Protractor for fast and accurate angle cutting
-
Converts from horizontal to vertical position with ease
-
Large 16 x 10 inch Vertical cutting table
-
Wheels standard for ease of movement on any shop floor
STANDARD EQUIPEMENT
-
Coolant System
-
Blade guarding
-
Built-in protractor
-
Adjustable vise
-
Large 16 x 10 inch Vertical cutting table
-
Removeable chip tray
-
Roller stand
|
Specifications
|
|
STOCK NUMBER
|
424465
|
|
Model Number
|
HVBS-10-DMWC
|
|
Tubing Round at 90 Degrees (In.)
|
10
|
|
Tubing Round at 45 Degrees (In.)
|
6-1/2
|
|
Tubing Square at 90 Degrees (In.)
|
8
|
|
Pipe Square at 45 Degrees (In.)
|
5-1/2
|
|
Pipe Rectangle at 90 Degrees (In.)
|
8 x 9
|
|
Pipe Rectangle at 45 Degrees (In.)
|
8 x 5-1/2
|
|
Solid Round at 90 Degrees (In.)
|
10
|
|
Solid Round at 45 Degrees (In.)
|
6-1/2
|
|
Solid Square at 90 Degrees (In.)
|
8
|
|
Solid Square at 45 Degrees (In.)
|
5-1/2
|
|
Solid Rectangle at 90 Degrees (In.)
|
8 x 9
|
|
Solid Rectangle at 45 Degrees (In.)
|
8 x 5-1/2
|
|
Vertical Cutting Capacity (In.)
|
13 x 10
|
|
Head Movement (Deg.
|
+/- 45
|
|
Maximum Vise Opening (In.)
|
10
|
|
Blade Speeds (SFPM)
|
64, 132, 247
|
|
Blade Wheel Diameter (In.)
|
11 23/32
|
|
Blade Size (In.)
|
1 x 0.035 x 120
|
|
Table Height (In.)
|
30-13/32
|
|
Coolant Pump Motor
|
1/8HP, 115V,
|
|
Electrics
|
1HP, 115V, 1 Ph
|
|
Overall Dimensions (L x W x H) (In.)
|
72 x 34.5 x 46
|
|
Net Weight (Lbs.)
|
528
|
|
Gross Weight (Lbs.)
|
558
|
