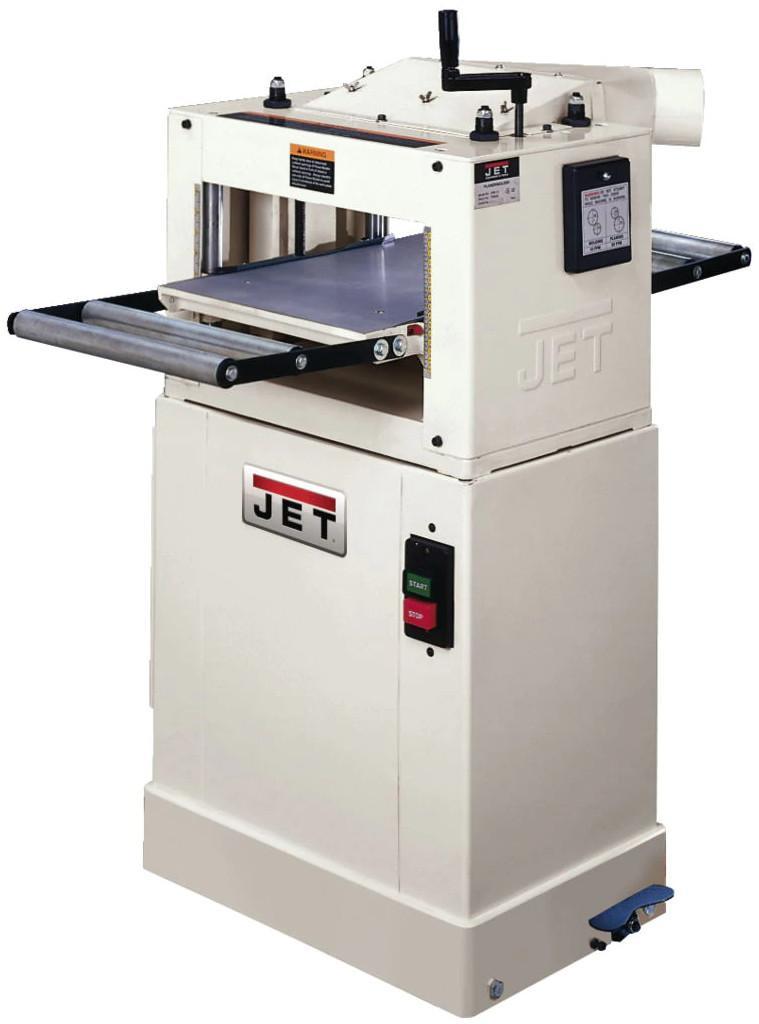

JET JPM-13CS 13 inch Closed Stand Planer / Molder

The JET JPM-13CS 13 inch Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

Features:

  • Cast iron table and base provide strength and reduce vibration during use
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Three cutter head design produces a superior finish in either application
  • Two speed gear box has feed rates set for optimum planing and molding results
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2 inch or smaller heads can be installed without removing the planning knives to save you set-up time
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
  • Exclusive angled 4 inch dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Built-in lockable casters add support and stability to machine while in use




Specifications
Part number 708524
Style (Type) Planer/Molder
Maximum Planing Width (In.) 13
Minimum Planing Length (In.) 14
Maximum Planing Thickness (In.) 6-1/8
Number of Knives 3
Cuts Per Minute 13500
Cutterhead Diameter (In.) 2-9/16
Cutterhead Speed (RPM) 4500
Feed Rate - Planing (FPM) 20
Feed Rate - Molding (FPM) 10
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Amps 15/7.5



jet 3 year warranty logo WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



No listed accessories

708524
JPM-13CS, 13 CLOSED STAND PLANER / MOLDER, 1-1/2HP, 1PH, 115/230V, MADE IN TAIWAN, WGT = 258 LBS, SHIPS LTL TRUCK FREIGHT
Mfg. item #: 708524
WMH708524
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,699.99
