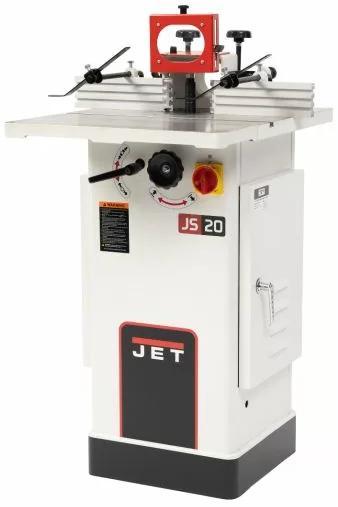

JET JWS-25X, JET Shaper, 3HP, 1PH



JWS-25X, JET Shaper, 3HP, 1PH JWS-35X3-1 Shaper 3HP, 1Ph
JWS-25X, JET Shaper, 3HP, 1PH JWS-35 Shaper 3HP, 1Ph

s-h alt

Click image to enlarge

JET SHAPERS and Accessories
708309 JWS-25X, Shaper, 3HP 1PH 230V, 1/2" & 3/4" Spindles
708323 JWS-35X3-1, SHAPER, 3HP 1PH 230V
708326 JWS-35X5-1, SHAPER, 5HP 1PH 230V
708388 Spindle 1/2" for JWS-25X Shaper
708387 Spindle 3/4" for JWS-25X Shaper
708318 Spindle 1" for JWS-25X Shaper
708382 Spindle 30mm for JWS-25X Shaper
708383 Collet Set 1/4" for JWS-25X Shaper
708384 Collet Set 1/2" for JWS-25X Shaper
708118 Mobile Base
Accessories
Part # Description
708314 1" Spindle for JET JWS-35X Shaper
708317 3/4" Spindle for JET 35X Shaper
708328 1-1/4" Spindle for JET JWS-35X Shaper
708372 30mm Spindle for JET 35X Shaper
708381 1/2" Spindle for JET 35X Shaper



The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25" x 25-1/2" precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4"dust port.

708309 Brochure
708309 Whitepaper


The Jet JWS-25X, JET Shaper, 3HP, 1PH
has a 5 Year warranty

  • Two-speeds let you select the best speed and torque for different cutter diameters
  • Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
  • Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
  • Poly-V-belt transfers maximum power to the spindle
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Starting pins for irregular shaping
  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • 4” Dust port built into fence for convenient hookup to any dust collection system
  • Spindle lock for safe and easy cutter set up
  • Spindle height scale
Detailed Specifications
Brand Jet
Digital Readouts n.a.
Dust Collection Minimum CFM Required 350 cu.ft/min
Dust Port Outside Diameter 4 "
Electrical Controls - Magnetic Starter Yes
Fence Size (L x H) 14 1/2 x 4 3/4 "
Fence Travel (Major and Minor) 4 1/4 and 15/16 "
Height 23 inch
Length 43 inch
Maximum Diameter Cutter Above Table 7 "
Maximum Diameter Cutter Below Table 6 "
Model Number JWS-25X
Motor Current 16 A
Motor Phase 1 Ph
Motor Power 3 HP
Motor Voltage 230 V
Net Weight 331 pound
Part Number 708309
Prewired Voltage 230 V
Reversable Yes
Router Bit Collet Diameter 1/4 and 1/2 " (optional)
Spindle Diameter 1/2 and 3/4 "
Spindle Size Under Nut 1/2 (2 13/64) and 3/4 (3 3/16) "
Spindle Speed 7500 and 10,000 RPM
Spindle Travel 3 1/2
Table Height From Floor 33 "
Table Insert Opening Diameter 2 9/16 and 4 21/64 "
Table Inserts
Table Opening Diameter 6 9/32 "
Table Size 25 x 25 1/2 "
Table T-Slot 3/4 x 3/8 "
Tilting Spindle n.a.
Width 25 inch



This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

Features

  • 4" Dust port built into fence for convenient hookup to any dust collection system
  • Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
  • Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
  • Poly-V-belt transfers maximum power to the spindle
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Reversible spindle speeds for diverse shaping jobs
  • Starting Pins for irregular shaping
  • V-belt transfers maximum power to the spindle
Specifications
Part Number 708323
Maximum Spindle Diameter (In.) 1-1/4
Spindle Travel (In.) 4
Spindle Size Under Nut (In.) 4
Table Size (L x W) (In.) 32-1/4 x 26-3/4
Table Opening Diameter (In.) 6-19/64
Table Inserts (In.) 2
Motor Power (HP) 3
Table Height from Floor (In.) 33-1/4
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 14



This new heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed 4000, 6000, 8000, 10000 RPM step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters.

708326 Brochure
708326 Whitepaper
708326 Manual

JWS-35X5-1 Industrial Shaper 5HP, 1Ph

  • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
  • Powerful 5HP, 1Ph motor with magnetic controls
  • Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
  • Poly-V-belt transfers maximum power to the spindle
  • Starting Pins for irregular shaping
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Reversible spindle speeds for diverse shaping jobs
  • 4" Dust port built into fence for convenient hookup to any dust collection system
  • Spindle lock for safe and easy cutter set-up
  • Spindle height scale
Model Number JWS-35X5-1
Brand Jet
Height 41 inch
Width 40 inch
Length 30 inch
Net Weight 473 pound
Gross Weight 550 pound
Spindle Speed 4000, 6000, 8000 and 10,000 RPM
Reversable Yes
Spindle Diameter 1 1/4 "
Spindle Size Under Nut 4 "
Spindle Travel
Tilting Spindle n.a.
Table Size 26 3/4 x 32 1/4 "
Table Height From Floor 33.25 "
Table T-Slot 3/4 x 3/8 "
Table Opening Diameter 6 19/64 "
Table Insert Opening Diameter 2 9/16 and 4 5/16 "
Fence Size (L x H) 4 3/4 x 16 "
Fence Travel (Major and Minor) 4 and 1 "
Slide Table Size (L x W) n.a.
Table Travel n.a.
Table Inserts
Maximum Diameter Cutter Below Table 6 "
Maximum Diameter Cutter Above Table 7½ "
Router Bit Collet Diameter 1/4 and 1/2 " (optional)
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 400 cu.ft/min
Electrical Controls - Magnetic Starter Yes
Digital Readouts n.a.
Motor Power 3 HP OR 5 HP
Motor Voltage 230 V
Prewired Voltage 230 V
Motor Current 14 A  / 17 A
Motor Phase 1 Ph



s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



708309
Mfg. item #: 708309
WMH708309
lease to own for as little as:$56 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,799.99

18   1
708323
Mfg. item #: 708323
WMH708323
lease to own for as little as:$70 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,499.99

18
708326
Mfg. item #: 708326
WMH708326
lease to own for as little as:$74 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,699.99

18
708388
Mfg. item #: 708388
WMH708388
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708387
Mfg. item #: 708387
WMH708387
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708318
Mfg. item #: 708318
WMH708318
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708382
Mfg. item #: 708382
WMH708382
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708383
Mfg. item #: 708383
WMH708383
Call for freight quote on this item or we will confirm freight charges before shipping.1
$102.85

18
708384
Mfg. item #: 708384
WMH708384
Call for freight quote on this item or we will confirm freight charges before shipping.1
$114.28

18
708118
Mfg. item #: 708118
WMH708118
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$144.74

18   1
708314
Mfg. item #: 708314
WMH708314
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708317
Mfg. item #: 708317
WMH708317
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.03

18
708328
Mfg. item #: 708328
WMH708328
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708372
Mfg. item #: 708372
WMH708372
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
708381
Mfg. item #: 708381
WMH708381
Call for freight quote on this item or we will confirm freight charges before shipping.1
$137.14

18
