JET Notchers



HN-16T, Bench Hand Notcher FN-16, 16 GAUGE CORNER FOOT NOTCHER ESN-40 Electric Schedule 40 Pipe Notcher
HN-16T, Bench Hand Notcher FN-16, 16 GA Corner Foot Notcher ESN-40 Electric Schedule 40 Pipe Notcher
PMN-11 PNEUMATIC SHEET METAL NOTCHER EMN-9 HYDRAULIC SHEET METAL NOTCHER DSAN4-3 Dual Station Abrasive Notcher
PMN-11 Pneumatic Sheet Metal Notcher EMN-9 Hydraulic Sheet Metal Notcher DSAN4 Dual Station Abrasive Notcher

jet 2 year warranty logo

JET DUAL STATION ABRASIVE NOTCHER
756180 DSAN4-1, 4x79 Dual Station Abrasive Notcher 3Hp, 230v, 1Ph
756185 DSAN4-3, 4x79 Dual Station Abrasive Notcher 3Hp, 230/460v, 3Ph
755180 3-PIECE ABRASIVE BELTS FOR DSAN4
JET  SCHEDULE 40 PIPE NOTCHER
754420 ESN-40, Electric Schedule 40 Pipe Notcher
JET  NOTCHERS
754410 EMN-9, Hydraulic Sheet Metal Notcher
754405 PMN-11, Pneumatic Sheet Metal Notcher
755017 FN-16, 16 Gauge Corner Foot Notcher
756016 HN-16T, Bench Hand Notcher
754017 S-16N, Stand for HN-16N Hand Notcher

Click a link below to veiw our wide selection of additional notchers

Click here for Sheet Metal Notchers     Click here for Pipe, Tube and Corner Notchers

HN-16T, Bench Hand Notcher The Jet HN-16T Bench Hand Notcher has a 2 Year warranty
  • HAND NOTCHER
  • Made of cast iron
  • Capable of notching virtually any shearable material
  • Can notch angles of more than 90 degree through a two-step process
  • Easy-to-read front gauges
  • Heavy-duty cutting blade

Detailed Specifications
Part Number 756016
Brand Jet
Cutting Capacity (Gauge) 16
Height 21 inch
Length 23.5 inch
Maximum Notch (in.) 6 x 6
Model Number HN-16T
Net Weight 165 pound
Overall Dimensions 24 x 21 x 26
Piercing Capacity (Gauge) 18
Stroke (in.) 3/4
Width 22 inch
JET HAND NOTCHER, CAST IRON, Heavy-Duty CUTTING BLADE INCLUDED
756016 HN-16T Bench Hand Notcher
754017 S-16N Stand for HN-16T Hand Notcher







FN-16, 16 GAUGE CORNER FOOT NOTCHER FN-16 16 Gauge Corner Notcher has a 2 Year warranty
  • Heavy duty frame for years of notching
  • Blade can be reversed for longer cutting life
  • Front cover keeps all dirt and debris away from the lifting spring
  • Large base increases stability while notching
  • Foot pedal curved with diamond plate material for Operator safety
  • Spring assisted Foot Pedal for ease of use
  • Symmetric design of table and blades for both right and left handed users
  • Increased foot pedal to gain mechanical advantage
  • Tool less handles added for indexing the blade
  • Inch/Metric Scales added on both sides of the table for quick measurement
Specifications
Part Number 755017
Cutting Capacity (Gauge) 16
Fixed Notch Angle ( deg ) 90
Max. Capacity (Gauge) 16
Notch Capacity 3.15 x 3.15 (in.)
Stroke (In.) 1
Table Size (L x W) (In.) 10 x 10
Weight (Lbs.) 231
Max. Notcher Dimensions (In.) 3-1/4 x 3-1/4
Blade Length 3
Gross Weight (Lbs) 233
Height 14.9600
Length 45.6700
Weight 203.0000
Width 18.1100

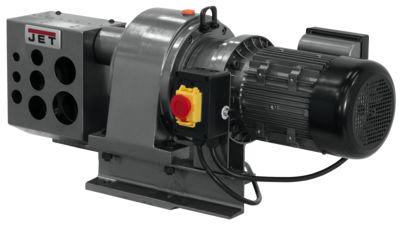

ESN-40 ELECT SCH40 PIPE/TUBE NOTCHERjet 2 year warranty logo



The JET Electric Pipe Notcher provides fast and clean 90deg notches in schedule 40 pipes to maximize productivity. The 220-volt single-phase machine is designed to for durability and ease of operation.

ESN-40 Electric Schedule 40 Pipe Notcher has a 2 Year warranty

  • CSA/US: Folloing strict guidelines and electrical requirements, this JET Notcher is CSA/US certified
  • Magnetic Switch for Low Voltage Motor Protection
  • Safety Guarding surrounding all notching diesInsert the end of the pipe, notch one side, rotate pipe 180°, reinsert to notch the other side
  • Replacement dies available in wide range of sizesBenchtop mounting fits on almost any bench in your shop
Detailed Specifications
Stock Number 754420
Motor 220V / 1PH 2 HP
Notching 90 degree fixed angle
Overall Dimensions (L x W xH) (In.) 33-15/32 x 17-23/32 x 18-57/64
Weight (Lbs.) 247
Notch Capacity 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2

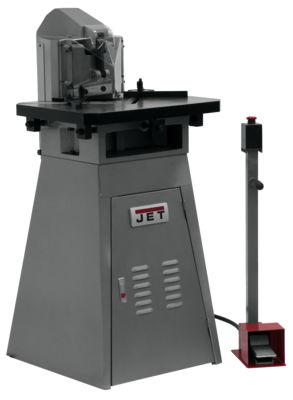

PMN-11 PNEUMATIC SHEET METAL NOTCHER



PMN-11 PNEUMATIC SHEET METAL NOTCHER
has a 2 Year warranty

  • Strong casted head for years on use
  • Rigid sheet metal stand helps hold accuracies of the cut
  • All blades are guarded to protect the operator
  • Blades can we reshapened many times for a lifetime of savings
  • Enclosed cabinet with storage shelf
  • 115 psi Working pressure allows this notcher to be used with almost any standard air compressor.
Detailed Specifications
Stock Number 754405
Cutting Capacity (Gauge) 11
Maximum Notch (In.) 5 x 5
Overall Dimensions (L x W xH) (In.) 29.68 x 27.8 x 53.78
Weight (Lbs.) 414
Max. Capacity (Gauge) 11
Max. Notcher Dimensions (In.) 5 x 5
Strokes per Minute 50
Height 53.7800
Length 29.6800
Weight 414.0000
Width 27.8000

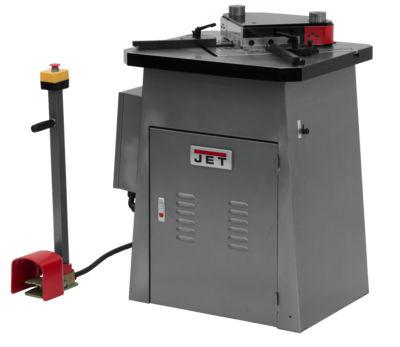

EMN-9 HYDRAULIC SHEET METAL NOTCHER



EMN-9 HYDRAULIC SHEET METAL NOTCHER
has a 2 Year warranty

  • Strong casted head for years on use
  • Rigid sheet metal stand helps hold accuracies of the cut
  • CSA/CUS: Folloing strict guidelines and electrical requirements, this JET Notcher is CSA/CUS certified
  • Blades are guarded to protect the operator
  • Emergency stop on both the machine and the foot pedal for quick stoppage of the machine
  • Blades can we reshapened and prolonged life
  • Enclosed cabinet with storage shelf
  • Table guides with quick locking handles
Detailed Specifications
Stock Number 754410
Overall Dimensions (L x W xH) (In.) 29.68 x 27.8 x 53.78
Weight (Lbs.) 904
Max. Capacity (Gauge) 9
Max. Notcher Dimensions (In.) 7-3/4 x 7-3/4
Strokes per Minute 50
Working Force (Tons) 22
Height 53.7800
Length 29.6800
Weight 904.0000
Width 27.8000



DSAN4-1 Dual Station Abrasive Notcher 230V 1PH

Click here to download manual

DSAN4-1 Dual Station Abrasive Notcher 230V 1PH

The Dual Station Abrasive Notcher delivers the one-two punch your shop needs to maximize output, constructed of heavy-duty gauge steel. The innovative two-station design provides quick and easy access to notching, grinding, and deburring at 3 different stations. CSA/CUS Certified.

  • Convenient storage location in the stand for all mandrels/rollers
  • Designed for quick belt changes
  • Forward and Reverse switch for change of belt direction for standard grinding on rear of machine
  • Multi-positional hand lever vise
  • Roll changing made easy and tool less
  • Safety on/off switch
  • Seven rollers 1/2 to 2-1/2 inch come standard
  • Three replacement belts, one each of 36G, 60G and 80G come standard
  • Totally enclosed fan cooled, AC induction motor
  • Two 3 inch Dust Ports for easy cleanup

Click here to download manual

DSAN4-3 Dual Station Abrasive Notcher 230V/460V 3PH

The Dual Station Abrasive Notcher delivers the one-two punch your shop needs to maximize output, constructed of heavy-duty gauge steel. The innovative two-station design provides quick and easy access to notching, grinding, and deburring at 3 different stations. CSA/CUS Certified.

  • Convenient storage location in the stand for all mandrels/rollers
  • Designed for quick belt changes
  • Forward and Reverse switch for change of belt direction for standard grinding on rear of machine
  • Multi-positional hand lever vise
  • Roll changing made easy and tool less
  • Safety on/off switch
  • Seven rollers 1/2 to 2-1/2 inch come standard
  • Three replacement belts, one each of 36G, 60G and 80G come standard
  • Totally enclosed fan cooled, AC induction motor
  • Two 3 inch Dust Ports for easy cleanup
Specifications
Stock No. 756180 756185
Belt Size (W x L) (In.) 4 x 79 4 x 79
Motor 230V, 1Ph 4HP, 230/460V, 3Ph
Net Weight (Lbs.) 344 344
Gross Weight (Lbs) 510 510



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.







JT9-756180
OBSOLETE - DSAN4-1, 4X79 DUAL STATION ABRASIVE NOTCHER 3HP, 230V, 1PH
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-756180
WMH756180
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
Call for Price

113
JT9-756185
OBSOLETE - DSAN4-3, 4X79 DUAL STATION ABRASIVE NOTCHER 3HP, 230/460V, 3PH
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-756185
WMH756185
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
Call for Price

113
JT9-755180
3-PIECE ABRASIVE BELTS FOR DSAN4, MADE IN CHINA, WGT = 2.5 LBS
Mfg. item #: JT9-755180
WMH755180
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1052
$132.90

25
JT9-754420
OBSOLETE - ESN-40, ELECTRIC SCHEDULE 40 PIPE NOTCHER
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-754420
WMH754420
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
Call for Price

113
JT9-754410
OBSOLETE - EMN-9, HYDRAULIC SHEET METAL NOTCHER
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-754410
WMH754410
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
Call for Price

113
754405
PMN-11, PNEUMATIC SHEET METAL NOTCH
Mfg. item #: 754405
WMH754405
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

821
755017
FN-16, 16 GAUGE CORNER FOOT NOTCHER
Mfg. item #: 755017
WMH755017
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

821
JT9-756016
ON SALE - BENCH HAND NOTCHER
OVERSTOCK SALE LIMITED QUANTITY AVAILABLE, WHILE SUPPLIES LAST
PRICE REFLECTS A $195.8 SAVINGS ON THIS ITEM
Mfg. item #: JT9-756016
WMH756016
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1020
$821.88

15
JT9-754017
ON SALE - S-16N, STAND FOR HN-16N HAND NOTCHER
OVERSTOCK SALE LIMITED QUANTITY AVAILABLE, WHILE SUPPLIES LAST
PRICE REFLECTS A $85.8 SAVINGS ON THIS ITEM
Mfg. item #: JT9-754017
WMH754017
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$392.93

15
