JET Combination Shear, Brake and Roll

754031 Manual

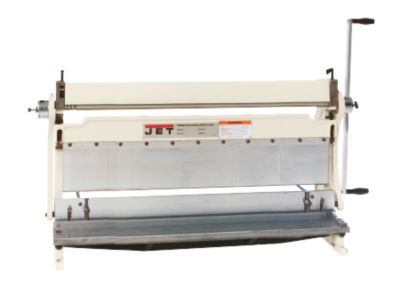

 The Jet SBR-30M Shear/Brake/Roll
has a 2 Year warranty

  • COMBINATION SHEAR, BRAKE AND ROLL
  • Combination shear, brake and roll in one compact machine
  • Right or left hand operation
  • Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
  • Brake is equipped with easily removable fingers that permit angle, channel, box and other complex bending operations
  • Slip rolls are precision turned and ground with wire grooves
  • Set of male dies
  • One set of female dies
  • Dual edge shear blade
  • Spring-loaded work hold down
  • Back gauge
Detailed Specifications
Part Number 756031
Base Dimensions 14-1/2 x 32-3/8
Bending Capacity 20 x 30
Brand Jet
Height 27 inch
Length 40 inch
Mild Steel Capacity (Gauge/in.) 20
Min. Forming Radius (in.) 3/4
Model Number SBR-30M
Net Weight 290 pound
Number and Diameter of Rolls (in.) 3 and 1-1/2
Overall Dimensions 42-1/2 x 21-1/2 x 24
Rolling Capacity 20 x 30
Shearing Capacity 20 x 30
Size of Slip Roll (in./L x W) 30 x 1-1/2
Upper Die Height (in.) 4-11/16
Width 17 inch
Width of upper Dies (in.) 1, 2, 3, 6, 8, 10
Wire Grooves (in.) 1/8, 3/16, 9/32



754041 Manual

THIS ITEM HAS BEEN REPLACED BY A BAISBR-4020

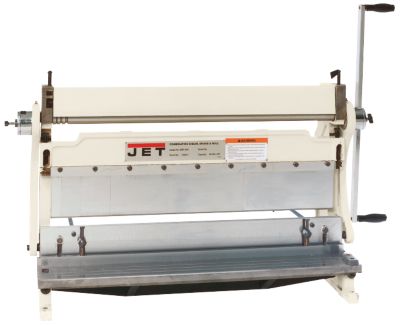

 The Jet SBR-40M Shear/Brake/Roll
has a 2 Year warranty

  • COMBINATION SHEAR, BRAKE AND ROLL
  • Combination shear, brake and roll in one compact machine
  • Right or left hand operation
  • Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
  • Brake is equipped with easily removable fingers that permit angle, channel, box and other complex bending operations
  • Slip rolls are precision turned and ground with wire grooves
  • Set of male dies
  • One female die
  • Dual edge shear blade
  • Spring-loaded work hold down
  • Back gauge
Detailed Specifications
Part Number 756041
Base Dimensions 16-1/2 x 43
Bending Capacity 20 x 40
Brand Jet
Height 30 inch
Length 56 inch
Mild Steel Capacity (Gauge/in.) 20
Min. Forming Radius (in.) 1
Model Number SBR-40M
Net Weight 575 pound
Number and Diameter of Rolls (in.) 3 and 1-5/8
Overall Dimensions 58-7/8 x 22 x 27-1/2
Rolling Capacity 20 x 40
Shearing Capacity 20 x 40
Size of Slip Roll (in./L x W) 40 x 1-5/8
Upper Die Height (in.) 4
Width 56 inch
Width of upper Dies (in.) 1, 1-1/2, 2, 2-1/2, 4, 7,10, 12
Wire Grooves (in.) 3/16, 9/32, 3/8



s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
JET® COMBINATION SHEAR, BRAKE & ROLL
756031 SBR-30N Shear/Brake/Roll
756041 No Longer Available USE BAISBR-4020
754030 S-30N Stand for 30 in SBR-30N
754040 S-40N Stand for 40 in SBR-40N








JT9-756031
SBR-30M, 30 3 IN 1 SHEAR, BRAKE AND ROLL, SHIPS LTL TRUCK FREIGHT, MADE IN CHINA, WGT = 319 LBS

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: JT9-756031
WMH756031
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1056
$1,309.00

21
JT9-756041
SBR-40M, 40 3 IN 1 SHEAR, BRAKE AND ROLL, SHIPS LTL TRUCK FREIGHT, MADE IN CHINA, WGT = 632 LBS

FREE FREIGHT & FREE RESIDENTIAL, LIFTAGTE & DELIVERY APPOITMENT WHEN REQUESTED: NO HANDLING FEES
Mfg. item #: JT9-756041
WMH756041
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$2,119.00

21
JT9-754030
OBSOLETE - S-30N, STAND FOR 30 SHEAR, BRAKE, ROLL
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-754030
WMH754030
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
Call for Price

21
JT9-754040
OBSOLETE - S-40N, STAND FOR 40 SHEAR, BRAKE ROLL
THIS ITEM IS NOW OBSOLETE AND NO LONGER AVAILABLE, CALL 800-458-3687 FOR ADDITIONAL INFORMATION
Mfg. item #: JT9-754040
WMH754040
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
Call for Price

21
