Jet Web Strap Hoists

352100 JWS-2A 1 ton single pull web strap puller 352105 jws-25a 1 ton double pull web strap puller

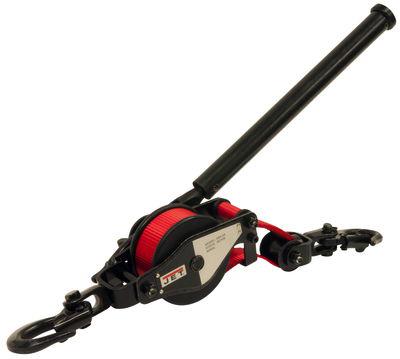

Single Pull Web Strap Puller
352100 Shown

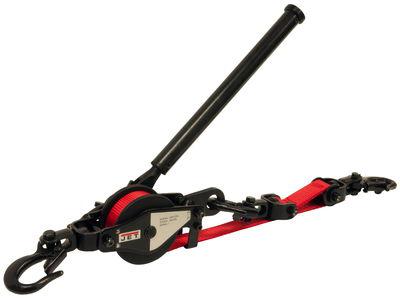

Double  Pull Web Strap Puller
352105 Shown



JETs new JWS Series Web Strap Hoists provide unrivaled safety, dependability and long service life for a wide range of lifting, pulling and holding operations. They are precision-engineered and constructed of premium materials to ensure reliability, boost productivity and minimize downtime.

JWS-2A, 1 ton and JWS-3A 1-1/2 Ton Single Pull Web Strap Pullers have a Lifetime warranty

  • Isolated ratcheting gear, oversized strap guide and bottom block assembly guides the web strap smoothly onto the drum and prevents the strap from binding.
  • Corrosion-resistant stainless steel springs, bronze bushings, drum shafts, self lubricating bearings and drop-forged steel hooks for added durability
  • 1:1 gear ratio allows for low handle effort and up to 1-1/2 inch lift per 45 degree handle stroke
  • Friction brake design and double interlocking pawls allow for micro-inching when lowering loads
  • The ratcheting drum releases the web strap slack without freefalling
  • Open housing design for quick cleaning and fast daily inspections
  • Larger, easy opening, 360 degree swivel hooks with safety latches
  • This Product Complies with ASME/ANSI Standard B30.21
Detailed Specifications
Part Number 352100 352110
Single Pull Capacity (Ton) 1-1/2
Single Pull Distance Min. (In.) 20  21
Single Pull Distance Max. (In.) 72  73
Hook Type Standard Latching Hooks
Hook Throat Opening (In.) 0.8
Headroom (In.) 13-1/2
Handle Length (In.) 12-4/5  15
Strap Length (Ft.) 10
Overall Dimensions (L x W x H) (In.) 13-1/2 x 4.5 x 4
Weight (Lbs.) 7-1/2  9
Height 4
Length 13.5
Weight 9 11
Width 4.5



JETs new JWS Series Web Strap Hoists provide unrivaled safety, dependability and long service life for a wide range of lifting, pulling and holding operations. They are precision-engineered and constructed of premium materials to ensure reliability, boost productivity and minimize downtime.

JWS-25A, 1 Ton and JWS-4A 1-1/2 Ton Double Pull Web Strap Pullers have a Lifetime warranty

  • Convertible web strap hoist quickly changes from a single line to a double line
  • Isolated ratcheting gear, oversized strap guide and bottom block assembly guides the web strap smoothly onto the drum and prevents the strap from binding.
  • Corrosion-resistant stainless steel springs, bronze bushings, drum shafts, self lubricating bearings and drop-forged steel hooks for added durability
  • 1:1 gear ratio allows for low handle effort and up to 1-1/2 inch lift per 45 degree handle stroke
  • Friction brake design and double interlocking pawls allow for micro-inching when lowering loads
  • The ratcheting drum releases the web strap slack without freefalling
  • Open housing design for quick cleaning and fast daily inspections
  • Larger, easy opening, 360 degree swivel hooks with safety latches
  • This Product Complies with ASME/ANSI Standard B30.21
Detailed Specifications
Part Number 352105 352115
Single Pull Capacity (Ton) 1/2  3/4
Single Pull Distance Min. (In.) 72  73
Single Pull Distance Max. (In.) 20  21
Double Pull Capacity (Ton) 1-1/2
Double Pull Distance Min. (In.) 25  21
Double Pull Distance Max. (In.) 75  76
Hook Type Standard Latching Hooks
Hook Throat Opening (In.) 0.8
Headroom (In.) 20  21
Handle Length (In.) 12-4/5  15
Strap Length (Ft.) 10
Overall Dimensions (L x W x H) (In.) 20 x 4.5 x 4  21 x 4.5 x 4
Weight (Lbs.) 10  12
Height 4
Length 20 21
Weight 12 14
Width 4.5



WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

Models and Accessories
352100 JWS-2A 1 Ton Single Pull Web Strap Puller
352105 JWS-25A 1 Ton Double Pull Web Strap Puller
352110 JWS-3A 1-1/2 Ton Single Pull Web Strap Puller
352115 JWS-4A 1-1/2 Ton Double Pull Web Strap Puller
