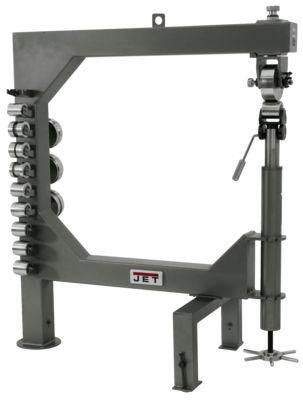

JET WH-45 English Wheel


jet 2 year warranty logo

at a glance
Specifications
WARRANTY

The JET WH-45 5 in English Wheel rolls beads and forms mild steel up to 16 gauge. It comes stock with 10 anvils, 4 rolling wheels, a heavy duty frame, and storage brackets

WH-45T, 45" Professional English Wheel has a 2 Year warranty

Rolls beads and forms mild steel sheet metal up to 16 gauge
Rolls beads and forms aluminum and copper up top 1/8"thick
Machine supplied with 10 anvils and 4 rolling wheels
Three sets of popular fender groove shaping wheels
Throat 45"
Quick cam handle releases the work piece
Both wheels swivel 90Â°
Quick wheel change without using any tooling
Polished wheels supplied with sealed bearings for smooth operation
Rolling wheels 6" diameter
Storage brackets for rolling and anvil wheels
Screw lift assembly designed for comfortability and precise pressure setup
Heavy duty frame
Retractable wheels make moving this machine around the shop simple

Detailed Specifications
Part numbers	756151
Frame Tube Sizes (In.)	4 x 4
Throat (In.)	45
Head Opening (In.)	6
Head and Anvil Sit Swivel (Deg.)	90
Rolling Wheels Diameter (In.)	6
Overall Dimensions (L x W xH) (In.)	64 x 31 x 58
Weight (Lbs)	575
Height	64.0000
Length	58.0000
Weight	575.0000
Width	31.0000

2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

Compare

WH-45T, 45 PROFESSIONAL ENGLISH WHEEL, SHIPS LTL TRUCK FREIGHT, MADE IN CHINA, WGT = 575 LBS

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM ** FREE FREIGHT & FREE RESIDENTIAL, LIFTAGTE & DELIVERY APPOITMENT WHEN REQUESTED: NO HANDLING FEES

Mfg. item #: JT9-756151

WMH756151

lease to own for as little as:$65 per month!

Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.¹⁰⁵⁷

$3,269.00
