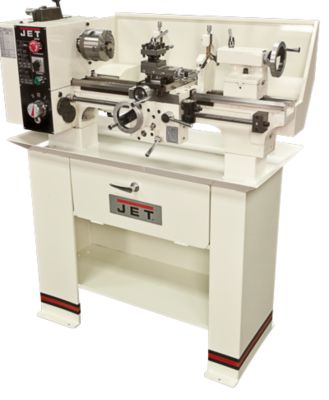

(SHOWN WITH OPTIONAL STAND) Our newest lathe includes an enclosed gear box, reverse threading capabilities and backlash
adjustments provided throughout the carriage. With features like a 7/8 inch spindle bore, a MT#3 tailstock and 6 spindle speeds youll be able to turn some surprisingly hefty projects! If youre
thinking of making parts for models, engines or even for repairs around the home or shop, this is the lathe to own!
|
12pcs Mini Turning Tool Kit for BDB-920 Lathes (660215)
- Kit consists of:
- Quick Change Tool Post and 4 holders
- MT-2 Live Center
- 2pc Indexable Turning tool Right & Left Hand
- Boring Tool
- HSS Internal Threading Tool
- Parting Tool holder w/HSS blade
|
BD-920W, Belt Drive Bench lathe
has a 2 Year warranty
-
Spindle supported by precision tapered roller bearings
-
Hardened and ground bedways
-
Reversing switch for added versatility
-
Backlash adjustments in the carriage are easily adjustable
-
Quick change gearbox provides a wide range of inch and metric threads
-
Power longitudinal feed allows threading and reverse threading
-
Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
-
Tailstock is adjustable for taper cuts
-
Standard Equipment:
-
Full length splash guard
-
4â 3-Jaw chuck with threaded back plate
-
7â 4-Jaw chuck with threaded back plate
-
Metric change gears
-
Centers
-
Threading dial
|
Detailed Specifications
|
|
Size
|
9 x 20
|
|
Swing Over Bed (In.)
|
9
|
|
Swing Over Cross Slide (In.)
|
5-5/16
|
|
Distance Between Centers (In.)
|
20
|
|
Spindle Bore (In.)
|
25/32 (20mm)
|
|
Spindle Mount
|
1-1/2 x 8
|
|
Spindle Taper with Sleeve
|
MT-3
|
|
Number of Spindle Speeds
|
6
|
|
Range of Spindle Speeds (RPM)
|
130 - 2,000
|
|
Number of Longitudinal and Cross Feed Rates
|
60
|
|
Range of Longitudinal Feeds (IPR)
|
0.0006 - 0.037
|
|
Number of Inch Threads
|
30
|
|
Range of Inch Threads (TPI)
|
8 - 60
|
|
Number of Metric Threads
|
18
|
|
Range of Metric Threads
|
0.4 - 3.5
|
|
Max Tool Size (In.)
|
1/2 x 1/2
|
|
Compound Slide Travel (In.)
|
1-7/8
|
|
Cross Slide Travel (In.)
|
4-3/8
|
|
Carriage Travel (In.)
|
16
|
|
Tailstock Spindle Travel (In.)
|
1-9/16
|
|
Taper in Tailstock Spindle
|
MT-2
|
|
Follow Rest Capacity (In.)
|
1/4 - 1-1/8
|
|
Steady Rest Capacity (In.)
|
1/4 - 1-7/8
|
|
Width of Bed (In.)
|
4-1/2
|
|
Motor (HP)
|
3/4 HP, 115V Only, 1Ph
|
|
Prewired (V.)
|
115v 1Ph. Only
|
|
Weight (Lbs.)
|
265
|
|
Drive
|
Belt
|
|
Overall Dimensions (L x W x H) (In.)
|
37 x 18-3/4 x 17-3/8
|
|
Style (Type)
|
Bench
|
|
Height
|
21.0000
|
|
Length
|
42.0000
|
|
Weight
|
304.0000
|
|
Width
|
22.0000
|
BD-920W, Belt Drive Bench Lathe With Stand has a 2 Year warranty
-
Spindle supported by precision tapered roller bearings
-
Hardened and ground bedways
-
Reversing switch for added versatility
-
Backlash adjustments in the carriage are easily adjustable
-
Quick change gearbox provides a wide range of inch and metric threads
-
Power longitudinal feed allows threading and reverse threading
-
Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
-
Tailstock is adjustable for taper cuts
-
Standard Equipment:
-
Full length splash guard
-
4â 3-Jaw chuck with threaded back plate
-
7â 4-Jaw chuck with threaded back plate
-
Metric change gears
-
Centers
-
Threading dial
|
Detailed Specifications
|
|
Size
|
9 x 20
|
|
Accessories
|
Stand
|
|
Swing Over Bed (In.)
|
9
|
|
Swing Over Cross Slide (In.)
|
5-5/16
|
|
Distance Between Centers (In.)
|
20
|
|
Spindle Bore (In.)
|
25/32 (20mm)
|
|
Spindle Mount
|
1-1/2 x 8
|
|
Spindle Taper with Sleeve
|
MT-3
|
|
Number of Spindle Speeds
|
6
|
|
Range of Spindle Speeds (RPM)
|
130 - 2,000
|
|
Number of Longitudinal and Cross Feed Rates
|
60
|
|
Range of Longitudinal Feeds (IPR)
|
0.0006 - 0.037
|
|
Number of Inch Threads
|
30
|
|
Range of Inch Threads (TPI)
|
8 - 60
|
|
Number of Metric Threads
|
18
|
|
Range of Metric Threads
|
0.4 - 3.5
|
|
Max Tool Size (In.)
|
1/2 x 1/2
|
|
Compound Slide Travel (In.)
|
1-7/8
|
|
Cross Slide Travel (In.)
|
4-3/8
|
|
Carriage Travel (In.)
|
16
|
|
Tailstock Spindle Travel (In.)
|
1-9/16
|
|
Taper in Tailstock Spindle
|
MT-2
|
|
Follow Rest Capacity (In.)
|
1/4 - 1-1/8
|
|
Steady Rest Capacity (In.)
|
1/4 - 1-7/8
|
|
Width of Bed (In.)
|
4-1/2
|
|
Motor (HP)
|
3/4 HP, 115V Only, 1Ph
|
|
Weight (Lbs.)
|
265
|
|
Drive
|
Belt
|
|
Overall Dimensions (L x W x H) (In.)
|
37 x 18-3/4 x 17-3/8
|
|
Style (Type)
|
Bench
|
|
Height
|
45.0000
|
|
Length
|
37.5000
|
|
Weight
|
325.0000
|
|
Width
|
20.0000
|
|
