JET BD-920W Belt Drive Bench Lathe

BD-920W, Belt Drive Bench lathe       jet 2 year warranty logo

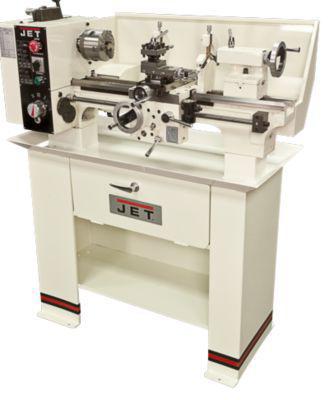

Shown with opional stand

(SHOWN WITH OPTIONAL STAND) Our newest lathe includes an enclosed gear box, reverse threading capabilities and backlash adjustments provided throughout the carriage. With features like a 7/8 inch spindle bore, a MT#3 tailstock and 6 spindle speeds youll be able to turn some surprisingly hefty projects! If youre thinking of making parts for models, engines or even for repairs around the home or shop, this is the lathe to own!

BD-920W, Belt Drive Bench lathe
has a 2 Year warranty

  • Spindle supported by precision tapered roller bearings
  • Hardened and ground bedways
  • Reversing switch for added versatility
  • Backlash adjustments in the carriage are easily adjustable
  • Quick change gearbox provides a wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
  • Tailstock is adjustable for taper cuts
  • Standard Equipment:
  • Full length splash guard
  • 4” 3-Jaw chuck with threaded back plate
  • 7” 4-Jaw chuck with threaded back plate
  • Metric change gears
  • Centers
  • Threading dial
Detailed Specifications
Size 9 x 20
Swing Over Bed (In.)
Swing Over Cross Slide (In.) 5-5/16
Distance Between Centers (In.) 20
Spindle Bore (In.) 25/32 (20mm)
Spindle Mount 1-1/2 x 8
Spindle Taper with Sleeve MT-3
Number of Spindle Speeds
Range of Spindle Speeds (RPM) 130 - 2,000
Number of Longitudinal and Cross Feed Rates 60
Range of Longitudinal Feeds (IPR) 0.0006 - 0.037
Number of Inch Threads 30
Range of Inch Threads (TPI) 8 - 60
Number of Metric Threads 18
Range of Metric Threads 0.4 - 3.5
Max Tool Size (In.) 1/2 x 1/2
Compound Slide Travel (In.) 1-7/8
Cross Slide Travel (In.) 4-3/8
Carriage Travel (In.) 16
Tailstock Spindle Travel (In.) 1-9/16
Taper in Tailstock Spindle MT-2
Follow Rest Capacity (In.) 1/4 - 1-1/8
Steady Rest Capacity (In.) 1/4 - 1-7/8
Width of Bed (In.) 4-1/2
Motor (HP) 3/4 HP, 115V Only, 1Ph
Prewired (V.) 115v 1Ph. Only
Weight (Lbs.) 265
Drive Belt
Overall Dimensions (L x W x H) (In.) 37 x 18-3/4 x 17-3/8
Style (Type) Bench
Height 21.0000
Length 42.0000
Weight 304.0000
Width 22.0000



BD-920W, Belt Drive Bench Lathe With Stand has a 2 Year warranty

  • Spindle supported by precision tapered roller bearings
  • Hardened and ground bedways
  • Reversing switch for added versatility
  • Backlash adjustments in the carriage are easily adjustable
  • Quick change gearbox provides a wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
  • Tailstock is adjustable for taper cuts
  • Standard Equipment:
  • Full length splash guard
  • 4” 3-Jaw chuck with threaded back plate
  • 7” 4-Jaw chuck with threaded back plate
  • Metric change gears
  • Centers
  • Threading dial
Detailed Specifications
Size 9 x 20
Accessories Stand
Swing Over Bed (In.)
Swing Over Cross Slide (In.) 5-5/16
Distance Between Centers (In.) 20
Spindle Bore (In.) 25/32 (20mm)
Spindle Mount 1-1/2 x 8
Spindle Taper with Sleeve MT-3
Number of Spindle Speeds
Range of Spindle Speeds (RPM) 130 - 2,000
Number of Longitudinal and Cross Feed Rates 60
Range of Longitudinal Feeds (IPR) 0.0006 - 0.037
Number of Inch Threads 30
Range of Inch Threads (TPI) 8 - 60
Number of Metric Threads 18
Range of Metric Threads 0.4 - 3.5
Max Tool Size (In.) 1/2 x 1/2
Compound Slide Travel (In.) 1-7/8
Cross Slide Travel (In.) 4-3/8
Carriage Travel (In.) 16
Tailstock Spindle Travel (In.) 1-9/16
Taper in Tailstock Spindle MT-2
Follow Rest Capacity (In.) 1/4 - 1-1/8
Steady Rest Capacity (In.) 1/4 - 1-7/8
Width of Bed (In.) 4-1/2
Motor (HP) 3/4 HP, 115V Only, 1Ph
Weight (Lbs.) 265
Drive Belt
Overall Dimensions (L x W x H) (In.) 37 x 18-3/4 x 17-3/8
Style (Type) Bench
Height 45.0000
Length 37.5000
Weight 325.0000
Width 20.0000



JET BD-920W BELT DRIVE BENCH HOBBY LATHE
321378 BDB-920 Belt Drive Bench Lathe  3/4HP, 115V, SINGLE PHASE
321370K BD-920W Belt Drive Bench Lathe With Stand
STANDS
321375 Cabinet stand for BD920W
JET TURNING TOOLING KITS
660215 12pcs Mini Turning Tool Kit for BDB-920 Lathes
660215 - 12pcs Mini Turning Tool Kit for BDB-920 Lathes 660215

12pcs Mini Turning Tool Kit for BDB-920 Lathes (660215)

  • Kit consists of:
  • Quick Change Tool Post and 4 holders
  • MT-2 Live Center
  • 2pc Indexable Turning tool Right and Left Hand
  • Boring Tool
  • HSS Internal Threading Tool
  • Parting Tool holder w/HSS blade





jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



More Informationshow more
321378
NEW - BDB-919 BELT DRIVE BENCH LATHE 3/4HP, 115V, SINGLE PHASE
SHIPS DIRECT FROM FACTORY BY LTL TRUCK / WEIGHT = 304 LBS
Mfg. item #: 321378
WMH321378
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$2,199.00

12
Call for price. WMH321370K
More Informationshow more
321375
>> NEW - STAND FOR BDB-919
SHIPS DIRECT FROM FACTORY BY LTL TRUCK / WEIGHT = 65 LBS
Mfg. item #: 321375
WMH321375
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$249.00

12
More Informationshow more
660215
Mfg. item #: 660215
WMH660215
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$199.00

12
