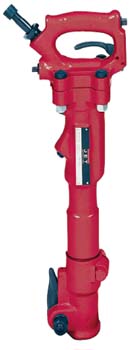

JET Clay/Trench Diggers

CLAY/TRENCH DIGGERS

• Heavy-duty design

• Replaceable front head bushing

• Drop-forged cylinder

• Full control inside lever throttle

There are no further details.

Specifications
Stock No	Model No	Shank Size (in)	Piston Dia. (in)	Stroke (in)	Blows per Min.	Ft/lbsPer Blow @90psi	Air Cons.	Air Inlet (NPT/in)	Air Hose (ID/in)	Length	Weight
550012	CD-30-1	1 x 4 1/4	1 3/4	3 3/8	1,550	46	49	1/2	1/2	22	30

NOTE: Unit  Operate at 90 psi.

There is no further information.



OPTIONAL ACCESSORY

• Muffler for clay and trench diggers; fits PB-30, CD-30,
  and TD-30 (550031)
