JET Needle Scaler & Weld Flux Scaler

JAT-800, NEEDLE SCALER, LEVER LOCK, R8 SERIES JAT-801, NEEDLE SCALER, BALL LOCK, R8 SERIES JAT-820, FLUX CHIPPER, BALL LOCK, R8 SERIES JAT-821, FLUX CHIPPER, LEVER LOCK, R8 SERIES
JAT-800, NEEDLE SCALER, LEVER LOCK, R8 SERIES JAT-801, NEEDLE SCALER, BALL LOCK, R8 SERIES JAT-820, FLUX CHIPPER, BALL LOCK, R8 SERIES JAT-821, FLUX CHIPPER, LEVER LOCK, R8 SERIES



Models and Accessories
505800 JAT-800, NEEDLE SCALER, LEVER LOCK, R8 SERIES
505801 JAT-801, NEEDLE SCALER, BALL LOCK, R8 SERIES
505820 JAT-820, FLUX CHIPPER, BALL LOCK, R8 SERIES
505821 JAT-821, FLUX CHIPPER, LEVER LOCK, R8 SERIES

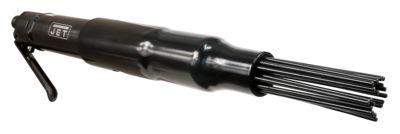

++ JAT-800, NEEDLE SCALER, LEVER LOCK, R8 SERIES

JAT-800, Needle Scaler has a Lifetime warranty

  • Heavy-duty, heat-treated barrels and pistons for reliability and durability
  • Lever lock retainer permits quick tool change
  • Easily convert tool from needle scaler to flux chipper
  • Includes one set of needles
Specifications
Model 505800
Classification R 8
Retainer Type Lever Lock
Blows Per Minute 4,600
Stroke Length (In.) 1-1/8
Number of Needles 19
Size of Needles (Mm.) 3
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 4
Sound Pressure (db) (A) 92
Sound Power (db) (A) 104
Vibration Value (m/s) 10.2
Overall Length Folded (In.) 15
Weight (Lbs.) 6.28
Height 2.1300
Length 12.1900
Weight 6.6700
Width 5.1400

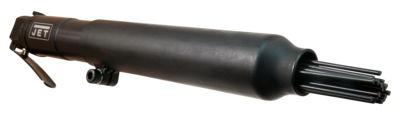

++ JAT-801, NEEDLE SCALER, BALL LOCK, R8 SERIES JAT-801, Needle Scaler has a Lifetime warranty
  • Heavy-duty, heat-treated barrels and pistons for reliability and durability
  • Ball lock retainer permits quick tool change
Specifications
Models 505801
Classification R 8
Retainer Type Ball Lock
Blows Per Minute 4,000
Stroke Length (In.) 1-1/8
Number of Needles 19
Size of Needles (Mm.) 3
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 4
Sound Pressure (db) (A) 90
Sound Power (db) (A) 102
Vibration Value (m/s) 14.5
Overall Length Folded (In.) 16-3/8
Weight (Lbs.) 6.08
Height 2.1300
Length 12.1900
Weight 6.5000
Width 5.1400



++ JAT-820, FLUX CHIPPER, BALL LOCK, R8 SERIES JAT-820, Flux Chipper
has a Lifetime +WT warranty
  • Heavy-duty, heat-treated barrels and pistons for reliability and durability
  • Ball lock retainer permits quick tool change
  • Includes (1) wide angle chisel
Specifications
Model 505820
Classification R 8
Retainer Type Ball Lock
Blows Per Minute 4,000
Stroke Length (In.) 7/8
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 4
Sound Pressure (db) (A) 90
Sound Power (db) (A) 102
Vibration Value (m/s²) 14.5
Overall Length Folded (In.) 13-1/8
Weight (Lbs.) 3.81
Height 1.8900
Length 9.3700
Weight 4.1500
Width 5.4500

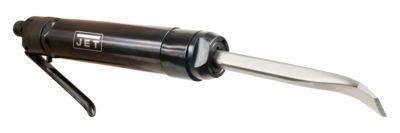

++ JAT-821, FLUX CHIPPER, LEVER LOCK, R8 SERIES JAT-821, Flux Chipper
has a Lifetime warranty
  • Heavy-duty, heat-treated barrels and pistons for reliability and durability
  • Lever lock retainer permits quick tool change
  • Includes (1) wide angle chisel
Specifications
Model 505821
Classification R 8
Retainer Type Lever Lock
Blows Per Minute 4,600
Stroke Length (In.) 7/8
Air Inlet (NPT/In.) 1/4
Air Hose (ID/In.) 3/8
Air Pressure (PSI) 90
Air Consumption (CFM) 4
Sound Pressure (db) (A) 92
Sound Power (db) (A) 104
Vibration Value (m/s²) 10.2
Overall Length Folded (In.) 14-1/2
Weight (Lbs.) 4.54
Height 2.1300
Length 12.1900
Weight 4.8900
Width 5.1400



RED ASSURANCE 1-YEAR WARRANTY

RED ASSURANCE 1-YEAR WARRANTY

JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

Red Assurance Warranty



505800
^^ JAT-800, NEEDLE SCALER, LEVER L
Mfg. item #: 505800
WMH505800
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

405
505801
JAT-801, NEEDLE SCALER, BALL LOCK, MADE IN TAIWAN, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 6.5 LBS
Mfg. item #: 505801
WMH505801
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$376.99

1
505820
JAT-820, FLUX CHIPPER, BALL LOCK, MADE IN TAIWAN, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 4.15 LBS
CALL 800-458-3687 X1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: 505820
WMH505820
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$276.99

1
505821
JAT-821, FLUX CHIPPER, LEVER LOCK
Mfg. item #: 505821
WMH505821
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

405
