Kregtool DK3100 Multi Spindle Pocket-Hol

pdf logo   Manual Download

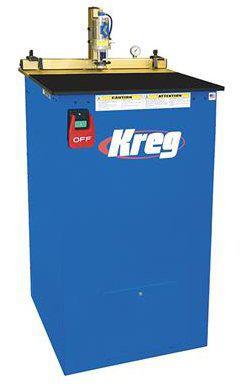

Multi-Spindle Pocket-Hole Machine

  • 3/4, 1, and 1-3/4 inch spindle spacings
  • Hardened-steel drill guide maximizes drill bit life
  • One-touch, foot pedal operation
  • Swing Stops for optimized material positioning
  • Dust collection chutes for efficient chip removal

If youre looking for the ultimate machine to build face-fames, this is it. The DK3100 contains three spindles that allow you to drill two pocket holes across rails of varying widths in just one machine cycle. Best of all, the DK3100 can also be quickly changed to drill a single pocket hole, like our DK1100 series, by simply removing a drill bit. If you’re serious about face-frame production, the DK3100 is the machine that will deliver real performance to your shop and profits to your bottom line.

The DK3100 not only drills two pocket holes in one cycle, it also gives you options for spacing the holes. You can set the drill spindles at 3/4, 1, and 1-3/4 inch on center, perfect for todays most common rail widths.

Pocket Holes, Twice as Fast!
Multiple spindles give you the option of three different hole spacings to fit todays most common face-frame widths. If you would prefer to drill only one pocket hole, just remove a drill bit and you get the equivalent of our DK1100 single-spindle machine. Only Kreg offers you the option of one or two pocket holes at a time and your choice of three different on-center hole spacings in the same machine.

Easy Setup
The lift-off top gives you direct access to the drill bits. A simple turn of an Allen wrench in the drill bit collets is all it takes to change bits. In less than a minute, you can change to any of the three settings or set up the DK3100 for single-spindle drilling.

One-Second Cycle Times
Two pocket holes in one second? Its possible with the DK3100. The one-touch foot pedal fires the spindle to make two perfect pocket holes in just one second.

Durability
The DK3100 uses a hardened-steel drill guide that supports the drill bits all the way into the workpiece, prolonging drill bit life and improving the cut quality of the pocket hole.



Specifications
Motor Electric 1-1/2 inch-HP 110-V single phase
Drill Bits DKDB Drill Bit
3/8 inch shank diameter
3/16 inch pilot
1/2 inch long
CFM Rating 1 CFM clamp cylinder (90 PSI/minute)
Cycle Time 1 second
Material Clamping Capacity 4 inch thick
Hole Centering Capability 1/2 to 1-1/2 inch thick
Weight 176 lbs
Dimensions 50H x 24W x 24D inch (40 inch table height)
On-Center Spindle Spacings 3/4, 1, 1-1/2 inch
Warranty 5 Year
Included (1) multi-Spindle Pocket-Hole Machine and Complete Owner's Manual



Models and Accessories
DK3100 Kreg 3-Spindle Electric Pocket Hole Machine
DB210-HDB Kreg HD Drill Bit
DB210-HDBB Kreg HD Drill Bit and Bushing
DB210-MBB Kreg Micro Drill Bit and Bushing
DKDB Kreg 3/8 inch Step Drill Bit for Kreg Pocket Machines, 6-3/4 inch length
LH-DKDB Kreg 3/8 inch Left-Hand Step Drill Bit for DK3100



DK3100
KREG 3-SPINDLE ELECTRIC POCKET HOLE MACHINE
Mfg. item #: DK3100
KR-DK3100
lease to own for as little as:$100 per month!
Kreg freight $15 for orders less than $1001038
$4,999.99

518
DB210-HDB
KREG HD DRILL BIT
Mfg. item #: DB210-HDB
KR-DB210-HDB
Kreg freight $15 for orders less than $1001038
$24.99

518
DB210-HDBB
KREG HD DRILL BIT AND BUSHING
Mfg. item #: DB210-HDBB
KR-DB210-HDBB
Kreg freight $15 for orders less than $1001038
$39.99

518
DB210-MBB
KREG MICRO DRILL BIT AND BUSHING
Mfg. item #: DB210-MBB
KR-DB210-MBB
Kreg freight $15 for orders less than $1001038
$34.99

518
DKDB
KREG 3/8 STEP DRILL BIT FOR KREG POCKET MACHINES, 6-3/4 LENGTH
Mfg. item #: DKDB
KR-DKDB
Kreg freight $15 for orders less than $1001038
$39.99

518
LH-DKDB
KREG STEP BIT 6-3/4" LEFT HAND
Mfg. item #: LH-DKDB
KR-LH-DKDB
Call for freight quote on this item or we will confirm freight charges before shipping.1
$35.99

513
