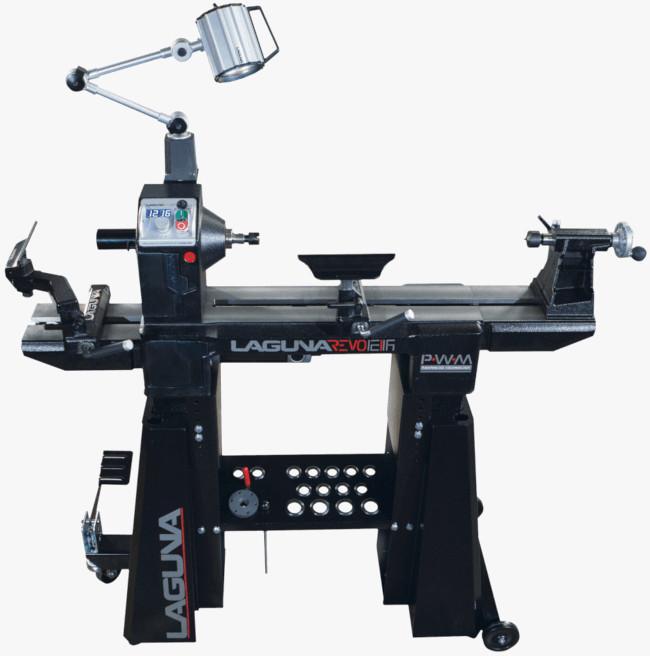

REVO 12|16

The definitive midi-lathe, Lagunas REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45 deg chamfered edge

The 1216 controls the 1hp DC motor using pulse width modulation. A big problem with DC motor control is torque in the low speeds, and you will find many MIDI lathes with the lowest speed of 250RPM and higher because of this. This is because the cost effect controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate. PWM will deliver full torque across the entire speed range. This allows for tremendous torque in low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16 inch bowl on a mid-sized lathe.

Features

• 1 HP DC Permanent Magnet Motor
• Pulse Width Modulation (PWM) Controller

Specifications:

• Electrical Requirements: 100V-1Ph-60Hz
• Recommended Breaker Size: 110V -15 Amp
• Speed Range High: 650 - 3500 RPM
• Speed Range Mid: 325 - 1750 RPM
• Speed Range Low: 50 - 525 RPM
• Distance Between Centers: 15.5 inch
• Swing Over Bed: 12-1/2 inch
• Swing Over Banjo: 9-1/2 inch
• Max Outboard Swing: 16 inch
• Spindle Bore: 3/8 inch
• Spindle Taper: MT2
• Spindle Thread: 1 inch x 8 TPI (both ends)
• Front Bearing: 6006LLU
• Rear Bearing: 6005LLU
• Indexing: 24 Positions with Lock
• Drive Belt: Poly-V Belt 6 Grooves
• Tail Stock Quill Travel: 2-1/2 inch
• Tail Stock Taper: MT2
• Bed Length: 29.4 inch
• Tool Rest Length: 6 inch
• Tool Rest Post Diameter: 1 inch
• Faceplate Diameter: 3 inch
• Certification: CSA C/US 256540
• Floor To Bed Height: 6.7 inch no pads
• Floor To Spindle Center: 13 inch No Pads
• Overall Size (L x W x H): 29.4 x 8.9 x 17.4 inch
• Shipping Dimensions (L x W x H): 35.8 x 14.6 x 20.5 inch
• Net Weight: 118 lbs
• Shipping Weight: 125 lbs
• Shipping Dimensions: 37 x 15 x 21 inch

Revo 15|24 Lathe

With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 and the legendary Revo 18|36, providing space constrained users with more power and capacity.

Features:

• World-class fit and finish Laguna is known for
• Sliding headstock
• Infinite electronic variable speed from 50 - 4200 RPM with a 3 step pulley
• Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
• Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
• Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
• A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center

Optional Accessories:

• Wheel system allows the lathe to be easily moved around the shop (ALAREVO1524 Wheel System)
• 20 inch steel extension fits in two positions for increased spindle or turning capacity (ALAREVO1524 EXTENSION)
• Brand new LED light featuring Chameleon hot/cold to configure perfect work lighting for your shop (ALEDLATHE)

Revo 18|36 Lathe 110 Volt

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity and strength.

Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Specifications:

• Electrical: 1.5HP, 110 Volt, 60 hz
• Motor: Induction, 1725 RPM, TEFC
• VFD: Delta S1 Variable Frequency Drive
• Phase: 1 Phase input, 3 Phase output
• Poly-Groove Drive Belt w EZ Access
• Recommended Breaker: 20 Amp
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 32 inch
• Swing over Banjo: 13-1/2 inch
• Steel Bed: ASTM A36
• Toolrest Post Size: 1 inch
• Spindle Taper: MT#2
• Swing over Bed: 18 inch
• RPM High:135-3500
• RPM Low: 50-1300
• Tailstock Quill: 4-1/2 inch, Engraved, Self-Ejecting
• Floor to Spindle Center: 41-1/2 inch w Pads
• Front Bearing: TPI Taiwan 6207LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index #: 14/36/48 w Lock
• Distance between Centers: 36 inch
• Headstock Through-Bore: 3/8 inch
• Headstock Travel: Full Length
• Tailstock Through-Bore: 3/8 inch
• Tailstock Storage of centers
• Spindle Size: 1-1/4 inch X8 TPI RH
• Floor to Bed: 32-1/2 inch w Pads
• Floor Space: W 60 D 26 H 47 inch
• Weight (Ship): 570 Lbs.

Revo 18|36 Lathe 220 Volt

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity and strength.

Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Specifications:

• Electrical: 2HP, 220 Volt, 60 hz
• Motor: Induction, 1725 RPM, TEFC
• VFD: Delta S1 Variable Frequency Drive
• Phase: 1 Phase input, 3 Phase output
• Poly-Groove Drive Belt w EZ Access
• Recommended Breaker: 20 Amp
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 32 inch
• Swing over Banjo: 13-1/2
• Steel Bed: ASTM A36
• Spindle Taper: MT#2
• Toolrest Post Size: 1 inch
• Swing over Bed: 18 inch
• RPM High:135-3500
• RPM Low: 50-1300
• Tailstock Quill: 4-1/2 inch, Engraved, Self-Ejecting
• Floor to Spindle Center: 41-1/2 inch w Pads
• Front Bearing: TPI Taiwan 6207LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index #: 14/36/48 w Lock
• Distance between Centers: 36 inch
• Headstock Through-Bore: 3/8 inch
• Headstock Travel: Full Length
• Tailstock Through-Bore: 3/8 inch
• Tailstock Storage of centers
• Spindle Size: 1-1/4 inch X8 TPI RH
• Floor to Bed: 32-1/2 inch w Pads
• Floor Space: W 60 D 26 H 47 inch
• Weight (Ship): 570 Lbs

Revo 24|36 Lathe 220 Volt

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity and strength.

Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.

The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection

Specifications:

• Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
• Phase: 1-Phase Input, 3-Phase Output
• Recommended Breaker Size: 15 Amp
• VFD: Delta S1 Variable Frequency Drive
• Remote Control Box w/Speed Settings
• Two Ergonomic Control Panel Positions: High/Low
• Drive Belt: Poly-Groove with EZ Access
• Tailstock Quill: 4-1/2 inch, Engraved, Self-Ejecting
• Floor to Spindle Center: 44 -1/2 inch
• Front Bearing: TPI Taiwan 6307LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index#: 14/36/48 w/Lock
• Distance Between Centers: 36 inch
• Headstock Through-Bore: 3/8 inch
• Headstock Travel: Full Length
• Tailstock Through-Bore: 3/8 inch
• Tailstock Storage of Centers
• Toolrest Post Size: 1 inch
• Spindle Size: 1-1/4 inch X 8 TPI RH
• Floor to Bed: 32-1/2 inch with Pads
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 38 inch
• Swing over Banjo: 19-3/4 inch
• Face Plate: 3 inch Diameter
• Tool Rest: 12 inch
• Steel Bed: ASTM A36
• Headstock Spindle: MT2 taper hardened to 40 deg HRC
• Tailstock Quill: MT2 taper hardened to 40 deg HRC
• Swing Over Bed: 24 inch
• RPM: High: 135-3500 Low: 50-1300
• Dimensions: 60 W x 26 D x 52-1/4 inch H
