Maksiwa Line Boring

HBM.1000
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
HINGE BORING MACHINE 1 PHASE 110V
ALL MAKSIWA ORDERS OF $1,799 OR MORE = FREE FREIGHT, RESIDENTIAL & LIFTGATE
Mfg. item #: HBM.1000
MSW-HBM.1000
lease to own for as little as:$70 per month!
FREE Freight, FREE Residential Delivery, FREE Liftgate & FREE Call ahead Service 1051
NEW ITEM
$3,499.00

4

LBM.13
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
LINE BORING MANUAL 13 SPINDLE LINE 1 PHASE 110V
ALL MAKSIWA ORDERS OF $1,799 OR MORE = FREE FREIGHT, RESIDENTIAL & LIFTGATE
Mfg. item #: LBM.13
MSW-LBM.13
FREE Freight, FREE Residential Delivery, FREE Liftgate & FREE Call ahead Service 1051
$2,199.00

4

LBP.13
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
LINE BORING PNEUMATIC 13 SPINDLE LINE 1 PHASE 110V
ALL MAKSIWA ORDERS OF $1,799 OR MORE = FREE FREIGHT, RESIDENTIAL & LIFTGATE
Mfg. item #: LBP.13
MSW-LBP.13
lease to own for as little as:$53 per month!
FREE Freight, FREE Residential Delivery, FREE Liftgate & FREE Call ahead Service 1051
$2,629.00

4

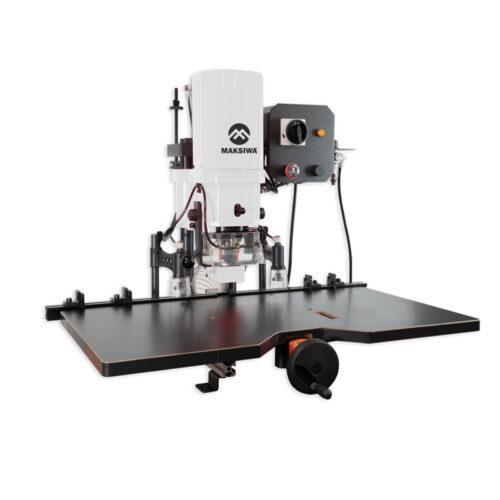

LINE BORING machine hbm.1000

HBM.1000

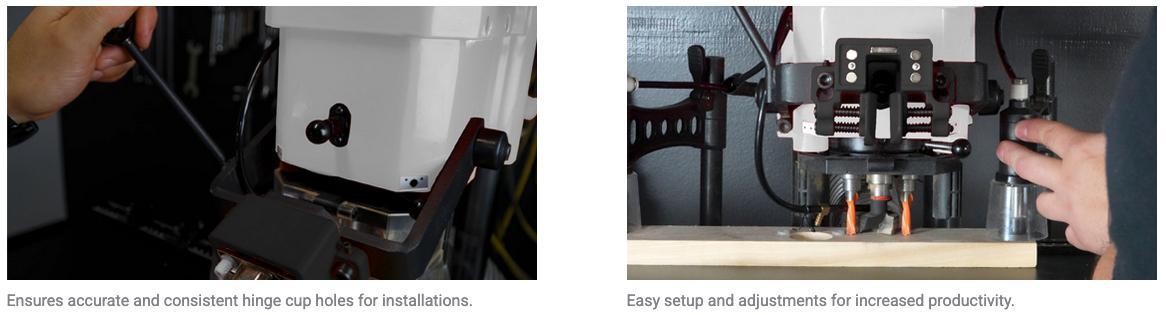

Make it easy to bore and insert hardware efficiently for system and hinge connections.













Technical Information HBM.1000
Electrical specs 1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP
Motor Specs 1 HP / 1.1 KW 3400 RPM
Table Size 18 inch x 31 - 1/2 inch | 460 x 800 MM
Machine table height 5 - 3/8 inch 136MM
Machine table depth 2- 3/4 inch 70MM
Hinge boring Bit Diameter Carbide Tipped - 35mm
Hinge boring Bit Rotation Right
Hinge boring shank 10MM
Hinge boring Length 57MM
Drill bits Diameter Carbide Tipped - 8MM
Drill boring Bits Rotation Left
Drill boring shank 10 MM
Machine Dimensions (LxWxH) 33 7/16 inch x 28 3/8 inch x31 1/2 inch | 850mmx720mmx800mm
Number of Stops 2 Left / 2 Right
Maximum Depth of Stroke 4 - 5/16 inch | 110MM
Boring distance center spindle 0 - 2 3/4 inch | 0 - 70 MM
Air requirement 90 PSI - 3 SCFM
Machine Weight 50Kg 110LBS
Avg Noise emissions 78dB

Features

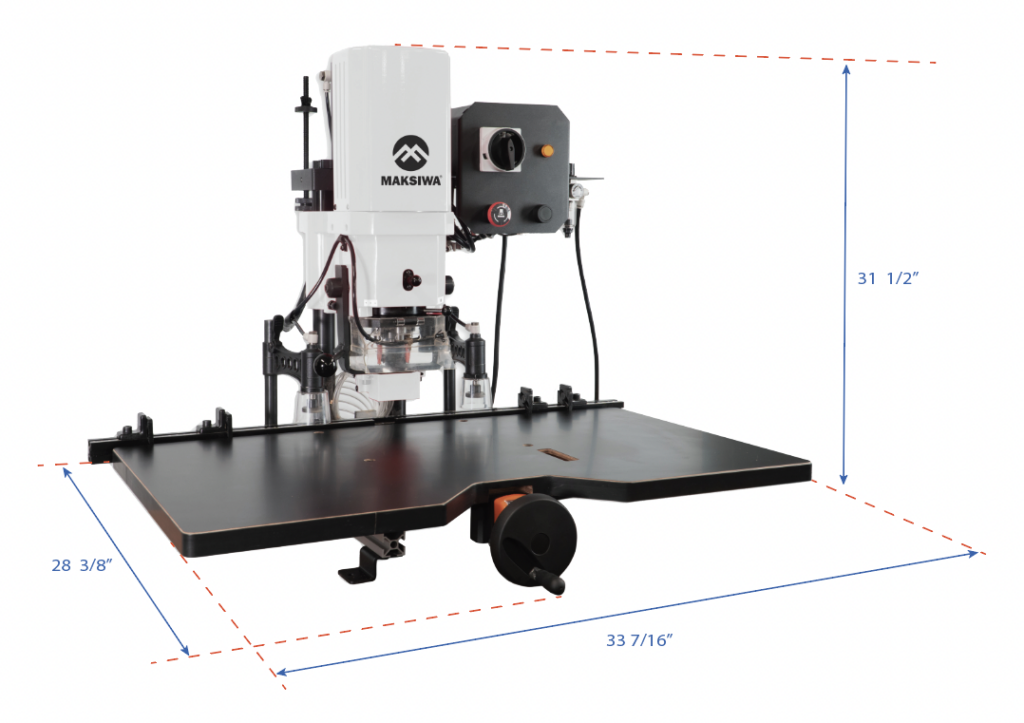

HBM_footprint-1024x723

LINE BORING MANUAL 13 SPINDLE LINE 1 PHASE 110V

Click here to download manual

LBM.13 LINE BORING MANUAL 13 SPINDLE LINE 1 PHASE 110V

Our Line Boring Machines were designed to last, loaded with features such as the lubricated aluminum head, heat treated steel gears, 1 HP motor and stainless-steel spindles. These machines offer carpenters and woodworkers the opportunity to work with the most innovative bench top boring machine currently on the market!











Specifications
Technical Information LBM.13
Motor 1HP 110V 1 Phase 10A 60 HZ
Prewired 110 V, Single - Phase - 10 A / 5 A
Table Size 31 inch x 15 1/2 inch
Spindle Speed 3.450 RPM
Fence Stops 2
Expandable Fence Guide Max 89 inch
Operation Manual
Floor to Table Height 34 inch
Max. Depth of Stroke 2.5 inch
Length of Fence 61.5-5-91.5 inch
Number of Spindles 13 (6 Left and 7 Right)
Distance Between Spindle Centers 32 mm
Shipping Weight 155 Lbs
Warranty 2 years
LBM.13 alt view 1 LBM.13 alt view 2 LBM.13 alt view 3
Click an image to enlarge

LBM-13 Accessories

LINE BORING PNEUMATIC 13 SPINDLE LINE 1 PHASE 110V

Click here to download manual

LBP.13

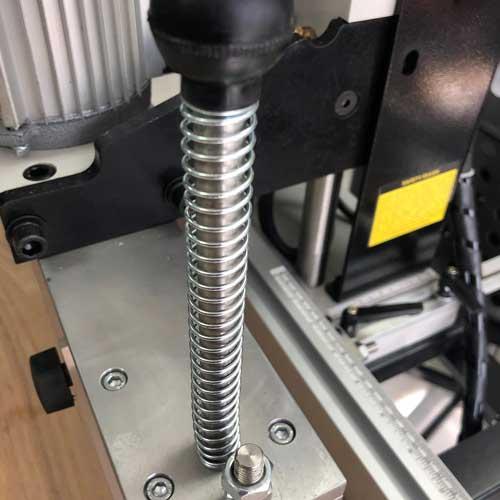

All the same great features of the Manual version with the addition of the pneumatic system, the LBP.13 has a lubricated aluminum head, heat treated steel gears, 1 HP motor, 13 stainless-steel spindles, extendable fence guide up to 89” and 2 fence stops.










Specifications
Technical Information LBP.13
Motor 1HP 110V 1 Phase 10A 60 HZ
Prewired 110 V, Single - Phase - 10 A / 5 A
Table Size 31 inch x 15 1/2 inch
Spindle Speed 3.450 RPM
Fence Stops 2
Expandable Fence Guide Max 89 inch
Operation Pneumatic
Floor to Table Height 34 inch
Max. Depth of Stroke 2.5 inch
Length of Fence 61.5-5-91.5 inch
Number of Spindles 13 (6 Left and 7 Right)
Distance Between Spindle Centers 32 mm
Shipping Weight 155 Lbs
Warranty 2 years
LBp.13 alt view 1 LBp.13 alt view 2 LBp.13 alt view 3
Click an image to enlarge

LBM-13 Accessories
