Technical Sales 1–800–458–3687

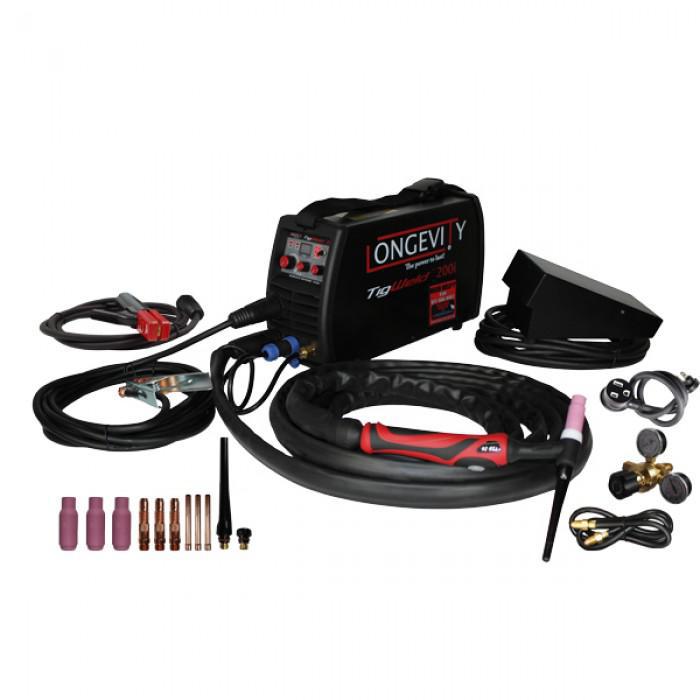

Longevity TigWeld 200i

Compact DC TIG/STICK Welder

This compact, versatile unit offers the user a simple controls to accurately set the welder to perform to perfection on most metals like stainless steel, carbon steel, alloyed steel titanium, etc. The TIGWELD 200i allows the welder to set features like down slope and arc force effortlessly with our easy to use control panel.

Hot Start and Anti-Stick

LONGEVITY has produced a user friendly stick welder with hot start and anti-stick feature insuring your stick welding electrode is less likely to stick to the work piece and fire easily every strike.

Efficient IGBT Inverter Technology

Inverter technology emphasizes portability, yet the efficiency and reliability of the Soft Switching IGBT components allows for the ultimate welding experience.

2T/4T Operation

IThe LONGEVITY TIGWELD 200i allows excellent control whether you are using a TIG torch, the panel or the hand switch control. With the 2T/4T function you can control your arc to the next level. Depending on switch position, the switch will allow the welder to not have to hold the trigger to continue welding easing welding for long period of time.

Stick With Adjustable Arc Force

With Arc Force, you are able to adjust the inductance of the arc for either a crisp arc or soft arc with a fluid puddle. This will allow for greater control of your welding parameters.

Thermal Overload Protection

If you are welding for a long period of time and your duty cycle limit is reached, LONGEVITY’s thermal overload protection will kick on safely shutting down your machine for proper cooling avoiding any damage. Once it cools, you will be able to weld again!

Power Factor Correction (PFC)

LONGEVITY TIGWELD 200i features Power Factor Correction (PFC) allowing the unit to run at maximum efficiency no matter the voltage input. The PFC will allow you to use the machine with input voltages of 95 volts to 270 volts and will automatically adjust the machine for maximum efficiency even if there is a voltage drop.

High Frequency TIG Start

The TIGWELD 160SX is easy to use because it uses High Frequency to strike the arc. This allows you to never have to scratch start for arc. This method keeps your tungsten contamination free, and allows for a cleaner weld.

High Frequency or Lift Arc start

The TIGWELD 200i is safe to operate near hospitals or any other area where high frequency interference may cause issues. The TIGWELD 200i offers the ability to start the arc with lift start which is also ideal to use around electronic devices which may be sensitive to high frequency interference.



Specifications

Input

110v/220v w/ PFC 97v-270v 50/60Hz

AC/DC Function

NO

Technology

IGBT Inverter Technology

Duty Cycle

25% at 200 amps (40 °C, 10min)

Stick Welding Capable

YES

Starting Mechanism

High Frequency and Lift TIG Optional

Dimensions

W: 5.5 x H: 9 x D:17 inch

Weight

21LBS



Model
880370 TigWeld 200i Model -  IGBT 200AMP DC PULSE TIG WELDER + STICK WELDER Auto-Voltage w/ PFC
Accessories
880009 2 percent Thoriated   Tungsten (Red)  1/16 5 kit Tungsten for stainless steel and steel  For  For all TIG welders, WeldAll and WeldMax series
880013 2 percent Thoriated   Tungsten (Red)  3/32 5pc kit Tungsten for stainless steel and steel  For  For all TIG welders, WeldAll and WeldMax series
880011 2 percent Thoriated   Tungsten (Red) 1/8  5pc kit Tungsten for stainless steel and steel  For  For all TIG welders, WeldAll and WeldMax series
880006 2 percent Ceriated   Tungsten (Grey)  1/8 5pc kit Tungsten for all metals(including aluminum)  For  For all TIG welders and WeldAll series
880008 2 percent Thoriated   Tungsten (Red)  1/16 10pc kit Tungsten for stainless steel and steel  For  For all TIG welders, WeldAll and WeldMax series
880012 2 percent Thoriated   Tungsten (Red)  3/32 10pc kit Tungsten for stainless steel and steel  For  For all TIG welders including WeldAll and WeldMax series
880066 2 percent Ceriated   Tungsten (Grey)  1/16 10pc kit Tungsten for all metals(including aluminum) - For all TIG welders and WeldAll series
880007 2 percent Ceriated Tungsten   (Grey)3/32 10pc kit Tungsten for all metals(including aluminum) - For all TIG welders and WeldAll series
880067 2 percent Ceriated   Tungsten (Grey)  1/8 10pc kit Tungsten for all metals(including aluminum)  For  For all TIG welders and WeldAll series
880177 Welding Helmet



880370
CALL FOR PRICING
Mfg. item #: 880370
LON880370
FREE SHIPPING ANYWHERE in lower 48 states21
Call for Price

2417
880009
2%THORIATED TUNGSTEN(RED) 1/165KIT - TUNGSTEN FOR STAINLESS STEEL AND STEEL
Mfg. item #: 880009
LON880009
FREE SHIPPING ANYWHERE in lower 48 states21
$31.54

2417
880013
2%THORIATED TUNGSTEN(RED) 3/325PCKIT - TUNGSTEN FOR STAINLESS STEEL AND STEEL
Mfg. item #: 880013
LON880013
FREE SHIPPING ANYWHERE in lower 48 states21
$38.40

2417
880011
2%THORIATED TUNGSTEN(RED)1/8 5PCKIT - TUNGSTEN FOR STAINLESS STEEL AND STEEL
Mfg. item #: 880011
LON880011
FREE SHIPPING ANYWHERE in lower 48 states21
$45.26

2417
880006
2%CERIATED TUNGSTEN(GREY) 1/85PCKIT - TUNGSTEN FOR ALL METALS(INCLUDING ALUMINUM)
Mfg. item #: 880006
LON880006
FREE SHIPPING ANYWHERE in lower 48 states21
$52.12

2417
880008
2%THORIATED TUNGSTEN(RED) 1/1610PCKIT - TUNGSTEN FOR STAINLESS STEEL AND STEEL
Mfg. item #: 880008
LON880008
FREE SHIPPING ANYWHERE in lower 48 states21
$54.86

2417
880012
2% THORIATED TUNGSTEN(RED) 3/3210PCKIT - TUNGSTEN FOR STAINLESS STEEL AND STEEL
Mfg. item #: 880012
LON880012
FREE SHIPPING ANYWHERE in lower 48 states21
$68.58

2417
880066
2%CERIATED TUNGSTEN(GREY) 1/1610PCKIT - TUNGSTEN FOR ALL METALS(INCLUDING ALUMINUM)
Mfg. item #: 880066
LON880066
FREE SHIPPING ANYWHERE in lower 48 states21
$68.58

2417
880007
2%CERIATEDTUNGSTEN (GREY)3/32 10PC KIT - TUNGSTEN FOR ALL METALS(INCLUDING ALUMINUM)
Mfg. item #: 880007
LON880007
FREE SHIPPING ANYWHERE in lower 48 states21
$75.44

2417
880067
2%CERIATED TUNGSTEN(GREY) 1/810PCKIT - TUNGSTEN FOR ALL METALS(INCLUDING ALUMINUM)
Mfg. item #: 880067
LON880067
FREE SHIPPING ANYWHERE in lower 48 states21
$96.02

2417
880177
POWERVIEW ELITE WELDINGHELMET - WELDING HELMET
Mfg. item #: 880177
LON880177
FREE SHIPPING ANYWHERE in lower 48 states21
$164.61

2417
