M and B Mag Dockplates

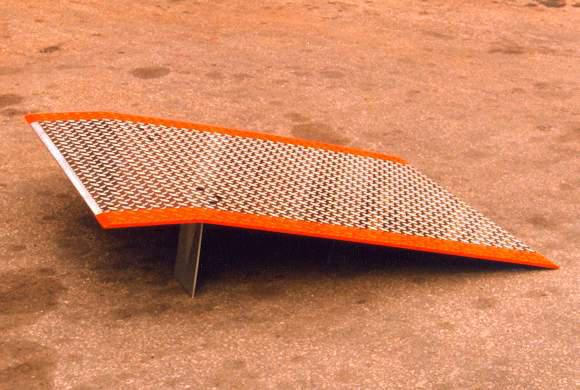

Aluminum Dockplates are for fast, safe, reliable shipping/receiving at today's busy loading dock. Loading ramps are designed and fabricated to maximize safety to personnel during use.

Aluminum Dockplate Specifications
Model # Size
W x L
Maximum
Height
Difference
Axle Load
Capacity
Weight
in. cm in. cm lbs. kg lbs. kg
A 3648
AHD 3648
36 x 48
36 x 48
91 x 122
91 x 122
7
7
17.8
17.8
1,700
3,000
771
1,361
71
97
32
44
A 4248
AHD 4248
42 x 48
42 x 48
107 x 122
107 x 122
7
7
17.8
17.8
2,000
3,500
907
1,587
82
110
37
50
A 4824
AHD 4824
48 x 24
48 x 24
122 x 61
122 x 61
3
3
7.6
7.6
4,500
8,000
2,041
3,630
48
63
22
29
A 4830
AHD 4830
48 x 30
48 x 30
122 x 76
122 x 76
4
4
10.2
10.2
3,600
6,400
1,633
2,903
60
79
27
36
AL 4836
A 4836
AHD 4836
48 x 36
48 x 36
48 x 36
122 x 91
122 x 91
122 x 91
5
5
5
12.7
12.7
12.7
1,250
3,000
5,400
567
1,361
2,449
52
70
94
24
32
43
AL 4842
A 4842
AHD 4842
48 x 42
48 x 42
48 x 42
122 x 107
122 x 107
122 x 107
6
6
6
15.2
15.2
15.2
1,050
2,600
4,600
476
1,179
2,086
60
82
110
27
37
50
AL 4848
A 4848
AHD 4848
48 x 48
48 x 48
48 x 48
122 x 122
122 x 122
122 x 122
7
7
7
17.8
17.8
17.8
900
2,200
4,000
408
998
1,814
67
92
124
30
42
56
A 4860
AHD 4860
48 x 60
48 x 60
122 x 152
122 x 152
9
9
22.9
22.9
1,500
2,700
680
1,224
114
155
52
70
A 6036
AHD 6036
AXHD 6036
60 x 36
60 x 36
60 x 36
152 x 91
152 x 91
152 x 91
5
5
5
12.7
12.7
12.7
3,700
6,700
10,500
1,678
3,039
4,762
86
114
141
39
52
64
AHD 4872 48 x 72 122 x 183 11 27.9 2,000 907 184 83
AXDH 6042 60 x 42 152 x 107 6 15.2 8,500 3,855 172 78
AL 6048
A 6048
AHD 6048
AXHD 6048
60 x 48
60 x 48
60 x 48
60 x 48
152 x 122
152 x 122
152 x 122
152 x 122
7
7
7
7
17.8
17.8
17.8
17.8
1,100
2,800
5,000
7,800
499
1,270
2,268
3,537
83
113
151
186
38
51
68
84
AL 6060
A 6060
AHD 6060
AXHD 6060
60 x 60
60 x 60
60 x 60
60 x 60
152 x 152
152 x 152
152 x 152
152 x 152
9
9
9
9
22.9
22.9
22.9
22.9
880
2,200
3,800
5,800
399
998
1,723
2,630
102
140
189
233
46
63
86
106
A 7236
AHD 7236
AXHD 7236
72 x 36
72 x 36
72 x 36
183 x 91
183 x 91
183 x 91
5
5
5
12.7
12.7
12.7
4,500
8,000
12,600
2,041
3,630
5,714
105
145
166
48
61
75
AXHD 7242 72 x 42 183 x 107 6 15.2 10,000 4,540 205 93
AHD 7248
AXHD 7248
72 x 48
72 x 48
183 x 122
183 x 122
7
7
17.8
17.8
6,000
9,400
2,721
4,263
178
220
81
100
AHD7254
AXHD 7254
72 x 54
72 x 54
183 x 137
183 x 137
8
8
20.3
20.3
5,400
8,100
2,449
3,674
210
260
95
118
A 7260
AHD 7260
AXHD 7260
72 x 60
72 x 60
72 x 60
183 x 152
183 x 152
183 x 152
9
9
9
22.9
22.9
22.9
2,500
4,600
7,000
1,134
2,086
3,175
169
223
275
77
101
125
Additional sizes available. Please contact us for further information.
We reserve the right to make specification, equipment and price changes without notice.
