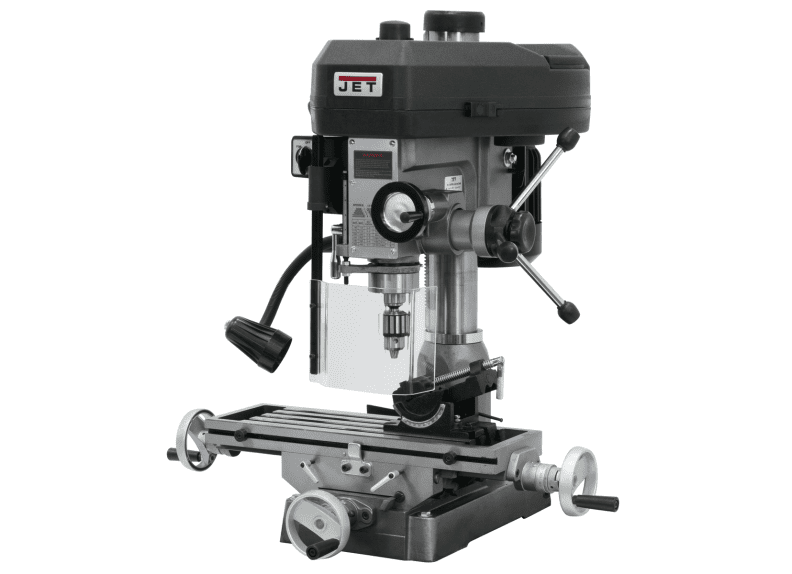

JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph

at a glance
Warranty

JET JMD-15 MILLING AND DRILLING MACHINES, BENCH TOP
350017	JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph

The Jet JMD-15, R-8 Taper, 1HP, 1Ph, 115/230V
has a 2 Year warranty

Download pdf manual

MILLING/DRILLING MACHINES
One-piece cast iron column for added support
Belt cover quick slide latch allows faster belt adjustment to change spindle speeds
Base taper allows for easier clean-up
Larger hand wheel knobs
UL Listed motor
Extra large worktable
Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
360? head swivel
Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
Three power down feeds (JMD-18PFN .004, .007, .01 inch)
Worklamp
Adjustable carbide facemill
Drill press angle vise
1/2 drill chuck, chuck arbor
Draw bar

JET JMD-15 / 15 in MILL DRILL / 350015
Drilling Capacity (In.)	1
Face Mill Capacity (In.)	2-1/2
End Mill Capacity (In.)	1/2
Swing (In.)	14-1/2
Max Distance Spindle to Table (In.)	15

Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	3-1/2
Quill Diameter (In.)	2-7/16
Column Diameter (In.)	3-5/8
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	110 - 2,580
Table Size (L x W) (In.)	7-1/2 x 23
Table Longitudinal Travel (In.)	14
Work Table Weight Capacity (Lbs.)	350
T-Slots Number and Size (In.)	4, 9/16
T-Slot Centers (In.)	1-13/16
Base Dimensions (In.)	12-1/2 x 19-3/4
Motor (HP)	1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	38 x 37-1/2 x 42
Weight (Lbs.)	440

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JetÃÂ® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

Compare

JMD-15 MILL/DRILL WITH R-8 TAPER 115/230V 1PH, MADE IN TAWAIN ** WGT = 457 LBS, , SHIPS: LTL FREIGHT TRUCK

Mfg. item #: JT9-350017

WMH350017

lease to own for as little as:$54 per month!

ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.¹⁰⁵²

$2,718.41
