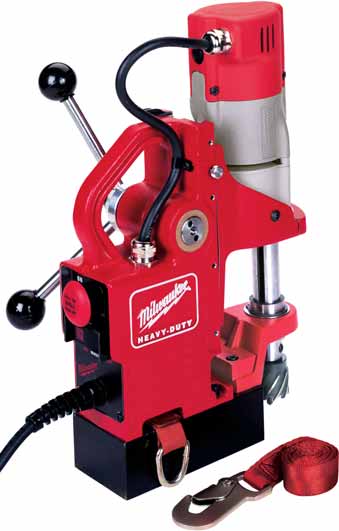

Milwaukee 4270 Mag Drill

s-h alt

Heavy Duty Compact Electromagnetic Drill Presses


  • Lightweight-Only 26.5lbs.

  • Powerful 1.1 Max HP-9.0 Amp Milwaukee motor-enables drilling with up to 1 1/2" diameter annular cutter and 2" depth of cut (D.O.C.)

  • High Strength Magnet-Ensures stability and superior holding force during drilling

  • Accepts 3/4" diameter shank annular cutters

  • World Class Cutting Capacity-1 1/2" dia, annular cutter cap. with a 2" D.O.C./1/2" dia. twist bit capacity with a 4 1/4" D.O.C

  • Simple Two-Button Control Panel-located in back for easy accessibility

  • Tool-Free, 2 Position Feed Handle easily mounts to either side to allow for optimum drilling positions

  • Ergonomically Designed Carrying Handle distributes weight evenly when carrying

  • For use on any flat ferrous material 3/8" and thicker

There are no further details.
Model V/A Speed Wt
4270-20 120V/9A 450 35
4270-21 120V/9A 450 46
There is no further information.

Optional Equipment

  • Impact resistant carrying case

  • 1/2" drill chuck arbor assembly

  • HSS annular cutters

Mfg. item #: 4270-20
"Ships by UPS, see freight calculator at checkout."2

Mfg. item #: 4270-21
"Ships by UPS, see freight calculator at checkout."2
