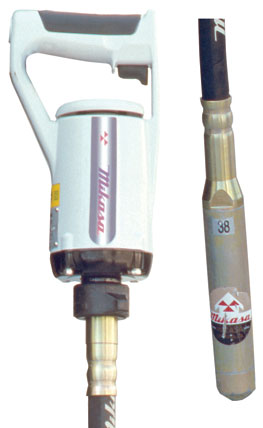

MultiQuip MGX Concrete Vibrator

MGX Series

Ideal for short pours, walls and footings, the MGX-series of handheld vibrators provides exceptional power in a lightweight, user-friendly package

Features

  • Double-insulated motor housing

  • Lightweight, die cast aluminum motor case

  • High performance, durable 280 watt universal motor

  • Front-end closed motor design prevents intrusion of any foreign material

  • Shock absorbing rubber handle grip minimizes vibration and reduces operator fatigue

  • Head/shaft combinations available to fill all your requirements

There are no further details.
Motor Specifications
Model Voltage Watts Amp Weight
MGX-1 120 280 3.8 6.4lbs
MGX 220 280 2.1 6.4lbs



HEad/Shaft Specifications
Head Head In. Shaft Diam. In Amplitude In. Frequency Hz Total Length Ft. Weight lbs.
MGX-12325 .905 .79 .047 200-258 9.5 5.07
MGX-12810 1.10 .98 .070 12,000-15,500 4.7 3.08
MGX-12825 1.10 .98 .070 12,000-15,500 9.5 5.07
MGX-13225 1.25 .98 .075 12,000-15,500 9.5 3.08
MGX-13810 1.5 .98 .079 12,000-15,500 4.7 5/07
MGX-1825 1.5 .98 .079 12,000-15,500 9.5 3.08
MGX-22325 1.10       4.7
MGX-22820 1.10       9.5
MGX-23225 1.25       9.5
MGX-23810 1.50       4.7
There is no further information.
There are no listed accessories.
MGX12325
Mfg. item #: MGX12325
MULMGX12325
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$550.51

202
MGX12810
Mfg. item #: MGX12810
MULMGX12810
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$476.01

202
MGX12825
Mfg. item #: MGX12825
MULMGX12825
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$558.79

202
MGX13225
Mfg. item #: MGX13225
MULMGX13225
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$579.49

202
MGX13810
Mfg. item #: MGX13810
MULMGX13810
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$517.40

202
MGX13825
Mfg. item #: MGX13825
MULMGX13825
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$571.21

202
