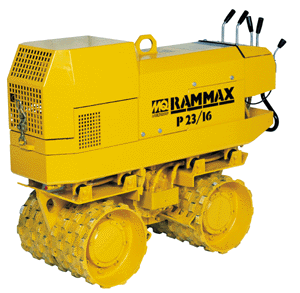

MultiQuip P23/16FR SkidSteer Roller

P23/16FR
This unique walk-behind trench roller series offers a variety of operating widths by simply changing the drums.

This unique walk-behind trench roller series offers a variety of operating widths by simply changing the drums. The P23/16F(R) comes in three drum widths: 16, 20 and 23 inches (40, 50 and 60 cm) allowing operators to get into the narrowest trenches. The crank-start roller is powered by an 8.5-horsepower Farymann 32A diesel engine, has 7,875 pounds (3,572 kg) of centrifugal force and 2,400 vibrations per minute. Manual and infrared remote control versions are available. The P23/16F(R) weighs 1,544 pounds (700 kg).

There are no further details.

Specifications

Performance Data
Travel speed ft. per min. High 0-115, Low 0-52
Centrifugal force lbs. 7868
Vibrations/min 2400
Dynamic linear force/drum, lbs 246
Drive system Hydrostatic
Amplitude, in .070
Hydraulic tank capacity gal. 11.9
Gradeability w/w-o., degrees 23/28
Power Source
# of cylinders 1
Engine cooling system Air
Fuel tank capacity gal. 2.4
Engine model 32A
Engine HP rpm 8.5 @2600
Fuel type Diesel
Engine make Farymann
Starting system Crank
Dimensions
Overall height-in. 35
Overall length-in. 55
Overall width-in. 16
Operating weight lbs 1522
Drum width-in. 16
Drum diameter-in. 14.6
Rammax Accessories
KIT16 16" pad drum & scraper kit
KIT23 23" pad drum & scraper kit
There are no listed accessories.
P23FM
MQ/RAMMAX - TRENCH ROLLERS MANUAL, ** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: P23FM
MULP23FM
Free shipping to most locations in lower 48 states.22
Call for Price

483
P23FR
MQ/RAMMAX - TRENCH ROLLERS REMOTE, ** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: P23FR
MULP23FR
Free shipping to most locations in lower 48 states.22
Call for Price

483
