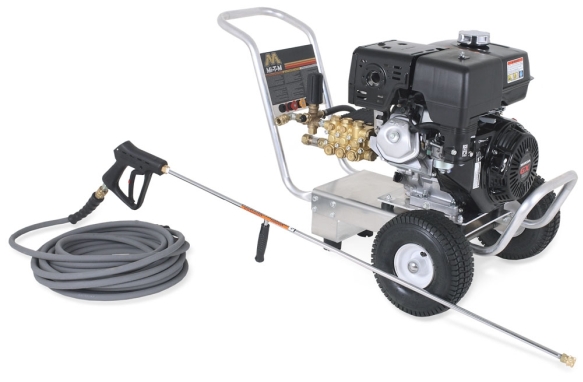

Mi-T-M CA Series Aluminum Gas Pressure Washers

CA-2403-0MHB CA-2703-0MHB CA-2703-0MRB CA-3003-1MaH
CA-3003-1Mak CA-3504-1MaH CA-3504-1Mgh CA-3504-1MasRB

CA-4004-1MaH CA-4004-1MgH CA-4004-1Mas





Models and Accessories
CA-2403-1MMH COLD WATER DIRECT DRIVE
CA-2403-2MMH COLD WATER DIRECT DRIVE
CA-2703-1MMH COLD WATER DIRECT DRIVE
CA-2703-1MMK COLD WATER DIRECT DRIVE
CA-2703-2MMH COLD WATER DIRECT DRIVE
CA-2703-1MMM COLD WATER DIRECT DRIVE
CA-2703-1MMV COLD WATER DIRECT DRIVE
CA-3003-1MAM COLD WATER DIRECT DRIVE
CA-3003-1MAK COLD WATER DIRECT DRIVE
CA-3003-1MAH COLD WATER DIRECT DRIVE
CA-3504-1MAH COLD WATER DIRECT DRIVE
CA-3504-1MAM COLD WATER DIRECT DRIVE
CA-3504-1MAK COLD WATER DIRECT DRIVE
CA-3504-1MGH COLD WATER DIRECT DRIVE
CA-4004-1MAK COLD WATER DIRECT DRIVE
CA-4004-1MAM COLD WATER DIRECT DRIVE
CA-4004-1MGM COLD WATER DIRECT DRIVE
CA-4004-1MAH COLD WATER DIRECT DRIVE
CA-4004-1MCM COLD WATER DIRECT DRIVE
CA-4004-1MAV COLD WATER DIRECT DRIVE
CA-4004-1MGH COLD WATER DIRECT DRIVE
CA-4004-1MCH COLD WATER DIRECT DRIVE
Options
CX-0005 Insulated Dual Lance
CX-0097 External Bypass System
50-0161 High pressure detergent injector
851-0338 50-ft. x 3⁄8-in. non-marking high pressure hose
AW-8400-0021 Low pressure detergent injector
PRESSURE WASHER ACCESSORIES
AW-7500-0035 ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001 ROTARY SURFACE CLEANER - 28" HEAD
AW-3000-0000 WET SANDBLASTER ATTACHMENT
851-0338 4000 PSI HOSE WITH Q/C
851-0095 GUN & WAND ASSEMBLY
AW-4018-0026 ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026 HOUSE & DECK WASH (4 GALLON PER CASE)
AW-4059-0026 HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016 PUMP OIL(12 PINTS PER CASE)







View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degrees) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip
Specifications
Model CA-2403-1MMH
PSI 2400
GPM 2.4
Displacement/Engine 196cc Honda OHV
Net Weight 73 lbs.
Shipping Weight 100 lbs.
Length 39 in.
Width 20.5 in.
Height 24.5 in.



View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degrees) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model CA-2703-1MMH
PSI 2700
GPM 2.4
Displacement/Engine 196cc Honda OHV
Net Weight 73 lbs.
Shipping Weight 100 lbs.
Length 39 in.
Width 20.5 in.
Height 24.5 in.





View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip
Specifications
Model CA-3003-1MAH
PSI 3000
GPM 3.0
Displacement/Engine 270cc Honda OHV
Net Weight 105 lbs.
Shipping Weight 155 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.





View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Subaru OHC engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model CA-3003-1MAK
PSI 3000
GPM 3.0
Displacement/Engine 265cc Subaru OHC
Net Weight 105 lbs.
Shipping Weight 155 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.





View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip
Specifications
Model CA-3504-1MAH
PSI 3500
GPM 3.5
Displacement/Engine 389cc Honda OHV
Net Weight 125 lbs.
Shipping Weight 175 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.





View Product Sheet

  • Pump: Direct drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer, Model comes stardard with external bypass system which allows more water into the system to protect from heat build-up
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model CA-3504-1MGH
PSI 3500
GPM 4.0
Displacement/Engine 389cc Honda OHV
Net Weight 125 lbs.
Shipping Weight 175 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.



View Product Sheet

  • Pump: Direct drive triplex piston AR pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles,  Pneumatic tires with tubes for longer life,  Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip
Specifications
Model CA-4004-1MAH
PSI 4000
GPM 3.5
Displacement/Engine 389cc Honda OHV
Net Weight 125 lbs.
Shipping Weight 175 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.



View Product Sheet

  • Pump: Direct drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Adjustable pressure, Forged brass manifold, Thermal relief valve, In-line water strainer, Model comes stardard with external bypass system which allows more water into the system to protect from heat build-up
  • Engine: Performance-proven Honda OHV engine with low-oil protection
  • Frame: Light, corrosion resistance aluminum frame, 1-inch aluminum tube handles for easier pulling, Patented vibration isolation plate with four rubber isolators for reduced movement, Aluminum base plate and solid full-length axle, Convenient nozzle holder for quick connect nozzles, Pneumatic tires with tubes for longer life, Dual rubber isolators
  • Unit Includes: Quick connect nozzles (0, 15 and 25 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip
Specifications
Model CA-4004-1MGH
PSI 4000
GPM 4.0
Displacement/Engine 389cc Honda OHV
Net Weight 125 lbs.
Shipping Weight 175 lbs.
Length 42.5 in.
Width 23.5 in.
Height 24.5 in.



CA-2403-1MMH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2403-1MMH
MTMCA-2403-1MMH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,230.63

118
CA-2403-2MMH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2403-2MMH
MTMCA-2403-2MMH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,189.21

118
CA-2703-1MMH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2703-1MMH
MTMCA-2703-1MMH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,077.60

118
CA-2703-1MMK
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2703-1MMK
MTMCA-2703-1MMK
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,077.60

118
CA-2703-2MMH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2703-2MMH
MTMCA-2703-2MMH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,084.80

118
CA-2703-1MMM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2703-1MMM
MTMCA-2703-1MMM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$964.80

118
CA-2703-1MMV
COLD WATER DIRECT DRIVE
Mfg. item #: CA-2703-1MMV
MTMCA-2703-1MMV
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,116.00

118
CA-3003-1MAM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3003-1MAM
MTMCA-3003-1MAM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,513.14

118
CA-3003-1MAK
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3003-1MAK
MTMCA-3003-1MAK
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,640.57

118
CA-3003-1MAH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3003-1MAH
MTMCA-3003-1MAH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,776.25

118
CA-3504-1MAH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3504-1MAH
MTMCA-3504-1MAH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,959.49

118
CA-3504-1MAM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3504-1MAM
MTMCA-3504-1MAM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,752.58

118
CA-3504-1MAK
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3504-1MAK
MTMCA-3504-1MAK
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,799.79

118
CA-3504-1MGH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-3504-1MGH
MTMCA-3504-1MGH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,088.39

118
CA-4004-1MAK
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MAK
MTMCA-4004-1MAK
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,790.52

118
CA-4004-1MAM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MAM
MTMCA-4004-1MAM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,799.21

118
CA-4004-1MGM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MGM
MTMCA-4004-1MGM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,802.63

118
CA-4004-1MAH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MAH
MTMCA-4004-1MAH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,886.42

118
CA-4004-1MCM
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MCM
MTMCA-4004-1MCM
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,990.85

118
CA-4004-1MAV
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MAV
MTMCA-4004-1MAV
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$2,058.16

118
CA-4004-1MGH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MGH
MTMCA-4004-1MGH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,129.46

118
CA-4004-1MCH
COLD WATER DIRECT DRIVE
Mfg. item #: CA-4004-1MCH
MTMCA-4004-1MCH
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$2,327.37

118
CX-0005
OPTION-DUAL LANCE
Mfg. item #: CX-0005
MTMCX-0005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$158.02

118
CX-0097
OPTION-EXT BYPASS CA SMALL
Mfg. item #: CX-0097
MTMCX-0097
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$109.96

118
50-0161
ASSY-HIGH PRESSURE CHEM. INJ.
Mfg. item #: 50-0161
MTM50-0161
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$99.45

118
851-0338
HOSE 3/8X50 4000PSI R1 GRAY
Mfg. item #: 851-0338
MTM851-0338
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$114.00

118
AW-8400-0021
Mfg. item #: AW-8400-0021
MTMAW-8400-0021
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$74.38

118
AW-7500-0035
Mfg. item #: AW-7500-0035
MTMAW-7500-0035
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$213.40

118
AW-7020-8001
Mfg. item #: AW-7020-8001
MTMAW-7020-8001
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,984.58

118
AW-3000-0000
Mfg. item #: AW-3000-0000
MTMAW-3000-0000
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

118
851-0095
Mfg. item #: 851-0095
MTM851-0095
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$121.27

118
AW-4018-0026
Mfg. item #: AW-4018-0026
MTMAW-4018-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

118
AW-4034-0026
Mfg. item #: AW-4034-0026
MTMAW-4034-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$21.00

118
AW-4059-0026
Mfg. item #: AW-4059-0026
MTMAW-4059-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

118
AW-4085-0016
Mfg. item #: AW-4085-0016
MTMAW-4085-0016
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$15.00

118
Copyright © 2022 Smith-Hamilton, Inc
0.025 220718 09:18
