Technical Sales 1–800–458–3687

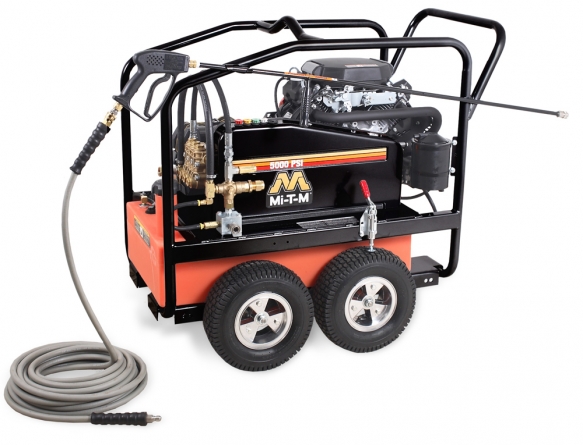

Mi-T-M CWC Series Gas Pressure Washer

CWC-3008-3MGH CWC-5004-3MAH CWC-5004-3MGH CWC-5005-3MGH CWC-6004-3MGH
CWC-3008-3MGH CWC-5004-3MAH CWC-5004-3MGH CWC-5005-3MGH CWC-6004-3MGH





Models and Accessories
CWC-3008-4MGH COLD WATER BELT DRIVE
CWC-5004-4MAH COLD WATER BELT DRIVE
CWC-5004-4MGH COLD WATER BELT DRIVE
CWC-5005-4MGH COLD WATER BELT DRIVE
CWC-6004-4MGH COLD WATER BELT DRIVE
CWC-7004-4MGH COLD WATER BELT DRIVE
Options
851-0089 50-ft. x 1⁄2-in. high pressure hose  (fits  CWC-3008-4MGH)
851-0317 50-ft. x 3⁄8-in. non-marking high pressure hose (fits CWC-5004, CWC-5005 and CWC-6004 models )
851-0420 50-ft. x 3⁄8-in. high pressure hose (fits CWC-7004-4MGH )
AW-0018-0375 Rotating nozzle (fits CWC-6004 and CWC-7004 models )
AW-7500-0035 Rotating nozzle (fits CWC-5004 models )
AW-7500-0045 Rotating nozzle (fits CWC-5005-4MGH)
PRESSURE WASHER ACCESSORIES
AW-7500-0035 ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001 ROTARY SURFACE CLEANER - 28" HEAD
AW-7015-2400 24' TELESCOPIC EXTENTION POLES
AW-3000-0000 WET SANDBLASTER ATTACHMENT
851-0338 4000 PSI HOSE WITH Q/C
851-0095 GUN & WAND ASSEMBLY
AW-4018-0026 ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026 HOUSE & DECK WASH (4 GALLON PER CASE)
AW-4059-0026 HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016 PUMP OIL(12 PINTS PER CASE)







View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Preset stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Safety relief valve, High capacity water filter, Pump oil drain
  • Engine: Performance-proven Honda OHV engine with low-oil protection, Electric start (battery included), Engine oil drain
  • Frame: Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Patented frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook, Pneumatic mag tires with tubes, locking tire brake and solid steel threaded axles
  • Component: Heavy-duty dual cogged belt drive system with case iron pulleys, Easy start valve, Polyethylene tank will not rust, 11.5-gallon capacity fuel tank allows for 8-hour running time
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 1/2-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip
Specifications
Model CWC-3008-3MGH
PSI 3000
GPM 8.0
Displacement/Engine 688cc Honda OHV
Net Weight 388 lbs.
Shipping Weight 511 lbs.
Length 43 in.
Width 27.75 in.
Height 36 in.



View Product Sheet

  • Pump: Belt drive triplex piston AR pump with ceramic plungers, Preset stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Safety relief valve, Water filter with clear sleeve for screen inspection, Pump oil drain
  • Engine: Performance-proven Honda OHV engine with low-oil protection, Electric start (battery included), Engine oil drain
  • Frame: Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Patented frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook, Pneumatic mag tires with tubes, locking tire brake and solid steel threaded axles
  • Component: Heavy-duty dual cogged belt drive system with case iron pulleys, Easy start valve,  Polyethylene tank will not rust, 11.5-gallon capacity fuel tank allows for 8-hour running time
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model CWC-5004-3MAH
PSI 5000
GPM 4.0
Displacement/Engine 688cc Honda OHV
Net Weight 378 lbs.
Shipping Weight 501 lbs.
Length 43 in.
Width 27.75 in.
Height 36 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Preset stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Safety relief valve, Water filter with clear sleeve for screen inspection, Pump oil drain
  • Engine: Performance-proven Honda OHV engine with low-oil protection, Electric start (battery included), Engine oil drain
  • Frame: Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Patented frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook, Pneumatic mag tires with tubes, locking tire brake and solid steel threaded axles
  • Component: Heavy-duty dual cogged belt drive system with case iron pulleys, Easy start valve, Polyethylene tank will not rust, 11.5-gallon capacity fuel tank allows for 8-hour running time
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model CWC-5004-3MGH
PSI 5000
GPM 4.0
Displacement/Engine 688cc Honda OHV
Net Weight 378 lbs.
Shipping Weight 501 lbs.
Length 43 in.
Width 27.75 in.
Height 36 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Preset stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Safety relief valve, Water filter with clear sleeve for screen inspection, Pump oil drain
  • Engine: Performance-proven Honda OHV engine with low-oil protection, Electric start (battery included), Engine oil drain
  • Frame: Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Patented frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook, Pneumatic mag tires with tubes, locking tire brake and solid steel threaded axles
  • Component: Heavy-duty dual cogged belt drive system with case iron pulleys, Easy start valve, Large canister high mount muffler, Polyethylene tank will not rust, 11.5-gallon capacity fuel tank allows for 8-hour running time
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip
Specifications
Model CWC-5005-3MGH
PSI 5000
GPM 5.0
Displacement/Engine 688cc Honda OHV
Net Weight 388 lbs.
Shipping Weight 511 lbs.
Length 43 in.
Width 27.75 in.
Height 36 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Preset stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Safety relief valve, Water filter with clear sleeve for screen inspection, Pump oil drain
  • Engine: Performance-proven Honda OHV engine with low-oil protection, Electric start (battery included), Engine oil drain
  • Frame: Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Patented frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook, Pneumatic mag tires with tubes, locking tire brake and solid steel threaded axles
  • Component: Heavy-duty dual cogged belt drive system with case iron pulleys, Easy start valve, Large canister high mount muffler, Polyethylene tank will not rust, 11.5-gallon capacity fuel tank allows for 8-hour running time
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber gri



Specifications
Model CWC-6004-3MGH
PSI 6000
GPM 3.7
Displacement/Engine 688cc Honda OHV
Net Weight 388 lbs.
Shipping Weight 511 lbs.
Length 43 in.
Width 27.75 in.
Height 36 in.



CWC-3008-4MGH
COLD WATER BELT DRIVE
Mfg. item #: CWC-3008-4MGH
MTMCWC-3008-{01
lease to own for as little as:$121 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,072.45

71
CWC-5004-4MAH
COLD WATER BELT DRIVE
Mfg. item #: CWC-5004-4MAH
MTMCWC-5004-{04
lease to own for as little as:$95 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$4,773.44

71
CWC-5004-4MGH
COLD WATER BELT DRIVE
Mfg. item #: CWC-5004-4MGH
MTMCWC-5004-{05
lease to own for as little as:$112 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,612.26

71
CWC-5005-4MGH
COLD WATER BELT DRIVE
Mfg. item #: CWC-5005-4MGH
MTMCWC-5005-{01
lease to own for as little as:$115 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,730.12

71
CWC-6004-4MGH
COLD WATER BELT DRIVE
Mfg. item #: CWC-6004-4MGH
MTMCWC-6004-{01
lease to own for as little as:$143 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$7,154.11

71
CWC-7004-4MGH
COLD WATER BELT DRIVE
Mfg. item #: CWC-7004-4MGH
MTMCWC-7004-{00
lease to own for as little as:$149 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$7,461.46

71
851-0089
HOSE ASSY 1/2 X 50 4500PSI
Mfg. item #: 851-0089
MTM851-0089
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$259.48

71
851-0317
HOSE 3/8X50 6000PSI R2 GRAY
Mfg. item #: 851-0317
MTM851-0317
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$238.86

71
851-0420
ASSY - HOSE W/QC 7200 PSI
Mfg. item #: 851-0420
MTM851-0420
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$274.03

71
AW-0018-0375
NOZZLE/ROTATING 7300 PSI #4.0
Mfg. item #: AW-0018-0375
MTMAW-0018-0375
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$700.73

71
AW-7500-0035
Mfg. item #: AW-7500-0035
MTMAW-7500-0035
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$213.40

71
Call for price. MTMAW-7500-0045
AW-7020-8001
Mfg. item #: AW-7020-8001
MTMAW-7020-8001
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,984.58

71
AW-7015-2400
Mfg. item #: AW-7015-2400
MTMAW-7015-2400
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

71
AW-3000-0000
Mfg. item #: AW-3000-0000
MTMAW-3000-0000
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

71
851-0338
HOSE 3/8X50 4000PSI R1 GRAY
Mfg. item #: 851-0338
MTM851-0338
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$114.00

71
851-0095
Mfg. item #: 851-0095
MTM851-0095
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$121.27

71
AW-4018-0026
Mfg. item #: AW-4018-0026
MTMAW-4018-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

71
AW-4034-0026
Mfg. item #: AW-4034-0026
MTMAW-4034-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$21.00

71
AW-4059-0026
Mfg. item #: AW-4059-0026
MTMAW-4059-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

71
AW-4085-0016
Mfg. item #: AW-4085-0016
MTMAW-4085-0016
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$15.00

71
